BT Prime-Mover PMX45 Electric Low Lift Pallet Truck Master Parts Manual PDF

Description

BT Prime-Mover PMX45 Electric Low Lift Pallet Truck Master Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime-Mover PMX45 Electric Low Lift Pallet Truck Master Parts Manual – PDF DOWNLOAD

Language : English
Pages : 141
Downloadable : Yes
File Type : PDF

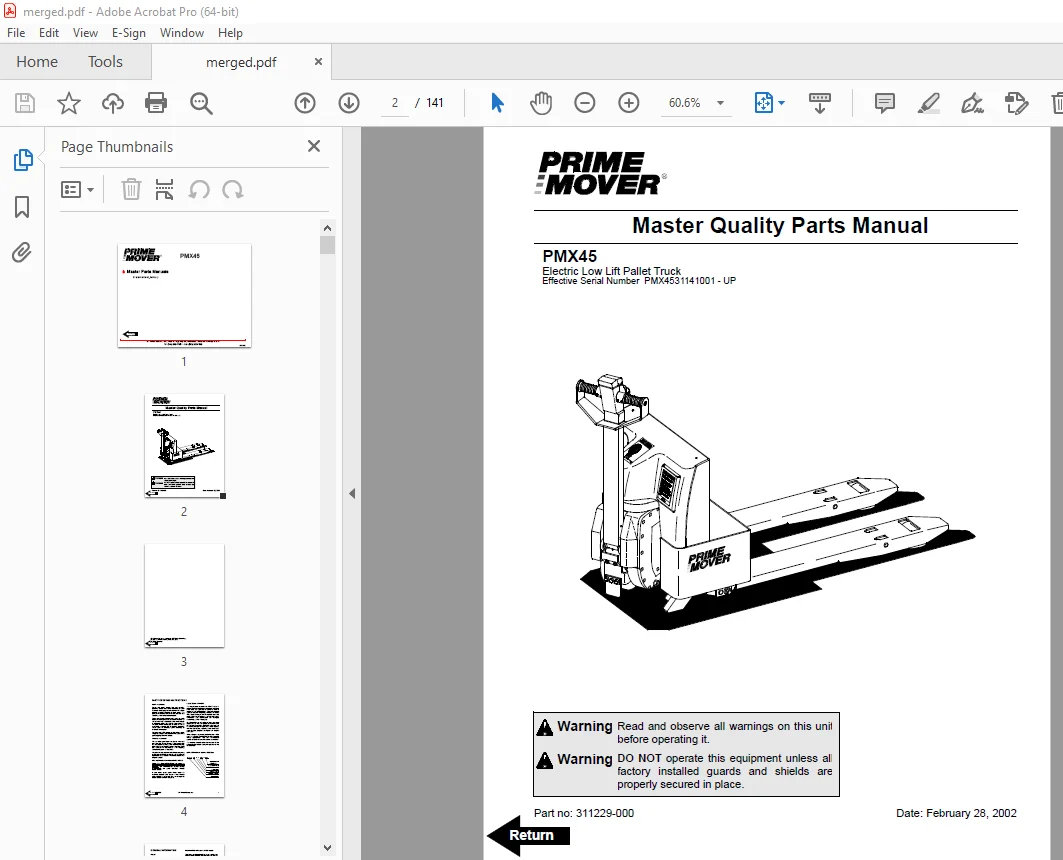

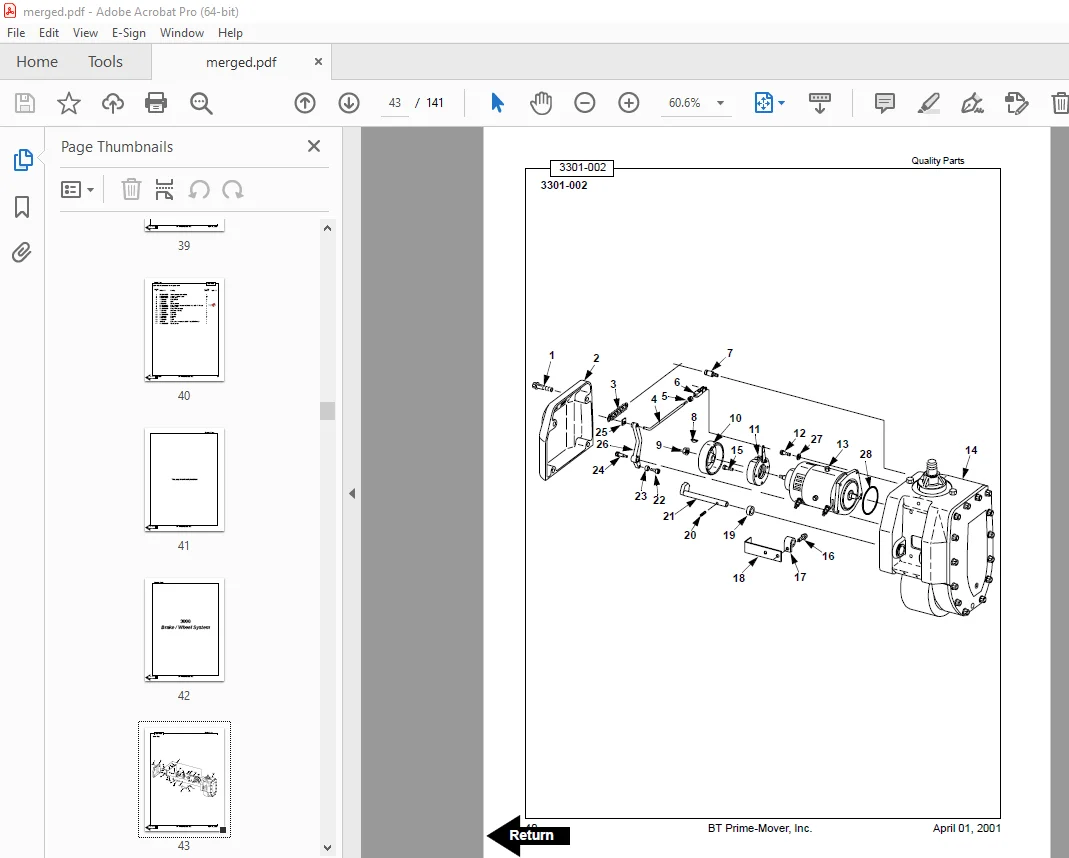

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime-Mover PMX45 Electric Low Lift Pallet Truck Master Parts Manual – PDF DOWNLOAD

Front Cover 2
Parts Ordering Instructions 4
General Information 5
Index 8
0000 Chassis 12
0301-001 Frame / Chassis 14
0341-001 Inspection covers (Shields & guards) 16
0342-101 Inspection covers (“EE” electrical box) 18
0641-000 Drivers controls (Speed & direction) 20
0821-001 Finger / toe guards 22
0821-101 Wrap around toe guard 24
0841-000 Driver protection (Reverser) 26
0850-001 Signs, warnings 28
1000 Motors 30
1750-101 Pump motor 32
1760-102 Drive motor “E” 34
1760-200 Drive motor “EE” 36
2000 Transmission / Drive Gear 38
2551-002 Mechanical drive gear unit 40
3000 Brake / Wheel System 42
3301-002 Parking brake system 44
3361-000 Brake drum / disc assembly 46
3531-000 Drive wheel 48
3541-001 Support / swivel wheel 50
3551-000 Fork / support arm / outrigger wheels 52
4000 Steering System 54
4111-000 Steering arm / wheel (Stem) 56
4112-000 Steering arm / wheel (Head) 58
4181-101 Steering bearing, radial bearing 60
5000 Electrical System 62
5112-000 Battery pack, swing out 64
5112-100 Battery pack, swing out, power wires 66
5113-100 Battery pack (GNB Pallet Pro™ battery pack) 68
5114-000 Battery pack (Optima battery) 70
5161-001 Horn 72
5181-000 Current collector (Static strap “EE”) 74
5191-000 Battery cut out contactor / plug (Battery connector) 76
5192-000 Battery cut out contactor / plug 78
5231-001 Voltage / battery indicator 80
5291-000 Hourmeter / speedometer 82
5311-001 Start / stop switch 84
5331-000 Speed controls 86
5391-000 Control cables / harness (Handle head) 88
5392-002 Control cables / harness (Compartment) 90
5392-100 Control cables / harness (“EE”) 92
5433-001 Motor cables 94
5436-001 Contactor panel 96
5463-000 Drive controller 98
5511-000 Micro switches 100
5521-001 Relay, electrical modules (Relay) 102
5911-000 Power circuit Breaker 104
6000 Hydraulic System 106
6101-002 Hydraulic pump 108
6125-100 Hoses, pipes, connections, mounting points 110
6420-000 Lift cylinder / piston 112
7000 Operating Function – Lifting Device 114
8000 Peripheral / Installation Equipment 116
9000 Options / Attachments 118
9661-101 Electrical heaters 120
9661-200 Compartment heater 122
9720-100 Removable load backrest 124
10000 Tools 126
10010-000 Electrical controllers (Handset) 128
10020-000 Special tools and lubrications 130
11000 Alphabetical/ Numerical Index 132
PMX45 Electrical Truck Alphabetical Index 134
PMX45 Electrical Truck Numerical Index 137
Back Cover 141

DESCRIPTION:

BT Prime-Mover PMX45 Electric Low Lift Pallet Truck Master Parts Manual – PDF DOWNLOAD

Effective Serial Number PMX4531141001 – UP
Part no: 311229-000

HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER
Always order parts from the dealer who sold you your BT Prime-Mover. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
