BT Prime-Mover RR-30 RR-20 Electric Reach Truck Operating & Parts Manual_1973 PDF

Description

BT Prime-Mover RR-30 RR-20 Electric Reach Truck Operating Maintenance & Parts Manual_1973 – PDF DOWNLOAD

FILE DETAILS:

BT Prime-Mover RR-30 RR-20 Electric Reach Truck Operating Maintenance & Parts Manual_1973 – PDF DOWNLOAD

Language : English
Pages : 56
Downloadable : Yes
File Type : PDF

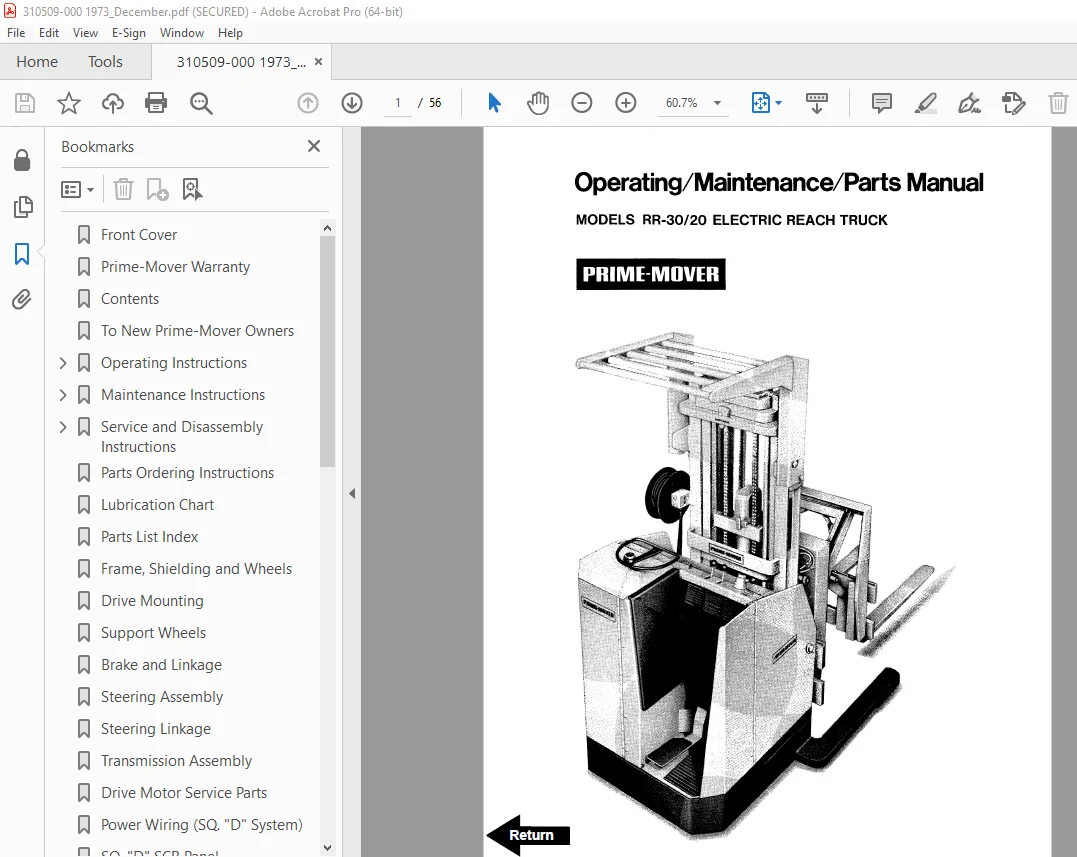

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime-Mover RR-30 RR-20 Electric Reach Truck Operating Maintenance & Parts Manual_1973 – PDF DOWNLOAD

Front Cover 1
Prime-Mover Warranty 2
Contents 3
To New Prime-Mover Owners 3
Operating Instructions 4
Preliminary Service (Reach Truck) 4
Operation 4
Controls 4
Key Switch 4
Deadman Brake 4
Direction Control 4
Lift/Lower Control 5
Tilt (Optional) 5
Horn 5
Auxiliary Hydraulic Controls 5
Reach Control 5
Operator Maintenance Instructions 5
Battery Care 5
Maintenance Instructions 6
Battery 6
Electrical Wiring 6
Control Switches 6
Deadman Brake 6
Interlock Switch 7
Steering Chain 7
Transmission Rollers 7
Contactor Points 7
Motor Commutator 7
Hydraulic System 7
Hydraulic Valve Switch 7
Lift Cylinder 7
Lift Chain 8
Tilt Cylinder 8
Steering Linkage 8
Articulating Plate Adjustment 8
Reach Mechanism 8
Service and Disassembly Instructions 8
Reach Mechanism 8
Mast 8
Tilt Cylinder 8
Mast Anchor Block 9
Cylinder Hoses 9
Hydraulic Lift Cylinder 9
Floor Plate 9
Transmission Assembly 9
Articulating Plate 9
Support Wheel Steering Linkage 9
Support Wheels 9
Load Wheels 10
Drive Wheel 10
Drive Motor 10
SCR Panel 10
SQ “D” Contactor Panel 10
Steering Gear Box 10
Lift Frame 10
Inner Column 10
Brake Disc 10
Brake Cylinders 10
Handle Assembly 10
Parts Ordering Instructions 11
Lubrication Chart 11
Parts List Index 12
Frame, Shielding and Wheels 13
Drive Mounting 15
Support Wheels 16
Brake and Linkage 17
Steering Assembly 19
Steering Linkage 20
Transmission Assembly 23
Drive Motor Service Parts 23
Power Wiring (SQ “D” System) 24
SQ “D” SCR Panel 25
SQ “D” Contactor Panel 26
Control Wiring 27
Schematic for Square D System 28
Control Handle (GE and Square D) 29
“G E ” Electrical Control Panel 30
Power Wiring (“G E ” System) 31
Control Wiring 32
Schematic for GE System 33
Hydraulic Piping 35
Adjusting Linkage 36
Tilt Cylinder Assembly (Optional) 37
Hydraulic Pump and Motor (24V) 38
Pump Motor Service Parts 38
Hydraulic Valve (2 & 3 Spool) 39
Mast (2 Stage) 40
Lift Cylinder Assembly 41
Lift Cylinder Assembly 42
Sheave Head 43
Reach Attachment 45
Hose Reel & Fittings (Brudi) 46
Hose Reel Assembly (Brudi) 47
Mast, 3 Stage (White) 49
Lift Cylinder – 3 Stage Mast 50
Carriage (White) – 3 Stage Mast 51
Hose Reel & Fittings (Aero-Motive) 52
Hydraulic Swivel 52
Hour Meter 53
Battery Discharge Indicator 53
Service Guide 54

DESCRIPTION:

BT Prime-Mover RR-30 RR-20 Electric Reach Truck Operating Maintenance & Parts Manual_1973 – PDF DOWNLOAD

OPERATING INSTRUCTIONS:
PRELIMINARY SERVICE (REACH TRUCK):

• Examine your Prime-Mover Electric Truck carefully to determine whether or not it has been damaged in shipment. Any damage should be immediately reported to the transportation company.
• The new machine should be checked out by a qualified mechanic. A check sheet is sent with each machine. One copy is to be returned to the Prime-Mover Co. to validate warranty and to assure that the user has received a quality Prime- Mover product ready to do its job.
• All operators should be trained before operating this or any materials handling truck. This train- ing should include a study of safe operating practices and actual supervised driving experience. A study of maintenance checks required will also protect the investment in this machine.
• It is recommended that trained and authorized operators be equipped with badges or other visual indication of their authorization. Drivers’ records should also be maintained to encourage good operating practices.
• The operator should be familiar with all opera ting instructions before attempting to operate the machine. Check the transmission oil level and hy- draulic unit oil level before operation. Check to determine that the battery is adequately charged and properly installed and connected.
• The dead man pedal should be checked before each operation. The machine should not be operated if release of the pedal does not shut off electrical power to the drive and set the brakes. A schedule for checking the battery charge and condition is necessary for satisfactory operation of any battery powered truck.
• The direction controls, mast controls and reach control are conveniently located directly ahead of the operator. The manual spool valves located under the shield allow fine metering of the hydraulically operated mechanisms.
