BT Prime Mover SC Electric Counter Balanced Walkie Stacker Parts Manual PDF

Description

BT Prime Mover SC Electric Counter Balanced Walkie Stacker Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime Mover SC Electric Counter Balanced Walkie Stacker Parts Manual – PDF DOWNLOAD

Language : English
Pages : 698
Downloadable : Yes
File Type : PDF

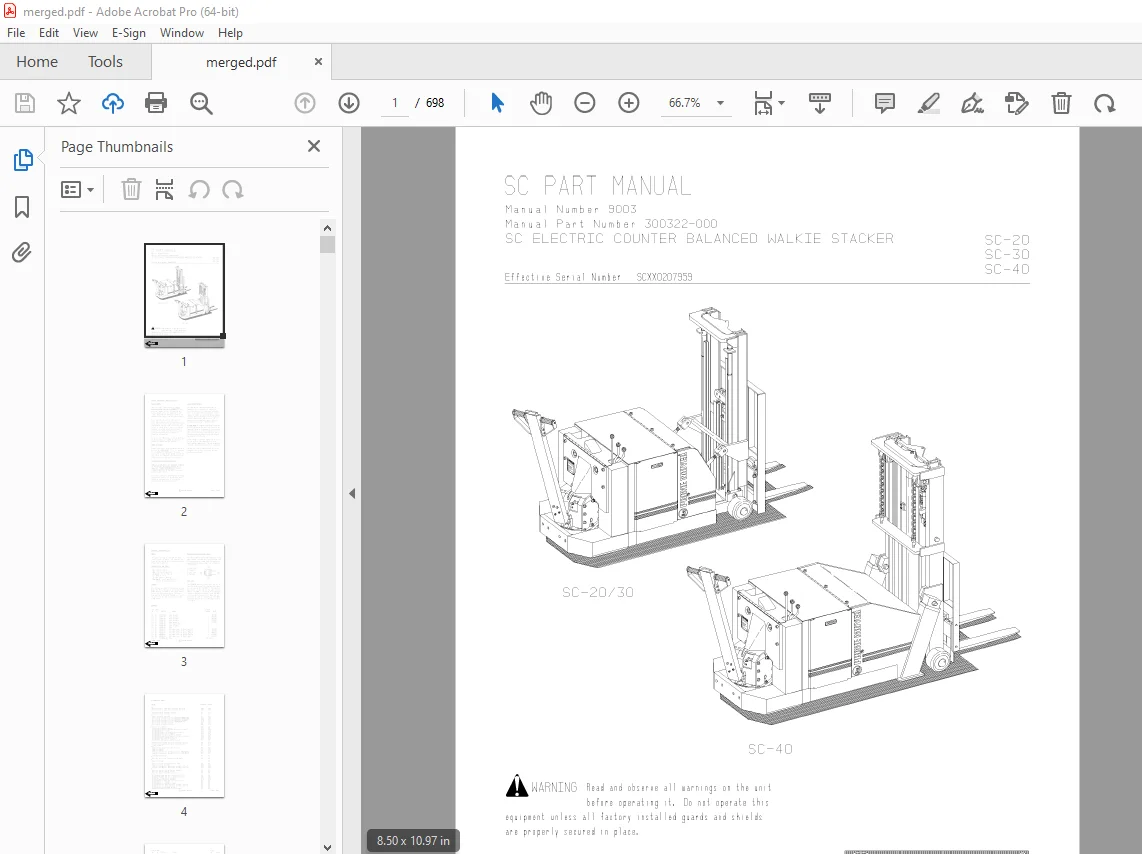

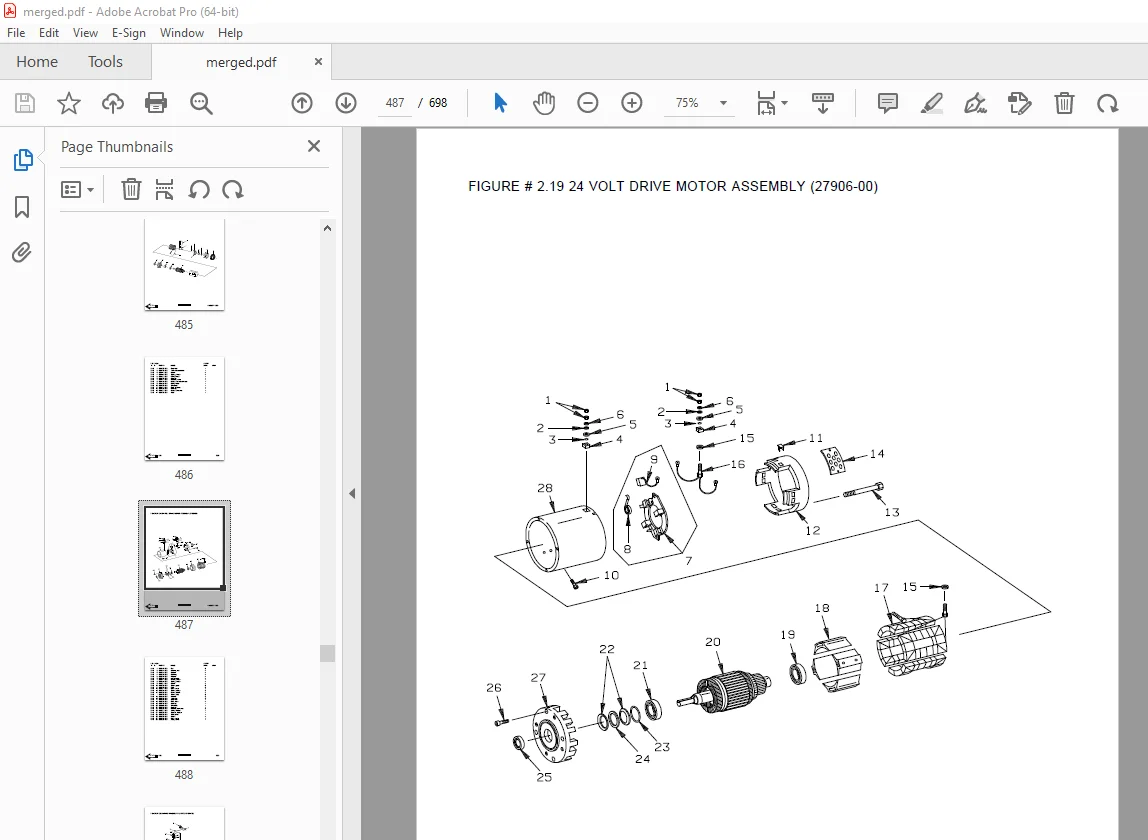

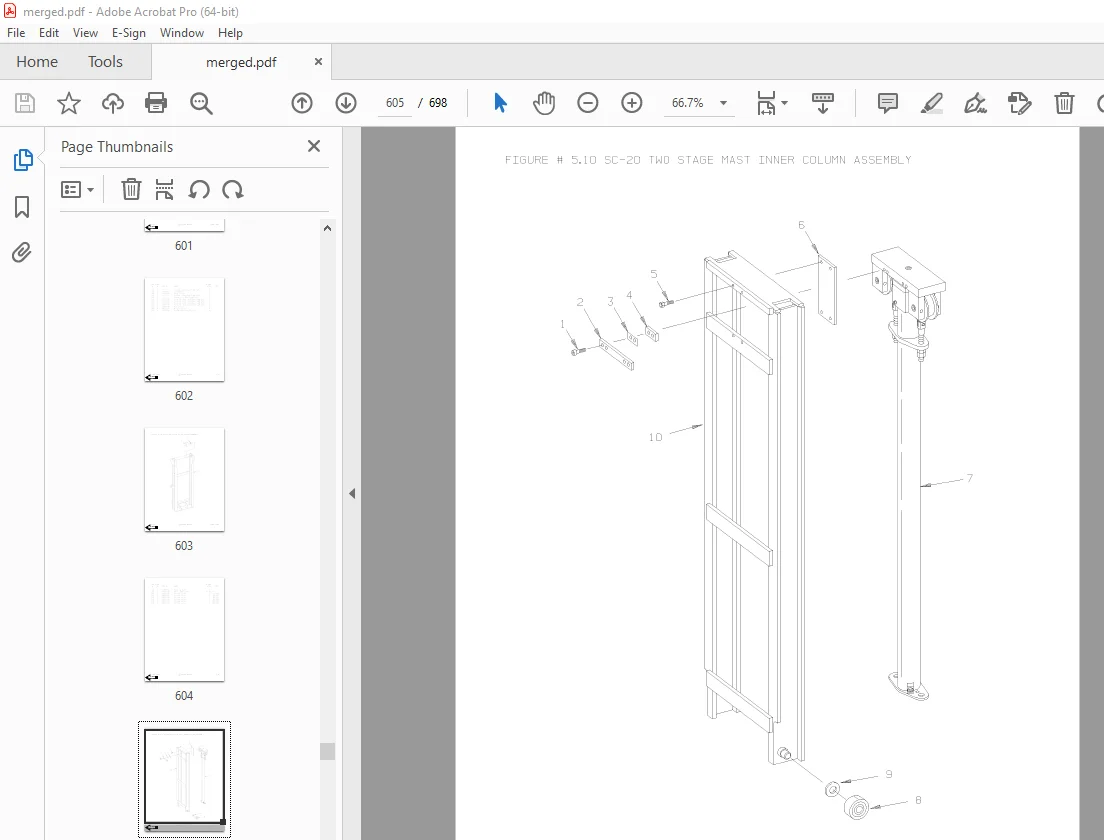

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime Mover SC Electric Counter Balanced Walkie Stacker Parts Manual – PDF DOWNLOAD

Front Cover 1
Parts Ordering Instructions 2
General Information 3
Table of Context 4
0 0 Section 8
Figure # 0 1 8
Figure # 0 2 10
1 0 Section 14
Figure # 1 1 14
Figure # 1 2 16
Figure # 1 3 18
Figure # 1 4 20
Figure # 1 5 22
Figure # 1 6 24
Figure # 1 7 26
Figure # 1 8 28
2 0 Section 30
Figure # 2 1 30
Figure # 2 2 32
Figure # 2 3 34
Figure # 2 4 35
Figure # 2 5 36
Figure # 2 6 38
Figure # 2 7 40
Figure # 2 8 42
Figure # 2 9 44
Figure # 2 10 46
Figure # 2 11 47
Figure # 2 12 48
Figure # 2 13 50
Figure # 2 14 52
Figure # 2 15 54
Figure # 2 16 56
Figure # 2 17 58
Figure # 2 18 60
Figure # 2 19 62
Figure # 2 20 64
Figure # 2 21 66
Figure # 2 22 68
Figure # 2 23 70
Figure # 2 24 72
Figure # 2 25 74
3 0 Section 77
SC20 Hydraulic Section 76
Figure # 3 1 78
Figure # 3 2 79
Figure # 3 3 80
Figure # 3 4 82
Figure # 3 5 84
Figure # 3 6 86
Figure # 3 7 88
Figure # 3 8 90
Figure # 3 9 92
Figure # 3 10 94
Figure # 3 11 96
Figure # 3 12 98
Figure # 3 13 100
Figure # 3 14 102
Figure # 3 15 104
Figure # 3 16 106
Figure # 3 17 108
Figure # 3 18 110
Figure # 3 19 112
Figure # 3 20 114
Figure # 3 21 116
SC30 Hydraulic Section 118
Figure # 3 22 120
Figure # 3 23 121
Figure # 3 24 122
Figure # 3 25 124
Figure # 3 26 126
Figure # 3 27 128
Figure # 3 28 130
Figure # 3 29 132
Figure # 3 30 134
Figure # 3 31 136
Figure # 3 32 138
Figure # 3 33 140
Figure # 3 34 142
Figure # 3 35 144
Figure # 3 36 146
Figure # 3 37 148
Figure # 3 38 150
Figure # 3 39 152
Figure # 3 40 154
Figure # 3 41 156
Figure # 3 42 158
SC40 Hydraulic Section 160
Figure # 3 43 162
Figure # 3 44 163
Figure # 3 45 164
Figure # 3 46 166
Figure # 3 47 168
Figure # 3 48 170
Figure # 3 49 172
Figure # 3 50 174
Figure # 3 51 176
Figure # 3 52 178
Figure # 3 53 180
Figure # 3 54 182
Figure # 3 55 184
Figure # 3 56 186
Figure # 3 57 188
Figure # 3 58 190
4 0 Section 192
Figure # 4 1 192
Figure # 4 2 194
Figure # 4 3 196
Figure # 4 4 198
Figure # 4 5 200
5 0 Section 203
SC20 Mast Section 202
Figure # 5 1 204
Figure # 5 2 206
Figure # 5 3 208
Figure # 5 4 210
Figure # 5 5 212
Figure # 5 6 214
Figure # 5 7 216
Figure # 5 8 218
Figure # 5 9 220
Figure # 5 10 222
Figure # 5 11 224
Figure # 5 12 226
Figure # 5 13 228
Figure # 5 14 230
Figure # 5 15 232
Figure # 5 16 234
Figure # 5 17 236
Figure # 5 18 238
Figure # 5 19 240
Figure # 5 20 242
Figure # 5 21 244
Figure # 5 22 246
SC30 Mast Section 248
Figure # 5 23 250
Figure # 5 24 252
Figure # 5 25 254
Figure # 5 26 256
Figure # 5 27 258
Figure # 5 28 260
Figure # 5 29 262
Figure # 5 30 264
Figure # 5 31 266
Figure # 5 32 268
Figure # 5 33 270
Figure # 5 34 272
Figure # 5 35 274
Figure # 5 36 276
Figure # 5 37 278
Figure # 5 38 280
Figure # 5 39 282
Figure # 5 40 284
Figure # 5 41 286
Figure # 5 42 288
Figure # 5 43 290
Figure # 5 44 292
SC40 Mast Section 294
Figure # 5 45 296
Figure # 5 46 298
Figure # 5 47 300
Figure # 5 48 302
Figure # 5 49 304
Figure # 5 50 306
Figure # 5 51 308
Figure # 5 52 310
Figure # 5 53 312
Figure # 5 54 314
Figure # 5 55 316
Figure # 5 56 318
Figure # 5 57 320
Figure # 5 58 322
Figure # 5 59 324
10 0 Section 326
Figure # 10 1 326
Front Cover 328
Parts Ordering Instructions 329
General Information 330
Alphabetical Index 331
Section 0 0 333
Figure # 0 1 333
Figure # 0 2 335
Section 1 0 337
Figure # 1 1 337
Figure # 1 2 339
Figure # 1 3 341
Figure # 1 4 343
Figure # 1 5 345
Section 2 0 347
Figure # 2 1 347
Figure # 2 2 349
Figure # 2 3 350
Figure # 2 4 351
Figure # 2 5 353
Figure # 2 6 355
Figure # 2 7 357
Figure # 2 8 359
Figure # 2 9 361
Figure # 2 10 363
Figure # 2 11 365
Figure # 2 12 367
Figure # 2 13 369
Section 3 0 371
Figure # 3 1 371
Figure # 3 2 372
Figure # 3 3 373
Figure # 3 4 375
Figure # 3 5 377
Figure # 3 6 379
Figure # 3 7 381
Figure # 3 8 383
Figure # 3 9 385
Figure # 3 10 387
Figure # 3 11 389
Figure # 3 12 391
Figure # 3 13 393
Figure # 3 14 395
Section 4 0 397
Figure # 4 1 397
Figure # 4 2 399
Figure # 4 3 401
Figure # 4 4 403
Figure # 4 5 405
Section 5 0 407
Figure # 5 1 407
Figure # 5 2 409
Figure # 5 3 411
Figure # 5 4 413
Figure # 5 5 415
Figure # 5 6 417
Figure # 5 7 419
Figure # 5 8 421
Section 6 0 423
Figure # 6 1 423
Numerical Index 426
Front Cover 434
Parts Ordering Instructions 435
General Information 436
Alphabeticel Index 437
Section 0 0 441
Figure # 0 1 441
Section 1 0 443
Figure # 1 1 443
Figure # 1 2 445
Figure # 1 3 447
Figure # 1 4 449
Figure # 1 5 451
Figure # 1 6 453
Section 2 0 455
Figure # 2 1 455
Figure # 2 2 456
Figure # 2 3 457
Figure # 2 4 459
Figure # 2 5 461
Figure # 2 6 463
Figure # 2 7 465
Figure # 2 8 467
Figure # 2 9 468
Figure # 2 10 469
Figure # 2 11 471
Figure # 2 12 473
Figure # 2 13 475
Figure # 2 14 477
Figure # 2 15 479
Figure # 2 16 481
Figure # 2 17 483
Figure # 2 18 485
Figure # 2 19 487
Figure # 2 20 489
Section 3 0 492
SC20 Hydraulic Section 492
Figure # 3 1 493
Figure # 3 2 494
Figure # 3 3 495
Figure # 3 4 497
Figure # 3 5 499
Figure # 3 6 501
Figure # 3 7 503
Figure # 3 8 505
Figure # 3 9 507
Figure # 3 10 509
Figure # 3 11 511
Figure # 3 12 513
Figure # 3 13 515
Figure # 3 14 517
Figure # 3 15 519
Figure # 3 16 521
Figure # 3 17 523
Figure # 3 18 525
Figure # 3 19 527
Figure # 3 20 529
Figure # 3 21 531
Figure # 3 21A 533
SC30 Hydraulic Section 536
Figure # 3 22 537
Figure # 3 23 538
Figure # 3 24 539
Figure # 3 25 541
Figure # 3 26 543
Figure # 3 27 545
Figure # 3 28 547
Figure # 3 29 549
Figure # 3 30 551
Figure # 3 31 553
Figure # 3 32 555
Figure # 3 33 557
Figure # 3 34 559
Figure # 3 35 561
Figure # 3 36 563
Figure # 3 37 565
Figure # 3 38 567
Figure # 3 39 569
Figure # 3 40 571
Figure # 3 41 573
Figure # 3 42 575
Section 4 0 577
Figure # 4 1 577
Figure # 4 2 579
Figure # 4 3 581
Figure # 4 4 583
Section 5 0 586
SC20 Mast Section 586
Figure # 5 1 587
Figure # 5 2 589
Figure # 5 3 591
Figure # 5 4 593
Figure # 5 5 595
Figure # 5 6 597
Figure # 5 7 599
Figure # 5 8 601
Figure # 5 9 603
Figure # 5 10 605
Figure # 5 11 607
Figure # 5 12 609
Figure # 5 13 611
Figure # 5 14 613
Figure # 5 15 615
Figure # 5 16 617
Figure # 5 17 619
Figure # 5 18 621
Figure # 5 19 623
Figure # 5 20 625
Figure # 5 21 627
Figure # 5 22 629
SC30 Mast Section 632
Figure # 5 23 633
Figure # 5 24 635
Figure # 5 25 637
Figure # 5 26 639
Figure # 5 27 641
Figure # 5 28 643
Figure # 5 29 645
Figure # 5 30 647
Figure # 5 31 649
Figure # 5 32 651
Figure # 5 33 653
Figure # 5 34 655
Figure # 5 35 657
Figure # 5 36 659
Figure # 5 37 661
Figure # 5 38 663
Figure # 5 39 665
Figure # 5 40 667
Figure # 5 41 669
Figure # 5 42 671
Figure # 5 43 673
Figure # 5 44 675
Section 10 0 677
Figure # 10 1 677
Numerical Index 680

DESCRIPTION:

BT Prime Mover SC Electric Counter Balanced Walkie Stacker Parts Manual – PDF DOWNLOAD

PARTS ORDERING INSTRUCTIONS :
HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER:
Always order parts from the dealer who sold you your BT PRIME MOVER. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
