BT Prime Mover SC Electrical Counter Balanced Walkie Stacker Repair Manual PDF

Description

BT Prime Mover SC Electrical Counter Balanced Walkie Stacker Repair Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime Mover SC Electrical Counter Balanced Walkie Stacker Repair Manual – PDF DOWNLOAD

Language : English
Pages : 222
Downloadable : Yes
File Type : PDF

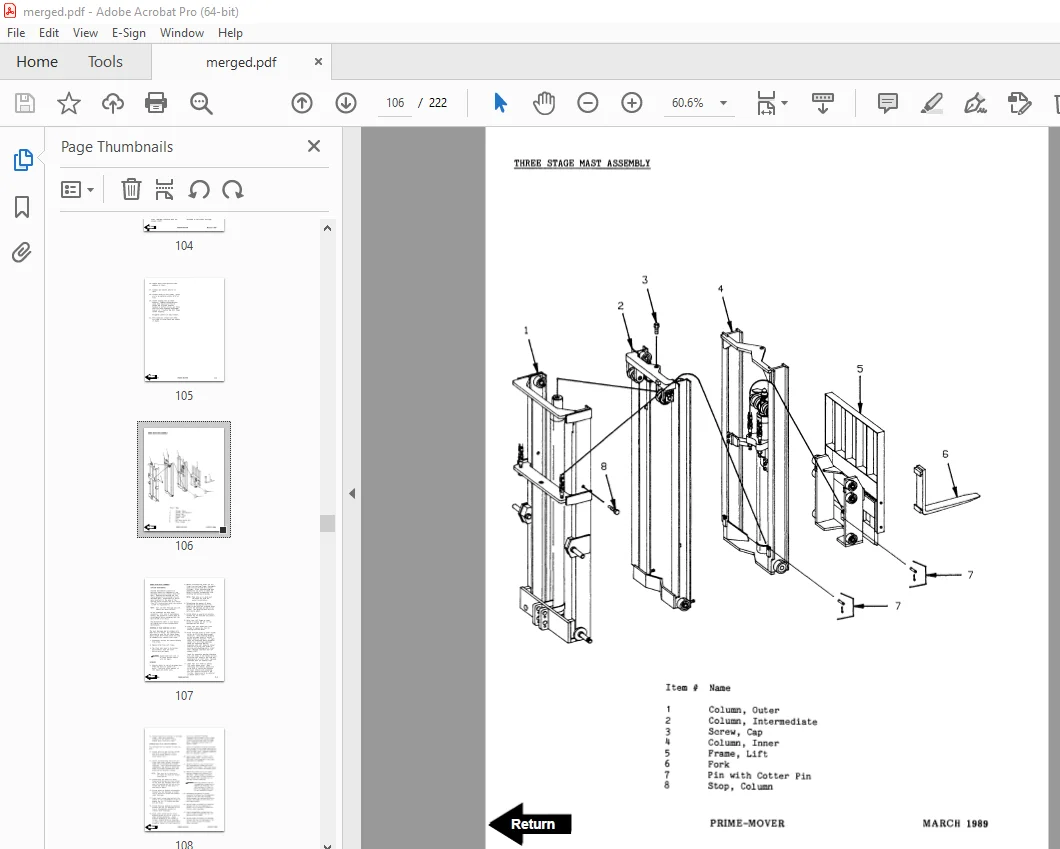

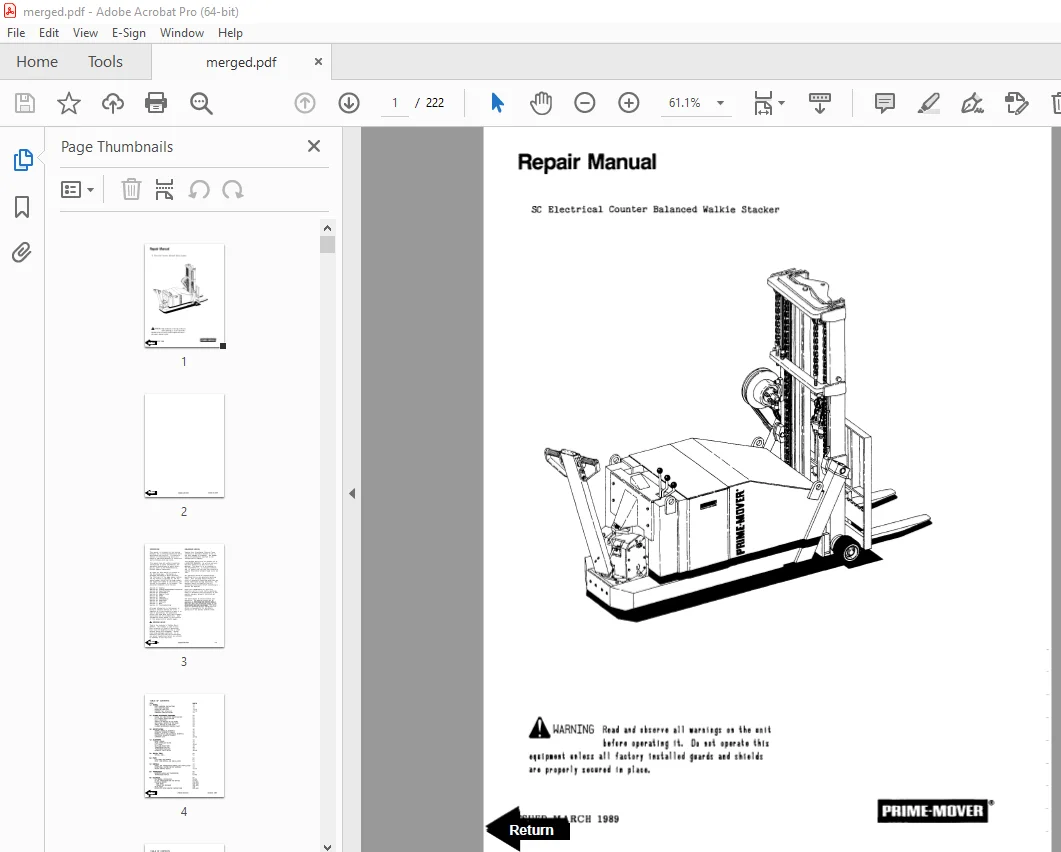

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime Mover SC Electrical Counter Balanced Walkie Stacker Repair Manual – PDF DOWNLOAD

Front Cover 1
Interduction 3
Table of Contents 4
Alphabetized Index 6
Acronym Definition 8
1 0 General 9
Parts Ordering Instructions 10
Field Modifications 10
Operating Practices 12
Warnings 14
Component Identification 16
2 0 Planned Maintenance Procedures 17
Grease and Lub Points 18
Fill Points 19
Planned Maintenance Procedures 20
Inspection Form 20
PM Schedule and Procedure 20
PM Schedule Chart 22
3 0 Specifications 23
General Hydraulic Schematic 24
Hydraulic Schematic Symbols 25
General SCR EV100 Electrical Schematic 26
Electrical Schematic Symbols 27
Component Data 28
4 0 Adjustments 31
Mechanical Brake 32
Interlock Switch 33
Lidt Chain 34
Gear Case Guide Ring 39
Transmission Rollers 39
Backlash on Transmission 39
Control Valve Switches 39
5 0 Specal Tools 41
6 0 Frame 43
Load Wheels 44
Drive Wheel 44
7 0 Controls 45
Handle and Transmission 46
Directional Control Switch 47
8 0 Transmission 51
Remove Handle and Transmission 52
Transmission 54
9 0 Electrical 57
General 58
General SCR EV100 Electrical Schematic 59
EV100 SCR Control 60
EV100 Operation and Maintenance 62
Trouble-Shooting Instructions 65
Checking Components 75
Replacement of EV100 Components 79
High Speed Contactor 80
Forward and Rearward Contactor 82
Drive Motor 84
Prestolite Motor Service Instructions 85
10 0 Hydraulic 91
Lift Pump 92
Lift Control Valve 93
Tilt Cylinder 94
Lift Cylinder 95
SideShifter Cylinder 96
Hose Reel 98
Dual Elbow Swivels 99
11 0 Mast 101
Two Stage Mast 102
Three Stage Mast 106
Sideshifter 110
12 0 Troubleshooting 113
Index for Resistor Trucks 114
Index for EV100 SCR Trucks 115
Front Cover 133
1 0 General 135
Parts Ordering Instructions 136
Field Modifications 136
Operating Practices 138
Component Identification 142
2 0 Planned Maintenance Procedures 143
Grease and Lub Points 144
Fill Points 145
Planned Maintenance Procedures 146
Planned Maintenance Schedule 148
Hydraulic Schematic 149
Hydraulic Schematic Symbols 150
Resistor Electrical Schematic 151
Resistor Electraical Schematic Symbols 152
Transistor Electrical Schematic 153
Transistor Electrical Schematic Symbols 154
Component Data 155
4 0 Adjustments 157
Mechnical Brake 158
Interlock Switch 159
Lift Chain 160
Gear Case Guide Ring 165
Transmission Rollers 165
Transmission Backlash 165
Control Valve Switches 165
5 0 Special Tools 167
6 0 Frame 169
Load Wheels 170
Drive Wheels 170
7 0 Controls 171
Handle and Transission Assembly 172
Directional Control Switch Shimming 173
Master Control Switch 173
8 0 Transmission 177
Remove Handle and Transmission Assembly 178
Transmission and Handle Assembly 179
10 0 Hydraulic 181
Lift Pump 182
Lift Pump Shaft Seal Replacement 182
Cessna Lift Control Valve Assembly 183
Tilt Cylinder 184
Lift Cylinder Reseal 185
Side Shifter Cylinder 186
Sideshifter Cylinder Assembly 186
Hose Reel 188
Dual Elbow Swivel Assembly 189
11 0 Mast 191
Two Stage Mast Assembly 192
Three Stage Mast Assembly 196
Sidshifter Removal 200
12 0 Troubleshooting 203
Resistor Trucks Index 204
EV-100 SCR Truck Index 205

DESCRIPTION:

BT Prime Mover SC Electrical Counter Balanced Walkie Stacker Repair Manual – PDF DOWNLOAD

INTRODUCTION:

• This manual is intended for the service mechanic who is seeking information about maintenance and service. It contains a section on troubleshooting which will enable a qualified mechanic to locate and solve problems which may occur.
• This manual does not contain operation instructions or parts information. For operation instructions or parts infor- mation, refer to The Prime-Mover Co. Product Support Department.
• An index for this manual is located on the following page. The manual is arranged according to major sections. The first part of the page number indica- tes the section it belongs in, and the second number identifies the page number.

The higher the number of the section, the farther in the manual it is located. sectional breakdown is as follows:
Section 01 General
The
Section 02 Planned Maintenance Procedures
Section 03
Specifications
Section 04
Section 05
Adjustments
Special Tools
Section 06 Frame
Section 07
Controls
Section 08
Transmission
Section 09 Electrical
Section 10
Hydraulic
Section 11 Mast
Section 12 Troubleshooting
Although information in this manual is based on industry sources and is as complete as it was possible to make it at time of publication, the possiblity exists that some made later have changes, which could not be included here. Such information would appear in next edition of this manual and in updated pages.
