BT-Prime Mover TWX Electric Walkie Tow Tractor Parts Manual – PDF DOWNLOAD

Description

BT-Prime Mover TWX Electric Walkie Tow Tractor Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT-Prime Mover TWX Electric Walkie Tow Tractor Parts Manual – PDF DOWNLOAD

Language : English
Pages : 63
Downloadable : Yes
File Type : PDF

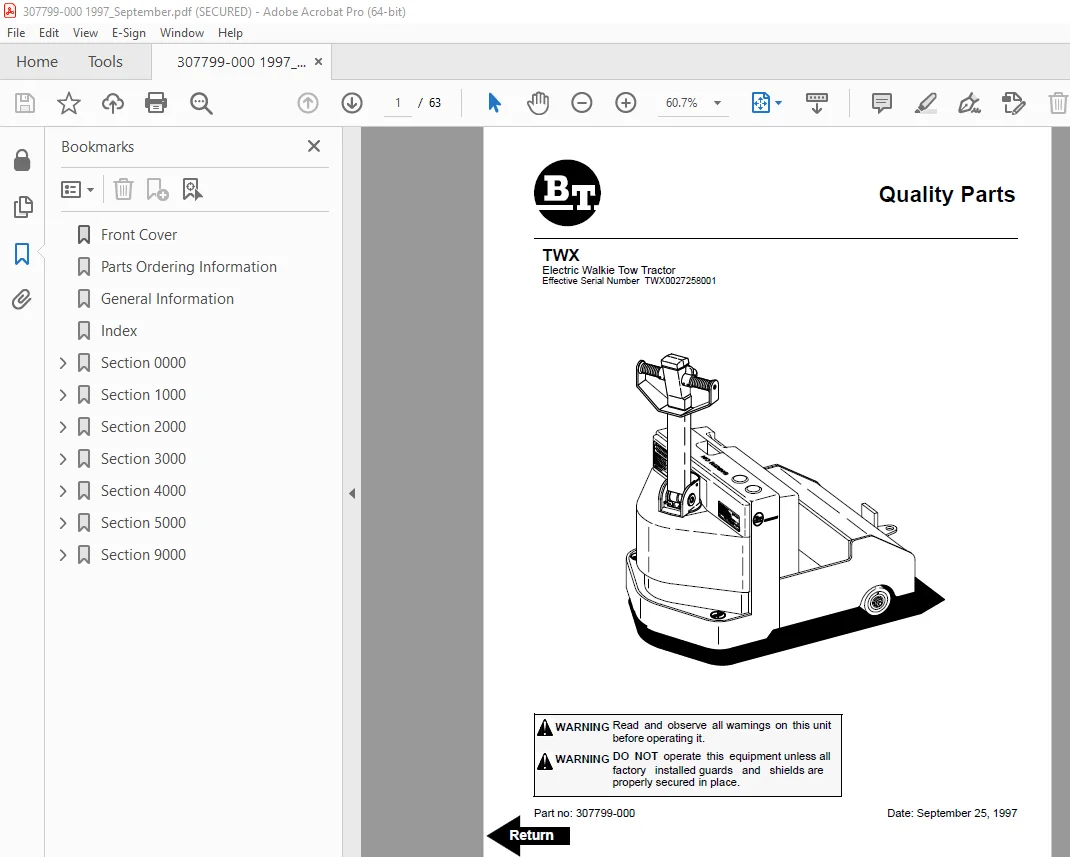

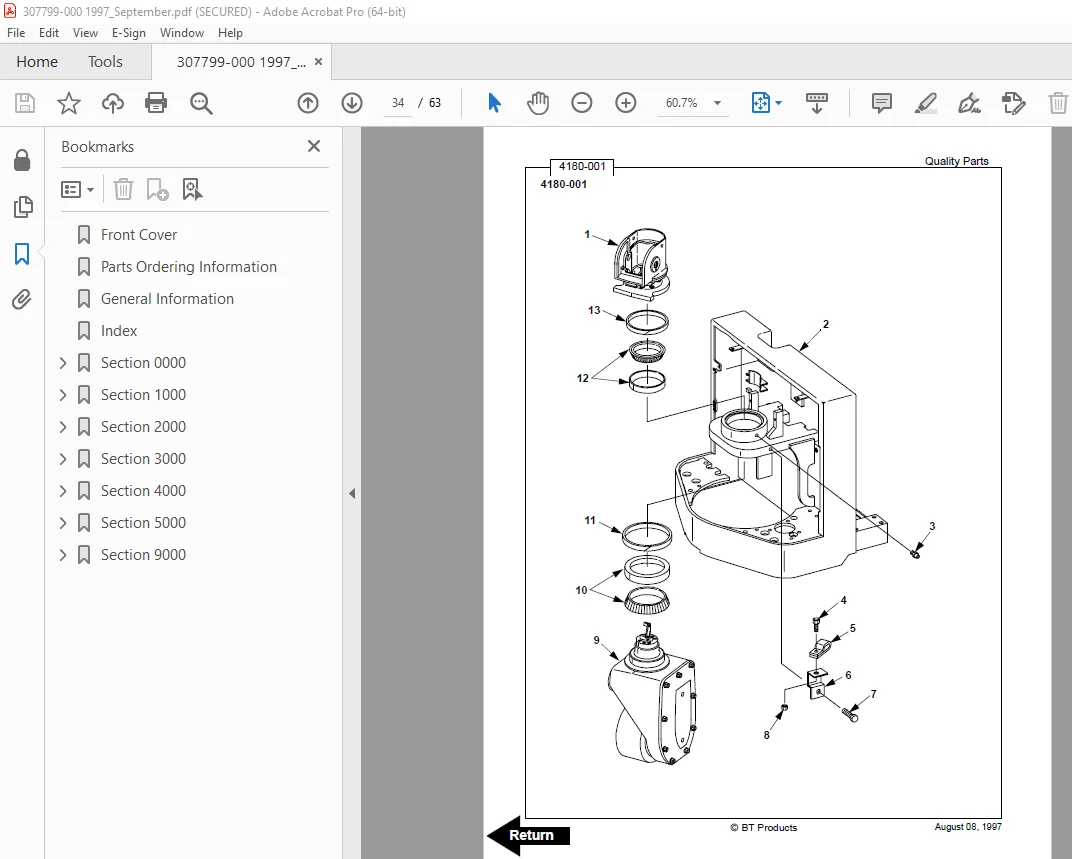

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT-Prime Mover TWX Electric Walkie Tow Tractor Parts Manual – PDF DOWNLOAD

Manual Part no: 307799-000
Effective Serial Number TWX0027258001

Front Cover 1
Parts Ordering Information 2
General Information 3
Index 5
Section 0000 8
0300-008 Frame / Chassis 9
0340-025 Inspection covers (Shields & guards) 11
0370-002 Counter balance weight 13
0640-016 Drivers controls (Speed & direction) 15
0840-011 Driver protection (Reverser) 17
0850-013 Decals, Warnings 19
Section 1000 20
1700-004 Electrical drive motor (24 Volt 300/400 AMP traction system) 21
Section 2000 22
2550-001 Mechanical drive gear unit 23
Section 3000 24
3300-001 Parking brake system (300 AMP traction system) 25
3360-000 Brake drum/disc assembly 27
3530-001 Drive wheel 29
3550-008 Fork / support arm / outrigger wheels 31
Section 4000 32
4110-008 Steering arm / wheel 33
4180-001 Steering / radial bearing 35
Section 5000 36
5160-000 General alarm signal 37
5190-024 Battery cut out contactor / plug (Line contactor) 39
5190-025 Battery cut out contactor / plug (battery connector) 41
5230-002 Voltage / battery indicator 43
5290-001 Hourmeter / speedometer 45
5310-017 Start / stop switch 47
5330-011 Speed controls 49
5390-000 Control cables / harnesses 51
5430-000 Motor cables, resistors (300AMP traction system) 53
5460-014 Transistor panel (300 AMP traction system) 55
5510-001 Micro switches 57
Section 9000 58
9510-000 Towing hook 59
9910-000 Electrical controllers (Handset) 61
9999-000 Special tools and lubrications 63

DESCRIPTION:

BT-Prime Mover TWX Electric Walkie Tow Tractor Parts Manual – PDF DOWNLOAD

Manual Part no: 307799-000
Effective Serial Number TWX0027258001

HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
•  Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER:
Always order parts from the dealer who sold you your BT. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
