BT-Prime Mover WSX 22 WSX 30 WSX 40 Electric Straddle Stacker Truck Parts Manual PDF

Description

BT-Prime Mover WSX 22 WSX 30 WSX 40 Electric Straddle Stacker Truck Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT-Prime Mover WSX 22 WSX 30 WSX 40 Electric Straddle Stacker Truck Parts Manual – PDF DOWNLOAD

Language : English
Pages : 148
Downloadable : Yes
File Type : PDF

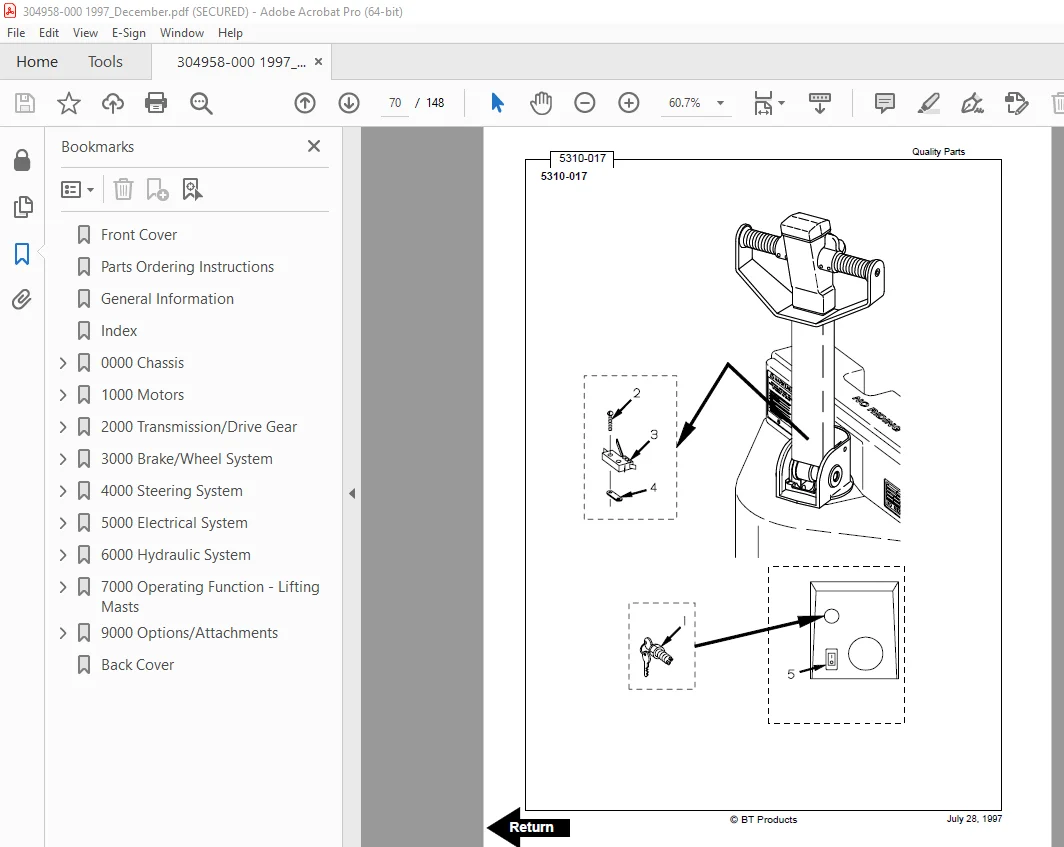

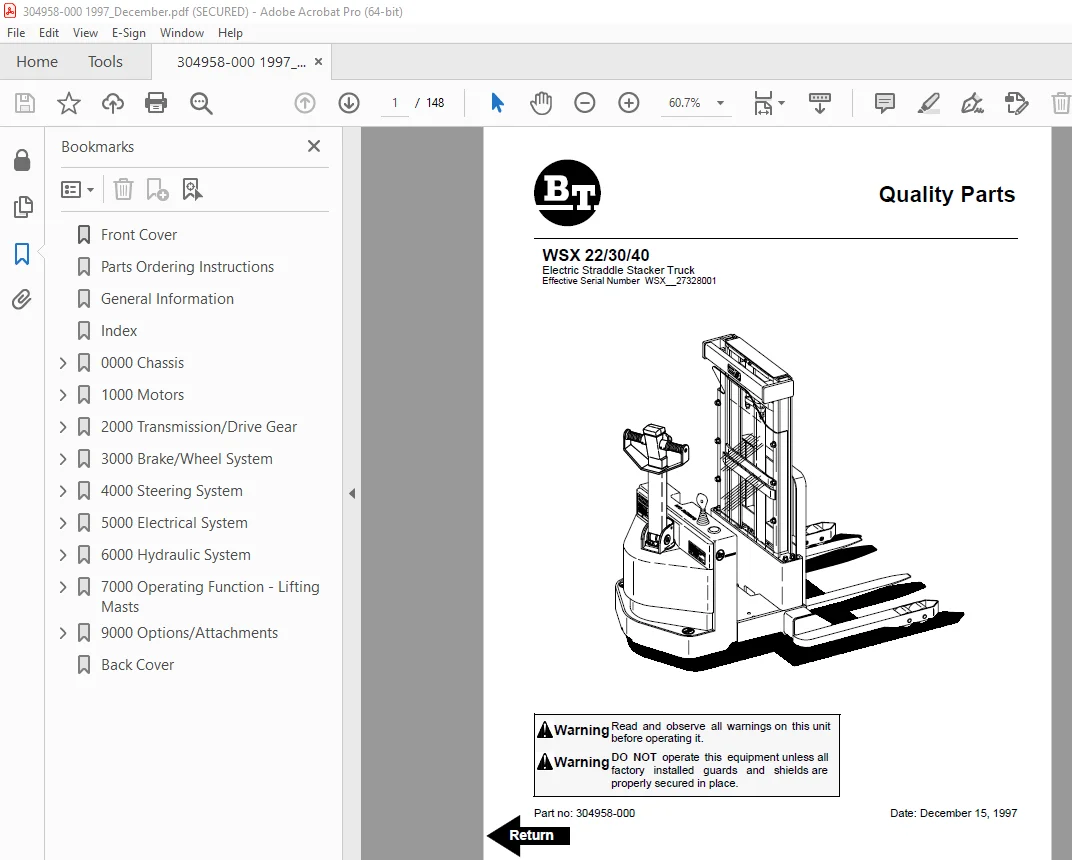

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT-Prime Mover WSX 22 WSX 30 WSX 40 Electric Straddle Stacker Truck Parts Manual – PDF DOWNLOAD

Front Cover 1
Parts Ordering Instructions 2
General Information 3
Index 5
0000 Chassis 8
0300-006 Frame / Chassis 9
0340-000 Inspection covers 11
0340-002 Inspection covers (“EE” electrical box) 13
0390-000 Battery compartment parts (7” battery) 15
0390-001 Battery compartment parts (13 3” battery) 17
0390-007 Battery compartment parts (9 0” battery) 19
0390-008 Battery compartment parts (Encloser) 21
0640-003 Drivers controls (one spool valve handle) 23
0640-006 Drivers controls (Sideshifter/Auxiliary t 25
0640-016 Drivers controls (Speed & direction) 27
0820-001 Finger / toe guards 29
0840-011 Driver protection 31
0850-001 Signs, warnings 33
1000 Motors 34
1700-002 Electrical drive motor (200AMP traction s 35
1700-014 Electrical drive motor (24 Volt 200 Amp t 37
2000 Transmission/Drive Gear 38
2550-001 Mechanical drive gear unit 39
3000 Brake/Wheel System 40
3300-000 Parking brake system (200 AMP traction sy 41
3360-000 Brake drum/disc assembly 43
3530-001 Drive wheel 45
3540-002 Support / swivel wheel 47
3550-002 Fork / support arm wheels 49
3560-001 Stabilizer wheel 51
4000 Steering System 52
4110-019 Steering arm / wheel 53
4180-001 Steering / radial bearing 55
5000 Electrical System 56
5160-011 General alarm signal 57
5180-000 Current collector, cable drum 59
5190-007 Battery cut out contactor / plug (Battery 61
5190-009 Battery cut out contactor / plug (Battery 63
5190-010 Battery cut out contactor / plug (200 AMP 65
5230-002 Voltage / battery indicator 67
5290-001 Hourmeter / speedometer 69
5310-017 Start / stop switch 71
5330-011 Speed controls 73
5390-001 Control cables / harnesses 75
5430-011 Motor cables, resistors (200 AMP traction 77
5460-015 Transistor panel (200 AMP traction system 79
5510-010 Micro switches 81
5610-000 Pump contactor 83
5810-002 Pump motor 85
6000 Hydraulic System 86
6100-000 Hydraulic pump (Model # DM-1005) 87
6100-001 Hydraulic pump (Model # DM-1006) 89
6110-001 Hydraulic tank 91
6120-001 Hoses, pipes, connections, mounting point 93
6125-002 Hoses, pipes, connections, mounting point 95
6125-003 Hoses, pipes, connections, mounting point 97
6125-004 Hoses, pipes, connections, mounting point 99
6160-001 Control valve (one spool control valve) 101
6160-002 Control valve (Two spool control valve) 103
6170-001 Pressure / flow control valve 105
7000 Operating Function – Lifting Masts 106
7110-001 Mast section (two stage mast) 107
7110-002 Mast section (two stage mast) 109
7110-003 Mast section (three stage mast) 111
7170-001 Lifting gear (two stage mast) 113
7170-002 Lifting gear (two/three stage mast) 115
7210-001 Sideshifter / fork spreader 117
7310-001 Lift cylinder (two stage mast) 119
7310-002 Lift cylinder (two stage mast) 121
7310-005 Lift cylinder (Three stage mast freelift 123
7310-006 Lift cylinder (Three stage mast staging c 125
7410-001 Fork, carpet boom, hook 127
7420-001 Fork carriage unit (two stage mast) 129
7420-002 Fork carriage unit (two stage mast) 131
7420-004 Fork carriage unit (three stage mast) 133
9000 Options/Attachments 134
9100-000 Attachments (Sideshifter/Auxiliary two st 135
9100-001 Attachments (Sideshifter/Auxiliary three 137
9370-003 Warning lights / alarm 139
9390-000 Positioning equipment 141
9500-006 Extra mechanical equipment 143
9660-000 Electrical heater 145
9910-000 Electrical controllers (Handset) 147
Back Cover 148

DESCRIPTION:

BT-Prime Mover WSX 22 WSX 30 WSX 40 Electric Straddle Stacker Truck Parts Manual – PDF DOWNLOAD

Manual Part no: 304958-000
Effective Serial Number WSX__27328001

PARTS ORDERING INSTRUCTIONS:
HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplving this information will assure prompt. efficient handling of vour order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If. for some reason. the part is not in stock. he will order it from the factory. In either event. he maintains a current file of service manuals. which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER:
Always order parts from the dealer who sold vou vour BT Prime-Mover. If it is necessarv for the dealer to order parts from the factory. he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
