BT Prime-Mover WSX-OS Electric Walkie Straddle Order Selector Operator’s Manual PDF

Description

BT Prime-Mover WSX-OS Electric Walkie Straddle Order Selector Operator’s Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime-Mover WSX-OS Electric Walkie Straddle Order Selector Operator’s Manual – PDF DOWNLOAD

Language : English
Pages : 76
Downloadable : Yes
File Type : PDF

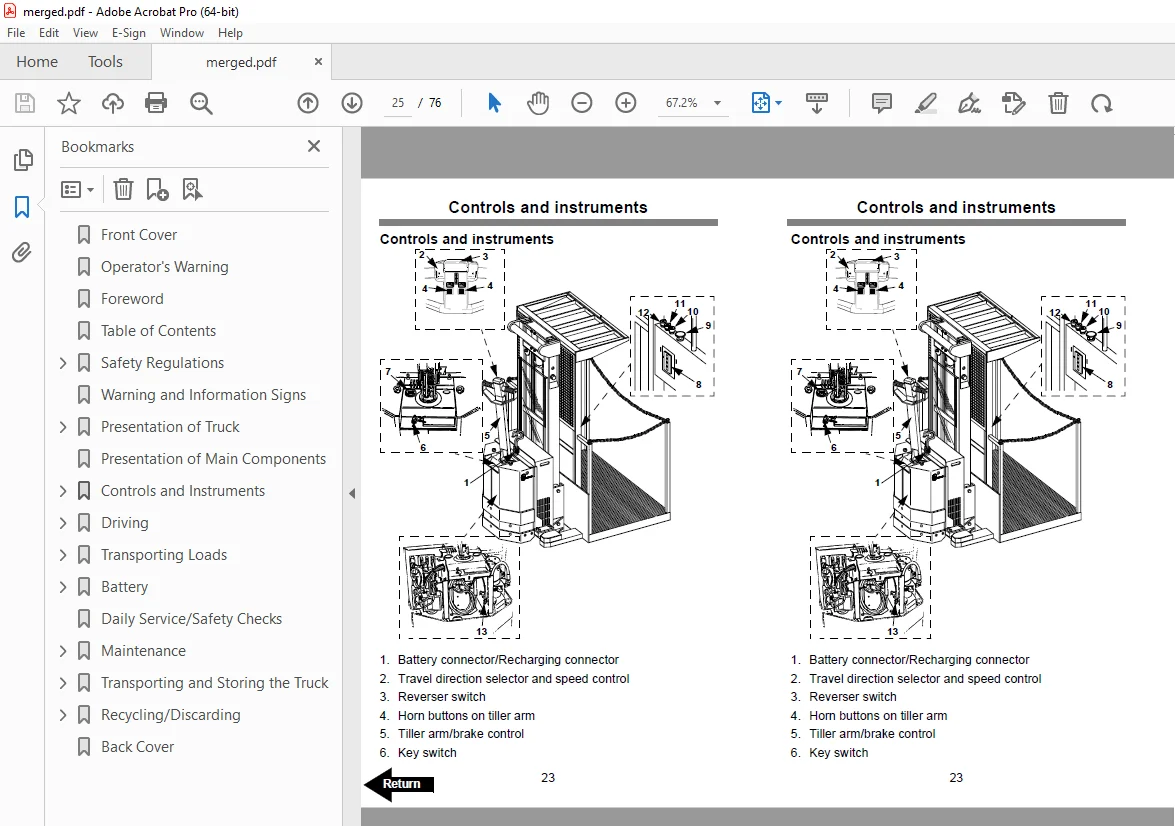

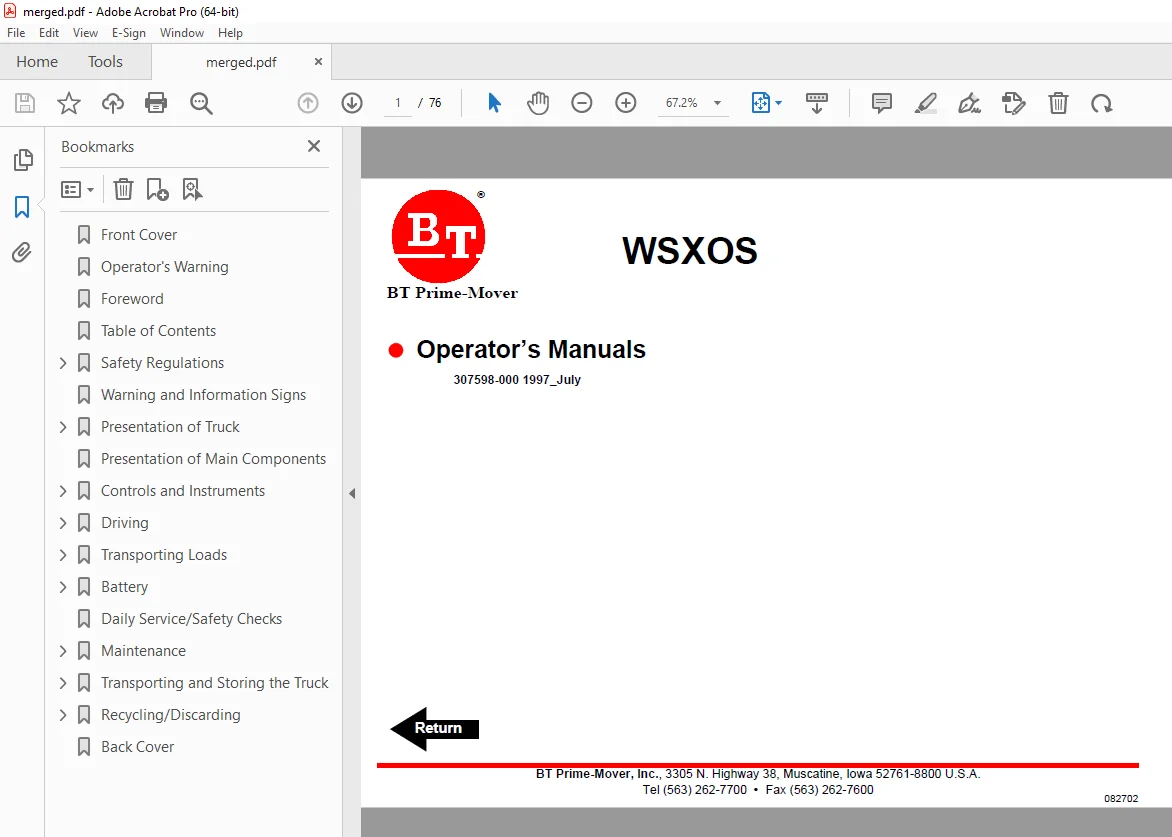

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime-Mover WSX-OS Electric Walkie Straddle Order Selector Operator’s Manual – PDF DOWNLOAD

Effective Serial Number 272581AA000

307598-000 1997_July

Front Cover 2
Operator’s Warning 3
Foreword 4
Table of Contents 5
Safety Regulations 7
Warning Symbols 7
Prohibitory Symbols 8
Ordinance Symbols 8
General Safety Regulations 9
Control 9
Operating the Truck 9
Operator’s Responsibility 10
Working Area 11
Elevating Personnel 11
Driving and Conduct While Driving 12
Handling Loads 14
Parking the Truck 14
Handling the Battery 15
Maintenance and Repair 15
Warning and Information Signs 16
Presentation of Truck 18
Application Area for BT’s Trucks 19
Prohibited Applications for BT’s Trucks 19
Truck Data 20
Truck Dimensions 21
Truck Data Plate 22
Presentation of Main Components 23
Controls and Instruments 25
Travel Direction Selector/Speed Control 27
Reverser Switch 27
Horn Button on Tiller Arm 27
Tiller Arm/Brake Control 28
Key Switch 29
Emergency Lowering Lever 30
BDI/Hourmeter with Lift Interrupt 31
Battery Discharge Indicator 31
Hourmeter 32
Keypad 32
Emergency Stop Switch 32
Horn Button on Platform 33
Control for Lowering Platform 33
Control for Raising Platform 34
Chain Tension Switch 34
Tether Belt and Lanyard 35
Accessories 36
Battery Pack 36
Driving 37
Starting the Truck 37
Braking 38
Steering 39
Parking the Truck 40
Transporting Loads 41
General 41
Collecting a Load 44
Leaving a Load 45
Battery 46
Type of Battery 46
Changing the Battery 46
Charging the Battery 49
General Prohibition 49
Pre-charging 50
During Charging 51
After Charging 51
Battery Maintenance 52
Each Week 52
Each Month 53
Daily Service/Safety Checks 54
Maintenance 58
General 58
Safety Regulations with Maintenance Work 58
Maintenance Work that can be Carried out by You 60
Maintenance Work that may be Carried out by Trained Maintenance Personnel 60
Other Service and Repair Work 60
Cleaning and Washing 61
General 61
External Cleaning 61
Electrical Components 62
Maintenance Chart 63
Lubrication Chart 67
Approved Oils and Grease Specification 68
Transporting and Storing the Truck 69
Truck’s Dimensions and Weight 69
Lifting the Truck 70
Towing and Transporting a Disabled Truck 72
Storing the Truck 72
Battery 72
Hydraulic System 72
Drive Unit 73
Starting After a Period of Disuse 73
Recycling/Discarding 74
Discarding the Battery 74
Scrapping the Truck 74
Chassis 74
Hydraulic System 75
Electrical System 75
Back Cover 76

DESCRIPTION:

BT Prime-Mover WSX-OS Electric Walkie Straddle Order Selector Operator’s Manual – PDF DOWNLOAD

Effective Serial Number 272581AA000

307598-000 1997_July

Foreword :

• It is important that you read and understand this Operator’s Manual for your own safety and the safety of those who work with you!
• Before you start to use this truck it is of extreme importance that you have read the contents of the entire Operator’s Manual to be able to use the truck in a safe and efficient manner.
• This Operator’s Manual contains information on how you should use the truck and how to keep the truck in a safe condition by following daily service routines.
• Only personnel that have been trained as a truck operator, for this type of truck, are permitted to use this truck.
• It is your employer’s responsibility to ensure that you have been trained to use your truck safely. Contact your supervisor if you feel uncertain about how to use this truck.
• Always follow the warnings given in this Operator’s Manual and on the truck to avoid accidents.

General safety regulations
Control
• Always carry out the daily service before the truck is used. The working order of all safety equipment, guards and safety switches should be checked before you use the truck. Such safety equipment must not be disengaged.
• The battery must be secured in its intended compartment. The battery shall have a weight that corresponds with the value stated on the truck’s data plate.
• Read the nameplates. DO NOT operate the truck if the attachment load or maximum lift height are different from the data stated on the nameplate.
• The truck must not be used if it is damaged or has faults that affect safety or its safe use. The truck may not be used if it has been repaired, modified or adjusted unless it has been checked and approved by personnel authorized by BT.
Operating the truck:
• The truck is designed and produced to be your tool when collecting and leaving goods at different heights.
• If the truck is to be used in cold storage environments the truck must be especially built for this type of use.
• It is not permitted to use the truck for other purposes than it has been designed and produced for, e.g. the following applications:
– In areas where the atmosphere contains gases that can cause fires or explosions.

S.V 22/01/2025
