BT Reflex RR Forklift Service Manual Repair & Wiring Guide PDF

Description

BT Reflex RR Forklift Service Manual Repair & Wiring Guide PDF DOWNLOAD

Description

Welcome to the complete, factory-authorized BT Reflex RR forklift service manual PDF. Designed for professional technicians and maintenance teams, this definitive BT Reflex RR B E repair guide provides all the factory specifications, diagnostic procedures, and maintenance schedules required to keep your BT Reflex reach trucks in peak operating condition.

Whether you are tracing complex electrical paths with the included BT reach truck wiring diagrams download or looking up specific operational faults using the BT Reflex forklift error codes PDF, this manual eliminates the guesswork. Utilize the BT Reflex forklift troubleshooting manual to accurately diagnose issues, perform routine maintenance, and safely tear down components with confidence.

File Details

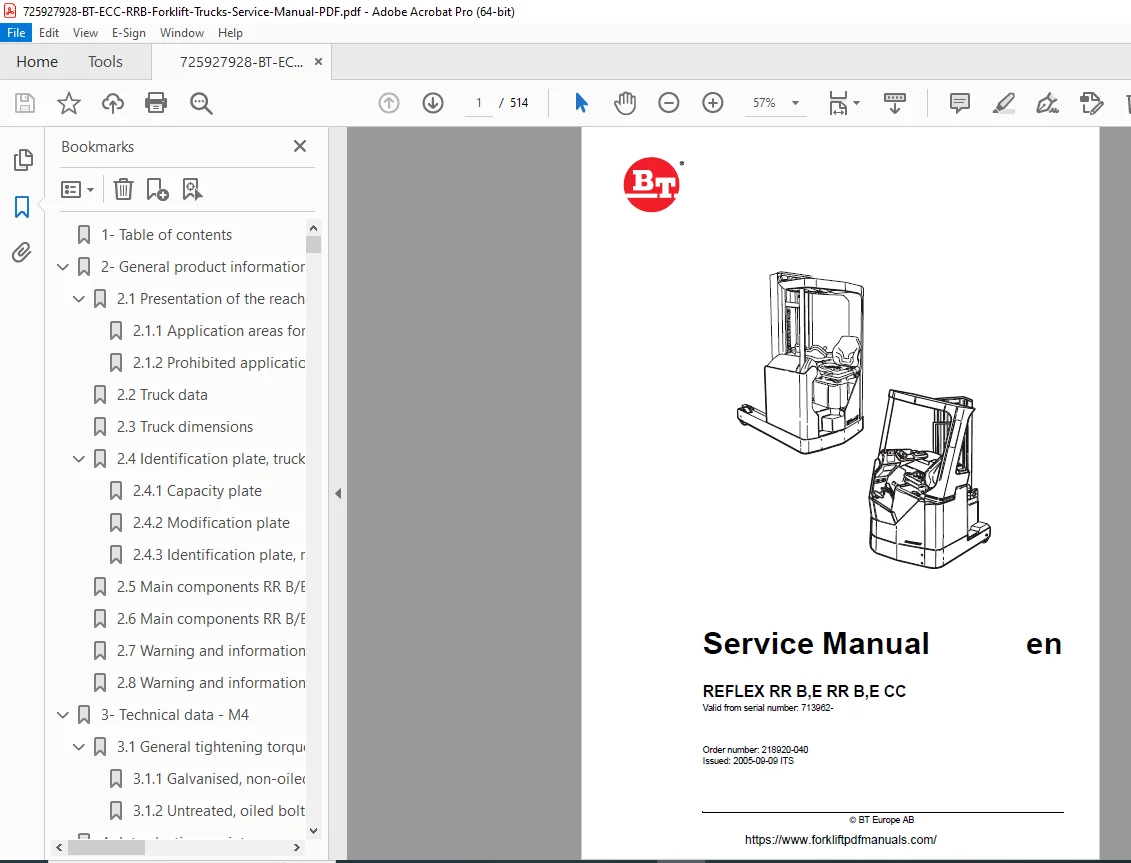

• Manual Name: BT Europe AB Service Manual – REFLEX RR B,E / RR B,E CC

• Models Covered: * RR B1-3, RR B1-3C, RR B4-6, RR B4-6C, RR B7-8, RR B7-8C

  • RR E1-3, RR E1-3C, RR E4-6, RR E4-6C, RR E7-8, RR E7-8C

  • RR E2-3CC, RR E4-6CC, RR E7-8CC

  • RR B2-3CC, RR B4-5CC, RR B7-8CC

  • (Valid for T-codes: 403-414, 669-671, 716-718)

• Year: 2004 / 2005 (Covers subsequent models utilizing the same chassis/systems)

• Manual PDF Quality: Crisp, clear, factory-original high-resolution digital PDF (Text-searchable)

• Number of Pages: 514 Pages

Table of Contents & Highlights

This manual is logically categorized to help you quickly navigate through technical data, preventive maintenance, mechanical tear-downs, and complex electrical diagnostics.

1. General Product Information & Technical Data

• Presentation of reach trucks, dimensions, and capacity plates

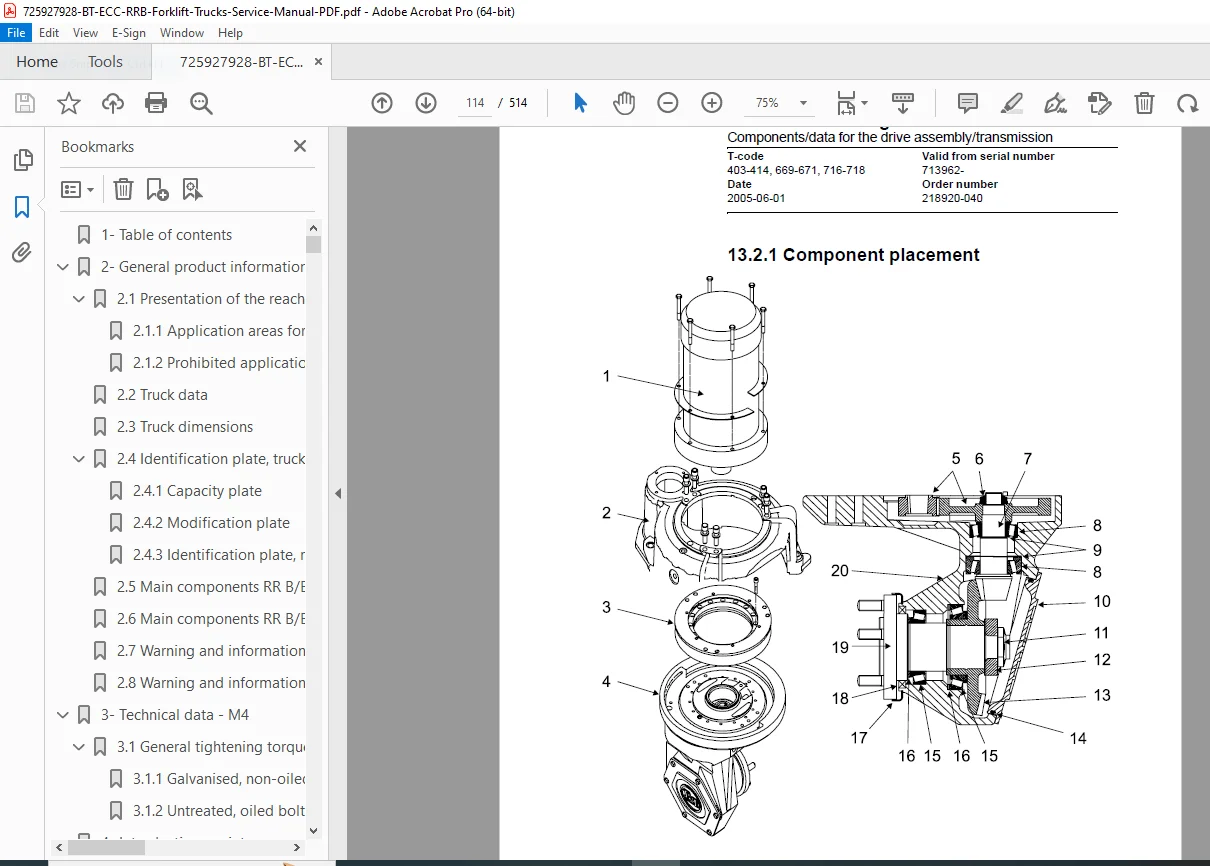

• Comprehensive Technical Data (Drive motors, transmissions, wheels, and hydraulic system specifications)

• General tightening torques (Galvanised and untreated bolts)

2. Maintenance & Lubrication

• Preventive Maintenance Schedules: Checklists covering intervals from 5 hours to 3,000 hours.

• Oil and Grease Specifications: Exact hydraulic oil, transmission oil, and grease types for varying ambient temperatures.

• Safety regulations during maintenance, cab tilting procedures, and safe lifting guides.

3. Mechanical & Hydraulic Systems

• Drive Assembly: Drive motor teardowns, gear wheels, and mechanical drive gear units.

• Steering & Brakes: Electric steering motors, travel brake systems, electromechanical disc brakes, and support arm brakes.

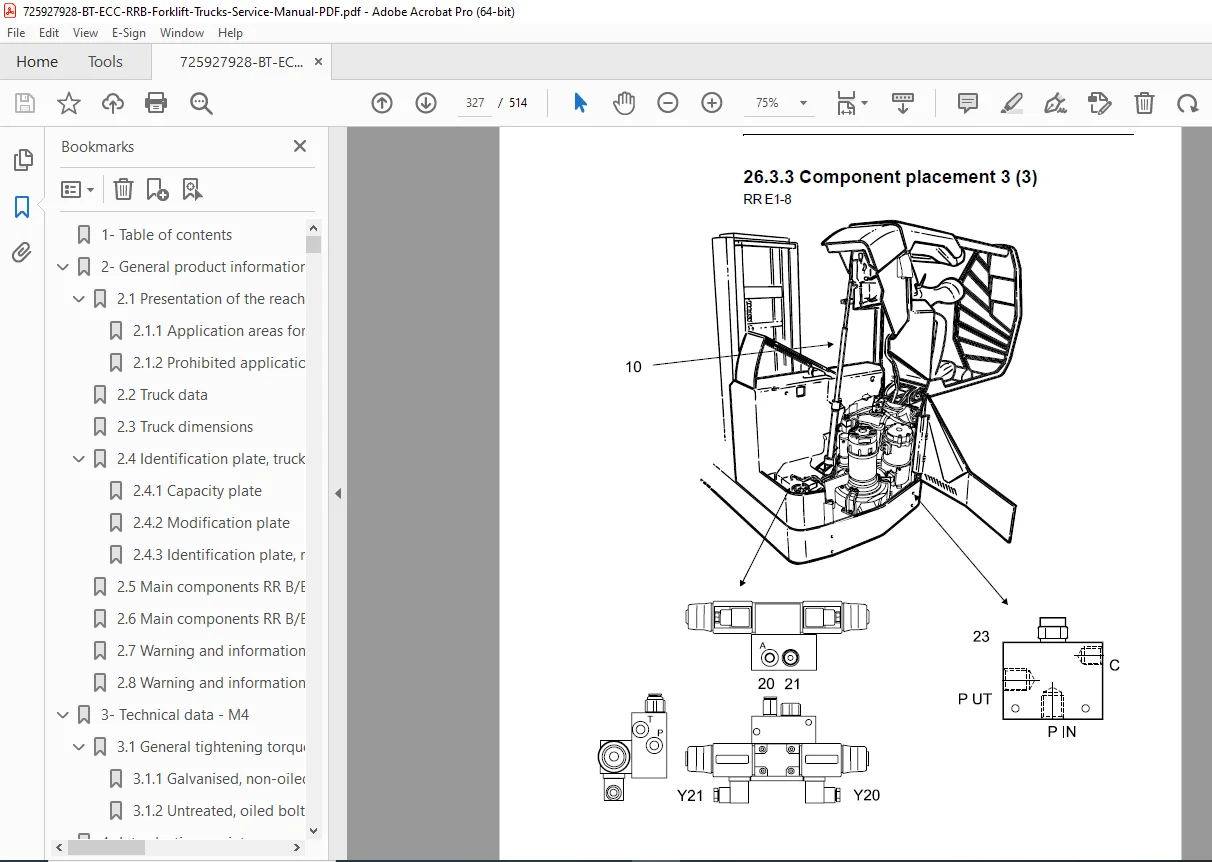

• Hydraulics: Pump motor replacement, main lift cylinders, free lift cylinders, tilt cylinders, and reach cylinders.

• Mast & Lifting Devices: Main mast assembly, lifting chains, fork spread units, and telescopic forks.

4. Electrical System & Wiring Diagrams

• Complete BT reach truck wiring diagrams download spanning 16 highly detailed sheets.

• Electrical panel components, symbol lists, and contactor layouts.

• Transistor panel and frequency converter programming.

• Battery & Charger: Parameters, acid circulation, troubleshooting, and calibration procedures.

5. Diagnostics & Error Codes

• Complete BT Reflex forklift error codes PDF section detailing warning codes, error modes, and safety logic.

• Control/Computer Equipment (TruckCom software integration and diagnostics).

• Programming parameters for driver identification, positioning equipment, and automatic driving.

Don’t let unexpected downtime cost your warehouse time and money. Download this comprehensive factory service manual instantly and get the right fix the first time—click “Add to Cart” to start repairing your BT Reflex reach truck today!
