DESCRIPTION:

Bucyrus 30MB3 Operation & Maintenance Manual – CAT Continuous Miner 30MB3 – PDF DOWNLOAD

General

• The 30MB3 miner is a radio-controlled drum-type continuous miner with appropriate weight balance, cutting and loading power to enable the productive mining of coal and other soft mineral in seams ranging from 1,900 mm up to 4,000 mm thick.
• The machine is mounted on crawler tracks that provide full mobility and sharp turning radius in both bord and pillar and long wall development mining plans.
• The ranging cutting head mines material from the solid face using a chainless rotating drum, and a CLA-type gathering head with high speed conveyor efficiently moves mined material to a haulage system behind the miner.
• The machine’s weight and balance is designed to mine most efficiently by either sumping into the face at the top or bottom of the seam, and ripping material to the bottom or top of the seam.
• The above figure shows a general arrangement of major mechanical components. A full description of the various major sub-systems of the 30MB3 follows.

TABLE OF CONTENTS:

Bucyrus 30MB3 Operation & Maintenance Manual – CAT Continuous Miner 30MB3 – PDF DOWNLOAD

Section 1 Handbook Objective
Section 2 Notes to the Operator
Section 3 Defects and Hazards
Section 4 Access on and off the Machine
Section 5 Machine Description
Section 6 Controls and their Functions
Section 7 Pre-start Checks
Section 8 Start-up Procedure
Section 9 Operating Procedure
Section 10 Shutdown Procedure
Section 11 Emergency Shutdown
Section 12 Operators/Trades Servicing and
Maintenance Features
Section 13 Trouble Shooting
Section 14 Roof and Rib Bolting Equipment

BUCYRUS 30MB3 OPERATION & MAINTENANCE MANUAL – CAT CONTINUOUS MINER 30MB3 – PDF DOWNLOAD:

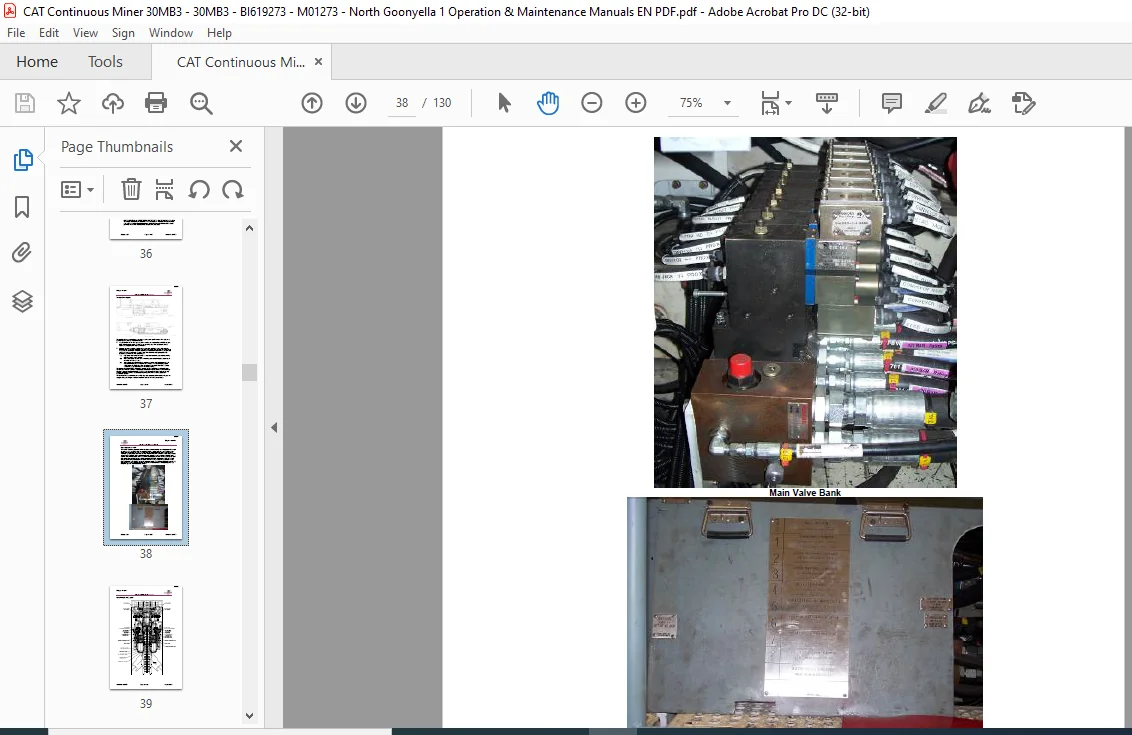

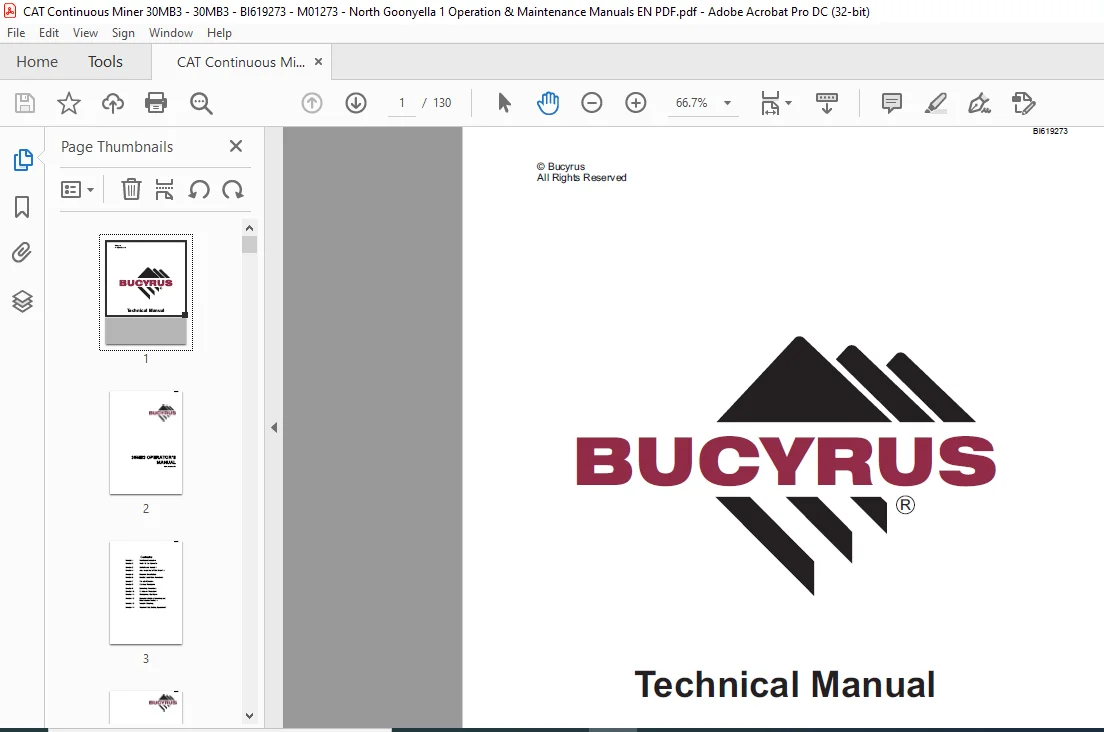

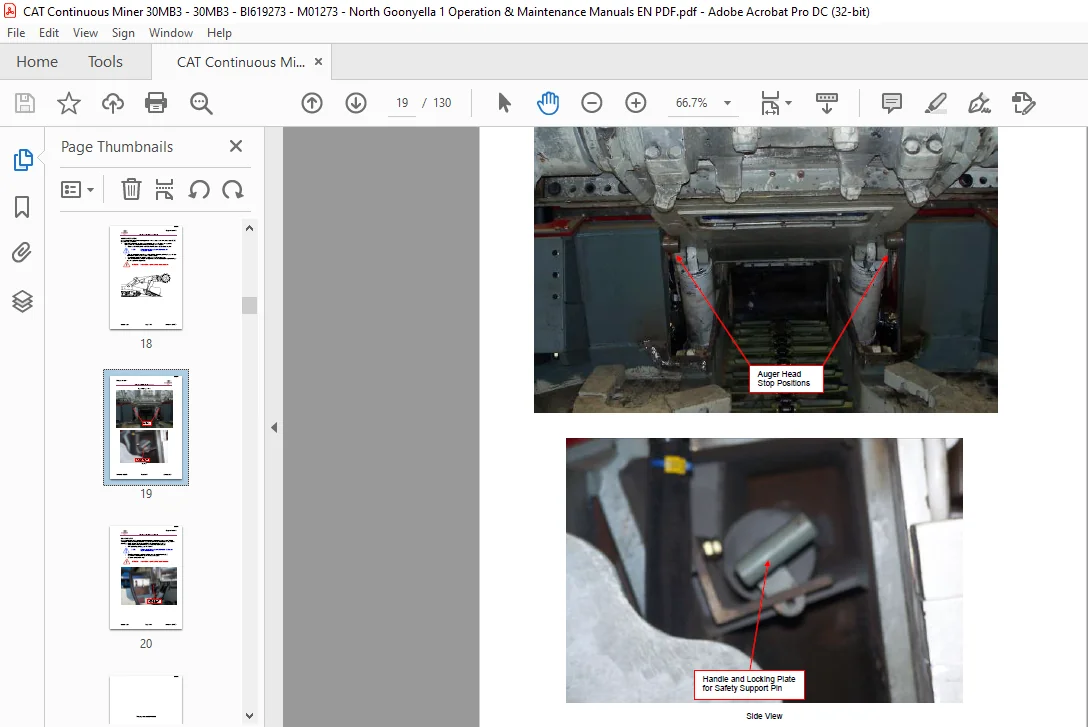

IMAGES PREVIEW OF THE MANUAL:
