Case 1088 Crawler Excavator Service Manual 8-86401 – PDF DOWNLOAD

DESCRIPTION:

Case 1088 Crawler Excavator Service Manual 8-86401 – PDF DOWNLOAD

Cleaning :

Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings.

Inspection:

Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures.

Bearings :

Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR.

Needle :

Bearings Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings.

Gears :

Check all gears for wear and damage. Replace gears that have wear or damage.

Oil Seals, O-Rings and Gaskets :

Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings.

Shafts :

Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.

Service Parts :

Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty.

Lubrication:

Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.

TABLE OF CONTENTS:

Case 1088 Crawler Excavator Service Manual 8-86401 – PDF DOWNLOAD

1 GENERAL
Sectional lndex
1088 Crawler Excavator
ТаЫе of Contents
SECTION№
Safety, General lnformation and Torque Specifications 1001 *
Specifications 1002
2 ENGINE
Sectional lndex
Engine Removal and lnstallation 2000
Radiator and Oil Cooler 1 2001
Cylinder Head and Valve Train 2415
Cylinder Block 2425
Lubrication system , 2445
Cooling System 2455
TurЬocharger 2465
Turbocharger Failure Analysis 2565
3 FUEL SYSTEM
Sectional lndex
Fuel Systems and filters 341 О
Fuel lnjection Pump and Drive Gear 3412
Fuel lnjectors 3413
4 ELECTRICAL
Sectional lndex
Electrical Schematics and TrouЫeshooting 4001 *
8attery Testing, Maintenance and Вooster Battery Connections 4002
Starter Motor 4003
Alternator 4004
5 TRACK
Tracks, Rollers and ldlers 5002
6 POWER TRAIN
Sectional lndex
Drive Motor and Final Drive translation 6002
Swing Motor and Reduction Gears 6003
8 HYDRAULICS
Sectional lndex
SECTION
Pictorial lndex Hydraulic Components 8000
Hydraulic TrouЫeshooting 8001 *
Low Pressure Pump 8002
High Pressure Pumpe and Regulator 8003
Attachment Valve Bank 8004
Drive ControJ Valve 8005
Option Control Valve 8006
Counter Rotation Valve 8007
Swing Brake Release Valve 8008
Swing Control Valve 8009
Anti-Surge Valve 801 О
Hydraulic Swivel (Standard Excavators) 8011
Hydraulic Swivel (Excavators with TTL) 8011
Drive Speed Limiter 8012
Drive Brake Release Valve 8013
Hand and Foot Control Valves 8015
Hydraulic Oil Tank 8016
Attachment Cylinders 8018
Hydraulic TurntaЫe Leveler Cylinder 8026
TurntaЫe Leveler Control Valve 8027
TurntaЫe Leveler Check Valve 8028
9 MOUNTED EQUIPMENT
Sectional lndex
Upperstructure 9001
Вооm, Dipper and Bucket 9002
Servicing the СаЬ 9004

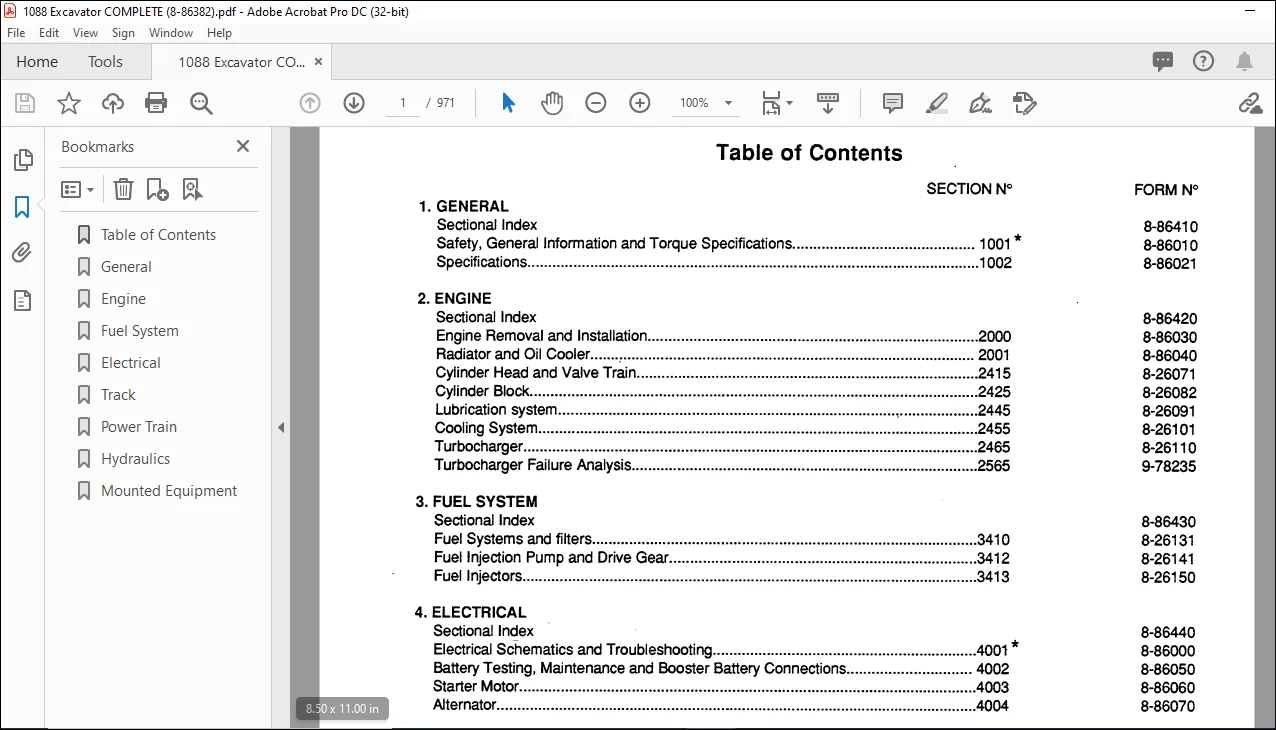

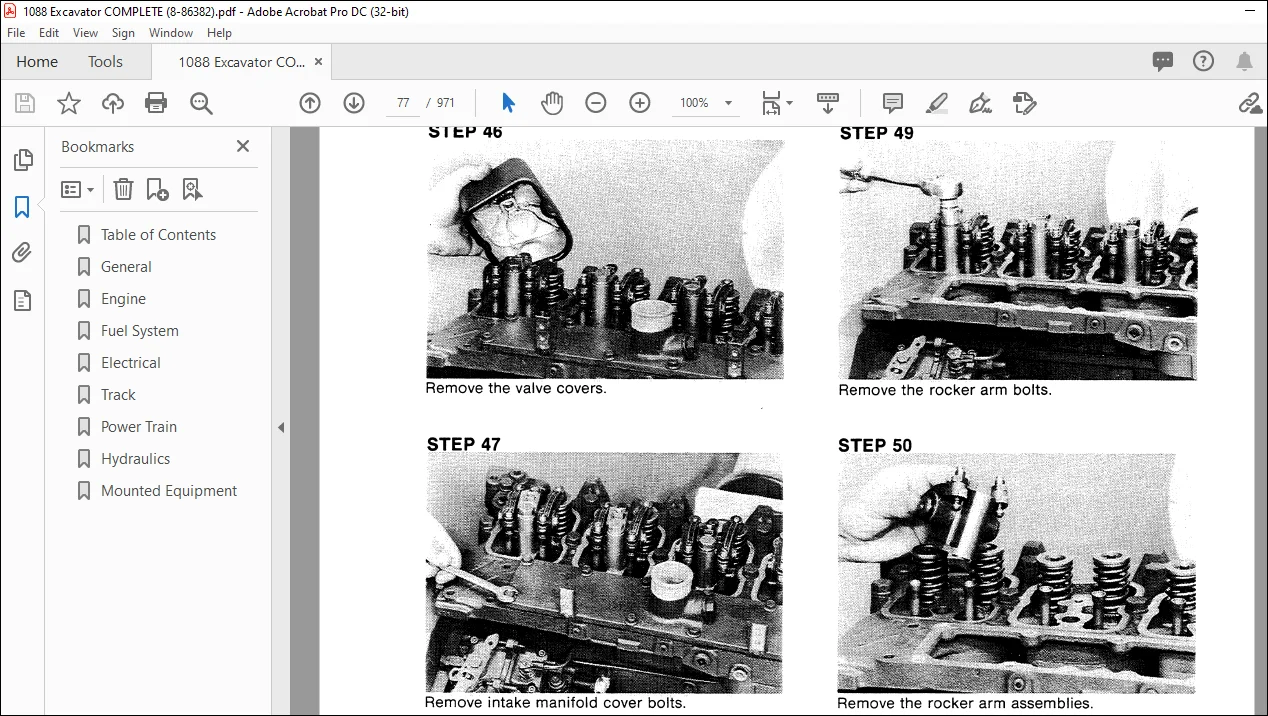

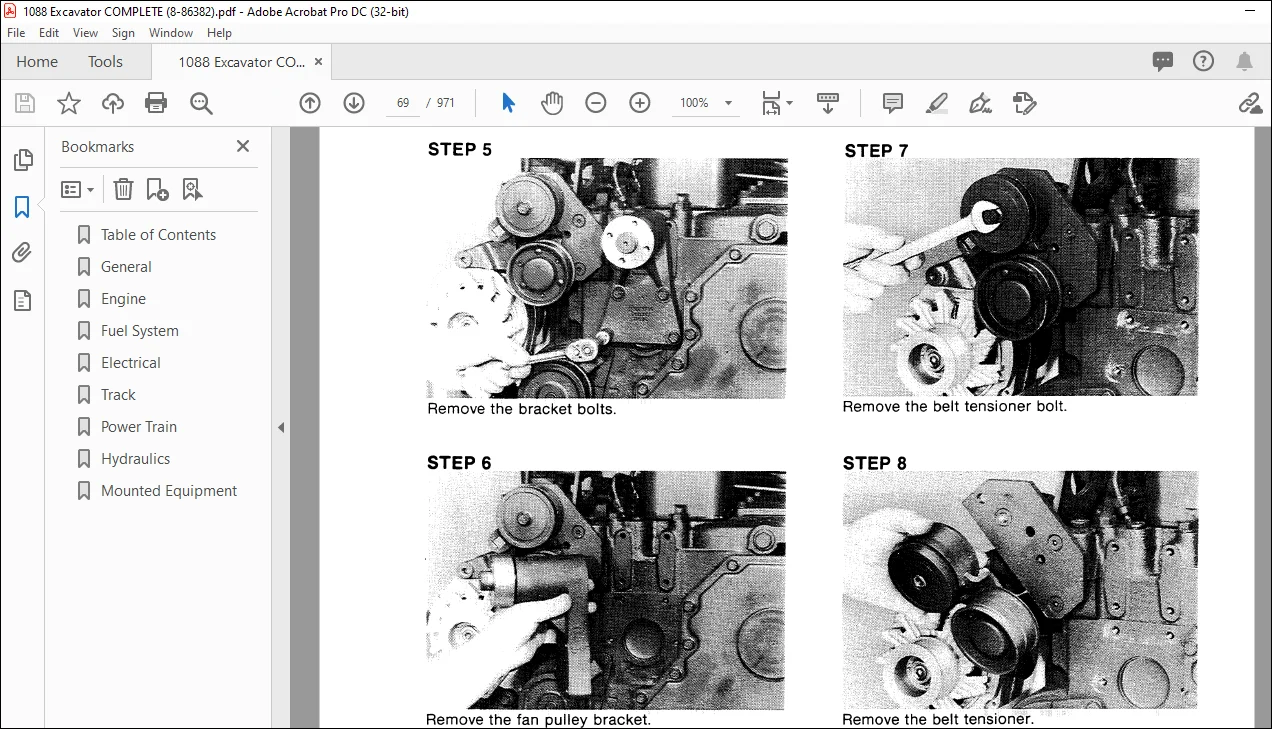

IMAGES PREVIEW OF THE MANUAL:
