DESCRIPTION:

Case 1188 Crawler Excavator Operator’s Manual 9-28071 – PDF DOWNLOAD

TO THE OWNER :

• Your machine has been designed and built to the highest standards of quality. It conforms to all current safety regulations. See “Official Documents”. However, this does not exclude the risk of accidents. That is why it is essential to observe elementary safety rules and precautions.
• Read this manual carefully, paying particular attention to the instructions concerning safety, operation and maintenance so as to avoid the risk of injury while operating or servicing the machine. Use this manual as a guide. Your machine will remain a reliable working tool provided it is kept in good working condition and serviced properly.
• The standard attachments and equipment available for use with this machine are intended for general earthmoving purposes, rehandling, boring, ditch cleaning, etc. If the machine is to be used for handling loads, (tubing, concrete pipe sections, shoring material, etc.), make sure the machine is suitably equipped for this type of work.
• For this type of application, the machine must be equipped with safety valves, an overload indicator, a maximum lift capacities table, corresponding to the type of machine and its attachment, and a load attachment point. All legal requirements must also be strictly observed.
• Do not use this machine for any application or purpose other than those described in this manual. If the machine is to be used for work involving the use of special attachments or equipment, consult your CASE Dealer in order to make sure that any adaptations or modifications made are in keeping with the machine’s technical specifications and with prevailing safety requirements.
• Any modification or adaptation which is not approved by the maker may invalidate the machine’s initial conformity with safety requirements. The machine must undergo regular inspections, the frequency of which varies according to the type of use. Consult your CASE dealer.

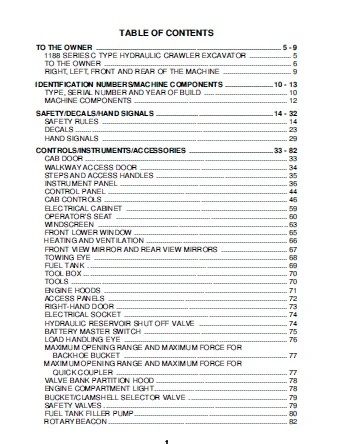

TABLE OF CONTENTS:
