Case 1650K Tier 2 Crawler Dozer Repair Manual – PDF DOWNLOAD

Description

Case 1650K Tier 2 Crawler Dozer Repair Manual – PDF DOWNLOAD

DESCRIPTION:

Case 1650K Tier 2 Crawler Dozer Repair Manual – PDF DOWNLOAD

SAFETY RULES :
– Do not allow unauthorised personnel to operate service
or maintain this machine.
– Do not wear rings, wrist watches, jewellery, loose or
hanging apparels, such as ties, torn clothing, scarves,
unbuttoned or unzipped jackets that can catch on moving
parts. Wear proper safety equipment as recommended
for the job. Examples: hard hat, heavy gloves, ear
protection, safety glasses or goggles, reflector vests,
respirator. Consult your employer for specific safety
equipment requirements.
– Keep operator’s compartment, stepping points, grabrails
and handles clear of foreign objects, oil, grease,
mud or snow accumulation to minimise the danger of
slipping or stumbling. Clean mud or grease from shoes
before attempting to mount or operate the machine.
– Do not jump on or off the machine. Keep two hands and
one foot, or two feet and one hand in contact with step
grab rails and handles at all times.
– Do not use controls or hoses as hand holds when
climbing on or off machine. Hoses and controls are
movable and do not provide a solid support. Also,
controls may be inadvertently moved causing accidental
machine or equipment movement.
– Never attempt to operate the machine or its tools from
any position other than seated in the operator’s seat.
Keep head, body, limbs, hands and feet inside operator’s
compartment at all times, to reduce exposure to
hazards outside the operator’s compartment.
Be careful of slippery conditions on stepping points,
hand rails, and on the ground. Wear safety boots or
shoes that have a high slip resistant sole material.
– Do not leave the machine until it is completely stopped.
– Check the seat safety belt at least twice a year. If there
are signs of wear or fraying or other signs of weakness
that could lead to failure, replace it.

TABLE OF CONTENTS:

Case 1650K Tier 2 Crawler Dozer Repair Manual – PDF DOWNLOAD

Table of Contents ………………. 4
Generalites ……………………. 6
Engine ………………………… 50
Transmission …………………… 62
Final Drives …………………..134
Brakes and Steering Differential ….158
Undercarriage ………………….254
Dozer Equipment Hydraulic System ….286
Electrical System ……………….316

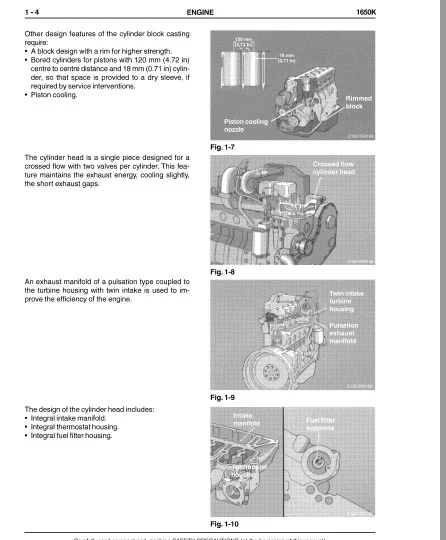

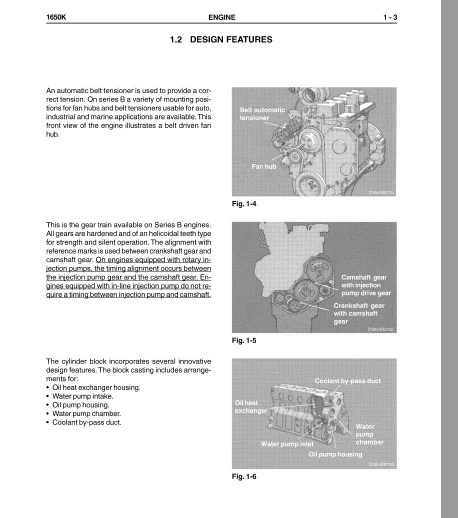

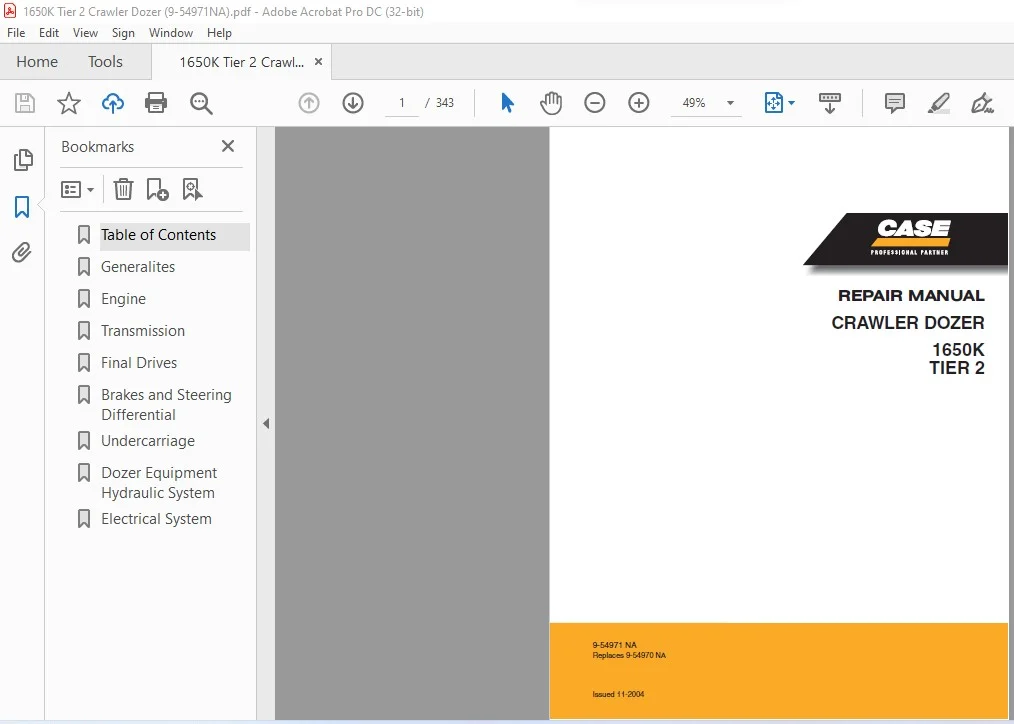

IMAGES PREVIEW OF THE MANUAL:

CASE 1650K TIER 2 CRAWLER DOZER REPAIR MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
