Case 170B Excavator Service Repair Manual (8-44600) Case 170B – PDF Download

Description

Case 170B Excavator Service Repair Manual (8-44600) Case 170B

CASE 170B EXCAVATOR SERVICE REPAIR MANUAL (8-44600) CASE 170B – PDF DOWNLOAD:

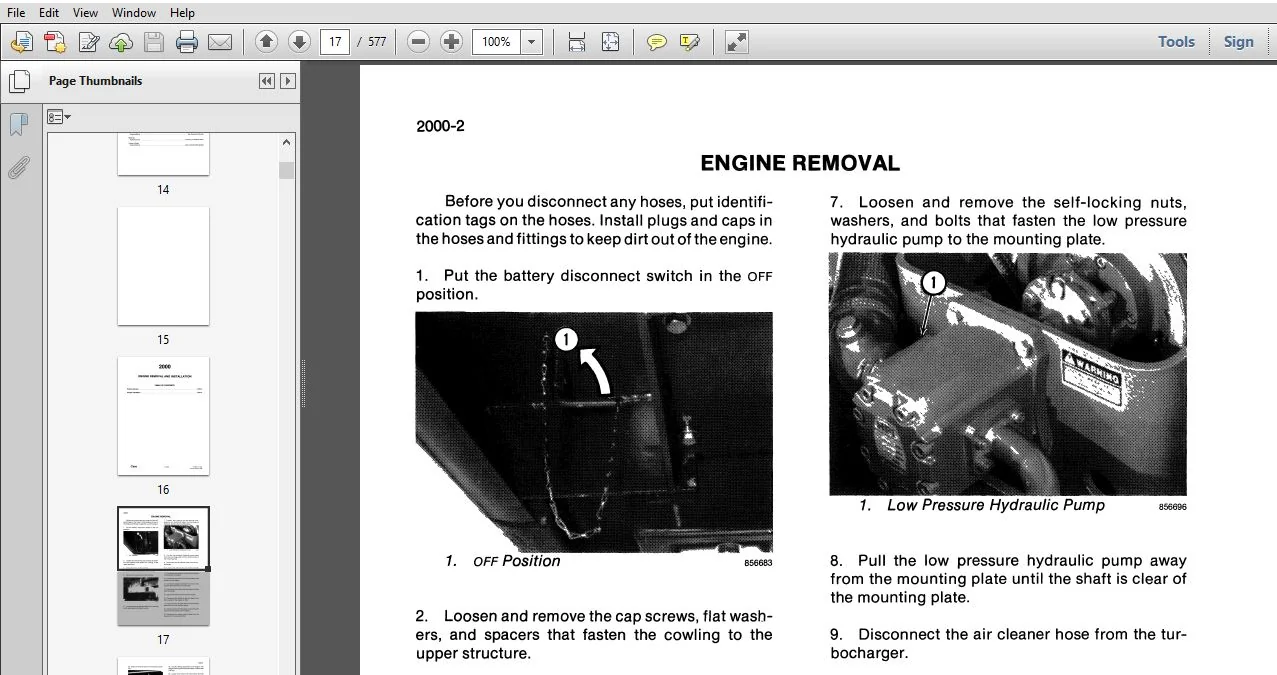

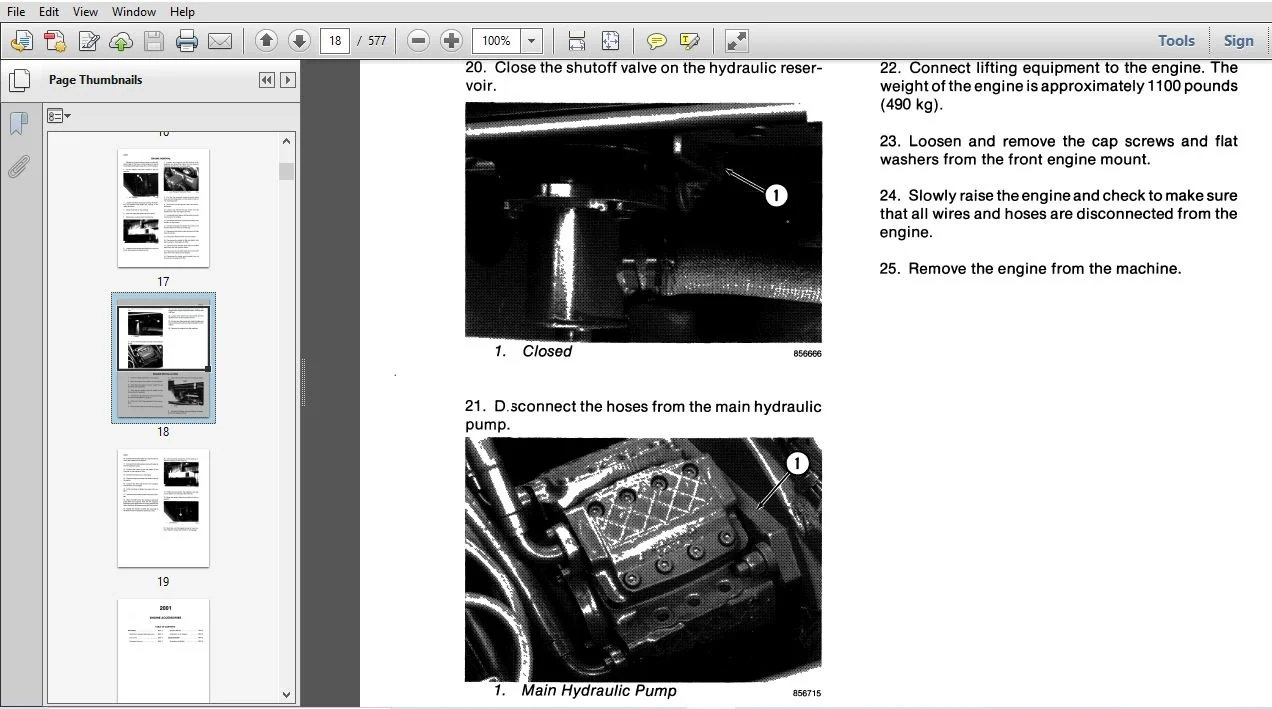

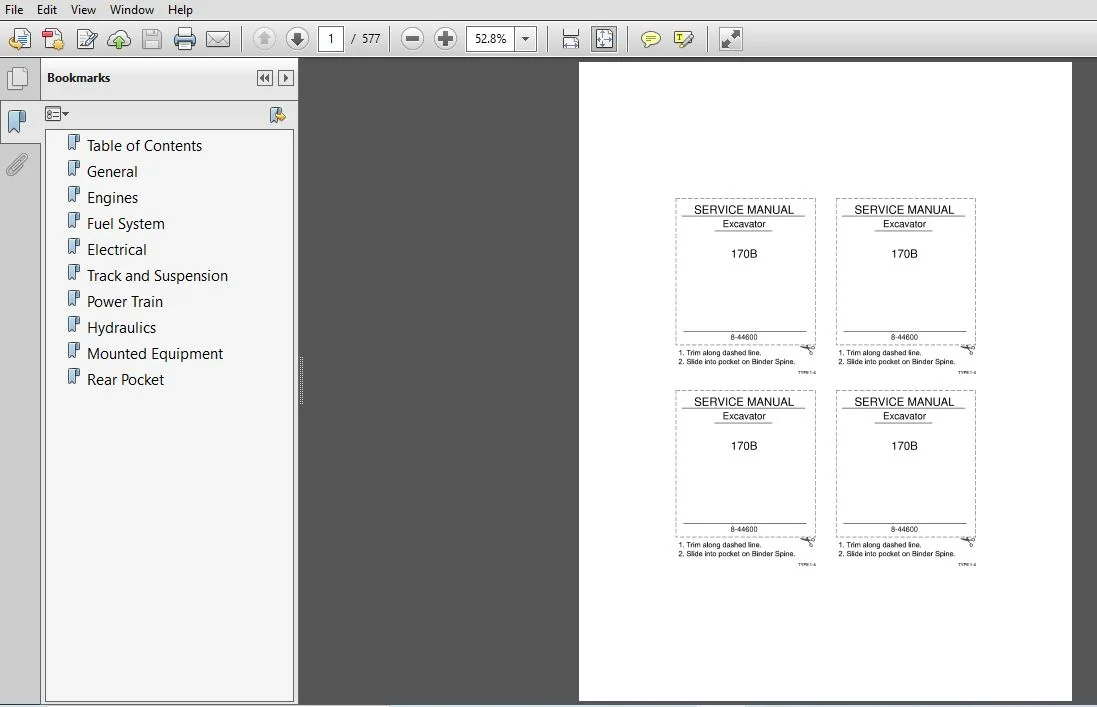

IMAGE PREVIEW:

DESCRIPTION:

Case 170B Excavator Service Repair Manual (8-44600) Case 170B

• To prevent Injury on lab, lollow the Warning, Caution, and Danger notes in this section and other sections throughout this manual. Follow the instructions carelully.
• The procedures recommended and shown in this manual are good. effective service methods. However. all possible procedures and service hazards may not be covered. Therefore. it you use a tool or procedure not recommended. you must make sure that the method you select is a safe method.
• Put the waming tag shown below on the keyfor the key switch when you are servicing or repairing this machine. One warning tag is on every new machine. You can buy additional warning tags. part number 331-4614. from Service Parts Supply.

TABLE OF CONTENTS:

Case 170B Excavator Service Repair Manual (8-44600) Case 170B

1 GENERAL
Safety Rules, Service Manual Introduction and Torque
Specifications
Maintenance and Lubrication
2 ENGINES
Engine Removal and Installation
Engine Accessories
Deutz Engine Service Manual
3 FUELSYSTEM
Fuel Lines Fuel Tank and Engine Controls ,
4 ELECTRICAL
Electrical System Specifications and Troubleshooting
Wiring Schematics
Batteries
Starter
Alternator
5 TRACK AND SUSPENSION
Removal and Installation of Track Components
Troubleshooting
TraokChainandShoes
Track Rollers, Carrier Rollers, Idlers and Sprcckets
6 POWER TRAIN
Removal and Installation of Power Train Components
Drive Motor
Final DriveTransmission
8 HYDRAULICS
Removal and Installation of Hydraulic Components
MaintenanceandService
Specifications and Troubleshooting
LowPressureHydraulicPump
MainHydraulicPump
AttachmentControlValve
SwingandDriveControlValve
ControlValveforOptions
Hand Control Valves and Foot Control Valves
SolenoldControlValves
Parallel Supply Control Valve for the Arm Circuit
PowerSensingValve
PressureRegulatorValves
SwingMotor
OilCooIerMotor
HydraulicSwlvel
Cylinders
9 MOUNTED EQUIPMENT
Boom Arm andTool
Turntable Bearing and Related Parts
REARPOCKET
ElectricalSchematic
LocationSchematic
HydraulicSchematic

PLEASE NOTE:

⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
