Case 1816 Uni-Loader Parts Catalog Manual 8-1352 – PDF DOWNLOAD

Description

Case 1816 Uni-Loader Parts Catalog Manual 8-1352 – PDF DOWNLOAD

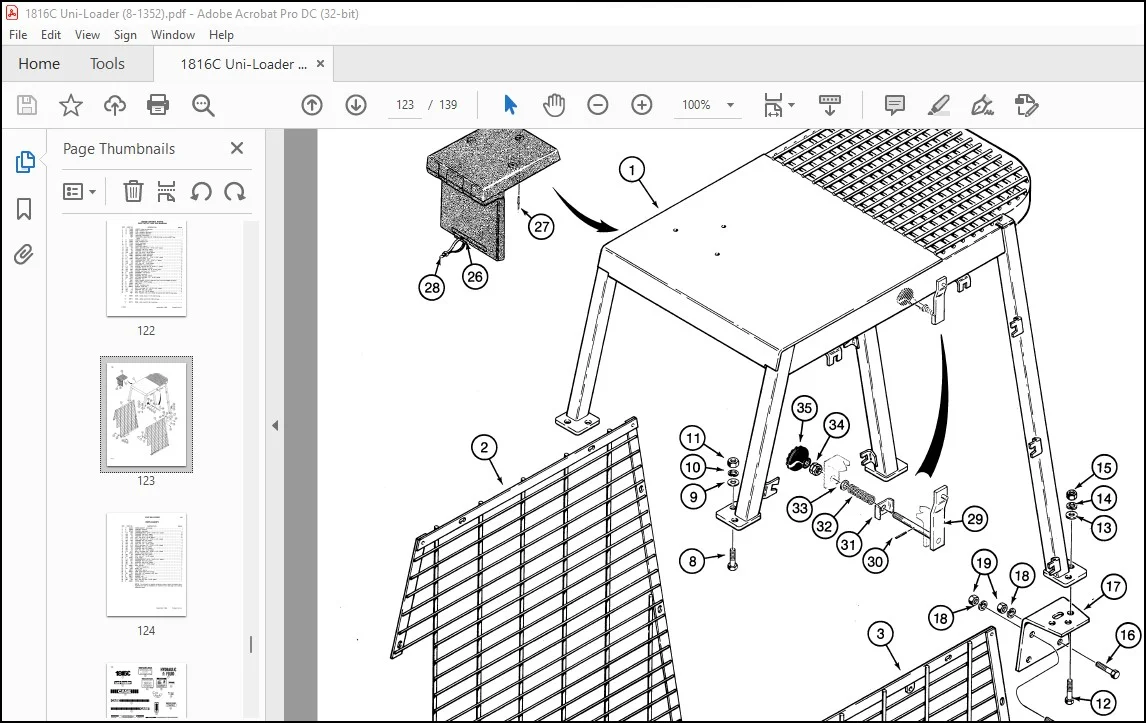

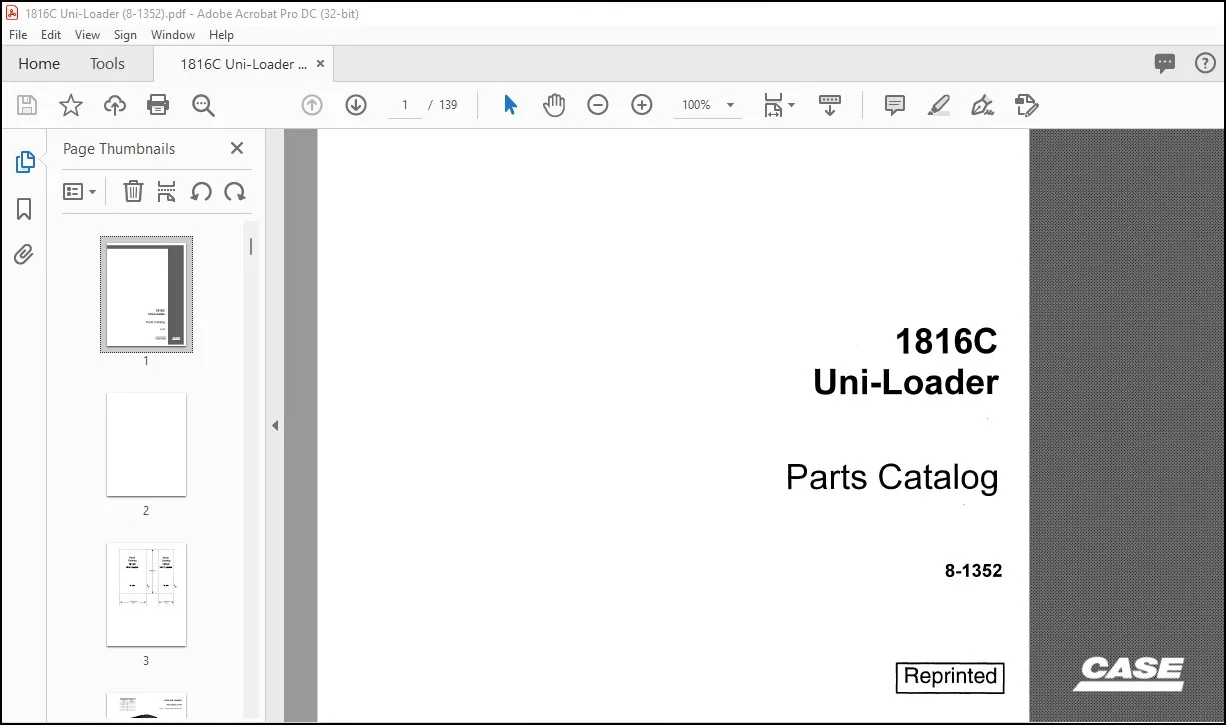

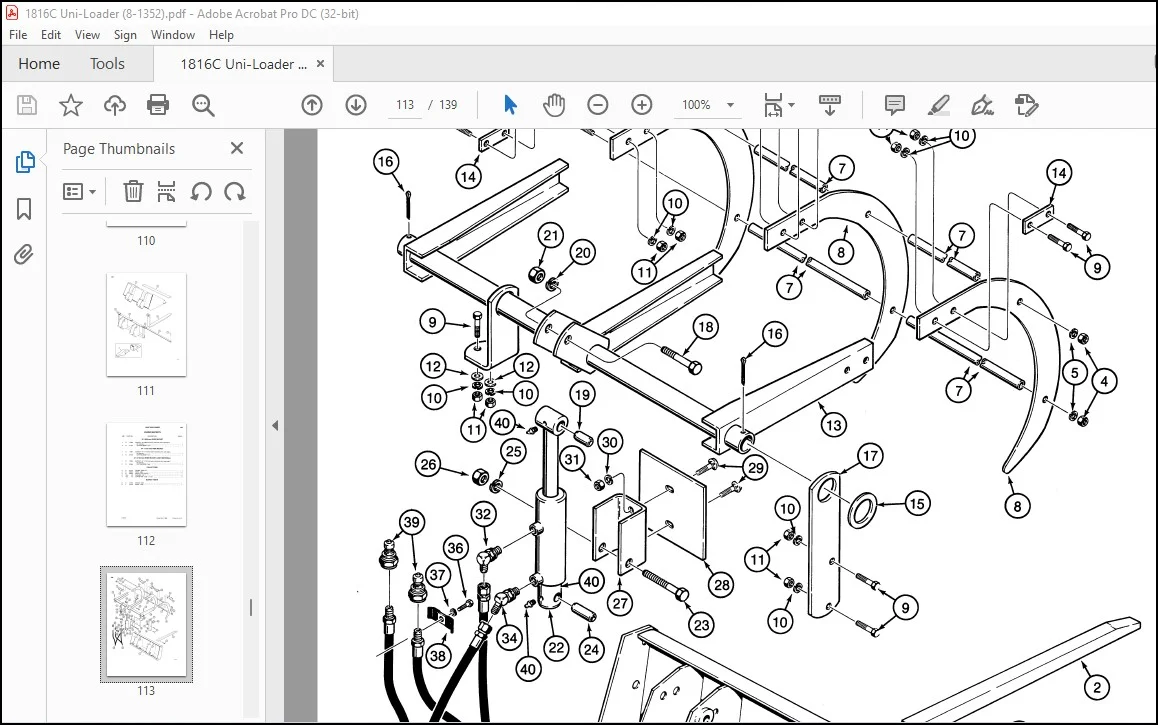

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case 1816 Uni-Loader Parts Catalog Manual 8-1352 – PDF DOWNLOAD

Indexes:
This parts catalog is arranged for easy identification on parts. The Alphabetical Index at the front of the catalog gives location of major groups and assemblies. The Numerical Index at the rear of the catalog gives part numbers and the page on which they are listed.
Abbreviations and Terms:
PIN – Product Identification Number.
SN – Serial Number.
NSS – Not sold separately.
REF – Reference. Used to clarify drawing.
RESERVED – No item listed.
UAR – Use as required.
Changes:
When changes are made to the machine, revised pages for this catalog will be issued. These pages must be inserted into your catalog as soon as they are received. Failure to keep your catalog up to date will result in confusion and may cause you to order wrong parts.
Orders :
Orders should specify correct part number, full description, quantity required, machine and engine model, machine and engine serial numbers, method of shipment and shipping address.

TABLE OF CONTENTS:

Case 1816 Uni-Loader Parts Catalog Manual 8-1352 – PDF DOWNLOAD

GENERAL
ENGINES
FUEL SYSTEM
ELECTRICAL
STEERING
SYSTEM
POWER TRAIN
BRAKES
HYDRAULIC
SYSTEM
CHASSIS/ MOUNTED EQUIPMENT
NUMERICAL INDEX

A
Air Cleaner 9, 11
Alternator 45
Axles 75
B
Backup Alarm 55
Battery 51
Battery Cables 51
Bearings – engine 17
Belt Tension Controls 63
Belts
Drive 61
Seat 113
Block – engine 17
Box – operators manual 117
Brake – parking, hand 79
Buckets 105
C
Camshaft 25
Canopy – ROPS 117
Carburetor 41,43
Chain Covers 111
Chains
Brake 79
Drive 75
Clutch – lever 63
Cooler- hydraulic oil 81
Connecting Rods – engine 23
Controls
Auxiliary Hydraulics 89
Brakes 79
Engine 53
Forward and Reverse 57
Instrument Panel 53
Loader Lift and Bucket 83
Belt Tension 63
Counterweights 109
Crankshaft – engine 21
Cushion – seat 113
Cylinders
Bucket 99
Grapple 101
Lift 99
8-1352
D
Decals
Engine 119
Uni-Loader 119
Dipstick – engine oil 29
E
Electrical System 51
Enclosure – operators compartment 117
Engine Assemblies
Air Housing and Flywheel Guard 35
Alternator 45
Camshaft 25
Carburetor 41,43
Crankshaft 21
Cylinder Block and Head 17
Exhaust System 13
Flywheel 21
Fuel System 37
Gear Cover 27
Oil Filter and Lines 31,33
Oil Pump and Oil Pan 29
Pistons and Connecting Rods 23
Starter 49
Throttle Linkage and Governor 39
Valves 19
F
Filters
Air 9,11
Engine Oil 33
Fuel 37
Hydraulic Oil 67
Floor Plates 89,111
Flywheel – engine 21
Forks
Pallet 105
Manure 107
Frames ,
Loader Lift 103
Main 109
Fuel Cap · 109
Fuel Lines 37
G
Gauges 53
Governor 25,27
Grapple 107
Issued April, 1986 Printed in U S A
1816C UNI-LOADER
ALPHABETICAL INDEX
7
G
Grille – rear guard 109
Guards
Engine 35,109
Heat Shields 113
Rear, engine and cooler 109
Rollover Protection Structure 117
H
Head – engine 17
Hourmeter 53
Hydraulic Circuits
Auxiliary 91
Cooling Circuit and Primary Equipment 81
Hydraulic Tank to Motors and Variable
Displacement Pumps 65-67D
Loader Bucket 87
Loader Lift 85
Hose and Fitting Chart 120
Index – numerical 121
Instruments 53
Levers (see controls)
Loader
L
Buckets and Attachments 105,107
Controls (see Controls)
Hydraulic Circuits (see Hydraulic Circuits)
Lift Frame 103
M
Manure Fork 107
Motor- hydraulic 65,73
Mount – engine 15,59
Muffler 13
N
Noise Control Parts 115
Numerical Index 121
8-1352
p
Pads – noise reduction 115
Pallet Fork 105
Parking Brake 79
Piston Assemblies – engine 23
Plates – floor 89,111
Plates- pump mounting 59
Pulley- sheave 61
Pumps
Fuel 37
Engine Oil 29
Equipment 81,93
Variable DisplaGement 59,69
R
Radiator- cooling, hydraulic oil 81
Regulator – Voltage 45
Rings – piston 23
Rods – connecting 23
Rollover Protection Structure 117
s
Safety strut 103
Screen – engine 35
Seat – operator 113
Shafts (see engine, pump, or motors)
Sheave – pulley 61
Shield – heat 113
Spark Plug 47
Sprockets 75
Starter 49
T
ToolTach 103
V
Valve Mechanism – engine 19
Valve
Auxiliary Hydraulics 89,91,95,97
Breather, Hydraulic tank 109
Equipment 95,97
Voltage Regulator 45
w
Wheels 77
Windows 113,115
Wiring 51
