SAFETY
SAFETY/DECALS/HAND SIGNALS
This machine has been designed and
built according to the state of art, and
meets or exceeds cur rent safety
regulations and standards. However,
this does not completely exclude the
risk of accidents. I t is therefore
essential to follow the basic safety rules
and procedures.
The strict execution of the instructions
provided in this manual will prevent
accidents dur ing machine use,
maintenance and repair operations.
These instructions will only be effective
i f the machine receives proper
maintenance. Any defects or anomalies
must be repaired immediately.
Do not use the machine for other
applications than those which are
described in this manual.
In the event of a particular problem,
requir ing some intervent ion or
application not described in this
manual, contact your CASE dealer
immediately.
Most accidents involving machine
operation and maintenance can be
avoided by following basic rules and
precautions. Read and understand all
the safety messages in this manual,
and the safety signs on the machine
before you operate or service the
machine. See your dealer if you have
any questions.
READ THIS MANUAL COMPLETELY
and make sure you understand the
characteristics of speed, stability, and
steering of this machine. The machine
must be used only by trained operators.
Keep the operators manual in the box
provided and make sure it is always
fastened to the machine, complete and
in good condition. See your dealer for
additional manuals. Also see the inside
of the rear cover of this manual.
B4127188T
1. MANUAL STORAGE BOX
The safety information given in this
manual does not replace safety codes,
insurance regulations, or local laws.
Make sure your machine has the
correct equipment according to these
rules or laws.
IMPORTANT: Safety messages in this
section point out situations which can
be encountered during the normal
operation and maintenance of your
machine. These safety messages also
give possible ways of dealing with
these conditions.
Additional safety messages are used in
the text of the manual to show specific
safety hazards.
TABLE OF CONTENTS:

Case 1825 and 1825B UNI-LOADER Parts Catalogue Manual(9-25773EUR) – PDF DOWNLOAD

TO THE OWNER 1
1825 UNI-LOADER 1
1825B UNI-LOADER 1
OFFICIAL JUSTIFYING DOCUMENTS 4
IDENTIFICATION NUMBERS 5
MACHINE COMPONENTS 1825 7
MACHINE COMPONENTS 1825B 8
MACHINE COMPONENTS 1825B 9
RIGHT, LEFT, FRONT AND REAR OF MACHINE 10
SAFETY 11
SAFETY/DECALS/HAND SIGNALS 11
BEFORE OPERATION 12
MACHINE OPERATION 13
FAILURE IN OPERATION 14
PARKING THE MACHINE 14
BURN PREVENTION 15
WHEELS AND TIRE SAFETY 15
FIRE OR EXPLOSION PREVENTION 15
FIRE OR EXPLOSION PREVENTION 16
MAINTENANCE 17
SAFETY DECALS 18
GUARANTEED SOUND POWER LEVELS TO EC
REGULATION REQUIREMENTS 18
HAND SIGNALS 25
INSTRUMENTS/CONTROLS 31
INSTRUMENT PANEL 34
KEYSWITCH, GLOW PLUG INDICATOR AND LAMP SERVICE 36
HAND THROTTLE, HORN BUTTON AND SWITCHES 39
TRAVEL/STEERING CONTROLS 41
TRAVEL/STEERING CONTROLS 42
LOADER CONTROLS 43
AUXILIARY HYDRAULIC ATTACHMENT CONTROLS 44
OPERATING INSTRUCTIONS 45
RUN-IN PERIOD 47
ROTATING BEACON 47
MACHINE OPERATION 50
TRANSPORTING THE MACHINE 51
LIFTING THE MACHINE WITH A CRANE 53
OPERATING IN COLD WEATHER 54
OPERATING IN HOT WEATHER 55
JOB SITE OPERATION 55
OPERATING THE LOADER 56
TOOL-TACH 58
BACKHOE OPERATION 60
LUBRICATION 65
LUBRICATION/FILTER/FLUIDS 65
SUPPORT STRUT FOR LOADER LIFT ARMS 66
ENGINE HOURMETER 68
MAINTENANCE SCHEDULE 68
FLUIDS AND LUBRICANTS 69
LUBRICATION/MAINTENANCE CHART 70
REAR ACCESS DOOR 71
GREASE FITTINGS (Every 10 Hours) 72
GREASE FITTINGS (Every 100 Hours) 73
ENGINE LUBRICATION 74
ENGINE LUBRICATION SYSTEM (1825) 75
ENGINE LUBRICATION SYSTEM (1825B) 78
AIR FILTER SYSTEM 81
ENGINE COOLING SYSTEM 84
DIESEL FUEL SYSTEM 86
HYDRAULIC SYSTEM 90
DRIVE CHAIN COMPARTMENT 94
ADJUSTMENT/MAINTENANCE 95
WHEEL NUTS 97
TILTING THE OPERATORS COMPARTMENT FORWARD 98
TILTING OPERATORS COMPARTMENT INTO OPERATING POSITION 99
TESTING THE SEAT BARS 100
DRIVE CHAINS 101
MAINTENANCE OF THE SEAT BELT 105
SPARK ARRESTER MUFFLER 106
ROLL-OVER PROTECTION STRUCTURE 107
ELECTRICAL 111
ELECTRICAL SYSTEM 111
BATTERY SERVICE 112
STORAGE 117
REMOVAL FROM STORAGE 118
SPECIFICATIONS 119
SPECIFICATIONS 119
LOADER BUCKETS 120
OPERATING DATA AND DIMENSIONS 123
AFTER DELIVERY CHECK 125
INDEX 129

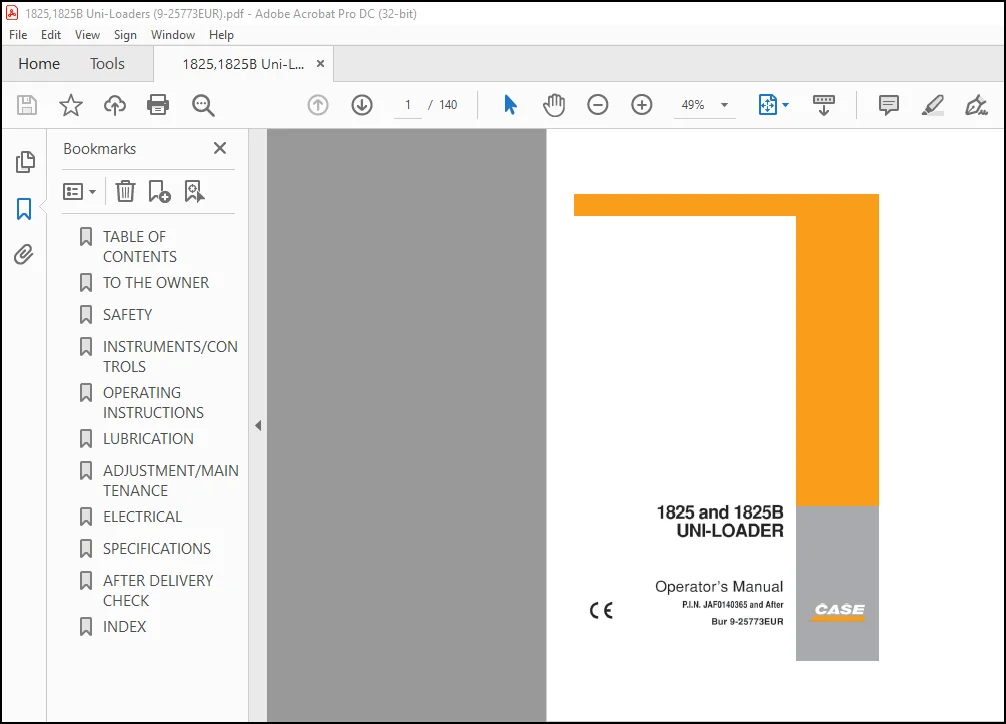

IMAGES PREVIEW OF THE MANUAL:
