Case 1840 Low Profile Uni-Loader Operator’s Manual 9-28690 – PDF DOWNLOAD

Description

Case 1840 Low Profile Uni-Loader Operator’s Manual 9-28690 – PDF DOWNLOAD

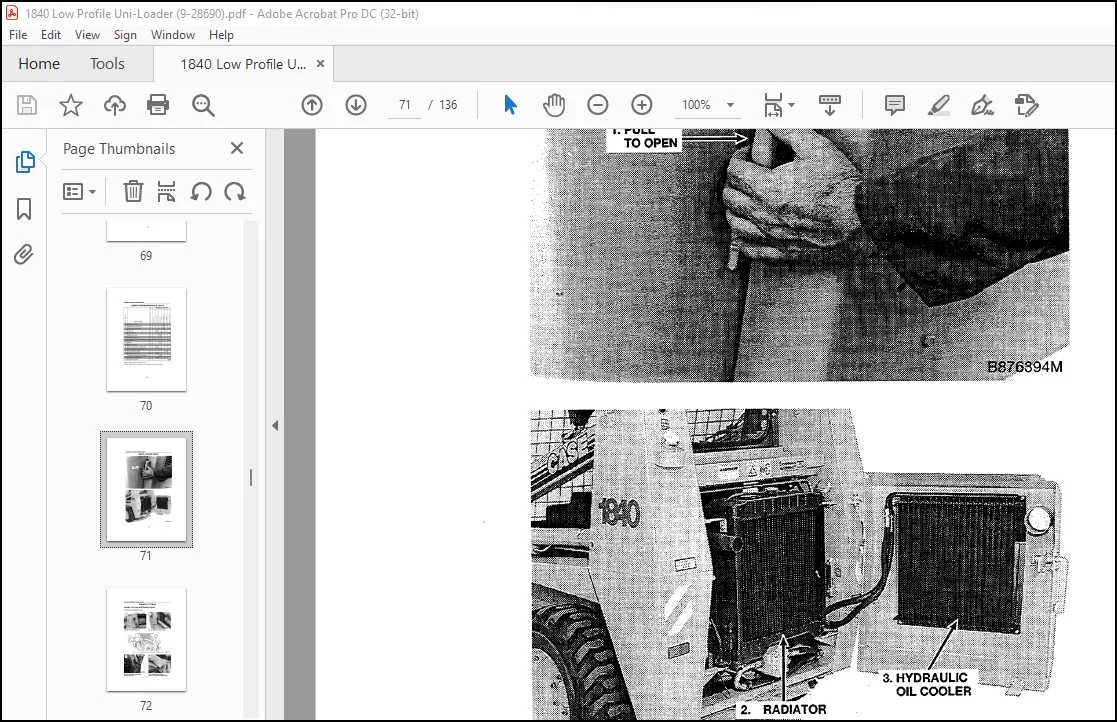

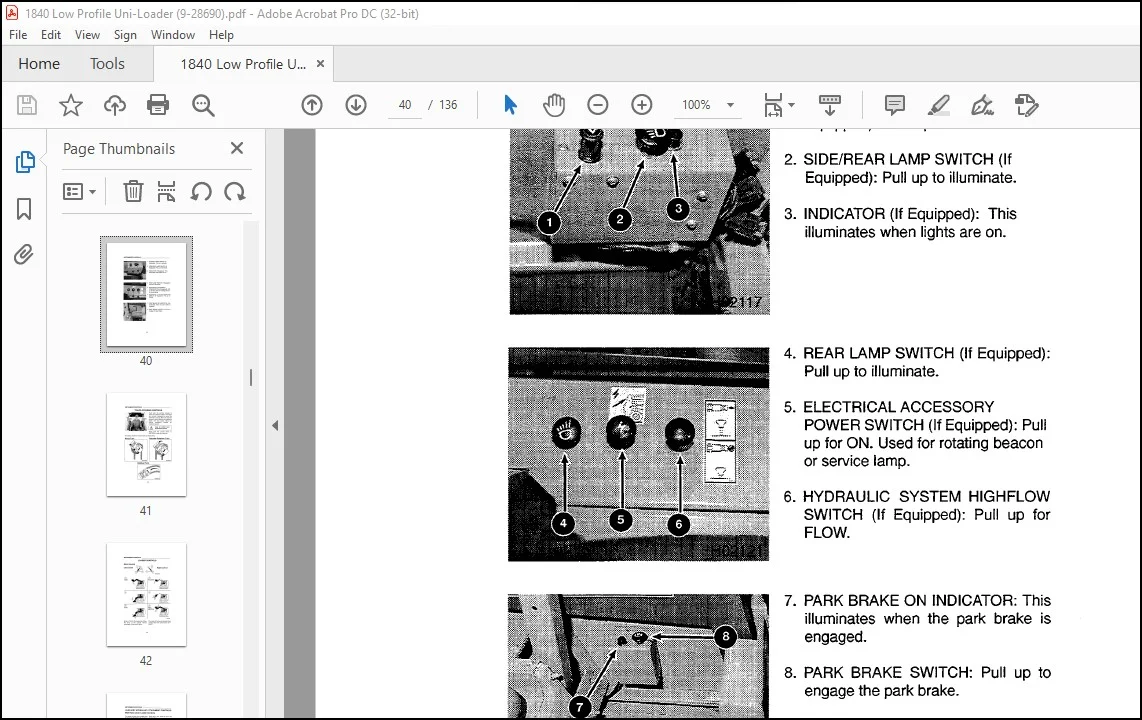

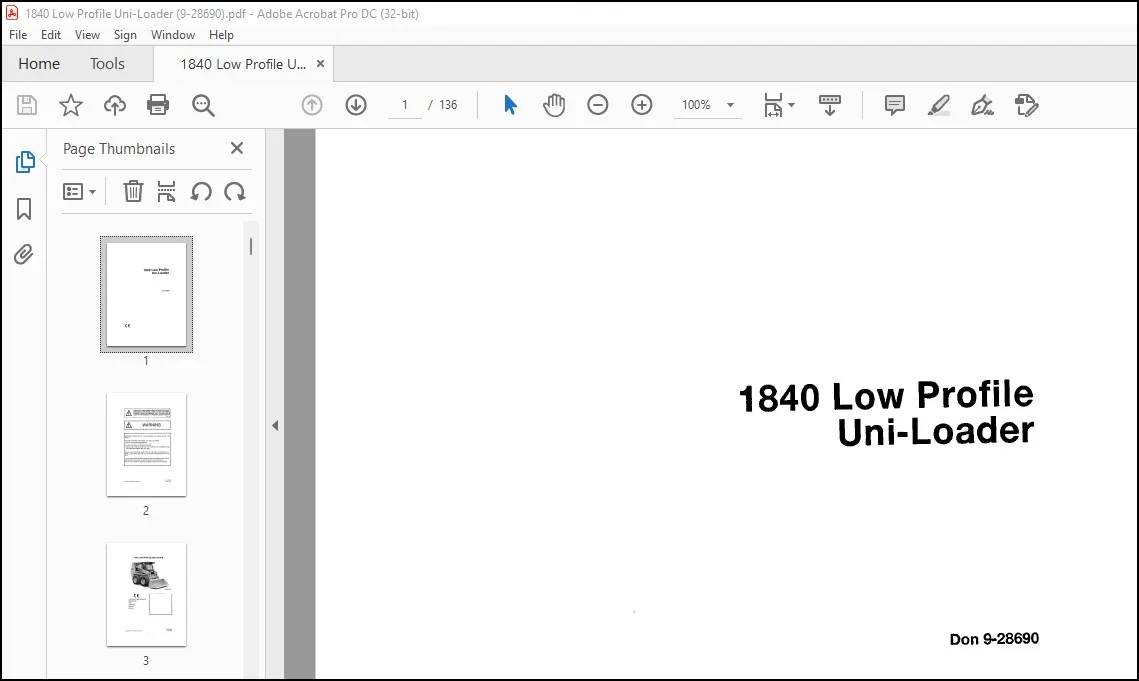

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case 1840 Low Profile Uni-Loader Operator’s Manual 9-28690 – PDF DOWNLOAD

TO THE OWNER :

• You are the owner of a Case Uni-Loader that has been designed and built to
  exact quality and safety standards. This Uni-Loader conforms to current safety
  regulations (see “Official Justifying Documents” on next page). However,
  this does not exclude all risk of accidents, that is why it is essential to observe
  elementary safety rules and precautions.
• Read this manual carefully before operating the Uni-Loader. Instructions
  concerning safety, operation and maintenance, have been developed to permit
  safe service and operation of theUni-Loader. Refer to the Detail Index at the
  end of this manual for locating specific items about your machine.
• This manual provides information essential to keeping your Uni-Loader in a
  good working condition providing a safe, reliable and durable machine.
• The attachments and equipment available for use with the Uni-Loader are
  intended for general earth moving purposes, handling, boring, ditch digging,
  etc. If the Uni-Loader is to be used for handling loads then make sure the
  machine is suitably equipped for this type of work. The Uni-loader must be
  fitted with safety valves and an overload indicator and all legal requirement
  must be strictly observed.
• Do not use the Uni-Loader for any application or purpose other than those
  described in this manual. If the Uni-Loader is to be used for duties involving
  the use of special attachments or equipment, other than those approved by
  CASE it will invalidate the CE certification. Any person making unauthorised
  modifications is responsible for their consequences.

TABLE OF CONTENTS:

Case 1840 Low Profile Uni-Loader Operator’s Manual 9-28690 – PDF DOWNLOAD

SAFETY 11-28
Safety Rules 11
Before Operating The Machine 12
Operating The Machine 13
Failure During Operation 14
Parking The Machine 14
Prevention Of Burns 15
Prevention Of Fire And Explosions 15
Wheels And TI res 15
Maintenance 17
Safety Decals 18
Hand Signals 25
Mounting And Dismounting The Machine 29, 30
INSTRUMENTS AND CONTROLS 31-42
Operator Restraint System 31
Instrument Panel 34
Controls 36
Electical Accessory Connector 42
OPERATING INSTRUCTIONS 43-63
Daily Inspections 43
Inspection Before Starting Up 43
Starting The Engine 43
Checks To Be Carried Out After Starting 44
Running-in Period 44
Before Moving The Machine In Cold Temperatures 45
Parking The Machine 45
Cold Starting Aids 46
Booster Battery Connection To Machine Battery 47
Operating The Machine 48
Transportation, Towing, Handling, Retrieving 49
Operating In Hot Weather 52
Operating In Cold Weather 53
JOb Site Operation 53
Site Familiarity 53
Normal Use 54
Case Coupler 56
Backhoe Operation 57
Lifting With A Backhoe 61
Highflow Hydraulic System 62
LUBRICATION – FILTERS – FLUIDS 63-93
General Safety Before Servicing 63
Support Strut 64
Engine Hourmeter 65
Maintenance Schedule 65
Fluids And Capacities 66
Lubrication And Maintenance Chart 67,68
Rear Access Door 69
Grease Fittings 70
Engine Lubrication 73
Engine Service Specifications 7 4
Engine Air Filter 77
Engine Cooling System 81
Engine Fuel System 84
Hydraulic System 89
Drive Chain Lubrication 93
MAINTENANCE ADJUSTMENTS 94-114
Tire And Rim Service 94
Moving The Operators Compartment 97
Testing The Seat Bar 101
Drive Chains 102
Steering Lever Adjustment 106
Seat Belt 1 07
Spark Arrester 1 07
Roll-over Protection Structure 108
Mechanical Coupler 112
Thermostart System 113
ELECTRICAL SYSTEM 115-119
Alternator 115
Batteries 11 6
Lighting 118
Fuses And Relays 119
STORAGE 120,121
Preparation For Storage 120
Removal From storage 121
TECHNICAL SPECIFICATIONS 122-126
ENgine 122
Cooling System 122
Hydraulic System 122
Operating Weights 122
Loader Buckets 123
Operating Data And Dimensions 124
Power Train 124
Electrical System 126
Noise Levels 126
DETAIL INDEX 127-129
AFTER DELIVERY CHECK 131,133
