Case 1850K Crawler Dozer Service Manual – PDF DOWNLOAD

Description

Case 1850K Crawler Dozer Service Manual – PDF DOWNLOAD

DESCRIPTION:

Case 1850K Crawler Dozer Service Manual – PDF DOWNLOAD

SAFETY RULES :

• – Do not allow unauthorised personnel to operate service or maintain this machine.  Do not wear rings, wrist watches, jewelry, loose or hanging apparels, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as recommended for the job. Examples: hard hat, heavy gloves, ear protection, safety glasses or goggles, reflector vests, respirator. Consult your employer for specific safety equipment requirements. – Keep operator’s compartment, stepping points, grabrails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimise the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Do not jump on or off the machine. Keep two hands and one foot, or two feet and one hand in contact with step grab rails and handles at all times. – Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
• Also, controls may be inadvertently moved causing accidental machine or equipment movement. – Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times, to reduce exposure to hazards outside the operator’s compartment. – Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.
• – Do not leave the machine until it is completely stopped. – Check the seat safety belt at least twice a year. If there are signs of wear or fraying or other signs of weakness that could lead to failure, replace it.

TABLE OF CONTENTS:

Case 1850K Crawler Dozer Service Manual – PDF DOWNLOAD

Table of Contents ……………….. 3
Generalities ……………………. 5
Engine …………………………. 49
Transmission ……………………. 61
Final Drives …………………….127
Brakes and Steering ………………151
Undercarriage ……………………214
Dozing Equipment Hydraulic System ….246
Electrical System ………………..268

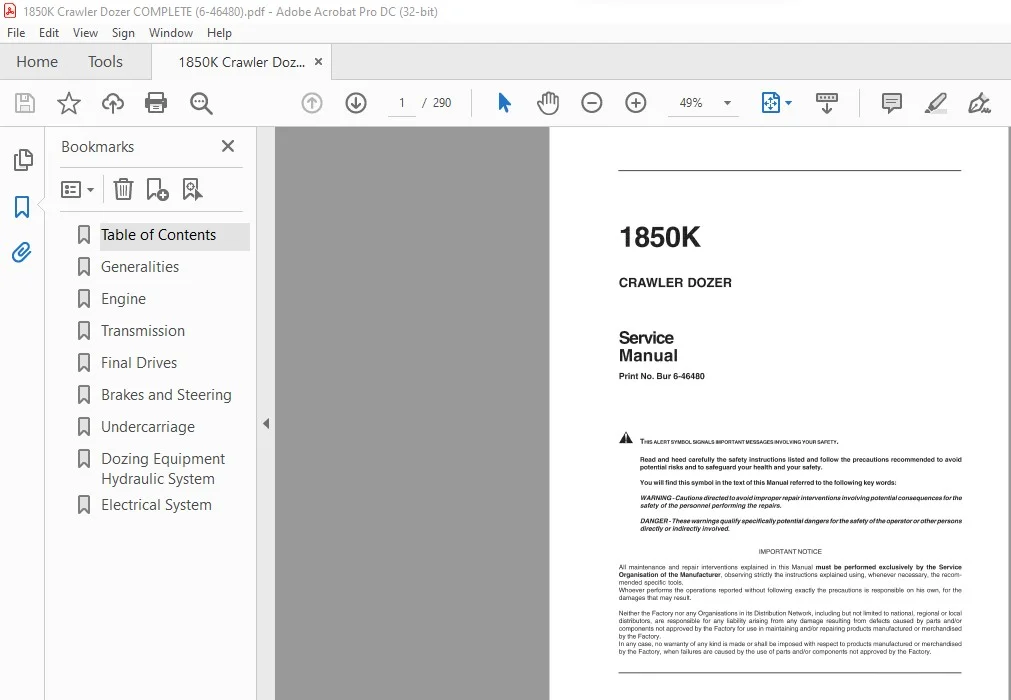

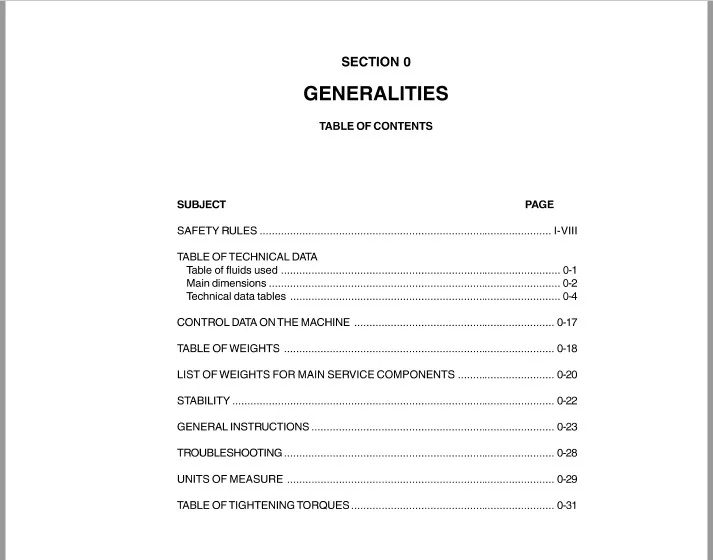

IMAGES PREVIEW OF THE MANUAL:

CASE 1850K CRAWLER DOZER SERVICE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
