Case 188 Diesel Engine Service Manual 8-38250 – PDF DOWNLOAD

Description

Case 188 Diesel Engine Service Manual 8-38250 – PDF DOWNLOAD

FILE DETAILS:

Case 188 Diesel Engine Service Manual 8-38250 – PDF DOWNLOAD

Language : English
Pages : 273
Downloadable : Yes
File Type : PDF
Size: 122 MB

DESCRIPTION:

Case 188 Diesel Engine Service Manual 8-38250 – PDF DOWNLOAD

GENERAL INFORMATION :

Before making any repairs or adjustments on an engine, a mechanic or technician must properly diagnose the trouble. Locating the trouble and repairing it is only part of the job, a technician must find and eliminate the cause of the trouble as well. Too many repairs are made with no thought to removing the causes that made the repair necessary.

For any engine to start or perform properly, three main requirements must be present:

1. FUEL
2. COMPRESSION
3. COMBUSTION

When any of these requirements are not present or limited by some mechanical reason, the engine will not start and will fail to operate properly throughout the power range.

• FUEL. Fuel system problems can be present anywhere from the fuel tank, through the filters and injection pump as well as the injectors. Correct injection pump timing is important in the overall fuel system performance.
• COMPRESSION. Compression on an engine is related to the “breathing function”. Proper compression is affected by the air cleaner condition, muffler restriction, valve condition and operation including proper valve adjustment, cylinder head gaskets, condition of sleeves, rings, pistons, camshaft, and camshaft timing.
• COMBUSTION. Combustion is the result of adequate compression to develop enough heat in the air charge on the compression stroke to fire the fuel being injected into the engine cylinders. Proper spray pattern and atomization of the fuel by the injector is very important. Timing the fuel injection pump to the engine to a precise degree BTDC is a vital requirement for proper combustion. The engine diagnosis contained in the following pages covers many trouble symptoms, the causes, and what will be necessary to repair or eliminate the problem. Under each symptom are listed the most common and reoccuring problems progessing to the not so common problems. Locate -your problem symptom in the diagnosis chart and refer to the pages listed for the probable causes and remedies.

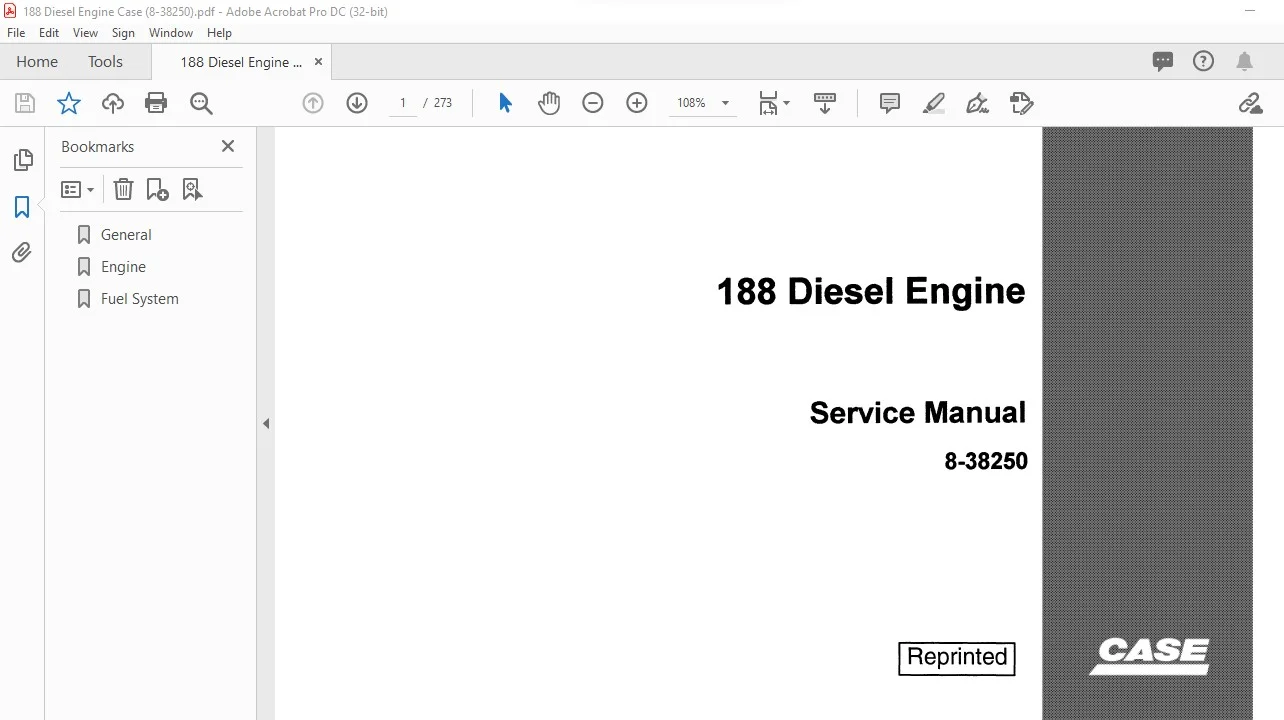

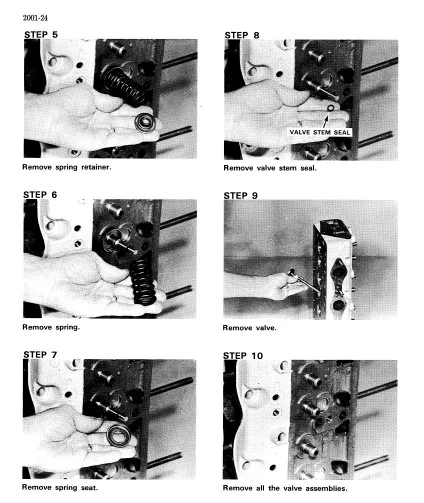

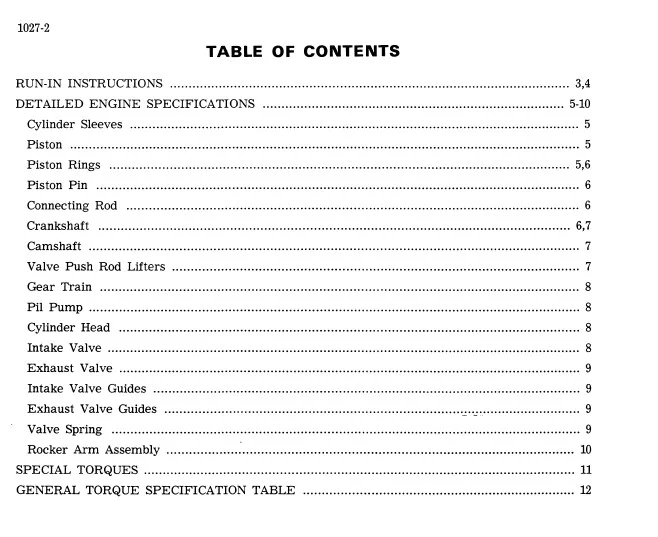

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
