Case 21F 121F 221F 321F Tier4 Compact Wheel Loader Service Manual 47768535B – PDF DOWNLOAD

Description

Case 21F 121F 221F 321F Tier4 Compact Wheel Loader Service Manual 47768535B – PDF DOWNLOAD

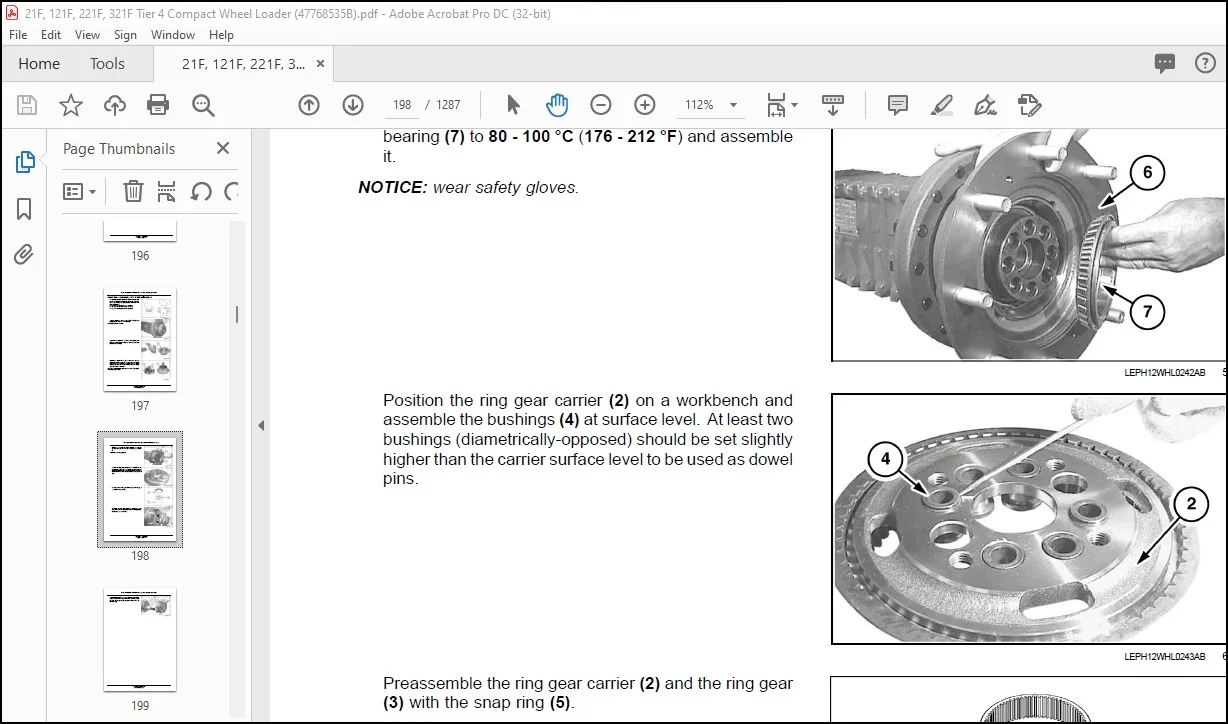

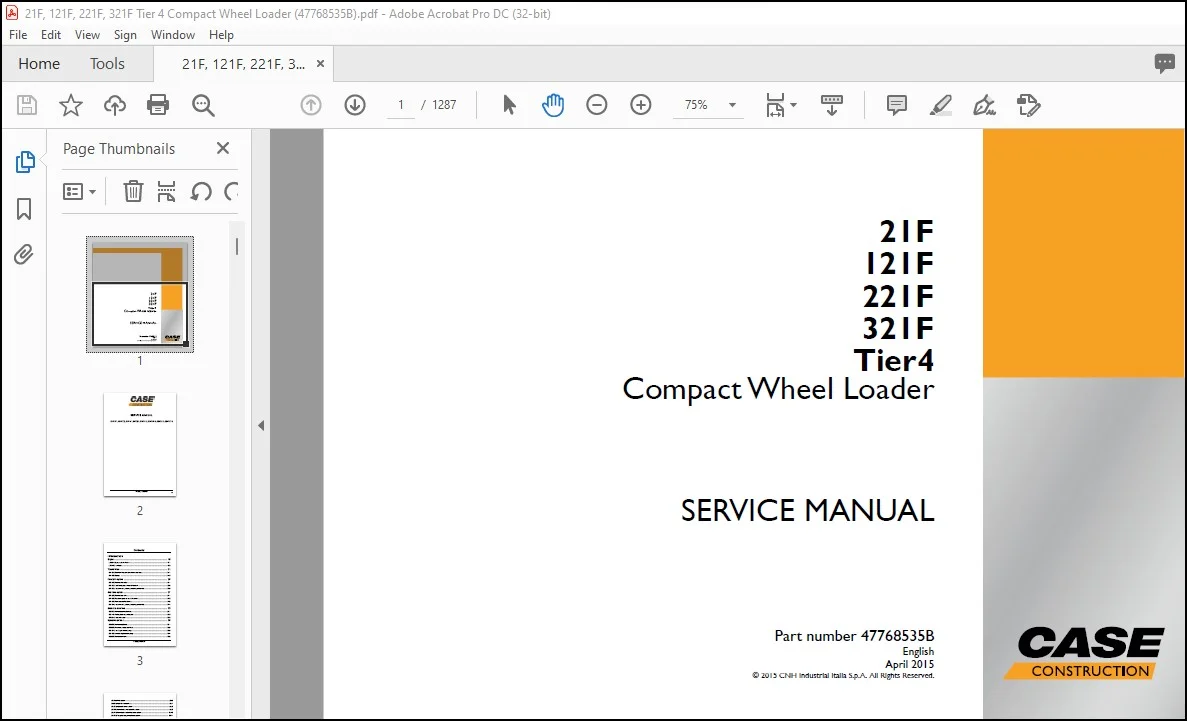

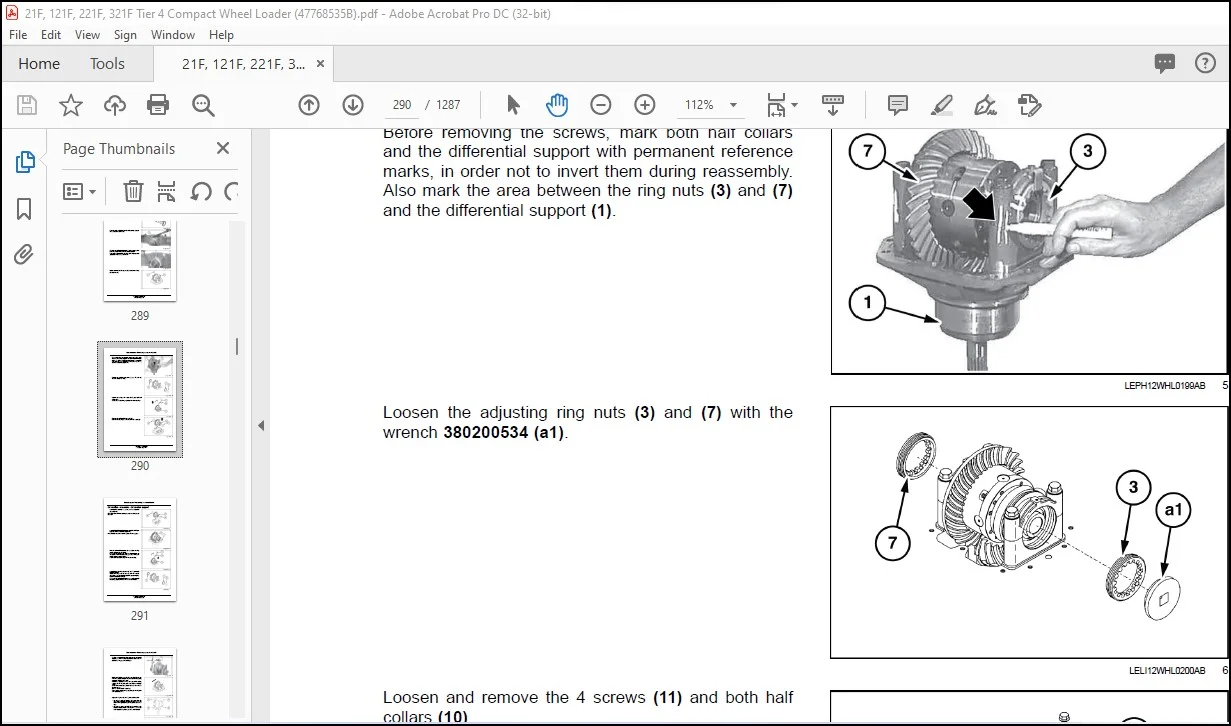

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case 21F 121F 221F 321F Tier4 Compact Wheel Loader Service Manual 47768535B – PDF DOWNLOAD

INTRODUCTION :
Basic instructions – Important notice regarding equipment servicing:

• All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel,
  strictly complying with the instructions given, and using, whenever possible, the special tools.
• Anyone who performs repair and maintenance operations without complying with the procedures provided herein
  shall be responsible for any subsequent damages.
• The manufacturer and all the organizations of its distribution chain, including – without limitation – national, regional, or
  local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manufacturer,
  including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.
• In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case
  of damages caused by parts and/or components not approved by the manufacturer.
• The information in this manual is up-to-date at the date of the publication. It is the policy of the manufacturer for
  continuous improvement. Some information could not be updated due to modifications of a technical or commercial
  type, or changes to the laws and regulations of different countries.
• In case of questions, refer to your CASE CONSTRUCTION Sales and Service Networks.

Basic instructions – Shop and assembly
Shimming
For each adjustment operation, select adjusting shims and measure the adjusting shims individually using a micrometer,
then add up the recorded values. Do not rely on measuring the entire shimming set, which may be incorrect, or
the rated value shown on each shim.
Rotating shaft seals
For correct rotating shaft seal installation, proceed as follows:
1. Before assembly, allow the seal to soak in the oil it will be sealing for at least thirty minutes.
2. Thoroughly clean the shaft and check that the working surface on the shaft is not damaged.
3. Position the sealing lip facing the fluid.
NOTE: With hydrodynamic lips, take into consideration the shaft rotation direction and position the grooves so that
they will move the fluid towards the inner side of the seal.
4. Coat the sealing lip with a thin layer of lubricant (use oil rather than grease). Fill the gap between the sealing lip
and the dust lip on double lip seals with grease.
5. Insert the seal in its seat and press down using a flat punch or seal installation tool. Do not tap the seal with a
hammer or mallet.
6. While you insert the seal, check that the seal is perpendicular to the seat. When the seal settles, make sure that
the seal makes contact with the thrust element, if required.
7. To prevent damage to the seal lip on the shaft, position a protective guard during installation operations.

TABLE OF CONTENTS:

Case 21F 121F 221F 321F Tier4 Compact Wheel Loader Service Manual 47768535B – PDF DOWNLOAD

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 216] Fuel tanks 10 2
Transmission 21
[21 135] Powershift transmission external controls 21 1
[21 160] Creeper 21 2
Front axle system 25
[25 100] Powered front axle 25 1
[25 102] Front bevel gear set and differential 25 2
[25 108] Final drive hub, steering knuckles, and shafts 25 3
Rear axle system 27
[27 100] Powered rear axle 27 1
[27 106] Rear bevel gear set and differential 27 2
[27 120] Planetary and final drives 27 3
[27 124] Final drive hub, steering knuckles, and shafts 27 4
Brakes and controls 33
[33 202] Hydraulic service brakes 33 1
[33 110] Parking brake or parking lock 33 2
[33 204] Front axle brake 33 3
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 300] Reservoir, cooler, and filters 35 2
[35 104] Fixed displacement pump 35 3
[35 106] Variable displacement pump 35 4
[35 359] Main control valve 35 5
47768535B_EN 20/04/2015
[35 357] Pilot system 35 6
[35 600] High flow hydraulics 35 7
[35 353] Hydraulic travel system 35 8
[35 701] Front loader arm hydraulic system 35 9
[35 723] Front loader bucket hydraulic system 35 10
[35 734] Tool quick coupler hydraulic system 35 11
Frames and ballasting 39
[39 140] Ballasts and supports 39 1
Steering 41
[41 101] Steering control 41 1
[41 200] Hydraulic control components 41 2
[41 216] Cylinders 41 3
Electrical systems 55
[55 000] Electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 045] Front axle control system 55 3
[55 408] Warning indicators, alarms, and instruments 55 4
[55 DTC] FAULT CODES 55 5
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1
