WHEN WORKING
THE OPERATOR MUST
– Request all site personnel to keep clear of the machine
attachment and counterweight sweeping area.
– Be alert and keep watch over the machine surrounding
area : digging face, log deck, ground stability, truck locations
and nearby obstructions
– Require the assistance of a signalman if the operator
cannot see the end of the attachment (see control signals)
– Whenever practicable, site the machine on level ground,
suitably prepared and close to the log deck or far enough from
the excavation bank.
– If working on a slope :
• Apply the track motor brakes (depending on mounting)
• Work with the attachment pointing downgrade
– When handling loads, please refer to the RECOMMENDATIONS
TO USERS OF HYDRAULIC EXCAVATORS
USED FOR REHANDLING OPERATIONS, at the end
of this manual.
– SIGNAL the limits of the machine working area on
public property job sites.
LOADING THE MACHINE ON A LOW-BED
TRAILER OR RAILWAY CAR
– Align the machine opposite the tailgate ramps, with
drive motor at rear
Raise attachment
Run engine at half-throttle
Engage machine on tailgate ramps
At start of tipping movement, reduce speed by progressively
releasing track drive control levers
– f.t end of tipping movements, increase speed of machine
by progressively pushing levers
– Loader attachment : lay down bucket (or not)
depending on length of platform and trailer
Backhoe attachment : fold dipperstick and bucket
Mount upperstructure lock bar
Dismount cab it required

TABLE OF CONTENTS:

Case 220 CKS Poclain Operators Manual S406298M1 – PDF DOWNLOAD

SPECIFICATIONS ……………………………………………….. 7
OPERATION …………………………………………………… 12
SAFETY ……………………………………………………….. 28
MAINTENANCE ………………………………………………… 29
HYDRAULIC SYSTEM …………………………………………… 47
MECHANICAL SYSTEM …………………………………………. 49
ATTACHMENTS .. ·. …………. . …………………………………5 3
TOOLS AND SPARE PARTS ………………………………………. 55
LOGGING ATTACHMENT SUPPLEMENT …………………………… 57

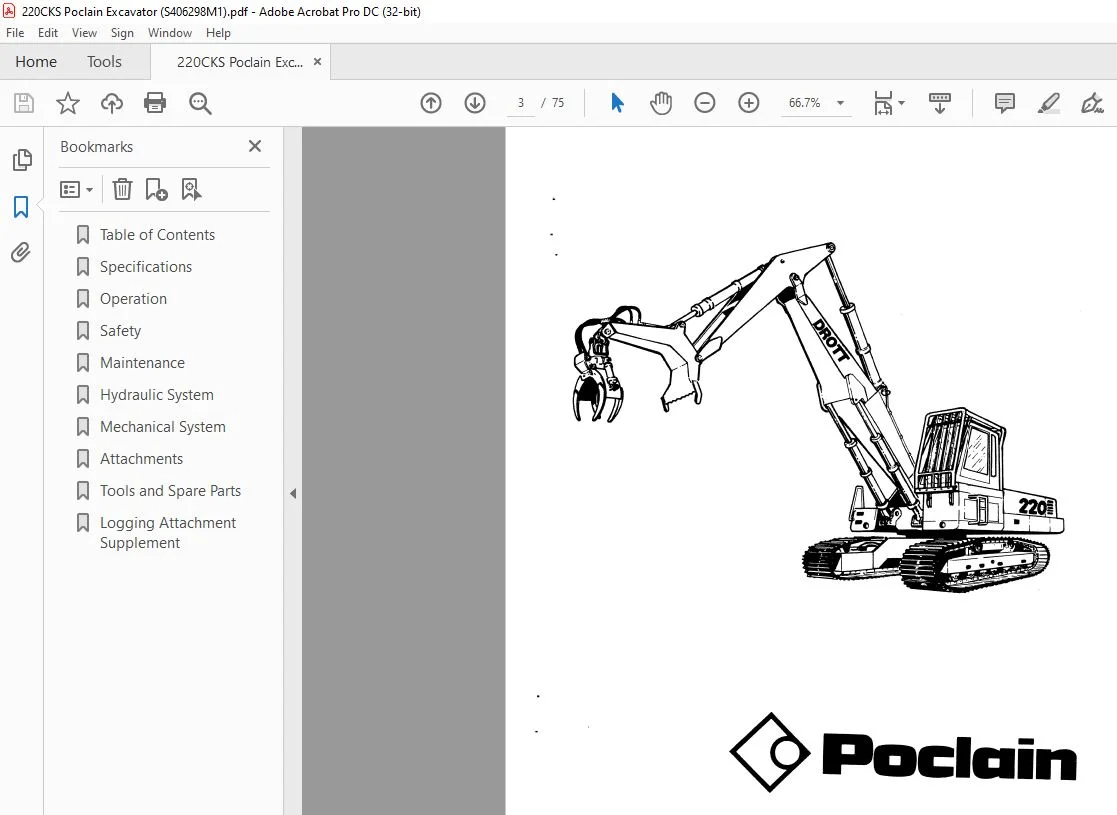

IMAGES PREVIEW OF THE MANUAL:
