DESCRIPTION:

Case 310D Crawler Operators Manual 9-294 – PDF DOWNLOAD

1. “POWER-TORQ” ENGINE. A high-compression, heavy-duty power plant
with an extremely high torque that operates on regular grade gasoline.
2. HEAVY DUTY CLUTCH. New clutch design with 50% more “torque carrying”
capacity, smooth, long life operation.
3. STEERING. Controlled planetary differential with power to both tracks
while turning.
4. BRAKES. Bands on drums in differential for steering Crawler or for stoping
and holding on grades. Actuated by hand or foot levers.
5. TRANSMISSION. Three speed sliding gear type transmission.
6. HYDRAULIC ATTACHMENTS. Several types of hydraulic operated Allied
Equipment can be installed. It is engineered for the Crawler.
7. SUSPENSION. Leaf type springs for track oscillation prevent undue
shock to the Crawler.
8. TRACK AND TRACK FRAME. Heavy-duty steel channel, with side frames
securely tied together by rigid transverse torque tube, which supports
engine, dozer mounting brackets, etc. All track rollers mounted on antifriction
bearings. Frame is spring-mounted to absorb shocks, keeps
stress from damaging power train.
9. UNIVERSAL JOINTS. Universal joints provide a flexible connection between
transmission and clutch – no rigid cast iron drive housing tc.
crack or break.
10. SEAT. Stationary-type comfortable back, seat, and arm rests of foam
rubber covered with durable synthetic leather. Roomy tool chest under
the left arm rest.
l l. LIGHTS. Seal-beam headlights recessed in streamlined hood, and recessed
tail light.
12. TRACK PI.ATES. A large variety of track plates are offered to fit any
particular need. Grousers, open mud grouser, ice and snow grousers,
and steel ribbed street plates, heat treated or non-heat treated are
offered as optional equipment. Rubber pads can be added to 11 and 12
inch Grousers for use in street.
13. MUFFLER. An underhood type muffler is available as optional equipment
for installation on the Crawler.
14. PRE-CLEANER (OPTIONAL). A pre-cleaner, with settling bowl, is available
for installation on Crawlers. This tube, which elevates the air
intake level above the hood, is recommended for use in dusty operating
conditions.

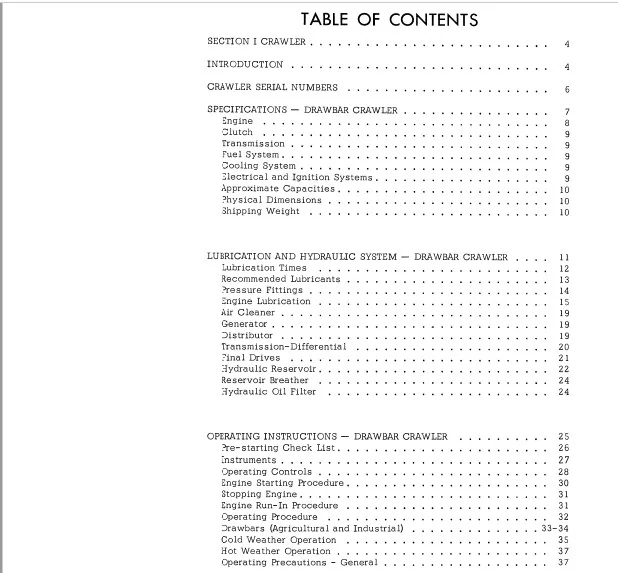

TABLE OF CONTENTS:
