Case 310G-350 Crawler Service Manual – PDF DOWNLOAD

Description

Case 310G-350 Crawler Service Manual – PDF DOWNLOAD

DESCRIPTION:

Case 310G-350 Crawler Service Manual – PDF DOWNLOAD

• Run-In Procedure (Agricultural Tractors)
  For the first 8 hours of field operation stay one gear lower than normal. For the next 12 hours
  DO NOT “lug” the engine. Prevent “lugging” by shifting to a lower gear. The engine must not
  be “lugged” below its Rated Engine RPM during the early hours of life.
• Run-In Procedure (Construction Equipment)
  For the first 8 hours, operate the engine at full throttle maintaining a normal load. DO NOT baby
  the engine, but avoid prolonged converter or hydraulic stall. Engine must not be “lugged” below
  its Rated Engine RPM (Do not exceed 10 seconds of stall).
• Run-In Procedure (Power Units)
  For the first 1/2 hour, operate engine at 2/3 rated RPM with a light load or no load. For the next
  (1) hour, run engine at 80 to 90% load at rated RPM (but not over 2000 RPM). Then full load and
  rated RPM as required in application.

TABLE OF CONTENTS:

Case 310G-350 Crawler Service Manual – PDF DOWNLOAD

10 SERIES – GENERAL
3106-350 CRAWLER
TABLE OF CONTENTS
SECTION NO
General Engine Specifications – 188 Diesel 1010
Detailed Engine Specifications – 188 Diesel 1027
Maintenance and Lubrication 1050
Torque Chart 1051
Detailed Engine Specifications 148 Spark Ignition 1129
20 SERIES – ENGINE
Engine Diagnosis 2001
Engine Tune-Up 2002
Cylinder Head and Valves, Spark Ignition Engine 2013
Cylinder Head, Valve Train and Camshaft 2015
Engine Block, Spark Ignition Engine 2023
Cylinder Block, Sleeves, Pistons and Rods 2025
Crankshaft, Bearings, Flywheel and Oil Seals 2035
Oil Pulllp 2045
Engine Removal and Installation 2050
Air Cleaner 2051
Cooling System 2054
Engine Lubrication 2555
30 SERIES – FUEL SYSTEMS
Model TSX Series Carburetor 35
Fuel Filters, Diesel Engine 3010
Fuel Injection Pulllp 3012
Fuel Injectors 3013
Throttle Linkag-e Adjustments, Fuel Lines 3052
Fuel Filters, Spark Ignition Engine 3110
40 SERIES – HYDRAULICS
Hydraulic Diagrams, Trouble Shooting, Pressure Checks 4011
Equipment Pulllps 4013
Loader and Dozer Control Valves 4021
Commercial-Sbearing Backhoe Control Valves 4022
Pull Behind Hydraulics, Diversion Valve 4028
Boom Lockout System 4041
Hydraulic Cylinders 4057
50 SERIES – TRACK AND SUSPENSION
Track and Suspension System 501’0
Intertrac Rollers 5505
60 SERIES – POWER TRAIN
Trouble Shooting and Testing 6012
Power Shuttle Transmission 6014
Torque Converter and Universal Joint Coupling 6016
Transmission-Differential 6018
60 SERIES – POWER TRAIN (CONT’D)
Clutch 6021
Drive Shaft 6022
Final Drives 6026
Power Takeoff 6028
80 SERIES – ELECTRICAL
Wiring Diagrams 8011
Trouble Shooting 8012
Ignition System 8013
Batteries 8014
Starter and Starter Solenoid 8015
Alternator 8016
Generator and Voltage Regulator 8017
90 SERIES – MOUNTED EQUIPMENT
Loader 9011
Dozers 9013
Winch 9014
Ripper 9015
Three-Point Hitch 9016
Roll-Over Protection Structure 9019
Model 26 and 26C Backhoe 9022
Model 32 Backhoe 9023
Model 33 Backhoe 9024

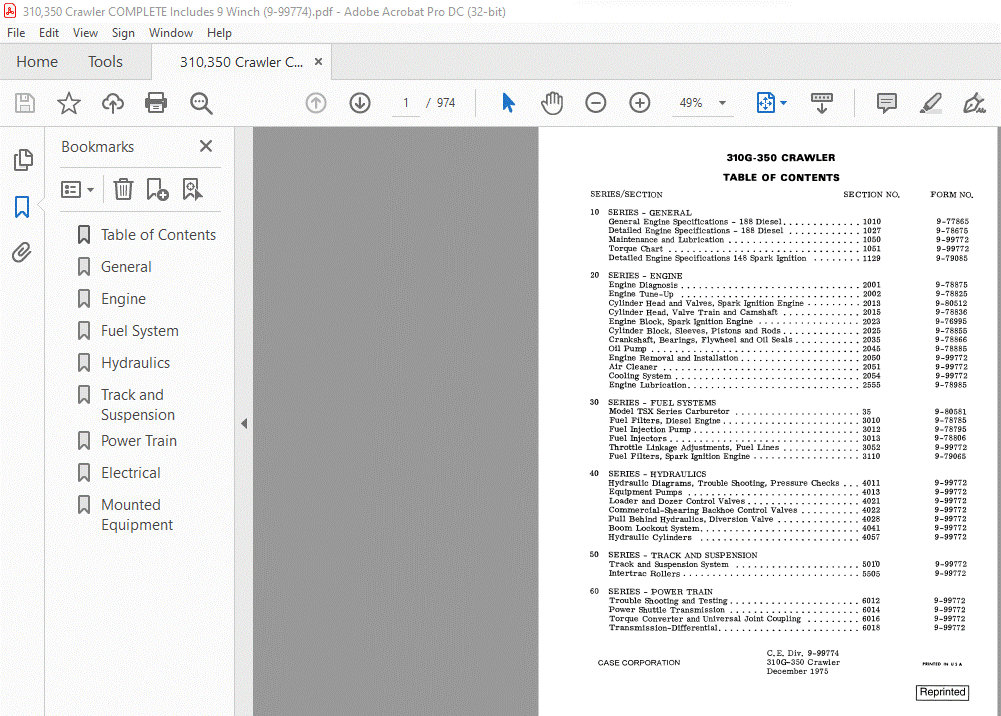

IMAGES PREVIEW OF THE MANUAL:

CASE 310G-350 CRAWLER SERVICE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
