TO CASE CRAWLER OWNERS :

The care you give your Case Crawler will determine the
satisfaction and service life you will obtain from it. Use this
manual as your guide. By observing the instructions and sug’gestions
in this manual, your Case Crawler will serve you profitably
for many years.
As an Authorized Case Dealer, we stock Genuine Case parts, .
which are manufactured with the same precision and skill as
the original equipment. Our factory trained staff is kept well
informed on the best methods of servicing Case equipment and
is ready and able to help you.
Should you require additional aid or information, contact us.

TABLE OF CONTENTS:

Case 310G Crawler Operators Manual 9-1457 – PDF DOWNLOAD

SECTION I – DRA WEAR CRAWLER 2
INTRODUCTION 2
SERIAL NUMBER LOCATION 4
G 148B GASOLINE ENGINE SPECIFICATIONSS 5
G 188D DIESEL ENGINE SPECIFICATIONS 7
GENERAL SPECIFICATIONS 9
Cooling System 9
Overall Measurements 9
Starting and Lighting System 9
Clutch – 10
Transmission 10
Brakes 1 O
Approximate Capacities 10
FUEL SPECIFICATIO)JS 11
Gasoline 11
Diesel 11
LUBRICATION 14
Recommended Lubricants 15
Lubrication Schedule 1 7
Engine Lubrication · 18
Engine Oil Filter _ 20
Crankcase Breathe1· 21
Air Cleaner 22
Genera tor 22
Distributor 22
Transmission-Differential 23
Final Drives 23
Hydraulic System 24
Hydraulic Oil Filter 26
OPERATING INSTRUCTIONS 28
Pre-Starting Check List 28
Controls and Instruments 29
Engine Starting Procedure 32
Engine Stopping Procedure 33
Cold Weather Starting Procedure (Diesel) 33
Cold Weather Operation 34
Engine Warm Up Procedure 36
Operating Crawler 3b
Agricultural Drawbar 38
Industrial Drawbar 39
Run-In-Procedure 39
PREVENTIVE MAINTENANCE 41
Lubrication 41
Cooling System 41
Fan Belt 44
Air Cleaner 45
Crankcase Breather 46
Diesel Fuel System 47
Gasoline Fuel System 51
Gasoline Engine Speed and Governor Adjustment 53
Diesel Engine Speed and Governor 54
Valve Tappet Adjustment 54
Engine Oil Pump 55
Gasoline Engine Electrical System 56
Starting Motor 61
Generator-Voltage Regulatcr Type 62
Diesel Engine Electrical System 62
Storage Battery 67
Clutch 69
Brakes 70
Track 72
Crawler Storage 78
Diesel Engine Storage 79
Removing Engine From Storage 80
Hydraulic System Trouble Shooting Chart 82
SECTION II – LOADER 83
SECTION III – MULTIPURPOSE BUCKETS 101
SECTION IV – BACKHOE 115
SECTION V – DOZERS 153
SECTION VI – RIPPER 177
SECTION VII – PTO AND BELT PULLEY 183
SECTION VIII – THREE POINT HITCH 189
SECTION IX – PULL BEHIND HYDRAULICS 197
SECTION X – MODEL C-12 WINCH 201
SECTION XI – MODEL CG-12 WINCH 213
SECTION XII – MODEL 9 WINCH 223

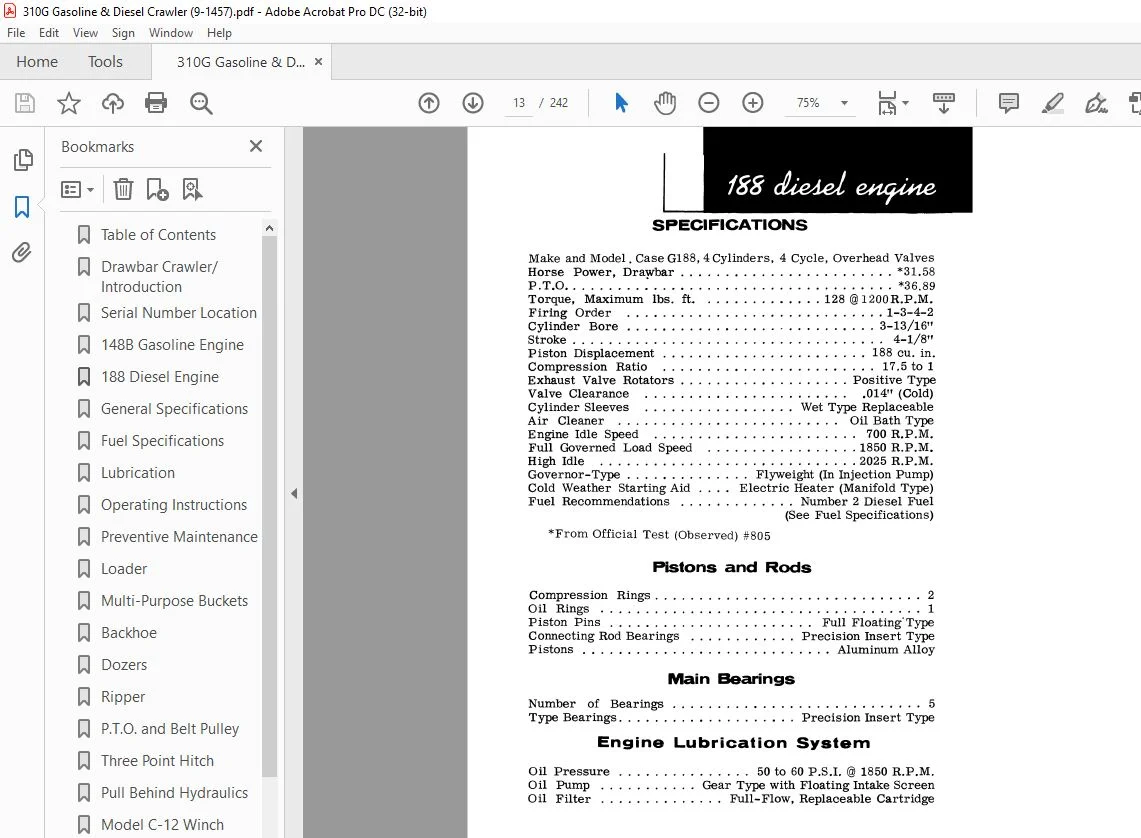

IMAGES PREVIEW OF THE MANUAL:
