Case 35A & 35WL Backhoe for 850C & W14 Parts Catalog Manual 8-1530 – PDF DOWNLOAD

Description

Case 35A & 35WL Backhoe for 850C & W14 Parts Catalog Manual 8-1530 – PDF DOWNLOAD

DESCRIPTION:

Case 35A & 35WL Backhoe for 850C & W14 Parts Catalog Manual 8-1530 – PDF DOWNLOAD

Indexes:
This parts catalog is arranged for easy identification on parts. The Alphabetical Index at the front of the catalog gives location of major groups and assemblies. The Numerical Index at the rear of the catalog gives part numbers and the page on which they are listed.
Abbreviations and Terms:
PIN – Product Identification Number.
SN – Serial Number.
NSS – Not sold separately.
REF – Reference. Used to clarify drawing.
RESERVED – No item listed.
UAR – Use as required.
Changes:
When changes are made to the machine, revised pages for this catalog will be issued. These pages must be inserted into your catalog as soon as they are received. Failure to keep your catalog up to date will result in confusion and may cause you to order wrong parts.
Orders :
Orders should specify correct part number, full description, quantity required, machine and engine model, machine and engine serial numbers, method of shipment and shipping address.

TABLE OF CONTENTS:

Case 35A & 35WL Backhoe for 850C & W14 Parts Catalog Manual 8-1530 – PDF DOWNLOAD

B
Boom 73
Buckets 87 91
Bellhole and Graveyard 89
Heavy Duty Trenching 91
Trenching 87
C
Controls 63
Control extendable dipper 65
Couplings hydraulic quick disconnect 39
Cylinders hydraulic
Boom 45 47
Bucket 53
Dipper 49 51
Dipper Extension 55
Stabilizer 41
Swing 43
D
Decals 93
Dipper 79 85
E
Extendable Dipper 83 85
F
Frame mounting 69
Frost Tooth 79
H
Hose and Fitting Conver~ion Part Numbers 94
Hydraulic Circuits
Boom 15
Bucket with extendable dipper 21
Bucket without extendaple dipper 19
Dipper 17
Extendabl~ Dipper 23
Stabilizer 7′ 9
Sw ing t 11 1~
Printed in l) S A
L
Latch boom
850C Crawler only 75
W14 Loader only 77
M
Mounting Frame 69
Mounting Parts 850C only 67
N
Numerical Index 95
s
Seat W14 only 57
Stabilizers 69
SMV Emblem 93
Serial Number Location 4
T
Teeth buckets 87 91
Tooth frost 79
Tower
Control 850C only 59
Control W14 only 61
Tower swing 71 73
V
Valve backhoe control 27
Boom Section 37
Bucket Section 31
Dipper Section 31
Dipper Extension Section 33
Inlet Section 29
Outlet Section __ 29″
Swing Section 35
Valve stabilizer control 25

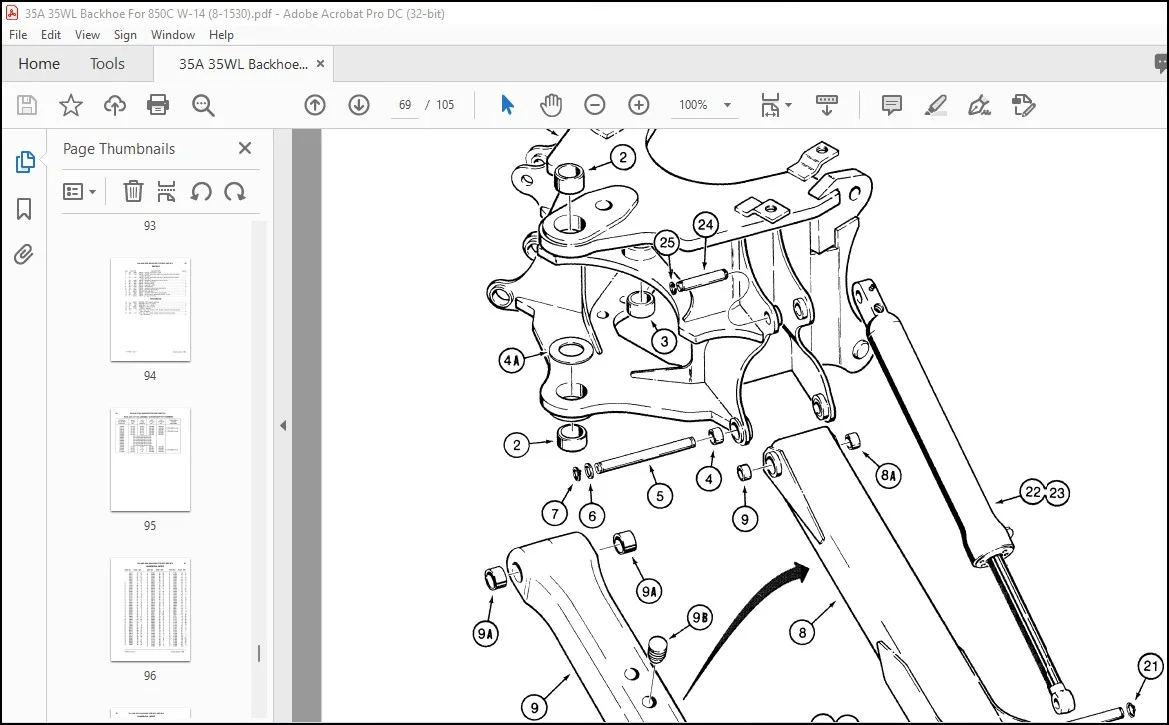

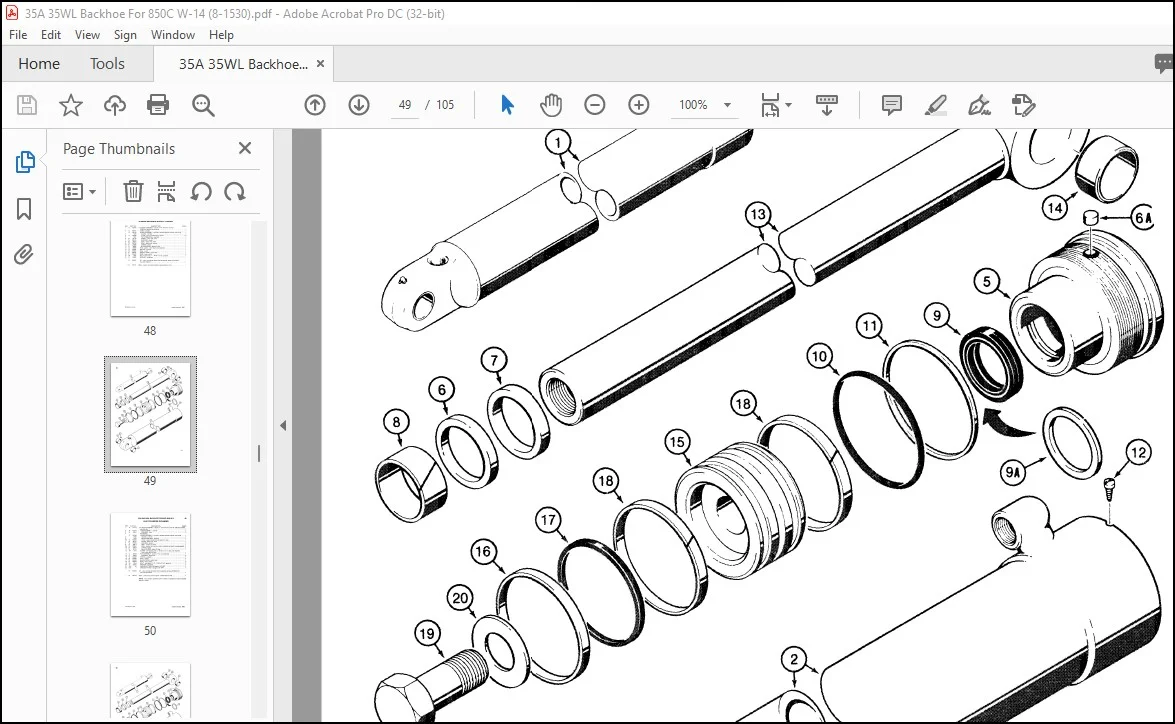

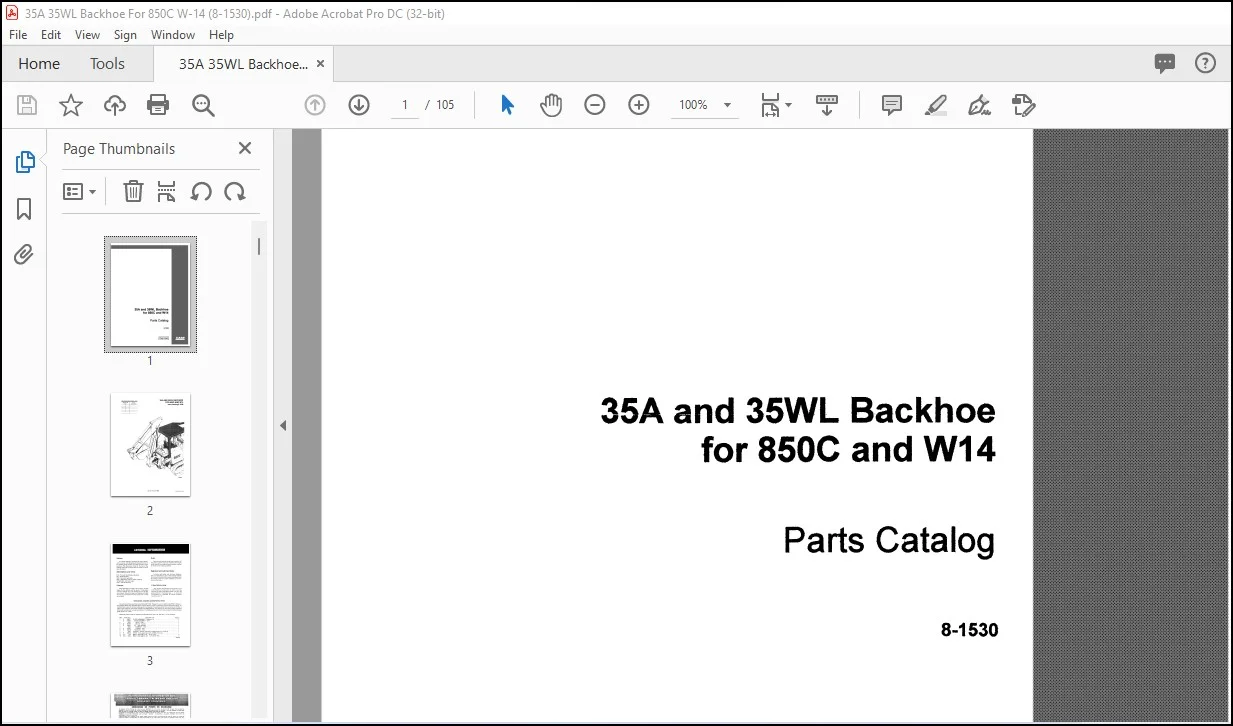

IMAGES PREVIEW OF THE MANUAL:
