Case 450 Crawler Service Manual 9-72334 – PDF DOWNLOAD

Description

Case 450 Crawler Service Manual 9-72334 – PDF DOWNLOAD

DESCRIPTION:

Case 450 Crawler Service Manual 9-72334 – PDF DOWNLOAD

Run-In Procedure (Agricultural Tractors)
For the first 8 hours of field operation stay one gear lower than normal. For the next 12 hours
DO NOT “lug” the engine. Prevent “lugging” by shifting to a lower gear. The engine must not
be “lugged” below its Rated Engine RPM during the early hours of life.
Run-In Procedure (Construction Equipment)
For the first 8 hours, operate the engine at full throttle maintaining a normal load. DO NOT baby
the engine, but avoid prolonged converter or hydraulic stall. Engine must not be “lugged” below
its Rated Engine RPM (Do not exceed 10 seconds of stall).
Run-In Procedure (Power Units)
For the first 1/2 hour, operate engine at 2/3 rated RPM with a light load or no load. For the next
(1) hour, run engine at 80 to 90% load at rated RPM (but not over 2000 RPM). Then full load and
rated RPM as required in application.

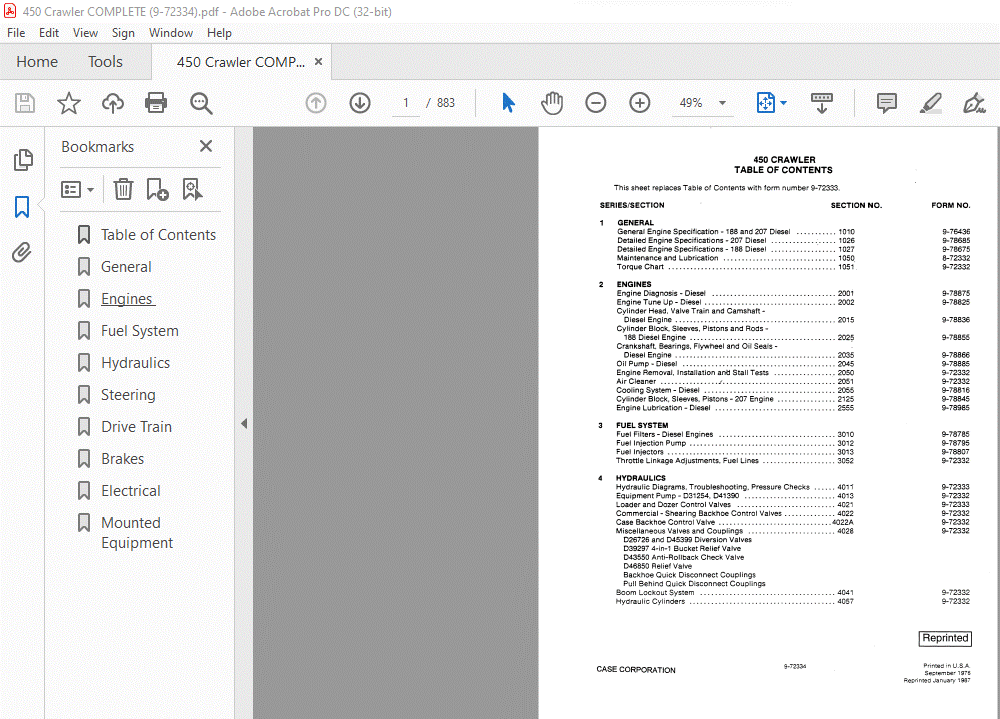

TABLE OF CONTENTS:

Case 450 Crawler Service Manual 9-72334 – PDF DOWNLOAD

1 GENERAL
General Engine Specification – 188 and 207 Diesel 1010
Detailed Engine Specifications – 207 Diesel 1026
Detailed Engine Specifications – 188 Diesel 1027
Maintenance and Lubrication 1050_
Torque Chart 1051
2 ENGINES
Engine Diagnosis – Diesel 2001
Engine Tune Up – Diesel 2002
Cylinder Head, Valve Train and Camshaft –
Diesel Engine 2015
Cylinder Block, Sleeves, Pistons and Rods-
188 Diesel Engine 202;5
Crankshaft, Bearings, Flywheel and Oil Seals –
Diesel Engine 2035
Oil Pump – Diesel 2045
Engine Removal, Installation ant! Stall Tests 2050
Air Cleaner :- 2051
Cooling System – Diesel 2055
Cylinder Block, Sleeves, Pistons – 207 Engine 2125
Engine Lubrication – Diesel 2555
3 FUEL SYSTEM
Fuel Filters- Diesel Engines 3010
Fuel Injection Pump 3012
Fuel Injectors 3013
Throttle Linkage Adjustments, Fuel Lines 3052
4 HYDRAULICS
Hydraulic Diagrams Troubleshooting, Pressure Checks 4011
Equipment Pump – D31254, 041390 4013
Loader and Dozer Control Valves 4021
Commercial – Shearing Backhoe Control Valves 4022
Case Backhoe Control Valve 4022A
Miscellaneous Valves and Couplings 4022
026726 and D45399 Diversion Valves
039297 4-in-1 Bucket Relief Valve
D43550 Anti-Rollback Check Valve
D46850 Relief Valve
Backhoe Quick Disconnect Couplings
Pull Behind Quick Disconnect Couplings
Boom Lockout System 4041
Hydraulic Cylinders 4057
5 STEERING
Track and Suspension System 501 O
Supplement 1 – Torquing Procedure for Sprocket
Mounting Bolts 501 O
lntertrac Rollers 5505
6 DRIVE TRAIN
T145 Transmission and Final Drives 64
Troubleshooting the Transmission/Converter
Hydraulic System with a Flowmeter 6012
Transmission/Converter Hydraulic System
Diagram – Transmission Removal –
Transmission Controls 6013
Torque Converter 6016
Charging Pump D35016 6017
Declutch Lockout 6019
Drive Shafts 6022
7 BRAKES
Master Cylinders, Parking Brakes, Adjustments 7010
NOTE: A/so refer to Brakes in Section 64
8 ELECTRICAL
Wiring Diagrams 8011
Troubleshooting 8012
Ignition System 8013
Batteries 8014
Starter and Starter Solenoid 8015
Generator and Voltage Regulator 8017
9 MOUNTED EQUIPMENT
Loader 9011·
Dozers 9013
Models 9 and 19 Gearmatic Winches 9014
Ripper 9015
Roll-Over Protection Structure 9019
Models 26 and 26C Backhoes 9022
Model 32 Backhoe 9023
Model 33 Backhoe 9024
Seat and Tank Assembly 9025

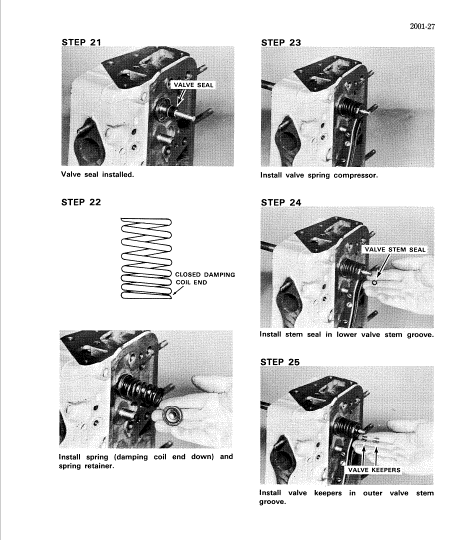

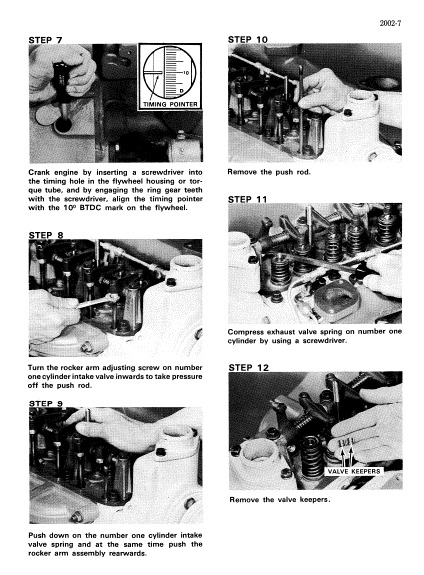

IMAGES PREVIEW OF THE MANUAL:

CASE 450 CRAWLER SERVICE MANUAL 9-72334 – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
