Case 480C Loader Parts Catalog Manual C1295 – PDF DOWNLOAD

Description

Case 480C Loader Parts Catalog Manual C1295 – PDF DOWNLOAD

DESCRIPTION:

Case 480C Loader Parts Catalog Manual C1295 – PDF DOWNLOAD

Indexes:
This parts catalog is arranged for easy identification on parts. The Alphabetical Index at the front of the catalog gives location of major groups and assemblies. The Numerical Index at the rear of the catalog gives part numbers and the page on which they are listed.
Abbreviations and Terms:
PIN – Product Identification Number.
SN – Serial Number.
NSS – Not sold separately.
REF – Reference. Used to clarify drawing.
RESERVED – No item listed.
UAR – Use as required.
Changes:
When changes are made to the machine, revised pages for this catalog will be issued. These pages must be inserted into your catalog as soon as they are received. Failure to keep your catalog up to date will result in confusion and may cause you to order wrong parts.
Orders :
Orders should specify correct part number, full description, quantity required, machine and engine model, machine and engine serial numbers, method of shipment and shipping address.

TABLE OF CONTENTS:

Case 480C Loader Parts Catalog Manual C1295 – PDF DOWNLOAD

A C
Air Cleaner 15 Loader 389,391
Alarm – backup 141 Mechanical Shuttle 201
Alternator – electrical 69-73 Power Shuttle 199
Alternator Mounting 79 PTO 277
Anti-Leakdown Kit 271 Steering 155
Armrest – seat 453 Transmission and Shuttle 199,201,205
Axle Cooling Systems
Front 163 Engine • 10,25
Rear 223 Power Shuttle 173
PTO 273,275
B Counterweights 401,403
Couplings
Backhoe Hydraulic Pump to Engine 237
Boom 409 Hydraulic Line Disconnect 341
Buckets 413 Cover- cylinder head 33
Controls {See Controls) Cover – timing gear 27
Dipper 411-413,419,421 Crankshaft – engine 43
Extendable Dipper 415-417 Cylinders – hydraulic
Frame and Mounting Parts 405 Boom – backhoe 363,365
Hydraulic Circuits {See Hydraulic Circuits) Brake – master cylinder 233
Stabilizers 407 Bucket – backhoe 371,373
Swing Tower 409 Dipper- backhoe 367,369
Backup Alarm 141 Dipper Extension – backhoe 375,377
Battery 83 Lift – hitch, three-point 379,381
Battery Compartment 445 Lift , loader 343,345
Beacon – rotating 133-137 Pitch – hitch, three-point 387
Bearings – engine Stabilizer – backhoe 351-357
Camshaft 41 Steering 159,161
Main 43 Swing – backhoe 359,361
Rod 45,47 Tilt – hitch, three-point 383,385
Belts Tilt – loader bucket 347,349
Alternator and Fan Drive 79 Cylinder Head – engine 33
Seat 451 Cylinder Sleeve – engine 45,47
Blade – loader 399
Block – engine 37,39 D
Boom Lock 265,317
Box – operators manual and tool 443 Decals 481-487
Brake System 225-235 Defroster 115-127
Buckets Differential and Differential Lock 205,207,221
Backhoe 413,419,421 Dipsticks 37,39,153,177,209
Loader 397 Drawbar – swinging or rigid 439
Drive Shaft 203
C
E
Controls
Backhoe 425-429 Electrical System and
Brake 229-235 Components 69-145
Boom Lock 317 Engine 21-49
Clutch 197 Engine and Fuel Injection Components
Clutch Cutout 95,97 Camshaft 41
Engine Speed – throttle 55,57 Connecting Rods 45,47
Extendable Dipper 431 Crankshaft 43
Hitch – three-point 433 Cylinder Block 37,39
Printed in U S A Issued March, 1983
6 480C CONSTRUCTION KING LOADER BACKHOE
ALPHABETICAL INDEX
E H
Cylinder Head and Cover 33 Harnesses – wiring
Flywheel 43 Cab 105-107
Fuel Filter 61 Canopy – ROPS 103
Fuel Injection Nozzles 67 Clutch Cutout 95,97
Fuel Injection Pump 63 Front 81 ,83
Fuel Injection Pump Drive 65 Hourmeter 101
Fuel Injection System 59 Lamps 91,93,103-109
Gasket Kits 49 Main – tractor 85,87,91,93
Manifolds 21,23 PTO Speed Indicator 283
Oil Filter, Pump, Pan 29,31 Rear – without canopy or cab 109
Piston Assemblies 45,47 Head – cylinder, engine 33
Timing Gear Cover 27 Heater
Valve Mechanism 35 Cab 115-123
Water Pump 25 Engine Block 37,39
Engine Mounting 51 Hitch – three-point
Exhaust Manifold 23 Controls 433
Exhaust System and Muffler 13 Control Valve 323-329
Frame and Mounting Parts 435
F Hydraulic Circuits 267-277
Lift Arm and Linkage 437
Fan Hood – tractor 457
Defroster 125-127 Horn – electric 139
Heater 123 Hose and Fitting Conversion
Engine Cooling 11 Part Numbers 488,489
Fenders – rear wheels 443 Hourmeter 101
Filters Hub – front wheel 165
Air – engine 15 Hydraulic Circuits
Engine Oil 29,31 Backhoe Boom 255
Fuel 61 Backhoe Boom Lock 265
Hydraulic Oil 339 Backhoe Bucket 259
Floor Plates and Firewall 447-449 Backhoe Dipper 257
Flywheel – engine 43 Backhoe Dipper Extension 261,263
Fork – loader pallet 399 Backhoe Stabilizer 253
Frame – tractor 441 Backhoe Swing : 253
Frame – three-point hitch 435 Equipment Primary 237-245
Frost Tooth – backhoe 413 Hitch Cylinder – three-point 269
Fuel Injection System 59-67 Hitch Valve – three-point 267
Fuel Shutoff Cable 55-57 Loader Lift 247,249
Fuel Tank and Lines 53 Loader Tilt 251
Power Shuttle Transmission 173-183
G PTO 273-277
Steering 149,151
Gasket Kits – engine 49
Gauges
Hourmeter 101
Instrument Cluster 99 Injection Pump – fuel 63
PTO Speed 283 Injection Pump Drive – fuel 65
Grille 459 Injector Nozzle – ether 19
Guides – engine valve 33,35 Injector Nozzle – fuel 67
Instrument Cluster 99
Instrument Panel 89
Index – numerical 490
480C CONSTRUCTION KING LOADER BACKHOE
ALPHABETICAL INDEX
7
L p
Lamps Pulleys
Dipper 143,145 Alternator 69-73
Tractor 103-113 Crankshaft 43
Levers – control (See Controls) Fan 25,43
Lifters – engine valves 35 Pump
Loader Engine Oil 29,31
Buckets and Attachments 397,399 Fuel Injection 63
Controls (See Controls) Hydraulic Equipment 285-291
Hydraulic Circuits (See Hydraulic Circuits) Steering 153
Lift Frame 393,395 Water 25
Push Rod – engine 35
M
R
Manifolds – engine 21,23
Motor – hydraulic, PTO 279,281,335,337 Radiator – engine 11
Motor – wiper 131 Regulator – alternator 69-73
Muffler – engine exhaust • 13 Reservoir – hydraulic oil 441
Rings – piston, engine 45,47
N Rocker Arm – engine 35
Rod – connecting, engine 45,47
Noise Reduction Pads 463 Rod – push, engine 35
Nozzle – ether injection 19 Roll Over Protective Structure 477
Nozzle – fuel injection 67 Rotating Beacon 133-137
Numerical Index 490 s
0
Seat – operators 451-455
Oil Filters Seat – engine valves 35
Engine 29,31 Senders
Hydraulic 339 Air Filter Restriction 81
Oil Pan – engine 29,31 Fuel Gauge 83
Oil Pump – engine 29,31 Hourmeter 101
Hydraulic Oil Filter Restriction 83
p Oil Pressure 83
Oil Temperature – power shuttle : 95
Pads – noise reduction 463 Water Temperature 81
Pallet Forks – loader 399 Shuttle Transmission
Pan – engine oil 29,31 Mechanical Shift 185-195
Panel – closure, cab 467 Power Shift 175-183
Panel – engine side 461 Side Panels – engine 461
Panel – instrument 85,89 Sleeves – engine 45,47
Parking Brake 235 Slow Moving Vehicle Emblem 479
Pedals 55,197,229,231 Solenoid – starter 77
Pistons – engine 45,47 Spindle – front axle 163
Precleaner 17 Starter – engine 75,77
PTO Starter Mounting 79
Cooling System – hydraulic 273-275 Steering – power circuit 149,151
Hydraulic Circuit and Control 277 Steering Wheel and Column 147,155-157
Motor and Motor Housing 279-281 Switches
Shield and Speed Indicator 283 Clutch Cutout 95-97
Printed in U S A Issued March, 1983
8 480C CONSTRUCTION KING LOADER BACKHOE
ALPHABETICAL INDEX
s V
Heater and Def roster 115,119 Valves
Key and Starter 85 Backhoe Control 305-31
Lamps 85,143,145 Boom Lock 31
Neutral Start 83 Engine 3
Turn Signal 91 Extendable Dipper Control 33
Hitch Control – three-point hitch 323-32
T Loader Control 293-30
PTO Selector 33
Tachometer 99 Relief 319,32
Tank Relief – hydraulic tank 23
Fuel 53 Relief – shuttle 17
Hydraulic Oil 237-243,441 Relief – tractor without loader 31
Teeth – buckets 397,419,421 Steering 15
Thermostat – engine 25 Valve Guides • 33,3
Throttle – engine 55,57
Timing Gear Cover 27 w
Tool Box 443
Torque Converter 171 Water Pump – engine • 2
Tower – backhoe control 423,427 Wheel – steering 14
Transaxle 205-227 Wheels and Tires
Transmission – shuttle Front 16
Mechanical Shift 185-195 Rear • 16
Power Shift 175-183 Windows and Window Glass – cab 469-47
Turn Signals 91,93,103-109 Wiper- cab window 12
Wiper Motors 13
Wiring
Cab 105-10
Canopy 10
Tractor and
Accessories 81-87 ,91-101, 109-14

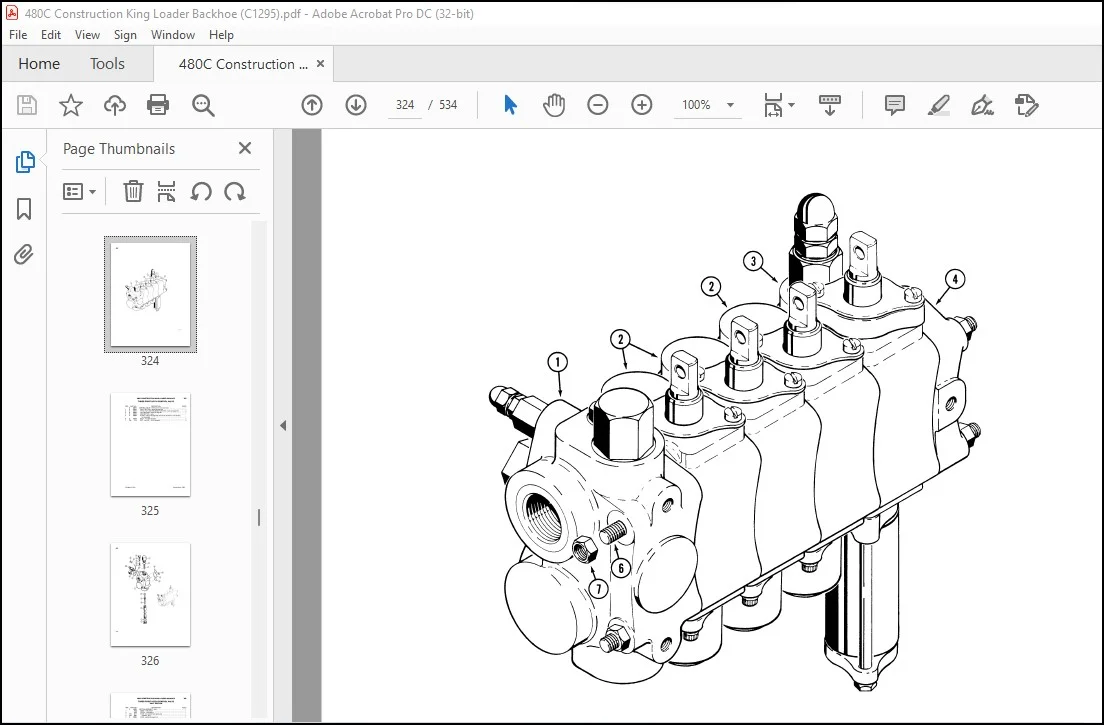

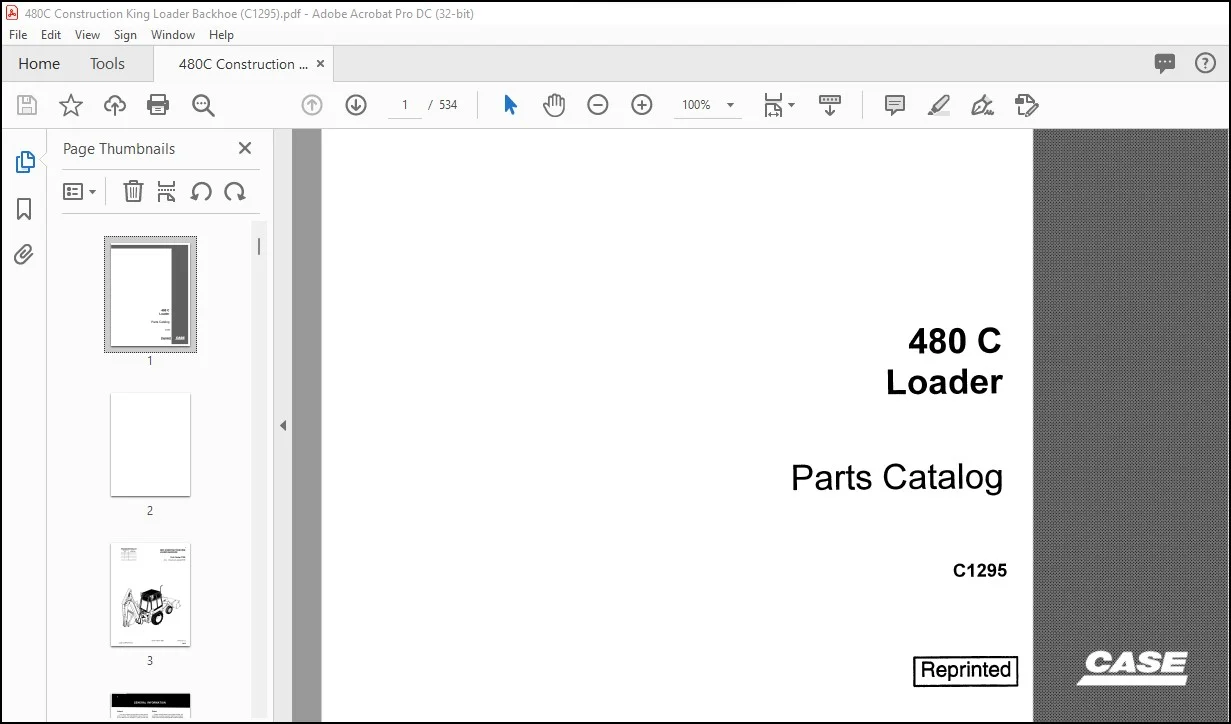

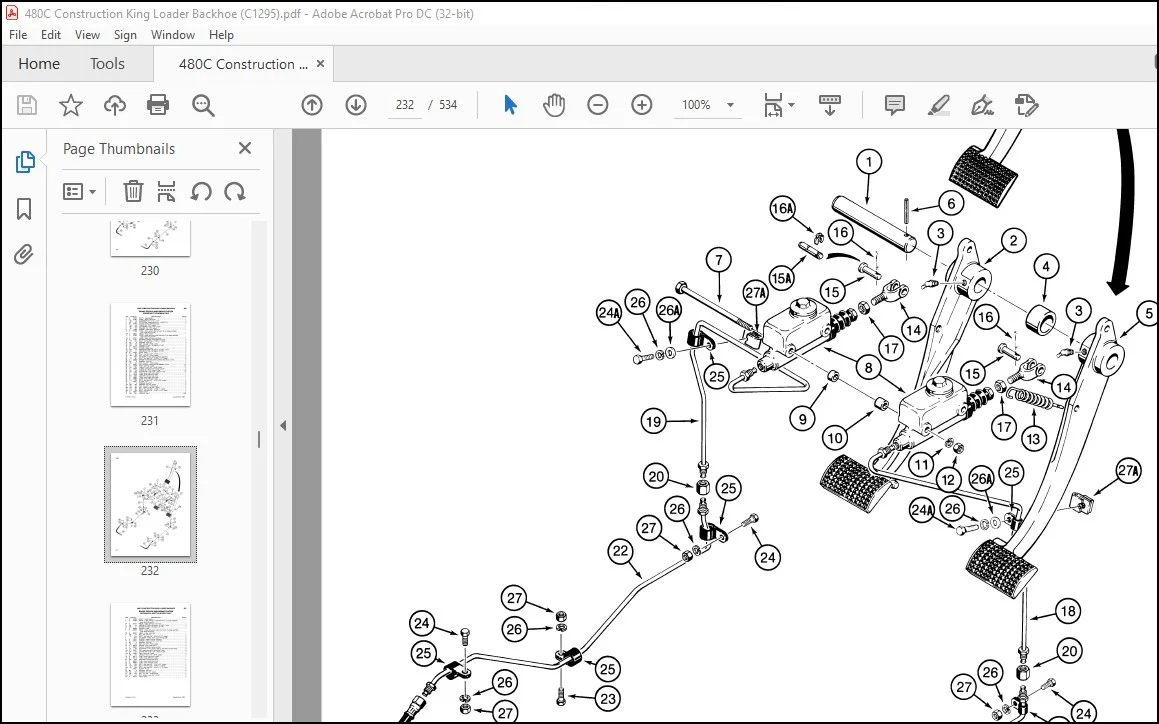

IMAGES PREVIEW OF THE MANUAL:
