Case 500,W5,W5A Loader Service Manual (9-76231R0) Case 500,W5,W5A Loader – PDF Download

Description

Case 500,W5,W5A Loader Service Manual (9-76231R0)

CASE 500,W5,W5A LOADER SERVICE MANUAL (9-76231R0) CASE 500,W5,W5A LOADER – PDF DOWNLOAD:

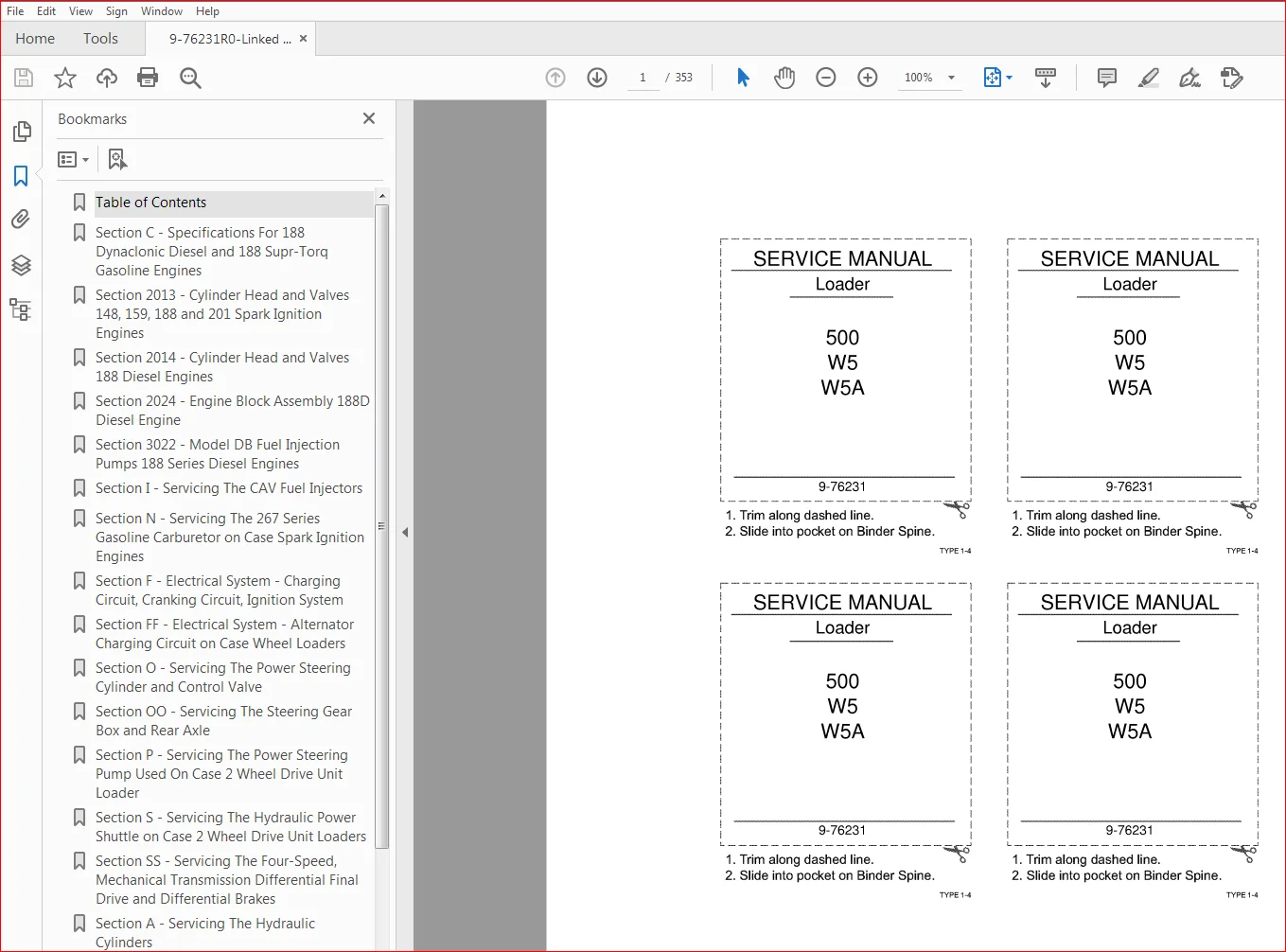

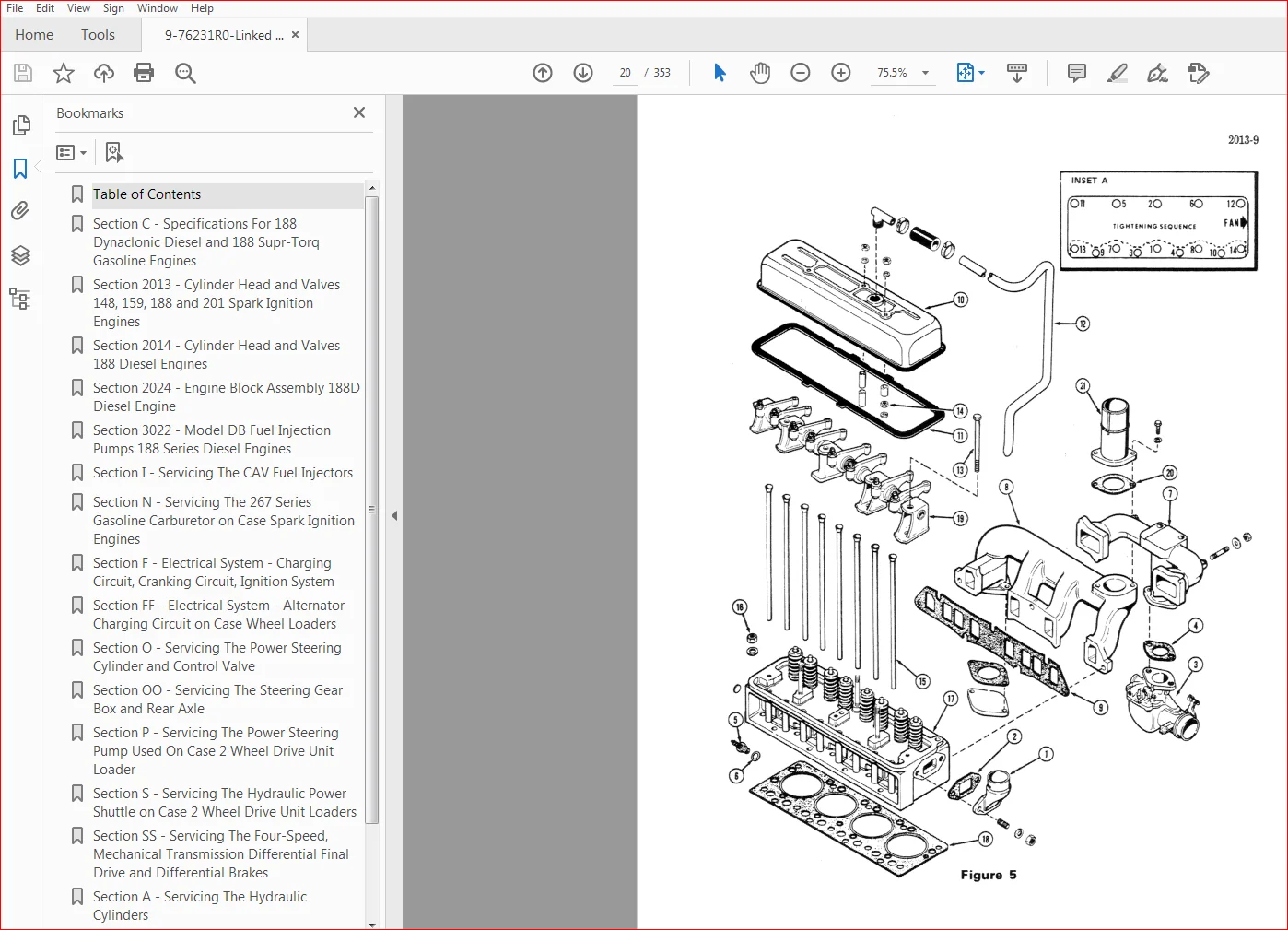

SCREENSHOOTS OF THE MANUAL:

SAMPLE PAGE OF THE MANUAL:

Case 500,W5,W5A Loader Service Manual (9-76231R0)

• Place new cylinder head gasket on the engine block.
• NOTE: When. installing gas- ket with built-in fire rings, the end with the 1/4″ diameter hole, Inset C, must be to the rear of the block.
• Be sure the two dowel rings are installed in their proper location, Inset A.
• If gasket with built-in fire rings is not used, install new fire rings with either side up.
• NOTE: The fire rings must be instal- led dry.
• Install new gasket between timing cover and cylinder head, coating it with a sealer.
• Install cylinder head
• Lubricate the head bolts or studs and nuts with clean engine oil before installing them. Following the sequence shown in Inset B, tighten the head bolts or nuts
• Install the water pump and a new gasket, coating the gasket with a sealer. Torque the water pump stud nuts 20425 ft. lbs. Install the fan belt and adjust.
• Coat the push rods with clean engine oil and install them in their original location.
• Install the rocker arm assembly.
• NOTE: The rear mounting bolt is drilled for oil passage to the rocker arm shafts. Torque the bolts  to 25-30 ft. lbs. Adjust the valve tappet clearance, refer to page 18. In- stall injectors.

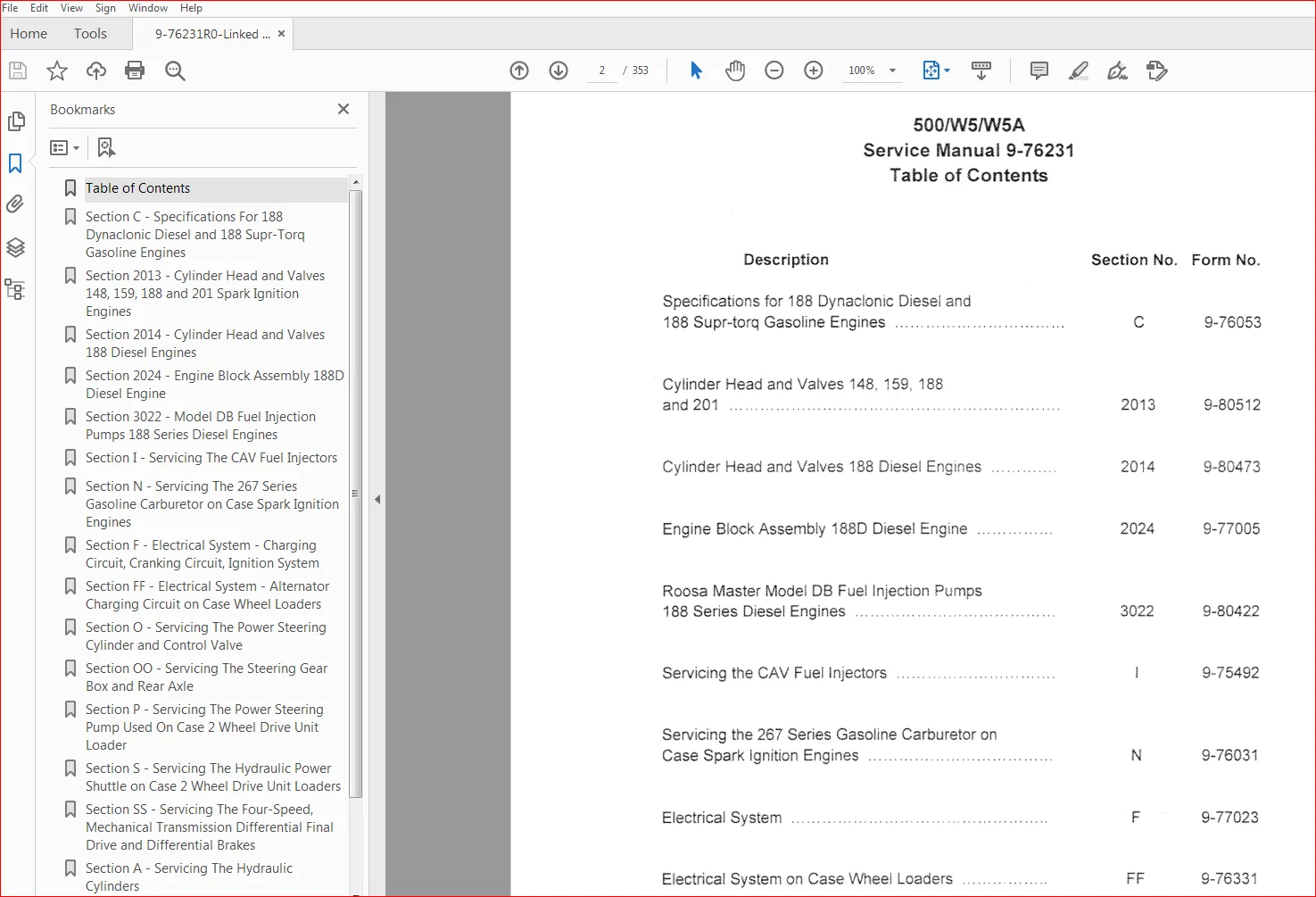

TABLE OF CONTENTS:

Case 500,W5,W5A Loader Service Manual (9-76231R0)

Section C – Specifications For 188 Dynaclonic Diesel and 188 Supr-Torq Gasoline Engines 4
Section 2013 – Cylinder Head and Valves 148, 159, 188 and 201 Spark Ignition Engines 12
Section 2014 – Cylinder Head and Valves 188 Diesel Engines 38
Section 2024 – Engine Block Assembly 188D Diesel Engine 58
Section 3022 – Model DB Fuel Injection Pumps 188 Series Diesel Engines 102
Section I – Servicing The CAV Fuel Injectors 112
Section N – Servicing The 267 Series Gasoline Carburetor on Case Spark Ignition Engines 132
Section F – Electrical System – Charging Circuit, Cranking Circuit, Ignition System 144
Section FF – Electrical System – Alternator Charging Circuit on Case Wheel Loaders 164
Section O – Servicing The Power Steering Cylinder and Control Valve 172
Section OO – Servicing The Steering Gear Box and Rear Axle 184
Section P – Servicing The Power Steering Pump Used On Case 2 Wheel Drive Unit Loader 200
Section S – Servicing The Hydraulic Power Shuttle on Case 2 Wheel Drive Unit Loaders 206
Section SS – Servicing The Four-Speed, Mechanical Transmission Differential Final Drive and Differential Brakes 254
Section A – Servicing The Hydraulic Cylinders 284
Section D – Servicing The VDP-12 Hydraulic Control Valve 320
Section R – Servicing The 2000 Series Gear Type Hydraulic Pump on Case 2 Wheel Drive Unit Loaders 336

PLEASE NOTE:

⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
