THE “530” CONSTRUCTION KING LOADER is a matched unit – a
rugged, perfectly balanced Wheel Tractor-Loader combination.
Here are some of the outstanding features of this machine.
1. TORQUE CONVERTER DRIVE (OPTIONAL). Torque Converter
Drive provides greater push-power – instantly. Automatically
adjusts working speeds to load and eliminates clutching.
2. HIGH TORQUE GAS OR DIESEL ENGINES. High torque,
Case-built engines have been thoroughly proven through
years of field use.
3. HEAVY DUTY CONSTRUCTION. Ruggedly builttractorchassis
and 7000 lb. capacity front axle are for trouble free operation.
Steel wrap-around grille for fully protected operation. Loader
frame is of heavy box-welded construction with steel gussets
at all stress points. All moving parts pivot on hardened steel
pins with replaceable bushings at all critical wear points.
4. TROUBLE-FREE HYDRAULIC CONTROLS. Engine driven hydraulic
pump delivers oil to dual control valve. Finger-tip
controls allow the operator to easily and quickly control the
bucket. A float position built into the lift control allows the
Loader to follow the contour of the ground for perfect leveling.
All oil circulates through a special “full flow” filter to trap
any floating dirt or grit in the system.
5. DUAL-RANGE SHUTTLE TRANSMISSIONS. A four speed transmission,
used in conjunction with a high-low range box and
shuttle transmission, provides the operator with a total of
eight speeds forward and eight speeds reverse. This enables
the operator to shift instantly from forward to reverse(and
vice-versa) in the same transmission gear. This shuttle control
speeds up loading, dumping, and returning cycles, since reverse
speeds are approximately 25% faster than forward in
any gear.

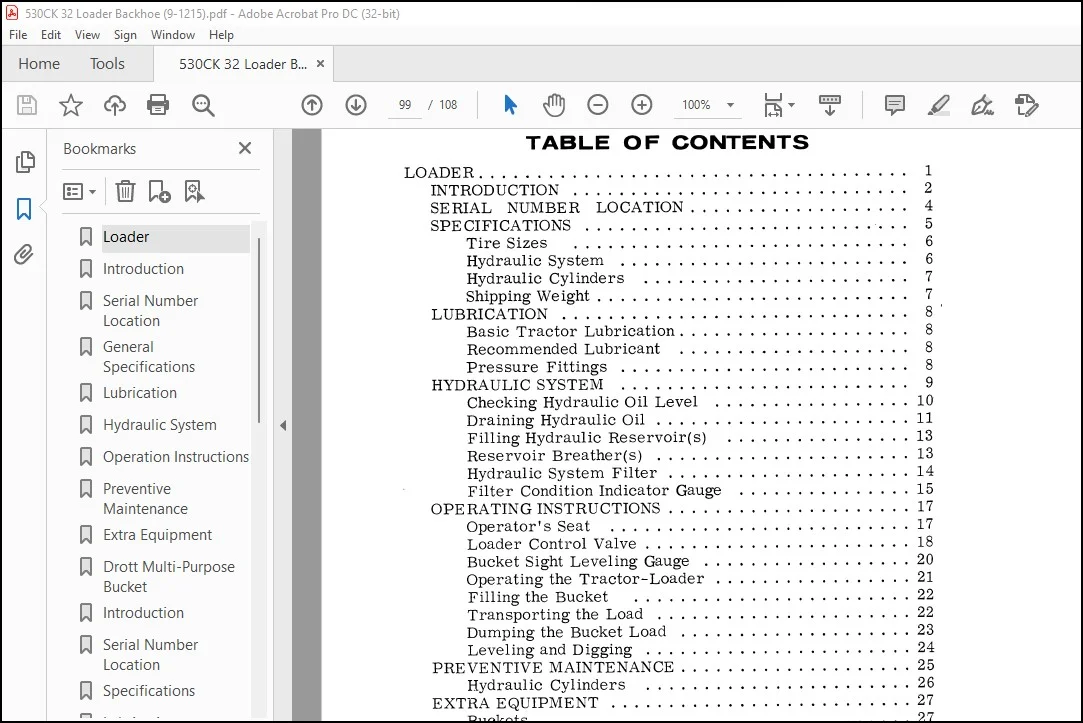

TABLE OF CONTENTS:

Case 530CK Loader Backhoe Operators Manual 9-1215 – PDF DOWNLOAD

Loader

• Introduction
• Serial Number Location
• General Specifications
• Lubrication
• Hydraulic System
• Operation Instructions
• Preventive Maintenance
• Extra Equipment
• Drott Multi-Purpose
• Bucket
• Introduction
• Serial Number Location
• Specifications
• Lubrication
• Operating Instructions
• Preventive Maintenance

Backhoe

• Introduction
• Serial Number Location
• General Specifications
• Lubrication
• Operating Instructions
• Preventive Maintenance
• Extra Equipment
• Hydraulic System
• Trouble Shooting Chart
• l4’/16′ Backhoe With
• Extendable Boom
• Introduction
• Lubrication
• Specifications
• Operating Instructions
• Preventive Maintenance
