Case 550E Crawler Service Repair Manual (8-16692R0) Case 550E – PDF Download

Description

Case 550E Crawler Service Repair Manual (8-16692R0) Case 550E

CASE 550E CRAWLER SERVICE REPAIR MANUAL (8-16692R0) CASE 550E – PDF DOWNLOAD:

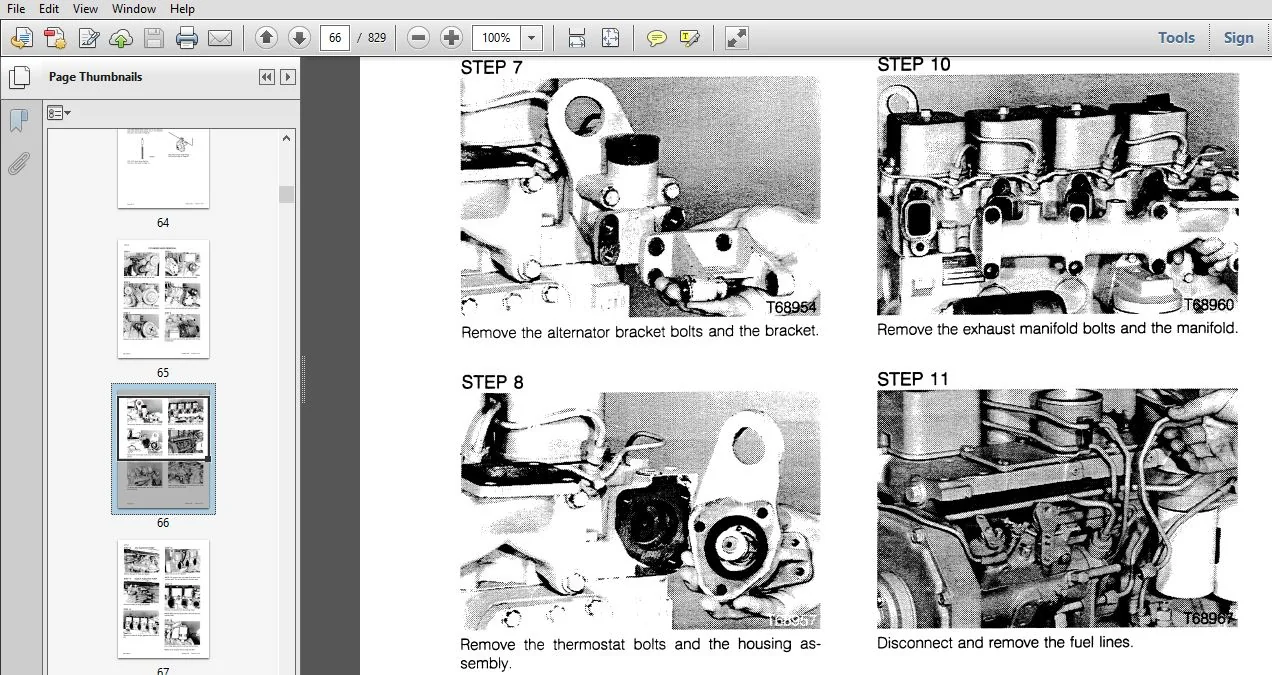

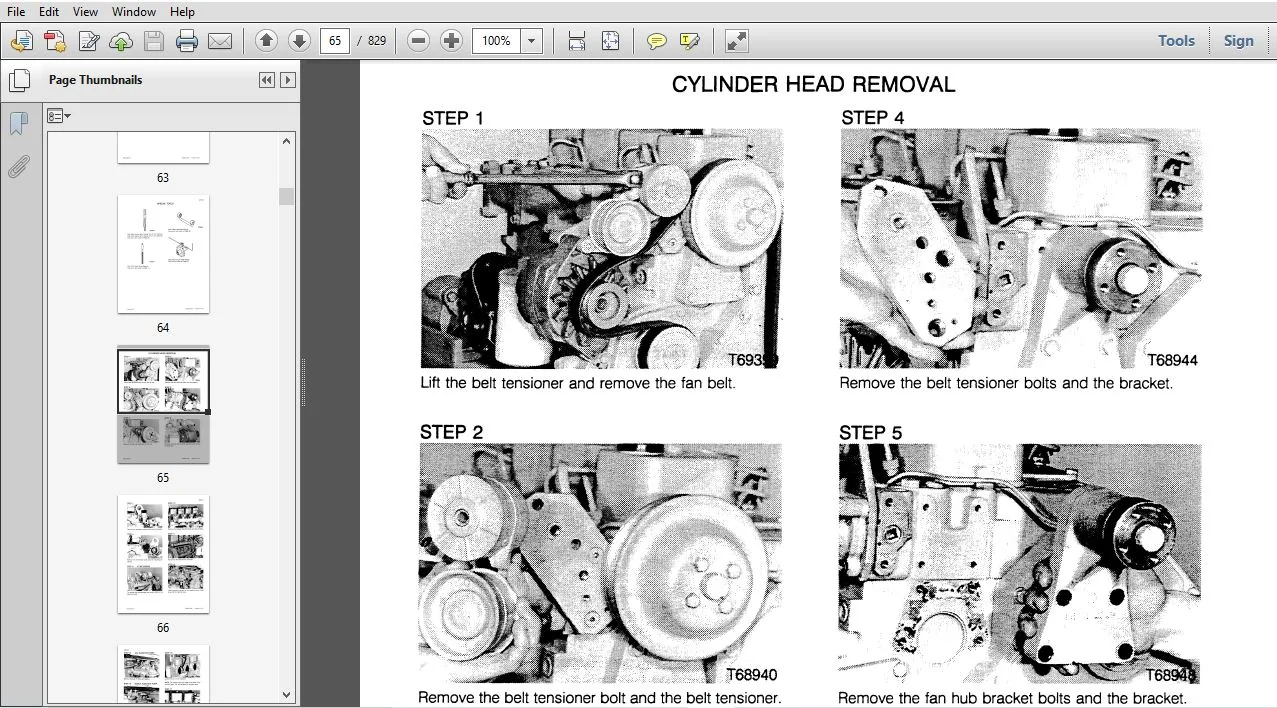

IMAGE PREVIEW:

DESCRIPTION:

Case 550E Crawler Service Repair Manual (8-16692R0) Case 550E

Engine Lubrication
Fill the 4-390 engine crankcase with CCISF. CD/SF. CE/SF or CF—4 service classification oil. Use the correct viscosity rating for the ambient air temperature. Install new oil filters alter the engine is rebuilt.
Fill the 4T390 and the 4TA 390 engine crankcase with CE/SF or CF-4 servloe classification oil. Use the correct viscosity rating for the ambient air temperature. Install new oil filters after the engine is rebuilt.
Run-In Procedure for Rebuilt Engine
Step 1 Disconnect the wire to the electric shut—oft on the injection pump so that the engine will not start. Crank the engine for 30 seconds until there is oil pressure. then reconnect the wire.
Step 2 Remove the air from the cooling System at the temperature sending unit.
Step 3 Run the engine at 1000 RPM minimum load for 5 minutes and check for oil leaks.
Step 4 During the Run-In, continue to check the oil pressure. coolant level. and coolant temperature.
Run-In Procedure (Agriculture Equipment) .
For the first 8 hours of field operation stay one gear lower than normal. For the next 12 hours DO NOT ”lug’r the engine. Prevent ‘lugging” by moving the lever to a lower gear. The engine must not be “lugged” below the rated engine RPM during early hours of life.
Run-in Procedure (Construction Equipment)
For the first 8 hours, operate the engine at full throttle maintaining a normal load. Avoid converter or hydraulic stall. The engine must not be “logged” below the Rated Engine RPM (Do not stall the engine more than 10 seconds).

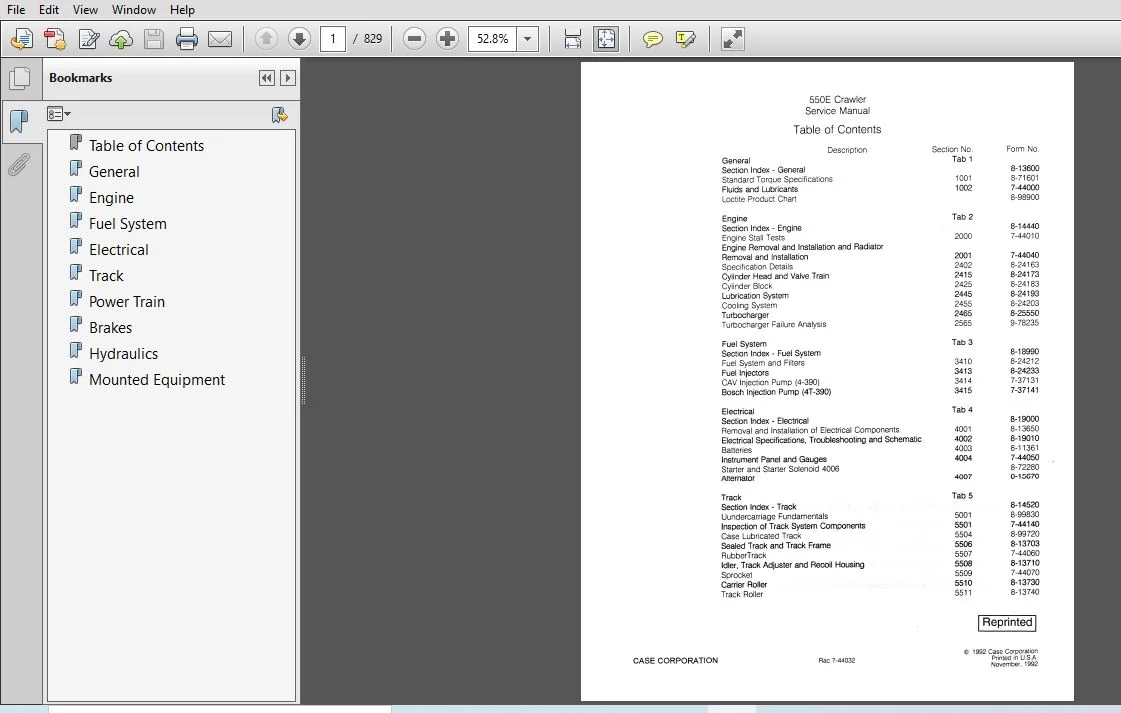

TABLE OF CONTENTS:

Case 550E Crawler Service Repair Manual (8-16692R0) Case 550E

Table of Contents
....  1
General
..............  3
Engine
............... 16
Fuel System
..........234
Electrical
..........293
Track
................370
Power Train
..........545
Brakes
...............676
Hydraulics
...........698
Mounted Equipment
....779

PLEASE NOTE:

⦁ This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
⦁ The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
⦁ Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
