Case 580E Super Backhoe Loader Service Manual – PDF DOWNLOAD
FILE DETAILS:
Case 580E Super Backhoe Loader Service Manual – PDF DOWNLOAD
Language : English
Pages : 1357
Downloadable : Yes
File Type : PDF

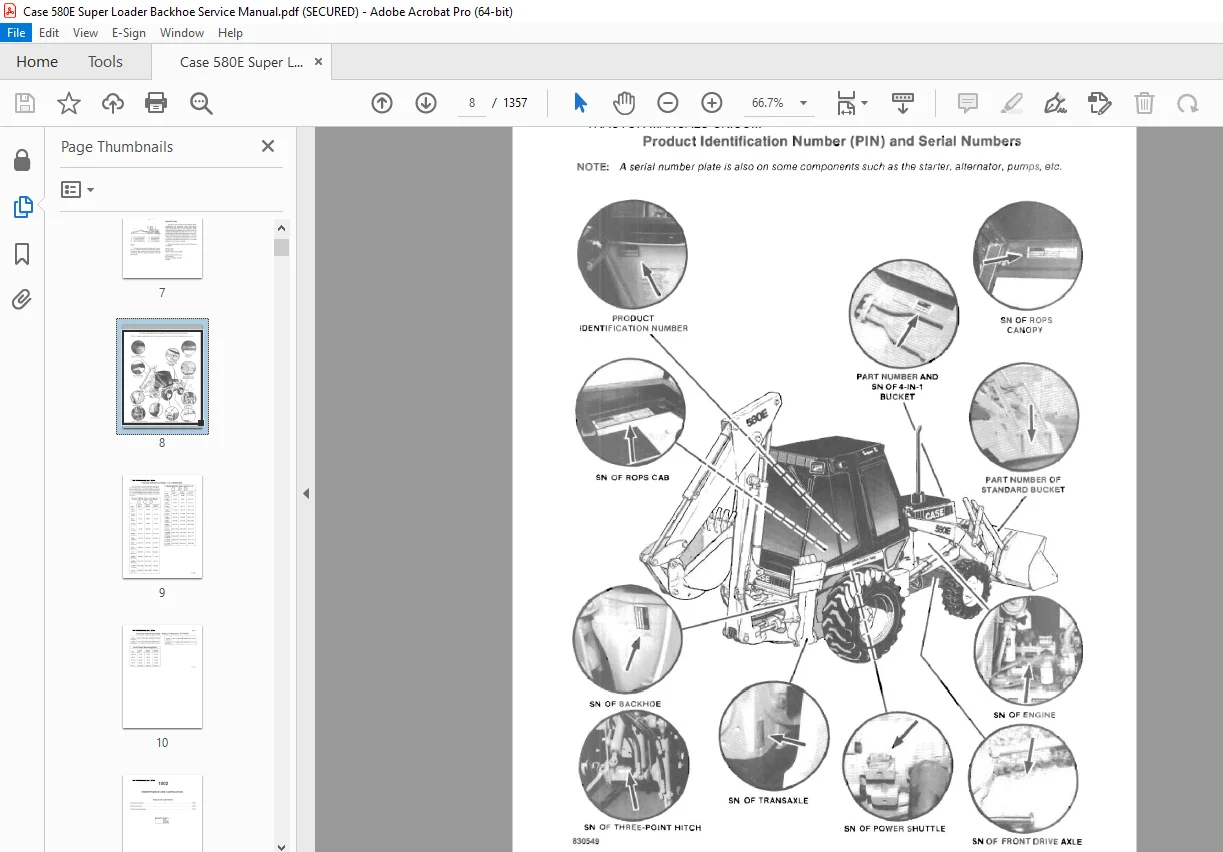

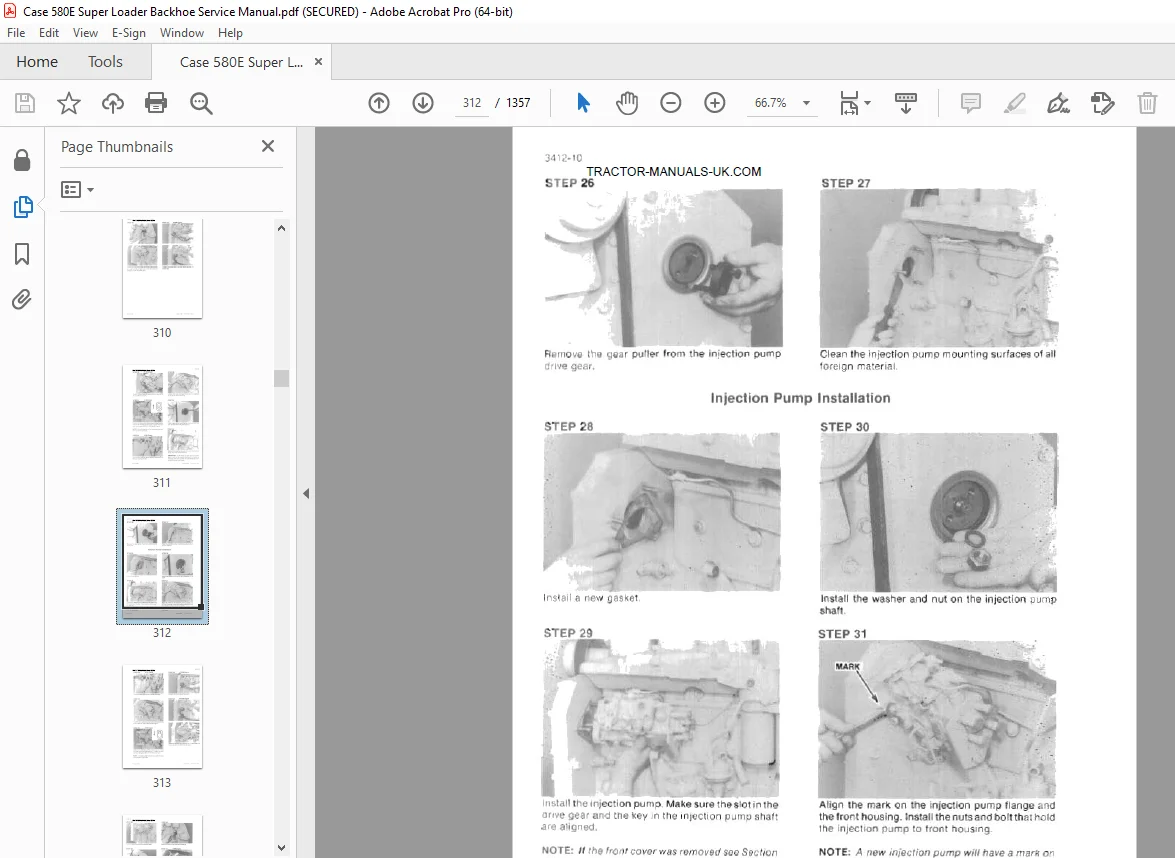

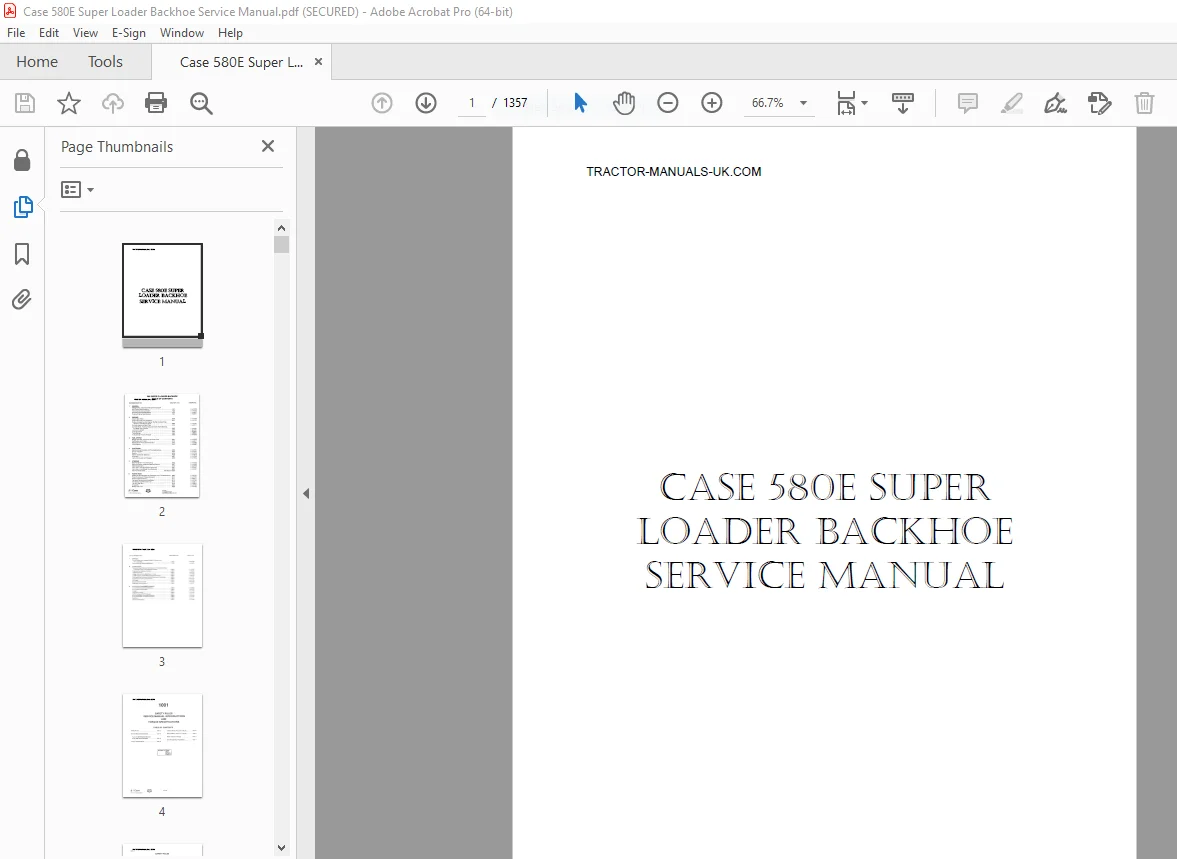

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Case 580E Super Backhoe Loader Service Manual – PDF DOWNLOAD
GENERAL
Safety Rules, and Service Manual Introduction
and Torque Specifications
Maintenance and Lubrication
General Engine Specifications
Detailed Engine Specifications
ENGINES
Engine Stal Tests
Engine Removal and Installation
Engine Accessories (Air Cleaner, Muffler, Exhaust Pipe.
Radiator, Cold Start System)
Cylinder Head and Valve Train
Cylinder Block, Pistons, Rods, Camshaft. Main Bearings,
Oil Seals, and Flywheel
Lubrication System
Cooling System
Turbocharger
Turbocharger Failure Analysis
FUEL SYSTEM
Engine Controls. Fuel Lines, and Fuel Tank
Fuel System and Filters..
Fuel Injection Pump and Drive Gear
Fuel Injectors
ELECTRICAL
Electrical Specifications and Troubleshooting
Wiring Diagrams
Battery
Starter and Starter Solenoid
Alternator
instrument Cluster and Gauges
STEERING
Steering System Troubleshooting
Steering Control Valve and Steering Column
Steering Cylinders.
Front Axle Two-Wheel Drive Machines
Front Axle-Four-Wheel Drive Machines Steering Relief Valve
See Section 8008
POWER TRAIN
Power Shuttle Maintenance, Operation, and Troubleshooting – 6202
Powe: Shuttle and Torque Converter
Power Shuttle Controls
Transaxle Removal and Installation
Transaxle and Differential Lock
Transfer Gear Box
Driveshaft
Wheels and Tires
Safety Rules, and Service Manual Introduction
and Torque Specifications
Maintenance and Lubrication
General Engine Specifications
Detailed Engine Specifications
ENGINES
Engine Stal Tests
Engine Removal and Installation
Engine Accessories (Air Cleaner, Muffler, Exhaust Pipe.
Radiator, Cold Start System)
Cylinder Head and Valve Train
Cylinder Block, Pistons, Rods, Camshaft. Main Bearings,
Oil Seals, and Flywheel
Lubrication System
Cooling System
Turbocharger
Turbocharger Failure Analysis
FUEL SYSTEM
Engine Controls. Fuel Lines, and Fuel Tank
Fuel System and Filters..
Fuel Injection Pump and Drive Gear
Fuel Injectors
ELECTRICAL
Electrical Specifications and Troubleshooting
Wiring Diagrams
Battery
Starter and Starter Solenoid
Alternator
instrument Cluster and Gauges
STEERING
Steering System Troubleshooting
Steering Control Valve and Steering Column
Steering Cylinders.
Front Axle Two-Wheel Drive Machines
Front Axle-Four-Wheel Drive Machines Steering Relief Valve
See Section 8008
POWER TRAIN
Power Shuttle Maintenance, Operation, and Troubleshooting – 6202
Powe: Shuttle and Torque Converter
Power Shuttle Controls
Transaxle Removal and Installation
Transaxle and Differential Lock
Transfer Gear Box
Driveshaft
Wheels and Tires
BRAKES
Brake Pedals and Linkage, Master Cylinder, and
Parking Brake
Self-Adjusting Differential Brakes
HYDRAULICS
Hydraulic Specifications, Maintenance. Troubleshooting.
Flowmeter Tests, and Pressure Checks
Cleaning the Hydraulic System.
Hydraulic Pump
Loader Conrol Valve Made by J.I. Case
Loader Control Valve Made by Parker Hannifin
Steering Relief Valve and Quick Disconnect Couplings
Three Point Hitch Control Valves
Cylinders
Backhoe Control Valve
Stabilizer Control Valve
MOUNTED EQUIPMENT/CHASSIS
Air Conditioning Troubleshooting
Air Conditioning System
Loader
Three Point Hitch
ROPS Cab and ROPS Canopy
Seats, Seat Belts, and Seat Supports
Backhoe
Decals and Painting
Brake Pedals and Linkage, Master Cylinder, and
Parking Brake
Self-Adjusting Differential Brakes
HYDRAULICS
Hydraulic Specifications, Maintenance. Troubleshooting.
Flowmeter Tests, and Pressure Checks
Cleaning the Hydraulic System.
Hydraulic Pump
Loader Conrol Valve Made by J.I. Case
Loader Control Valve Made by Parker Hannifin
Steering Relief Valve and Quick Disconnect Couplings
Three Point Hitch Control Valves
Cylinders
Backhoe Control Valve
Stabilizer Control Valve
MOUNTED EQUIPMENT/CHASSIS
Air Conditioning Troubleshooting
Air Conditioning System
Loader
Three Point Hitch
ROPS Cab and ROPS Canopy
Seats, Seat Belts, and Seat Supports
Backhoe
Decals and Painting
DESCRIPTION:
Case 580E Super Backhoe Loader Service Manual – PDF DOWNLOAD
SAFETY RULES:
- To prevent injury on the job, follow the Warning, Caution, and Danger notes in this section and other sections throughout this manual. Follow the instructions carefully.
- The procedures recommended and shown in this manual are good, effective service methods. However, all possible procedures and service haz- ards may not be covered. Therefore, if you use a tool or procedure not recommended, you must make sure that the method you select is a safe method.
- Put the warning tag shown below on the key for the key switch when you are servicing or repair- ing this machine. One warning tag is on every new machine. You can buy additional warning tags. part number 331-4614, from Service Parts Supply.
SERVICE MANUAL INTRODUCTION:
- This service manual has been prepared with the latest service information available. Troubleshooting, removal, disassembly, inspection and installation procedures, and complete specifications and tightening references can be found in most sections.
- Some sections have drawings but no written procedure because the job is so easily done. This service manual is one of the most important tools available to the service technician.
Right, Left, Front, and Rear:
- The terms right-hand and left-hand and front and rear as used in this manual indicate the right and left sides, and front and rear of the machine as seen from the operator’s seat for correct operation of the machine or attachment.
G.B 28/02/25
