Case 584C 585C & 586C Forklift Service Manual 9-66631 – PDF DOWNLOAD

Description

Case 584C 585C & 586C Forklift Service Manual 9-66631 – PDF DOWNLOAD

DESCRIPTION:

Case 584C 585C & 586C Forklift Service Manual 9-66631 – PDF DOWNLOAD

General :

This service manual has been prepared with the latest service information available. Trouble shooting, removal, disassembly, inspection and installation procedures coupled with complete specifications and tightening references can be found in most sections.

• Some sections will have exploded views without accompanying text due to the simplicity of the procedure. This service manual is one of the most important tools available to the service technician. It is an invaluable aid in properly performing any phase of service.
• The terms right-hand and left-hand as used in this manual indicate the right and left sides of the machine as viewed from the operator’s seat for proper operation of the machine or attachment. The information contained in this manual is current at the time of printing.

Text :
If this manual covers more than one machine, or different models of component parts (planetary axles, gear boxes, control valves, etc.) the procedures will apply to all unless otherwise noted.
Illustrations :
Where possible, illustrations are placed as close as possible to the accompanying text and should be used as part of the text.

TABLE OF CONTENTS:

Case 584C 585C & 586C Forklift Service Manual 9-66631 – PDF DOWNLOAD

10 SERIES – GENERAL
General Engine Specifications 580C Tractors 1010
Decals and Repainting 1012
Detailed Engine Specifications 207 Diesel Engines 1026
Maintenance and Lubrication 1050
Torqu e Chart 1051
Noise Control 1052
20 SERIES – ENGINE
Engine Diagnosis 2001
Engine Tune-up 2002
Cylinder Head, Valve Train and Camshaft 2015
Crankshaft, Bearings, Flywheel and Oil Seals 2035
Oil Ptlmp 2045
Stall Checks, Engine Removal and Installation,
and Radiator 2050
Air Cleaner 2051
Ether Injection 2053
Cooling System 2055
Cylinder Block, Sleeves, Pistons and Rods 2125
Engine Lubrication 2555
30 SERIES – FUEL SYSTEM
Fuel Filters 3010
Fuel Injection Pump 3012
Fuel Injectors 3013
Engine Controls, Fuel Lines and Fuel Tank 3052
40 SERIES – ELECTRICAL
Trouble Shooting 4002
Wiring Diagrams 4003
Instrument Cluster 4004
Battery _ 400 5
Starter and Starter Solenoid 4006
Alternator 4007
Electrical Accessories 4015
50 SERIES – STEERING
Hydraulic Diagram, Pressure Check and
Trouble Shooting 5002
Steering· Ptlmp 5005
Steering Control Valve 5007
Steering Cylinders 5010
Rear Axle 50 2 1
SERIES/SECTION
60 SERIES – POWER TRAIN
Power Shuttle and Troque Converter Maintenance,
SECTION NO
Operation and Trouble Shooting 6202
Power Shuttle and Torque Converter 6210
Shuttle Controls 6211
Transa xle Removal and Installation 6212
Transa xle and Differential Lock 6214
Drive Shaft II 6222
Wheels and Tires 6229
70 SERIES – BRAKES
Brakes (Pedals to Transa xle) 7106
Self Adjusting Differential Brakes 7122
80 SERIES – HYDRAULIC SYSTEM
Hydraulic Diagram, Maintenance, Trouble
Shooting and Pressure Check 8002
Hydraulic Pump 8005
Forklift Control Valve 8007
Cylinders 8090
90 SERIES – MOUNTED EQUIPMENT
Forklift 9040
Roll-Over Protection Structure 9061

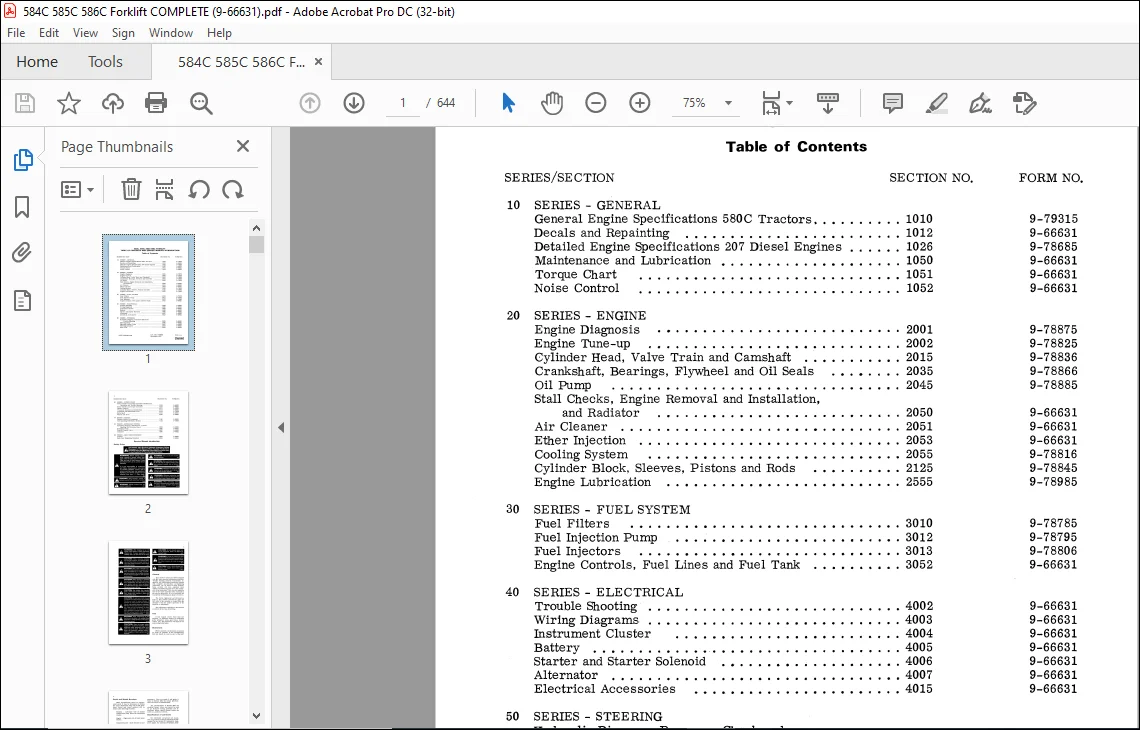

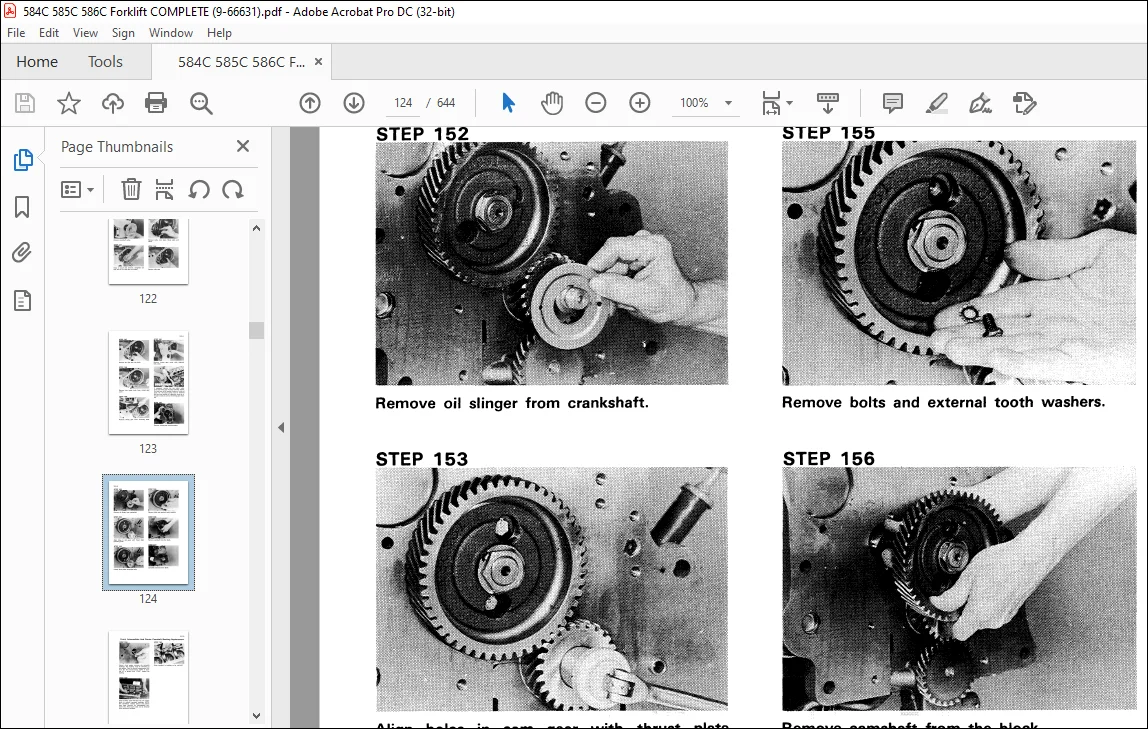

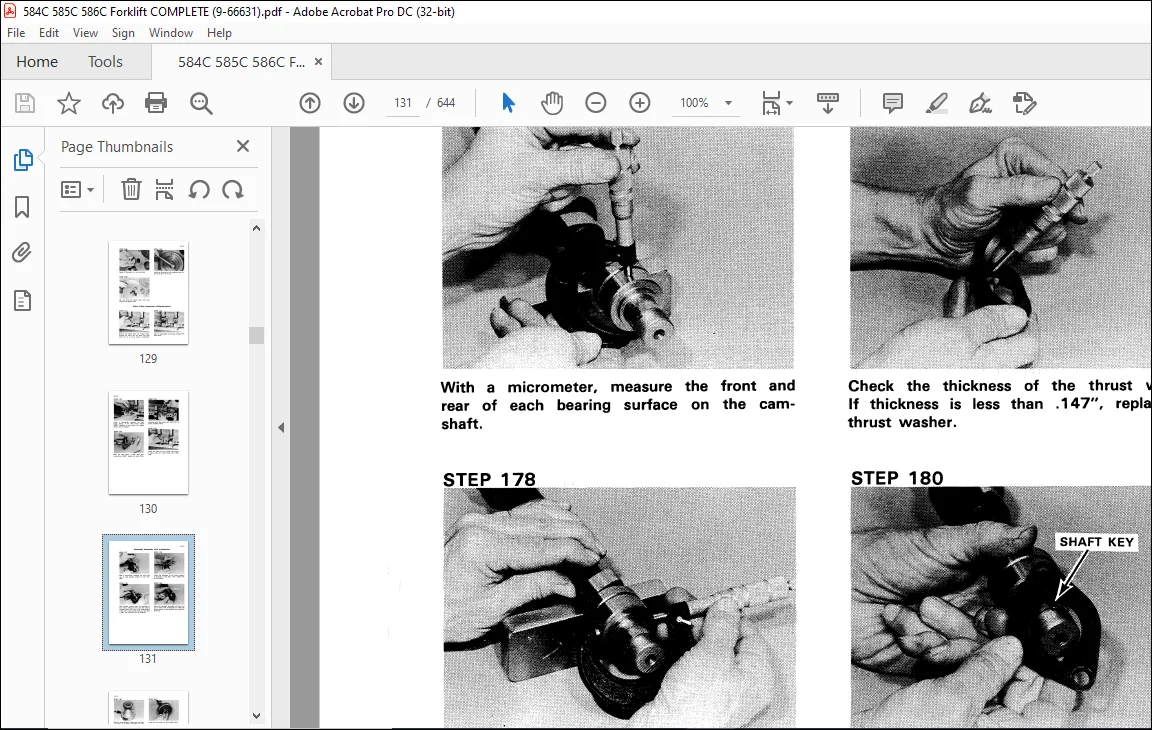

IMAGES PREVIEW OF THE MANUAL:
