CASE 585G 586G 588G Forklift Parts Catalog Manual – PDF DOWNLOAD

Description

CASE 585G 586G 588G Forklift Parts Catalog Manual – PDF DOWNLOAD

DESCRIPTION:

CASE 585G 586G 588G Forklift Parts Catalog Manual – PDF DOWNLOAD

GENERAL INFORMATION PROPRIETARY NOTICE

The contents of this manual are proprietary data of this company. Reproduction or use of any part for other than the operation and maintenance of our equipment is permissible only if expressly authorized in writing. Additional copies may be obtained from your dealer. Address requests for copies to your Dealer and refer to the publication part number appearing on the bottom of the rear catalog cover or on the title page.

COMPANY POLICY

Company policy, which is one of continuous improvement, reserves the right to change prices and to make changes in design and specification at any time without notice and without obligation to modify units previously built. All data given in this book is subject to production variations. Dimensions and weights are approximate only and the illustrations do not necessarily show machines in standard condition. For exact information about any particular machine please consult your dealer.

PARTS AND ACCESSORIES

Genuine parts and accessories have been specifically designed for these machines. We would like to point out that “non-genuine” parts and accessories have NOT been examined and released by the Company. The installation and or use of such products could have negative effects upon the design characteristics of your machine and thereby affect its safety.

The company is not liable for any damage caused by the use of “non-genuine” parts and accessories. IMPROVEMENTS We are continually striving to improve our products. We reserve the right to make improvements or changes when it becomes practical and possible to do so, without incurring any obligation to make changes or additions to the equipment sold previously.

MODEL CODES T

he range of machines listed may not be available in all countries or markets therefore, for the latest information consult your local dealer.

OWNER ASSISTANCE

We want you to be completely satisfied with your investment. Normally any problems with your equipment will be handled by your dealer’s Service Department; however, misunderstandings can occur. If your problem has not been handled to your satisfaction, we suggest the following: 1. Contact the owner or General Manager of the dealership, explain the problem, and request assistance. When additional assistance is needed, your dealer has direct access to our office. 2. Provide your dealer with: ● Your Name, Address, and Telephone number ● Machine Model and Serial Number ● Dealership Name and Address ● Machine purchase date and amount of use ● Nature of problem Be aware that your problem will likely be resolved in the dealership using the dealer’s faci l i t ies, equipment, and personnel. So it is important that your initial contact be with the dealer.

SPARE PARTS

To maintain operating efficiency, use original spare parts. When ordering parts, give the following information: ● Machine Model ● Machine and Engine Serial Numbers ● Part Number from the Parts Catalog II
TABLE OF CONTENTS:

CASE 585G 586G 588G Forklift Parts Catalog Manual – PDF DOWNLOAD

RADIATOR FAN SHROUD
RADIATOR ASSY
AIR CLEANER AIR INTAKE PARTS
AIR CLEANER ASSY PRECLEANER ASSY
MUFFLER EXHAUST SYSTEM
COLD START SYSTEM
ENGINE MOUNTING
WATER PUMP SYSTEM, EMISSIONS CERTIFIED ENGINE
FRONT GEAR COVER, EMISSIONS CERTIFIED ENGINE
MANIFOLDS, EMISSIONS CERTIFIED ENGINE
FILTER AND COOLER OIL, EMISSIONS CERTIFIED ENGINE
OIL PUMP, PAN HEATER, EMISSIONS CERTIFIED ENGINE
CYLINDER HEAD COVER, EMISSIONS CERTIFIED ENGINE
CYLINDER HEAD VALVE MECHANISM, EMISSIONS CERTIFIED ENGINE
CAMSHAFT, EMISSIONS CERTIFIED ENGINE
CYLINDER BLOCK, EMISSIONS CERTIFIED ENGINE
CRANKSHAFT, EMISSIONS CERTIFIED ENGINE
FLYWHEEL AND HOUSING, EMISSIONS CERTIFIED ENGINE
PISTONS CONNECTING RODS, EMISSIONS CERTIFIED ENGINE
GASKET KIT, EMISSIONS CERTIFIED ENGINE
GASKET KIT, EMISSIONS CERTIFIED ENGINE
GASKET KIT, TA EMISSIONS CERTIFIED ENGINE, BASIC SERVICE ENGINE
FUEL TANK AND LINES
CONTROLS THROTTLE
FUEL INJECTION SYSTEM, EMISSIONS CERTIFIED ENGINE
FUEL FILTER PUMP, TRANSFER, EMISSIONS CERTIFIED ENGINE
FUEL INJECTION PUMP AND DRIVE, EMISSION CERTIFIED ENGINE
FUEL INJECTION NOZZLE, EMISSIONS CERTIFIED ENGINE
ALTERNATOR
STARTER
A STARTER
MOUNTING STARTER AND ALTERNATOR
BATTERY CABLES
BATTERY, DUAL CABLES
FUSE AND FUSE BLOCK RELAY PANEL
HARNESS CHASSIS
HARNESS CONSOLE
COVERS SWITCH, ROCKER
LAMPS, TRACTOR CANOPY INSTRUMENT CLUSTER
LAMP ASSY, FLOOD
LAMP ASSY
ALARM BACKUP
STEERING WHEEL STEERING COLUMN
HYDRAULICS STEERING
PUMP ASSY STEERING HAND
STEERING COLUMN
CYLINDER ASSY STEERING
AXLE, REAR SPINDLES
HUB AND BEARINGS, REAR WHEEL
AXLE, REAR ( A / ) MOUNTING (IF USED)
AXLE, REAR ( A / ) HOUSING (IF USED)
AXLE, REAR ( A / ) HOUSING, SWIVEL (IF USED)
TABLE OF CONTENTS
AXLE, REAR ( A / ) CYLINDER, STEERING (IF USED)
AXLE, REAR ( A / ) HUB AND BEARINGS (IF USED)
WHEELS, REAR
AXLE, REAR DRIVE MOUNTING
AXLE, REAR DRIVE MOUNTING
AXLE, REAR DRIVE HOUSING
AXLE, REAR DRIVE HOUSING, SWIVEL
AXLE, REAR DRIVE CYLINDER, STEERING
AXLE, REAR DRIVE SHAFTS, AXLE
AXLE, REAR DRIVE PLANETARY
AXLE, REAR DRIVE DIFFERENTIAL
AXLE, REAR DRIVE RING AND PINION
AXLE, REAR DRIVE HOUSING
AXLE, REAR DRIVE HOUSING, SWIVEL
AXLE, REAR DRIVE CYLINDER, STEERING
AXLE, REAR DRIVE SHAFTS, AXLE
AXLE, REAR DRIVE PLANETARY
AXLE, REAR DRIVE DIFFERENTIAL
AXLE, REAR DRIVE RING AND PINION
AXLE, REAR DRIVE HOUSING
AXLE, REAR DRIVE HOUSING, SWIVEL
AXLE, REAR DRIVE CYLINDER, STEERING
AXLE, REAR DRIVE SHAFTS, AXLE
AXLE, REAR DRIVE PLANETARY
AXLE, REAR DRIVE DIFFERENTIAL
AXLE, REAR DRIVE RING AND PINION
AXLE, REAR DRIVE SHAFT
AXLE, REAR DRIVE SHAFT
TRANSMISSION COOLING SYSTEM
TRANSMISSION MOUNTING
TRANSMISSION ASSY FILTER, OIL
TRANSMISSION ASSY ( WD) HOUSING
TRANSMISSION ASSY ( WD) HOUSING
TRANSMISSION ASSY PUMP, OIL
TRANSMISSION ASSY SHIFTER MECHANISM
TRANSMISSION ASSY SHAFTS, IDLER AND PRIMARY
TRANSMISSION ASSY SHAFT, INPUT
TRANSMISSION ASSY SHAFT, SECONDARY
TRANSMISSION ASSY ( WD) SHAFT, OUTPUT
TRANSMISSION ASSY VALVE, CONTROL
TRANSMISSION ASSY ( WD) SOLENOID VALVE
TRANSMISSION ASSY FILTER, OIL
TRANSMISSION ASSY ( WD) HOUSING
TRANSMISSION ASSY ( WD) HOUSING
TRANSMISSION ASSY PUMP, OIL
TRANSMISSION ASSY SHIFTER MECHANISM
TRANSMISSION ASSY SHAFT, IDLER AND PRIMARY
TRANSMISSION ASSY SHAFT, INPUT
TRANSMISSION ASSY SHAFT, SECONDARY
TRANSMISSION ASSY ( WD) SHAFT, OUTPUT
TRANSMISSION ASSY ( A , A , A OR A , A , A ) VALVE, CONTROL
A TRANSMISSION ASSY ( OR ) VALVE, CONTROL
TABLE OF CONTENTS
TRANSMISSION ASSY ( WD) VALVE, SOLENOID
AXLE, FRONT MOUNTING
AXLE, FRONT DIFFERENTIAL LOCK
AXLE, FRONT DIFFERENTIAL LOCK
AXLE, FRONT HOUSING
AXLE, FRONT DIFFERENTIAL
AXLE, FRONT RING AND PINION
AXLE, FRONT DIFFERENTIAL LOCK
AXLE, FRONT PLANETARY
AXLE, FRONT DRIVE HOUSING
AXLE, FRONT DRIVE DIFFERENTIAL
AXLE, FRONT DRIVE RING AND PINION
AXLE, FRONT DRIVE DIFFERENTIAL LOCK
AXLE, FRONT DRIVE PLANETARY
AXLE, FRONT DRIVE HOUSING
AXLE, FRONT DRIVE DIFFERENTIAL ( A AXLE / SPIDER DIFFERENTIAL)
A AXLE, REAR DRIVE DIFFERENTIAL ( AXLE / SPIDER DIFFERENTIAL)
AXLE, FRONT DRIVE RING AND PINION
AXLE, FRONT DRIVE DIFFERENTIAL LOCK
AXLE, FRONT DRIVE PLANETARY
DRIVE SHAFT, FRONT AXLE
DRIVE SHAFT, FRONT AXLE
WHEELS, DRIVE
AXLE, FRONT BRAKE, DIFFERENTIAL
AXLE, FRONT BRAKE, PARKING
AXLE, FRONT DRIVE BRAKE, DIFFERENTIAL
AXLE, FRONT DRIVE BRAKE, PARKING
AXLE, FRONT DRIVE BRAKE, DIFFERENTIAL
AXLE, FRONT DRIVE BRAKE, PARKING
BRAKE PEDALS BRAKE MASTER CYLINDER MOUNTING
HYDRAULICS BRAKES, MASTER
CYLINDER ASSY BRAKE MASTER
CONTROLS BRAKE, PARKING
HYDRAULICS RETURN LINES
HYDRAULICS RESERVOIR TO HYDRAULIC PUMP
HYDRAULICS SIDE SHIFT
HYDRAULICS FORKLIFT TILT
CYLINDER ASSY FORKLIFT TILT
CYLINDER ASSY SIDESHIFT
CYLINDER ASSY MAST LIFT
A CYLINDER ASSY MAST LIFT
B CYLINDER ASSY MAST LIFT
C CYLINDER ASSY MAST LIFT
D CYLINDER ASSY MAST LIFT
CYLINDER ASSY MAST LIFT
CYLINDER ASSY MAST LIFT
CYLINDER ASSY MAST LIFT
PUMP ASSY, G/ G
A PUMP ASSY, G
HYDRAULICS LOAD CONTROL
ACCUMULATOR ASSY
FILTER ASSY, OIL
TABLE OF CONTENTS
VALVE ASSY FORKLIFT CONTROL
VALVE ASSY FORKLIFT CONTROL, FOUR SPOOL
VALVE SECTION INLET
VALVE SECTION FORKLIFT LIFT
VALVE SECTION FORKLIFT TILT
VALVE SECTION SIDE SHIFT AND AUXILIARY
VALVE ASSY FLOW CONTROL
CONTROLS FORKLIFT
MAST / LB
MAST LB
MAST LB
MAST LB
MAST LB FREELIFT ONLY, HYDRAULIC SYSTEM
MAST, HOOK AND SHAFT FRAME / LB
MAST / LB
MAST, HOOK AND SHAFT FRAME / LB
MAST LB
MAST, HOOK AND SHAFT FRAME LB
MAST LB
MAST, SHAFT FRAME LB
MAST LB
MAST, HOOK AND SHAFT FRAME LB
MAST LB
MAST, SHAFT FRAME LB
FORKS
COUNTERWEIGHTS, REAR
CHASSIS
HOOD PANELS AND GRILLE
BATTERY BOX TANK, HYDRAULIC OIL
SEAT, STANDARD MOUNTING (MILSCO)
A SEAT ASSY, STANDARD MOUNTING (SEARS)
SEAT, DELUXE MOUNTING (MILSCO)
A SEAT ASSY, SUSPENSION MOUNTING (SEARS)
SEAT ASSY, STANDARD (MILSCO)
SEAT ASSY, DELUXE (MILSCO)
CANOPY, ROPS
TOOLBOX
MIRROR REAR VIEW
SLOW MOVING VEHICLE EMBLEM
DECALS
DECALS
DECALS ENGLISH
A DECALS CANADIAN FRENCH
B DECALS LATIN AMERICAN SPANISH
DECALS ENGLISH
DECALS CANADIAN FRENCH
DECALS LATIN AMERICAN SPANISH

CASE 585G 586G 588G FORKLIFT PARTS CATALOG MANUAL – PDF DOWNLOAD:

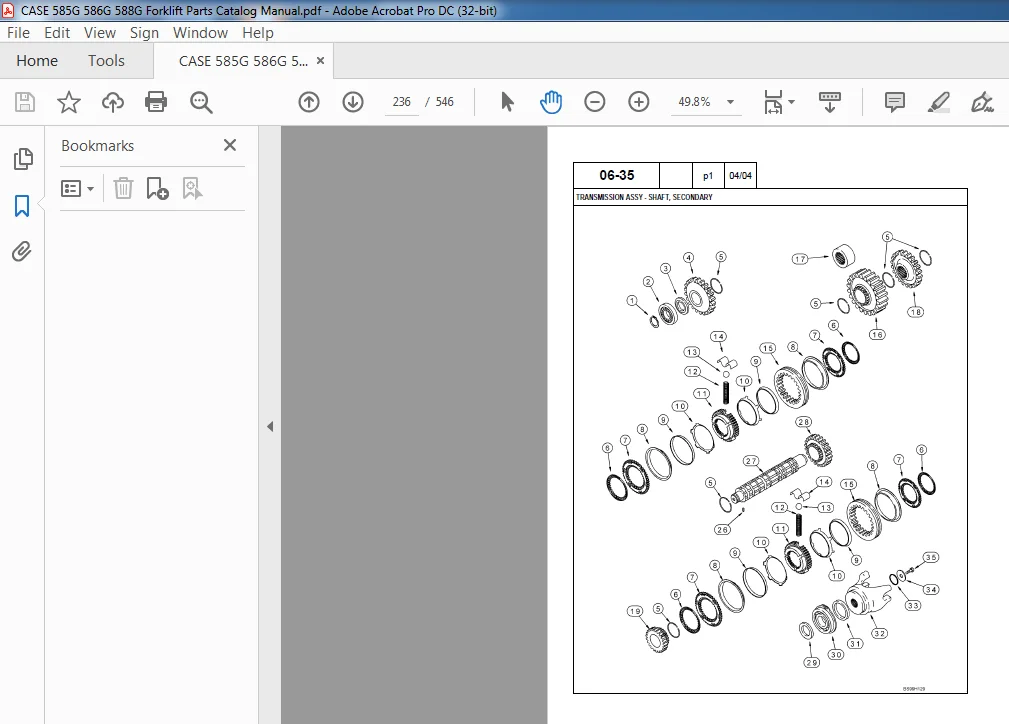

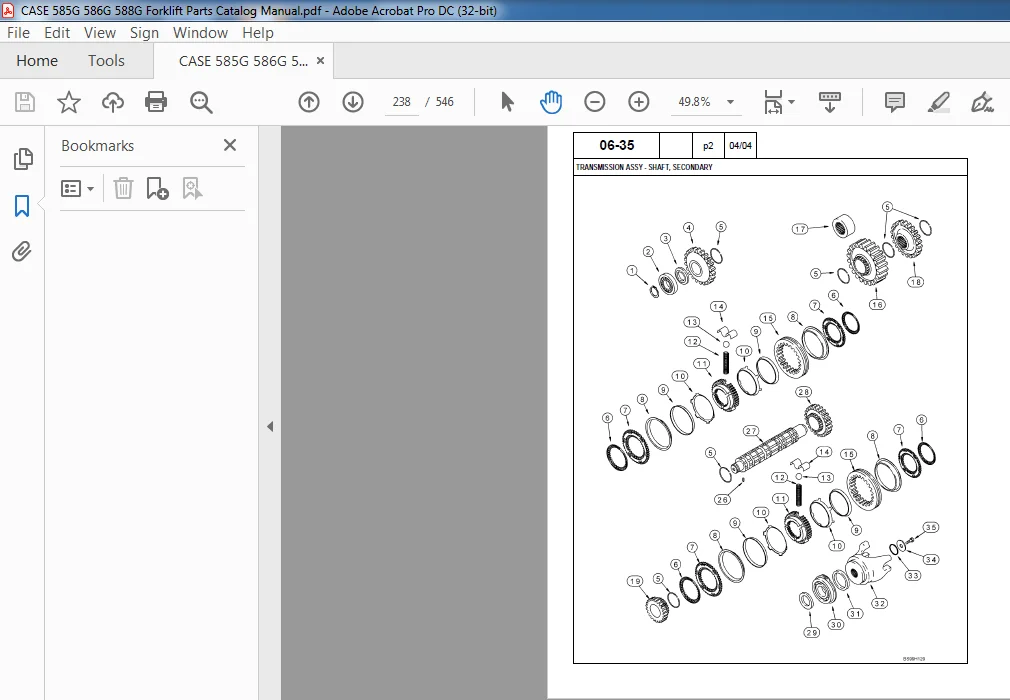

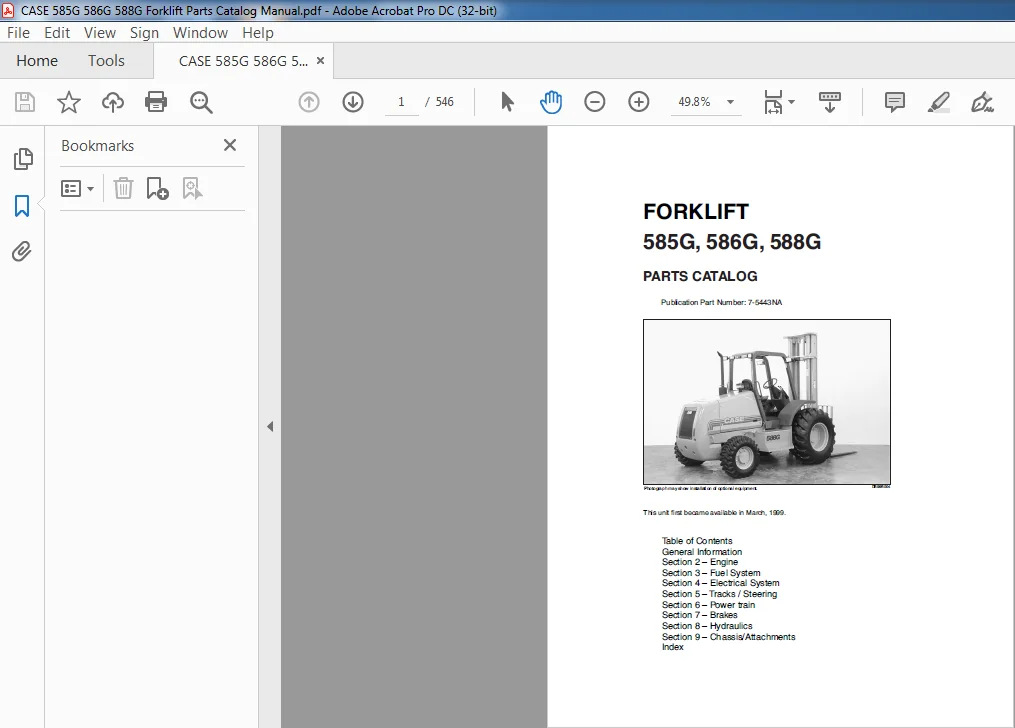

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
