Case 648 Wheel Loader Operators Manual 9-8171 – PDF DOWNLOAD

Description

Case 648 Wheel Loader Operators Manual 9-8171 – PDF DOWNLOAD

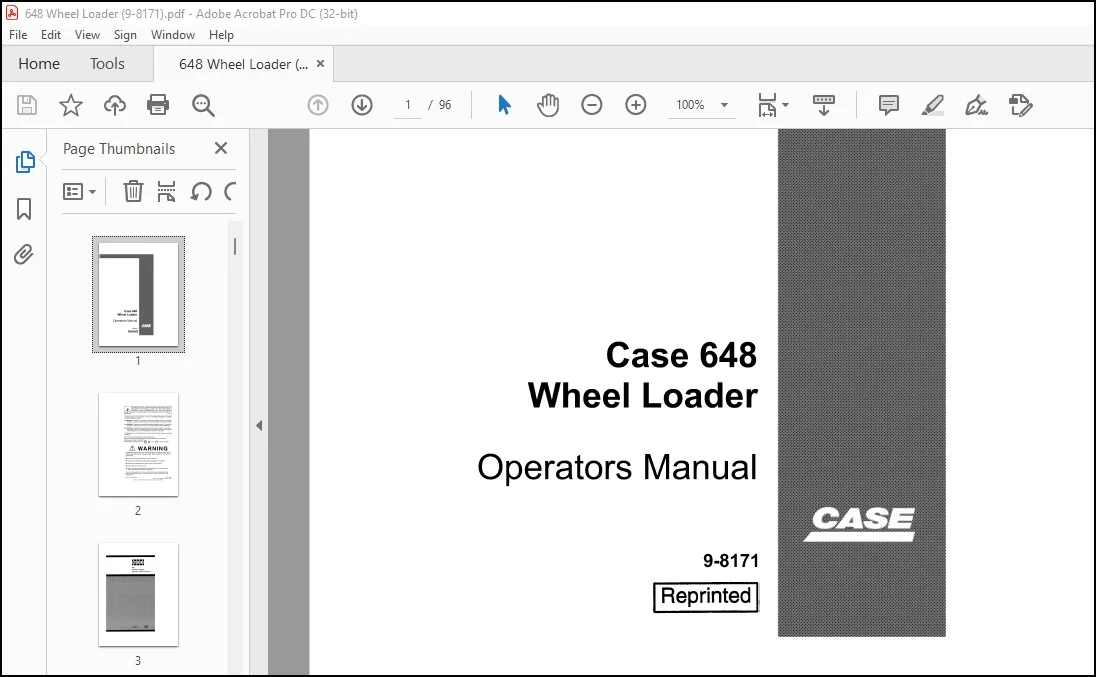

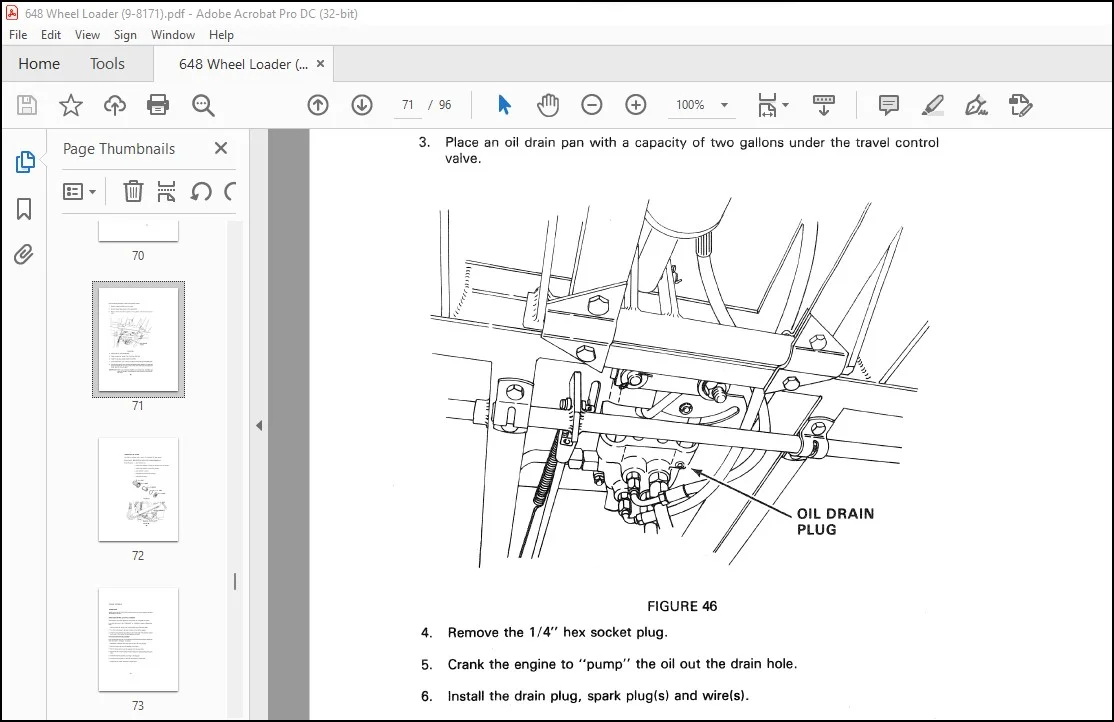

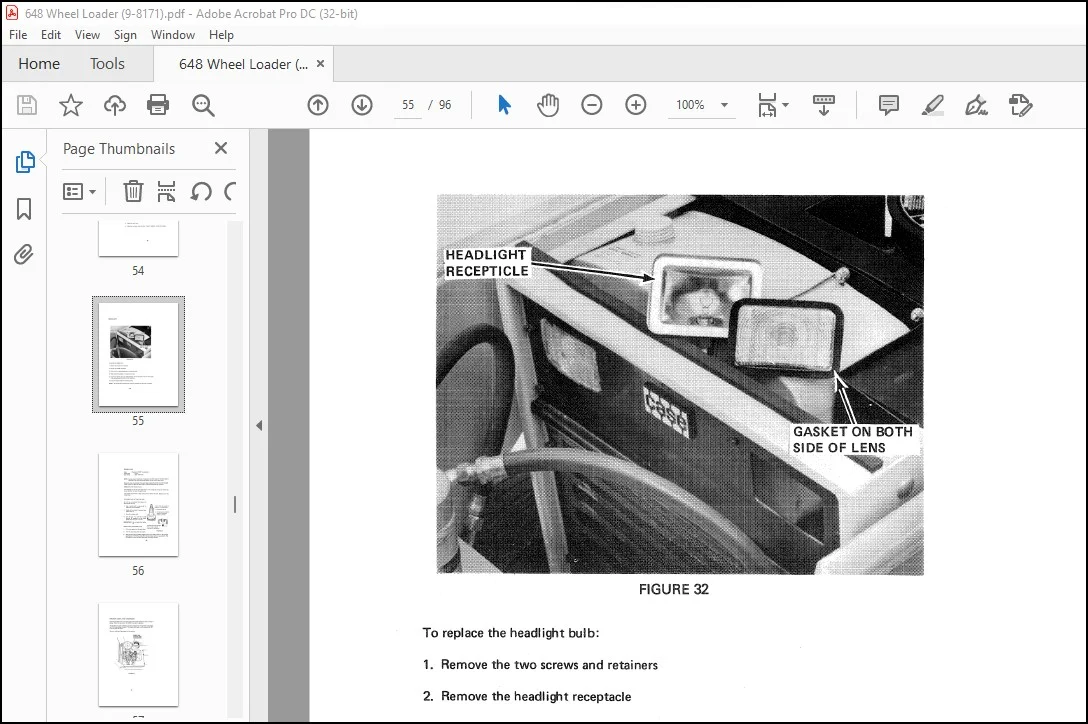

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case 648 Wheel Loader Operators Manual 9-8171 – PDF DOWNLOAD

TO THE OWNER OF A CASE TRACTOR :

• The Maintenance you give your new Case tractor is important. Use this manual as your
  guide. Follow these instructions and tips to make sure your Case tractor operates efficiently
  for many years.
• We are an authorized Case dealer. We have Case replacement parts which are the same as
  the original equipment.

OPERATING CONTROLS AND INSTRUMENTS :
1. IGNITION KEY AND STARTER SWITCH
TO START: Turn the key to the right and hold in the “START” position.
TO RUN: Release the key to the “RUN” position when the engine starts.
TO STOP: Turn the key to the left to the “OFF” position.
2. CHOKE
TO CLOSE THE CHOKE: Push the choke lever forward. Close the choke to start a
cold engine.
TO OPEN THE CHOKE: Pull the choke lever rearward. Open the choke slowly after
the engine starts.
The choke must be open during normal operation or when starting a warm engine.
3. THROTTLE
ENGINE LOW IDLE: Pull the throttle lever rearward. Put the throttle in the “SLOW”
position when starting and when stopping the engine. This gives a warm up and cool
down period.
TO INCREASE ENGINE SPEED: Push the throttle lever forward until the needed engine
speed is reached.

TABLE OF CONTENTS:

Case 648 Wheel Loader Operators Manual 9-8171 – PDF DOWNLOAD

SAFETY MESSAGES I – XII
INTRODUCTION 2
SERIAL NUMBERS 3
OPERATING INSTRUCTIONS 4 – 23
Operating Controls & Instruments 4 -9
Prestarting Check List 10 – 11
Starting Procedure 12-13
Stopping Procedure 14
Operating Procedure 15- 23
PREVENTIVE MAINTENANCE 25- 71
Maintenance Chart 26 – 27
Specifications 28 – 29
Overall Measurements 30
Capacities 31
Brake 32-33
Electrical System 34 – 41
Wiring Diagram 34
Storage Battery 35 – 36
Jumper Cables and Booster Battery 37
Fuse 38
Headlights 39
Spark Plug 40
Breaker Points and Condenser 41
Engine 42 – 52
Carburetor 42 – 43
Air Cleaner 44
Air Cleaner Precleaner 44
Engine Cooling System 45
Engine Oil 46 – 47
Oil Filter Change Procedure 48
Engine Cylinder Head Service 49
Engine Valve Service 49
Fuel and Fuel Filter 50 – 51
Throttle & Choke Cables 52
Hydraulic System , 53 – 63
Hydraulic Oil Cooler 53
Hydraulic Oil 54 – 55
Filter, Hydraulic Oil 56 ·
Travel Control 57 – 59
lift linkage 60
Loader Control Linkage 61
Front Wheel Bearings 62 – 63
Chassis Lubrication 64 – 66
Transaxle 67
Seat 68
Toe-In Adjustment 69
Attachment Drive Clutch Adjustment 70 – 71
MANUAL ORDERING PROCEDURE n-73
Order Form 73
AFTER DELIVERY CHECK 74
