Case 680CK Loader Parts Catalog Manual B1072 – PDF DOWNLOAD

Description

Case 680CK Loader Parts Catalog Manual B1072 – PDF DOWNLOAD

DESCRIPTION:

Case 680CK Loader Parts Catalog Manual B1072 – PDF DOWNLOAD

TABLE OF CONTENTS:

Case 680CK Loader Parts Catalog Manual B1072 – PDF DOWNLOAD

A
Air Cleaner – diesel engine 9
Air Cleaner – gasoline engine 37
Alternator – electrical 77
B
Balancer – engine 23
Belt – fan 7
Block – cylinder, diesel 13
Block – cylinder, gasoline 41
C
Camshaft – engine, diesel 17
Camshaft – engine, gasoline 45
Carburetor – engine fuel 59
Coil – electrical 67
Cooling System – engine 5
Crankshaft – engine, diesel 19
Crankshaft – engine, gasoline 47
D
Distributor – electrical 83
Dipstick – engine oil, diesel 13
Dipstick – engine oil, gasoline 41
E
Electrical System – diesel models 63,65
Electrical Syste 1J1 – gasoline models 67 ,69
Engine Mounts 129
F
Fan – cooling 7
Filter – fuel, diesel 35
Filter – engine oil, diesel models 25
Filter – engine oil, gasoline models 53
Flywheel – engine, diesel 19
Flywheel – engine, gasoline 47
Fuel Tank And Lines – engine, diesel 29
Fuel Tank And Lines – engine, gasoline 57
G
Gasket Sets – engine, diesel 27
Gasket Sets – engine, gasoline 55
Governor – engine, diesel 35
Governor – engine, gasoline 61
Head – cylinder, diesel
Head – cylinder, gasoline
Printed in U S A
H
15
43
Index – backhoe 148,149
Index – loader 148,149
Index – numerical 271-296
Injection System – fuel, diesel 31
Injector – fuel 31
M
Manifold – water 5
Manifolds – intake and exhaust, diesel 11
Manifolds – intake and exhaust, gasoline 39
Muffler – exhaust, diesel 9
Muffler – exhaust, gasoline 37
p
Pan – engine oil, diesel 13
Pan – engine oil, gasoline 51
Pistons – engine, diesel 21
Pistons – engine, gasoline 49
Pump – fuel injection, diesel 35
Pump – fuel, diesel 29
Pump – fuel, gasoline 57
Pump – engine oil, diesel 23
Pump – engine oil, gasoline 51
Pump – water 7
R
Radiator – engine cooling 5
Rings – piston, diesel 21
Rings – piston, gasoline 49
Rocker Arm : engine, diesel 17
Rocker Arm – engine, gasoline 45
Rod – connecting, diesel 21
Rod – connecting, gasoline 49
Rod – push, diesel 1 7
Rod – push, gasoline 45
Rotor – distributor 83
s
Sleeve – engine, diesel 21
Sleeve – engine, gasoline 49
Spark Plug – gasoline ignition 67
Starter – engine, diesel 79
Starter – engine, gasoline 81
T
Thermostat – coolant temperature 5
Timing Gear Cover – engine, diesel 13
Timing Gear Cover – engine, gasoline 41
V
Valve Cover – engine, diesel 15
Valve Cover – engine, gasoline 43
Valve Guides – engine, diesel 17
Valve Guides – engine, gasoline 45
Valves – engine, diesel 17
Valves – engine, gasoline 45
Issued October, 1968
MODEL 680 CK LOADER AND BACKHOE
ALPHABETICAL INDEX
3
BASIC TRACTOR SECTION
A
Alternator – electrical 77
Axle – front, steering 115
Axle – rear, drive 107
B
Batteries – electrical 71
Battery Cables – electrical 71
Brake Controls – foot 109
Brake Controls – parking 111,113
Brakes – differential 105
C
Cab And Related Parts 141-147
Chassis – tractor 129
Clutch – forward and reverse 89
Clutch Controls – automatic disconnect 97
Converter – engine torque 87
Cooling System – forward and reverse
transmission 99
Cooling System – equipment hydraulics 207
D
Decals – tractor 255
Differential 105
Drive Shaft – engine to transmission 99
E
Electrical System – diesel models 63,65
Electrical System – gasoline models 67 ,69
F
Fenders – tractor ,129
Floor Plates – tractor 139
Front Axle – tractor steering 115
G
Gauges – instrument panel 7 5
Grille – radiator 135
H
Headlights – tractor 73
Hood – engine 131
Housing – manual transmission 93
Housing – torque converter 87
Housing – transmission, forward and reverse 87
Housing – transmission, power shuttle 93
Index – backhoe 148,149
Index – loader 148,149
Index – numerical 2 71-2 9 6
Instrument Panel – tractor 75
Instruments – control panel 75
Printed in U S A
L
Lights – head 73
Lights – rear 73
Lights – stop and tail 73
M
Mounts – engine 129
Muffler – exhaust, diesel 9
Muffler – exhaust, gasoline 37
p
Panel – instrument 75
Panels – engine side 131
Pedal – fuel shutoff, diesel 85
Pedal – fuel foot feed 85
Pedals – brake 109
Plates – floor 139
Pump – torque converter 87
s
Seat – operators 139
Side Panels – engine 131
Spindles – steering 115
Starter – electrical, diesel 79
Starter – electrical, gasoline 81
Steering Cylinder – hydraulic 121
Steering Hydraulics – tractor 117,119
Steering Pump – power 123
Steering Pump – manual 121
Steering Wheel – tractor 117,119
T
Tank – hydraulic oil 137
Throttle – foot feed 85
Throttle – hand 85
Tie Rod – steering 115
Tool Box – tractor 139
Transmission Controls – forward and reverse 95
u
Universal Joint – engine to transmission 99
V
Valve – forward and reverse transmission 91
w
Wheels – front steering 125
Wheels – rear drive 125,127

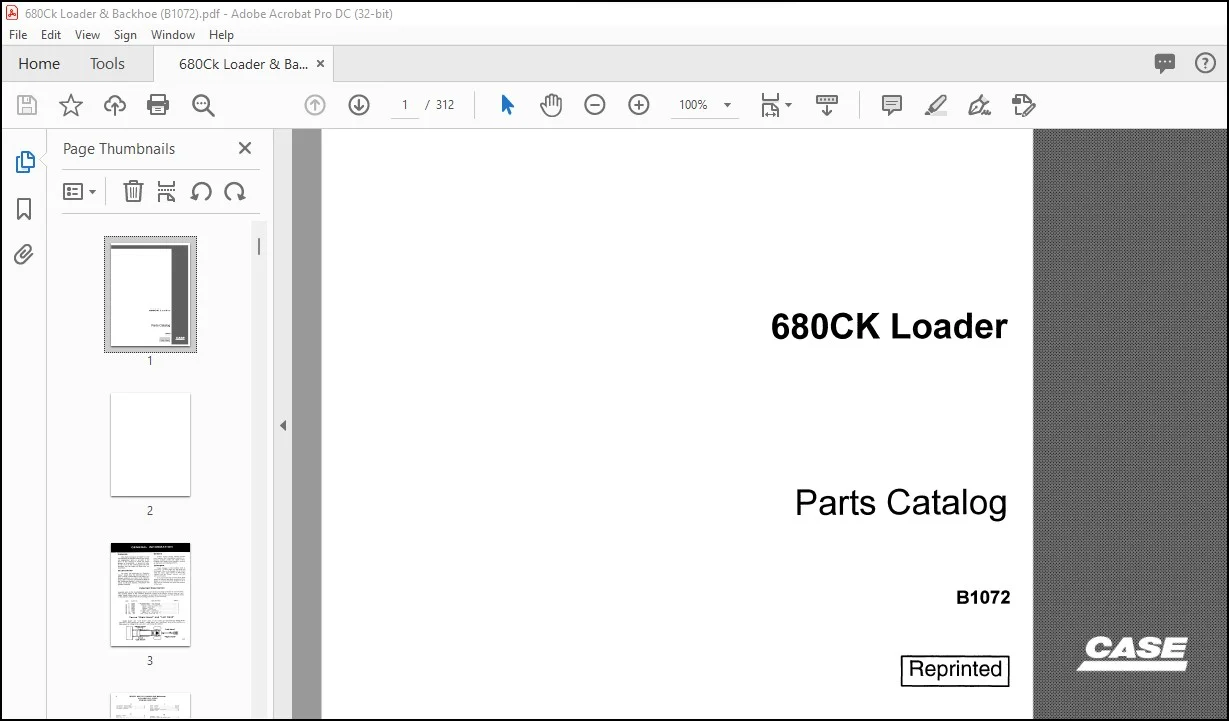

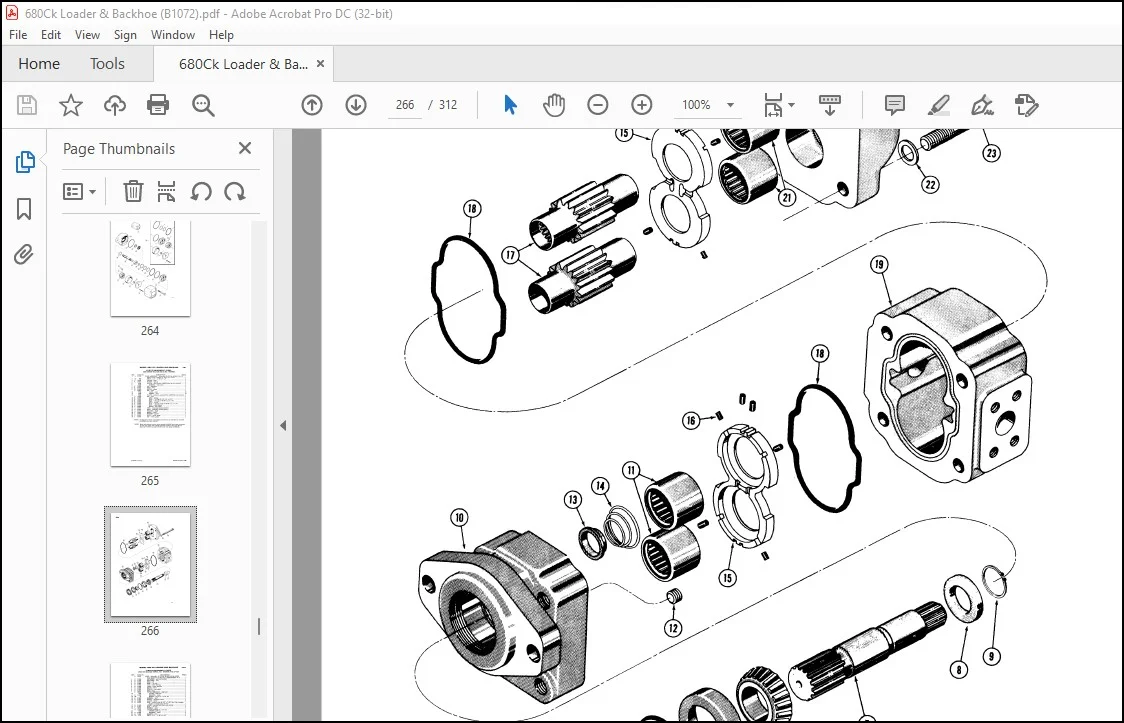

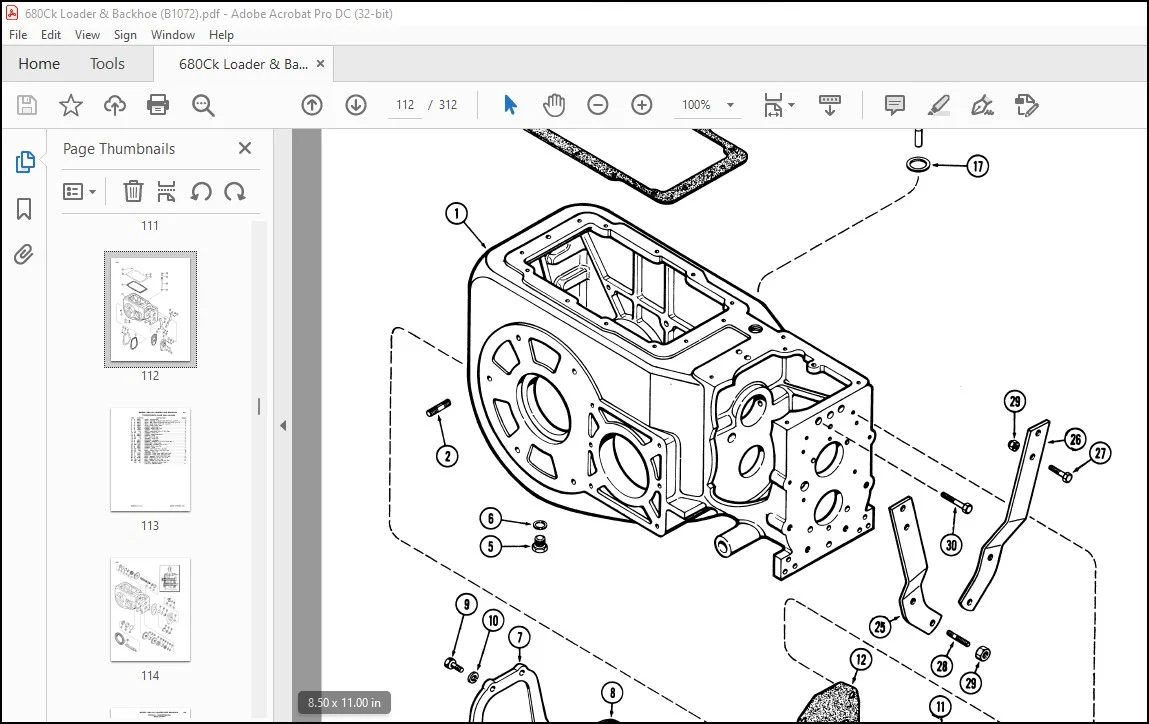

IMAGES PREVIEW OF THE MANUAL:
