Case 689G Telescopic Handler Operator’s Manual 6-3210 – PDF DOWNLOAD

Description

Case 689G Telescopic Handler Operator’s Manual 6-3210 – PDF DOWNLOAD

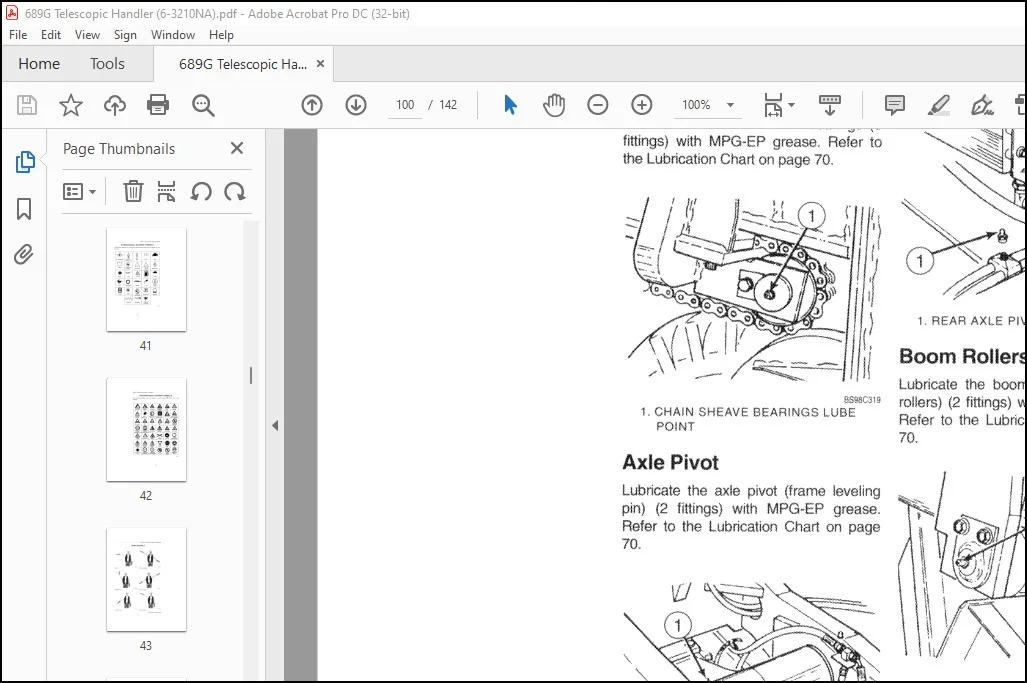

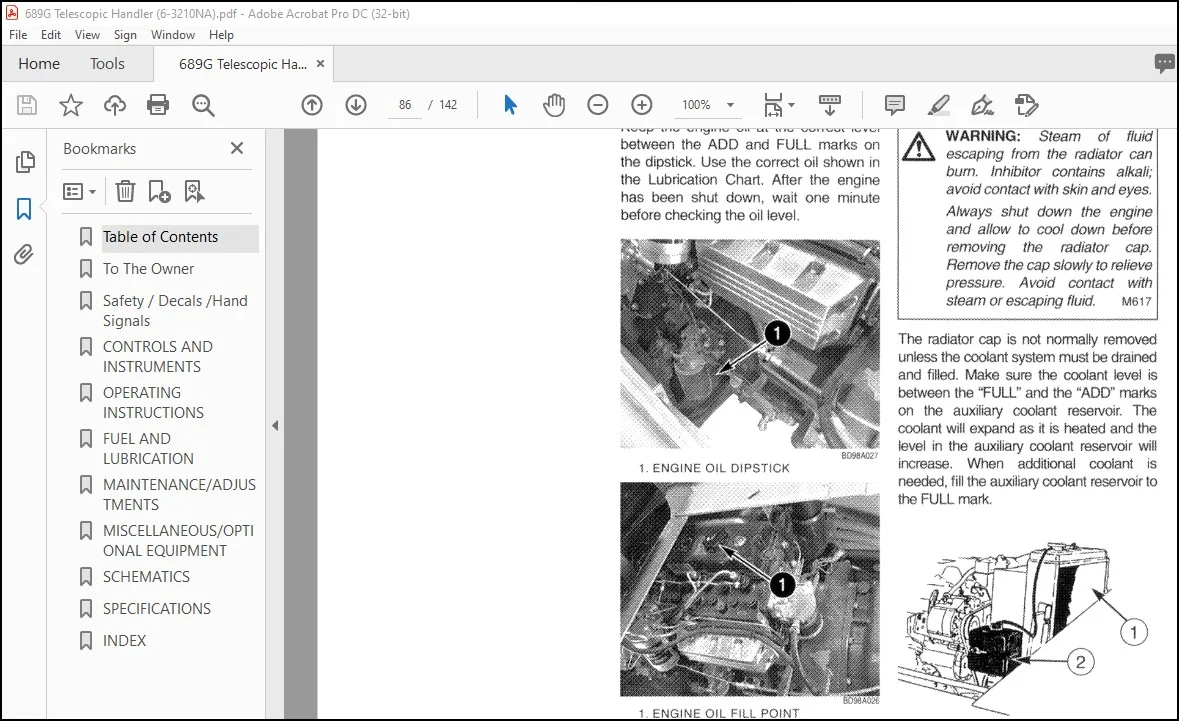

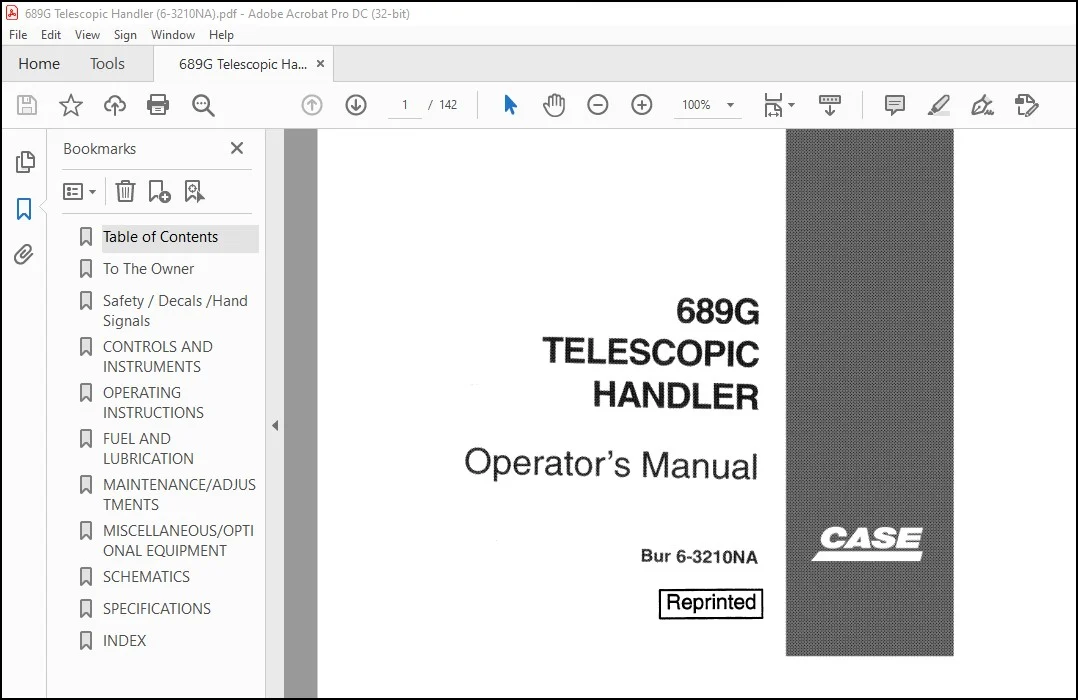

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case 689G Telescopic Handler Operator’s Manual 6-3210 – PDF DOWNLOAD

TO THE OWNER :

Always keep this manual in the storage compartment provided for it Make sure that it
is always complete and in good condition. Consult your Case dealer to obtain extra
manuals or manuals in other languages.
Your case dealer is at your disposal for any further information. He will also provide
any aftersele service you may require, plus genuine spare parts. YOur guarantee of
quality.
General :
The 689G is a Telesoopic Handler powered by a Perkins l0044T diesel engine. A
three speed powershift transmission is used to control speed and direction. Hydraulic
brakes are used on all four wheels. The service brakes are a wet disc design installed
in the planetary hubs of the axles. An “inching” brake function permits the operator
greater lift speed tor lifting loads while the position of the machine can be adjusted
slowly for alignment of a load. The parking brake uses a disc~type caliper mounted on
the front drive shaft at the transmission case and is applied with a control lever neer
the operator’s seat The hydraulic pump, mounted on the transmission, operates the
boom, brake, frame leveling, and steering functions.
Steering
This series of Telescopic Handlers’ has three modes of steering:
1. Front Wheel Only Steering: Is normally used only when traveling on roads.
2. Crab Steering (All Wheels Turn In The Same Direction): Is used to move
away from buildings or to avoid wheel ruts.
3. Coordinated Steering (Reer Wheets Turn In Opposite Direction From Front
Wheels): Provides the greatest maneuverability and is used most of the time.

TABLE OF CONTENTS:

Case 689G Telescopic Handler Operator’s Manual 6-3210 – PDF DOWNLOAD

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
