Case 750-760-860-960 Service Repair Manual – PDF Download

Description

Case 750-760-860-960 Service Repair Manual – PDF Download

FILE DETAILS:

Case 750-760-860-960 Service Repair Manual – PDF Download

LANGUAGE:ENGLISH
PAGES:652
DOWNLOADABLE:YES
FILE TYPE:PDF

CASE 750-760-860-960 SERVICE REPAIR MANUAL – PDF DOWNLOAD:

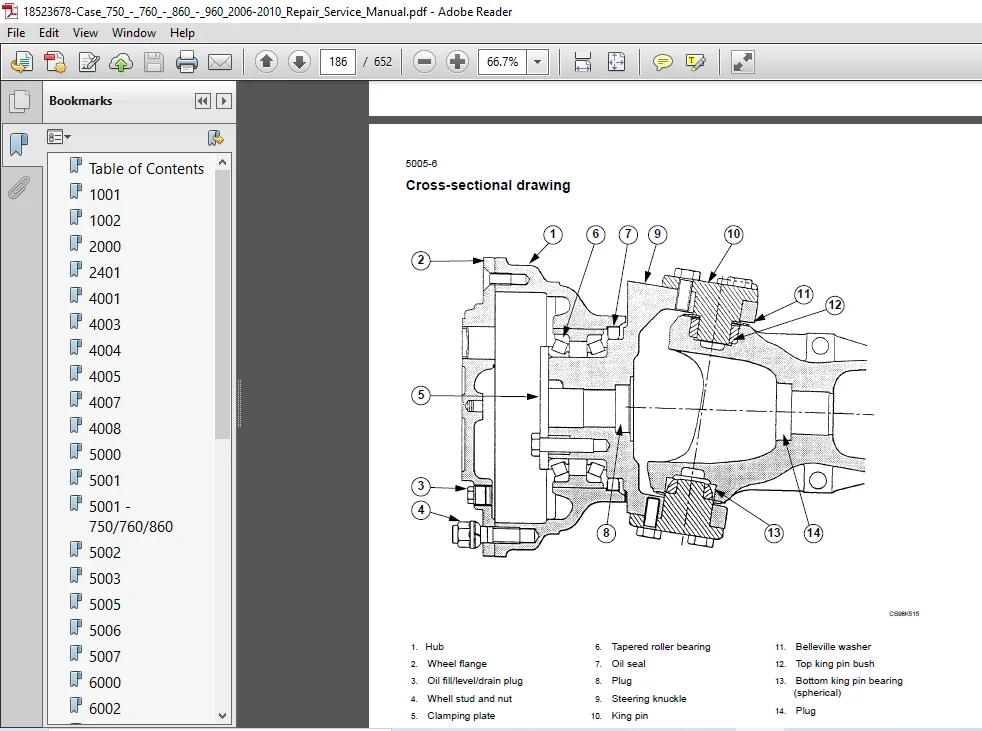

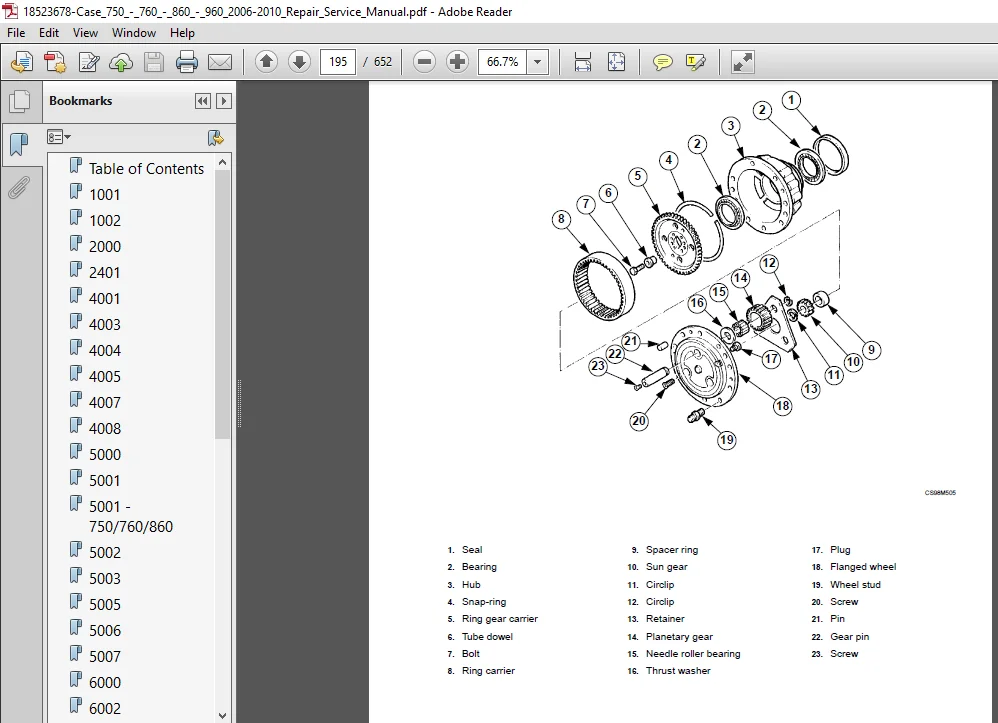

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:SAMPLE PAGE FROM THE MANUAL:

Case 750-760-860-960 Service Repair Manual – PDF Download

Stock machines
Due to the frequent starts, but with little work, the batteries on stock machines will become discharged more quickly, therefore check the open circuit voltage every 2 weeks. Refer to 4003-6. If the voltage measures 12.3 volts or less, recharge the battery. Refer to 4003-8.
Quiescent current drain
The machines, ex-factory, have no permanently live circuits and should have zero quiescent current drain, when the key-switch is off and all lights are switched off. It should be noted that permanently live accessories fitted by the dealer, such as a clock or theft alarm system, will place a quiescent drain on the battery. Typically the quiescent drain will be in the range of 10 -20 mA. If the quiescent drain measures 40 mA or more, there is a problem with the wiring insulation or the accessories, which must be cured

TABLE OF CONTENTS:

Case 750-760-860-960 Service Repair Manual – PDF Download

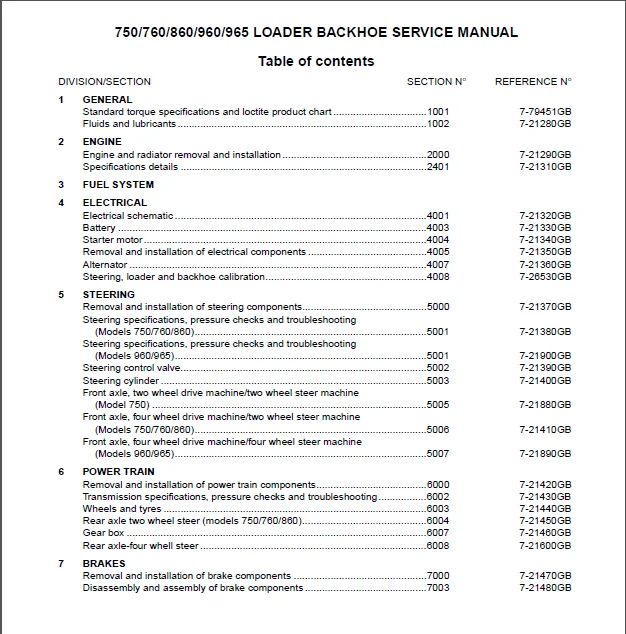

1 GENERAL
Standard torque specifications and loctite product chart 1001 7-79451GB
Fluids and lubricants 1002 7-21280GB
2 ENGINE
Engine and radiator removal and installation 2000 7-21290GB
Specifications details 2401 7-21310GB
3 FUEL SYSTEM
4 ELECTRICAL
Electrical schematic 4001 7-21320GB
Battery 4003 7-21330GB
Starter motor 4004 7-21340GB
Removal and installation of electrical components 4005 7-21350GB
Alternator 4007 7-21360GB
Steering, loader and backhoe calibration 4008 7-26530GB
5 STEERING
Removal and installation of steering components 5000 7-21370GB
Steering specifications, pressure checks and troubleshooting
(Models 750/760/860) 5001 7-21380GB
Steering specifications, pressure checks and troubleshooting
(Models 960/965) 5001 7-21900GB
Steering control valve 5002 7-21390GB
Steering cylinder 5003 7-21400GB
Front axle, two wheel drive machine/two wheel steer machine
(Model 750) 5005 7-21880GB
Front axle, four wheel drive machine/two wheel steer machine
(Models 750/760/860) 5006 7-21410GB
Front axle, four wheel drive machine/four wheel steer machine
(Models 960/965) 5007 7-21890GB
6 POWER TRAIN
Removal and installation of power train components 6000 7-21420GB
Transmission specifications, pressure checks and troubleshooting 6002 7-21430GB
Wheels and tyres 6003 7-21440GB
Rear axle two wheel steer (models 750/760/860) 6004 7-21450GB
Gear box 6007 7-21460GB
Rear axle-four whell steer 6008 7-21600GB
7 BRAKES
Removal and installation of brake components 7000 7-21470GB
Disassembly and assembly of brake components 7003 7-21480GB
Cre 7-21271GB Issued 10-99
DIVISION/SECTION SECTION N° REFERENCE N°
8 HYDRAULICS
Removal and installation of hydraulic components 8001 7-21500GB
Hydraulic specifications, troubleshooting and pressure checks 8002 7-21510GB
Cleaning the hydraulic system 8003 7-21520GB
Hydraulic pump and unloader valve 8004 7-21530GB
Loader control valve 8005 7-21540GB
Cylinders 8006 7-21620GB
Backhoe control valve 8007 7-21550GB
Extending dipperstick control valve 8008 7-21560GB
Priority demand valve 8010 7-21570GB
9 MOUNTED/EQUIPMENT
Pedals and levers 9001 7-21630GB
Loader 9006 7-21650GB
Cab and Rops 9007 7-21660GB
Backhoe 9008 7-21670GB
Seat and seat belt 9009 7-21680GB
Removal and installation of components 9011 7-21690GB
