Case 750 Industrial Diesel Crawler Operators Manual 9-1224 – PDF DOWNLOAD

Description

Case 750 Industrial Diesel Crawler Operators Manual 9-1224 – PDF DOWNLOAD

DESCRIPTION:

Case 750 Industrial Diesel Crawler Operators Manual 9-1224 – PDF DOWNLOAD

1. CASE “POWRCEL” ENGINE. A four cylinder, high compression, Diesel
engine with a displacement of 267 cubic inches.
2. TORQUE CONVERTER. Matched to the engine. Regulates engine torque
to meet varying load requirements, and absorbs shock loads before they
are transmitted to the engine.
3. TRANSMISSION, Hydraulic power shift transmission provides both pivot
and power steering. Provides the operator with a choice of four speeds
forward and four speeds reverse.
4. SUSPENSION. Torsion bar suspension system provides greater traction
by allowing a higher degree of track oscillation. Loader buckets can be
kept level on uneven ground. Shock loads are absorbed by the suspension
system providing a longer life for your crawler.
5. BRAKES. Hydraulically operated, controlled by foot pedals for pivot
turns and stops. When one or both pedals are depressed, the transmission
is neutralized, stopping the flow of power to the corresponding track
or tracks. A hand brake is provided for parking and holding the crawler
on grades.
6. TRACK. The heavy duty track is adjusted hydraulically using a grease
gun. The lower track rollers and upper carrier rollers are designed for
“lifetime” lubrication and a minimum of maintenance and parts replacement.
7. SEAT. Adjustable-type comfortable back; seat and arm rests of foam
rubber covered with a durable synthetic leather.
8. LIGHTS. Sealed beam head and tail lights, in shock absorbing rubber
mountings, are standard equipment on this crawler.

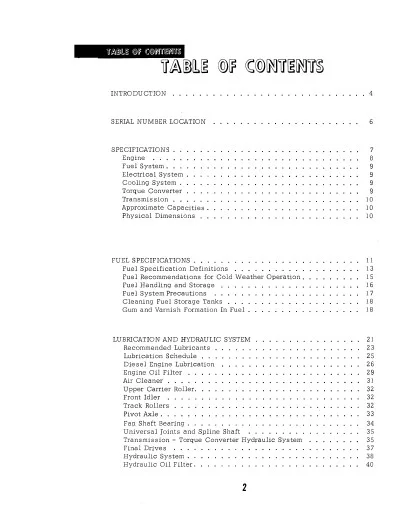

TABLE OF CONTENTS:

Case 750 Industrial Diesel Crawler Operators Manual 9-1224 – PDF DOWNLOAD

INTRODUCTION 4
SERIAL NUMBER LOCATION 6
SPECIFICATIONS 7
E~i~ 8
Fuel System 9
Electrical System 9
Cooling System 9
Torque Converter 9
Transmission 10
Approximate Capacities 10
Physical Dimensions1 O
FUEL SPECIFICATIONS11
Fuel Specification Definitions13
Fuel Recommendations for Cold Weather Operation 15
Fuel Handling and Storage 16
Fuel System Precautions 1 7
Cleaning Fuel Storage Tanks 18
Gum and Varnish Formation In Fuel 18
LUBRICATION AND HYDRAULIC SYSTEM 21
Recommended Lubricants 23
Lubrication Schedule 25
Diesel Engine Lubrication 26
Engine Oil Filter29
Air Cleaner31
Upper Carrier Roller 32
Front Idler 32
Track Rollers 32
Pivot Axle33
Faμ Shaft Bearing 34
Universal Joints and Spline Shaft 35
Transmission – Torque Converter Hydraulic System 35
Final Drives 37
Hydraulic System38
Hydraulic Oil Filter 40
2
MW-Mt■ OPERATING INSTRUCTIONS
Instruments and Controls
Pre-Starting Check List
General Precautions
Engine Starting Procedure
Engine Run- In Procedure
Stopping Engine
Operating Procedure
Cold Weather Operation
Hot Weather Operation
Operating Precautions – General
Important Checks During Operation
PREVENTIVE MAINTENANCE
Fuel System
Lubrication
Cooling System
Fan and Water Pump Drive Belts
Electrical System
Diesel Engine Storage
Setting Valve Tappet Clearance
Track System
Transmission and Torque Converter Hydraulic System
Air Cleaner
Engine Breather Filter
Brake System;
SERVICE DIAGNOSIS
Engine
Automatic Voltage Regulator and Generator
Battery
Transmission and Torque Converter
Trouble Shooting Chart – Hydraulic System
SECTION II – LOADER
SECTION III – RIPPER
SECTION IV – DOZERS
SECTION V – BACKHOE
SECTION VI MULTI-PURPOSE BUCKETS
SECTION VII MODEL E-30-SG WINCH
INDEX

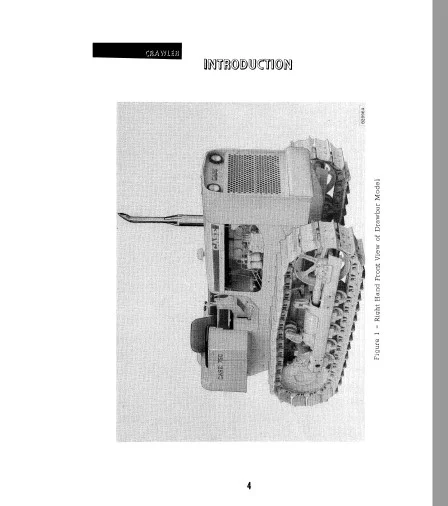

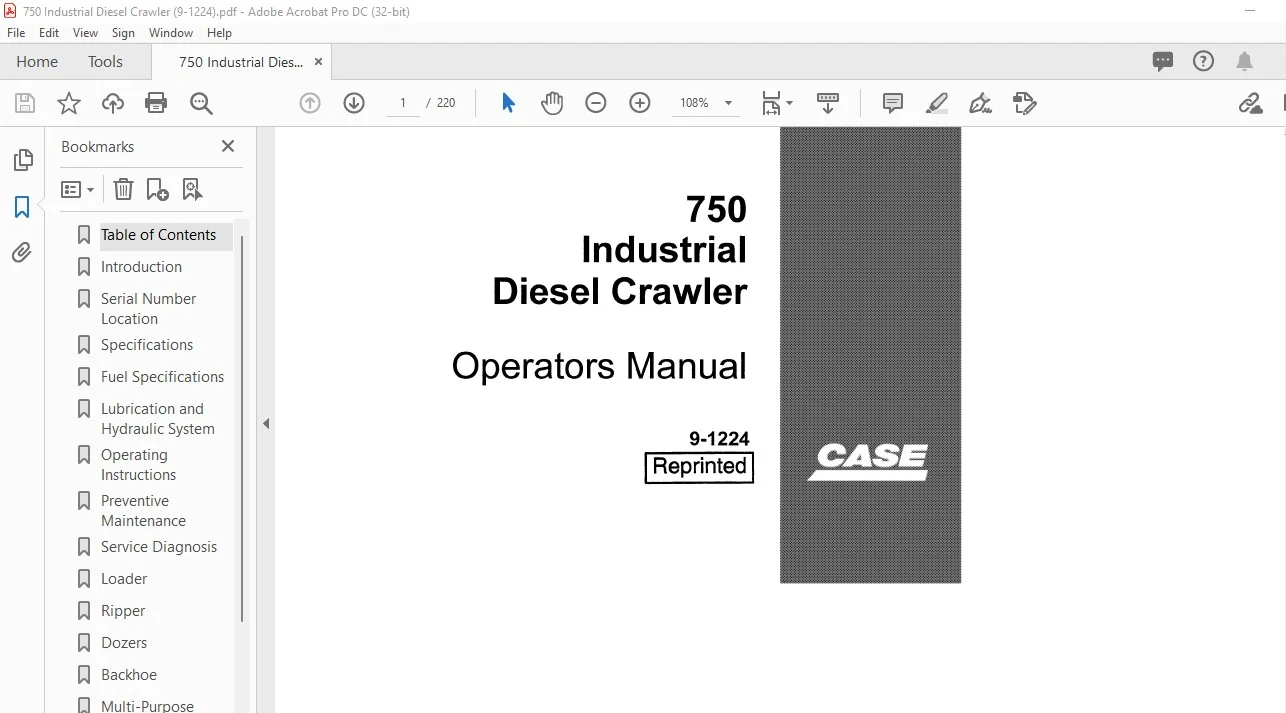

IMAGES PREVIEW OF THE MANUAL:

CASE 750 INDUSTRIAL DIESEL CRAWLER OPERATORS MANUAL 9-1224 – PDF DOWNLOAD:
