Case 788P 788PSU Low Profile Cab Parts Catalogue Manual FR_EN_DE 7-7330 – PDF DOWNLOAD

Description

Case 788P 788PSU Low Profile Cab Parts Catalogue Manual FR_EN_DE 7-7330 – PDF DOWNLOAD

DESCRIPTION:

Case 788P 788PSU Low Profile Cab Parts Catalogue Manual FR_EN_DE 7-7330 – PDF DOWNLOAD

HOW TO USE YOUR PARTS CATALOGUE
1- Machine type
2- Page number
Gives section number and page number within section
3- Illustration description
4- Machine type and serial number
-CGG012300 : All machines up to and including indicated number
CGG012301-CGG012345 : All machines between, and including, indicated numbers
CGG012346- : Machine number indicated and after
5- Reference number
Hydraulic connections and plugs are sold equipped with gaskets The gasket part number, with no reference number,
follows the connection or plug part number
6- Part number
REF : The part designated is identified on another page
NSS : The part is not sold separately, order the assembly or sub-assembly
7- Description
Noun in various languages
8- Dimension
Indicates size of part or other qualifying information See page entitled “Explanation of Dimension Abbreviations”
9- Quantity
Indicates number of parts per individual part, assembly, or sub-assembly
NOTE : “X” in quantity column indicates “use as required”
10- CARES code
CARES code corresponding to the part reference number
***** : Use the CARES code for the function concerned
11- Assembly or sub-assembly
Shown with brackets or a dotted box
Within brackets : The sign ∫ indicates from reference number 2 up to reference
number 9
12- Dot
Part not serviced separately
13- Additional information
See page 7-3 : The part illustrated is identified on another page
See N I T 3066 : Consult Technical Information Note number 3066
Replaces K2242371 : The part number was previously K2242371
Order K2242371 : The part number has been replaced Order K2242371
Order length 1250 mm : Part sold by the metre, order quantity 1 25
Left, Right, Front and Rear : Right-hand means everything which is on the operator’s right when
he is seated at the controls
Kit containing X : Kit containing X identical parts
Version XXXXX : Special version or specific supplier
Consists of ref numbers 1-5, 9, 13 : The assembly consists of parts reference numbers 1 to 5, 9 and 13
Consists of pages 2-3, 2-7 – 2-11 : The assembly consists of parts pages 2-3 and 2-7 to 2-11
14- Catalogue reference number
15- Date of issue
16- Illustration reference
17- Repaced by
The arrow indicates the new part(s)
The new part(s) is (are) fully interchangeable with the old part(s)
18- Interchangeable
The parts or parts assemblies are fully interchangeable

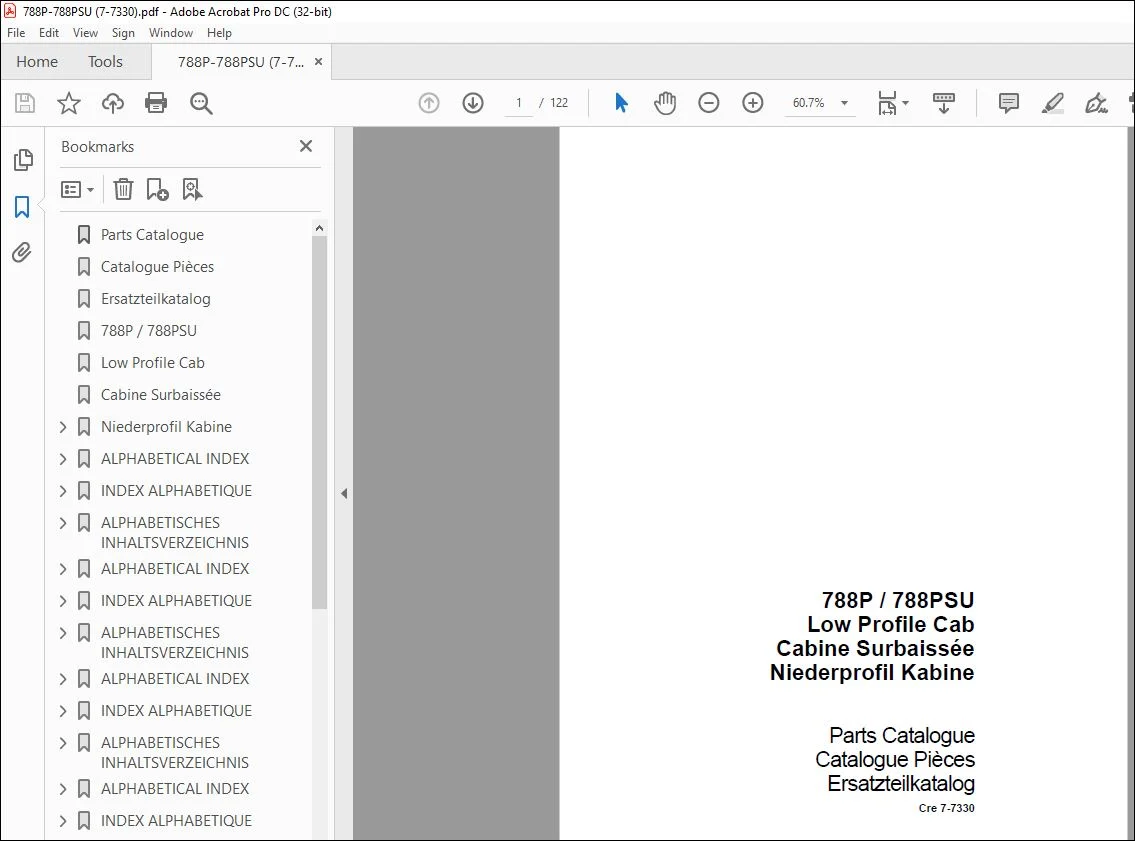

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case 788P 788PSU Low Profile Cab Parts Catalogue Manual FR_EN_DE 7-7330 – PDF DOWNLOAD

GENERAL
GENERALITES
ALLGEMEINES 1
ENGINE
MOTEUR THERMIQUE
MOTOR 2
FUEL SYSTEM
SYSTEME CARBURANT
KRAFTSTOFFANLAGE 3
ELECTRICAL SYSTEM
SYSTEME ELECTRIQUE
ELEKTRISCHEANLAGE 4
UNDERCARRIAGE
CHASSIS PORTEUR
UNTERWAGEN 5
TRANSMISSION
TRANSMISSION
FAHRANTRIEB 6
UNDERCARRIAGE HYDRAULICS
HYDRAULIQUE PORTEUR
HYDRAULIK UNTERWAGEN 7
HYDRAULIC SYSTEM
SYSTEME HYDRAULIQUE
HYDRAULIKANLAGE 8
UPPERSTRUCTURE CHASSIS
CHASSIS TOURELLE
RAHMEN OBERWAGEN 9
NUMERICAL INDEX
INDEX NUMERIQUE
NUMMERNVERZEICHNIS

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
