Case 821 C Loader Operators Manual 6-3591EUR – PDF DOWNLOAD

Description

Case 821 C Loader Operators Manual 6-3591EUR – PDF DOWNLOAD

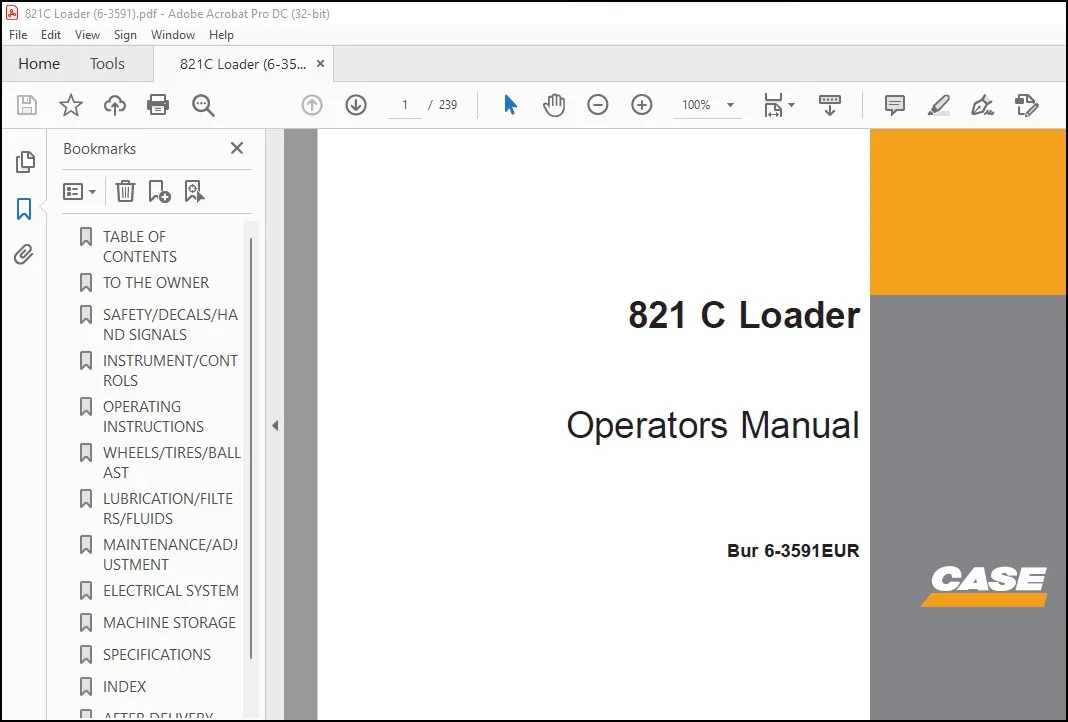

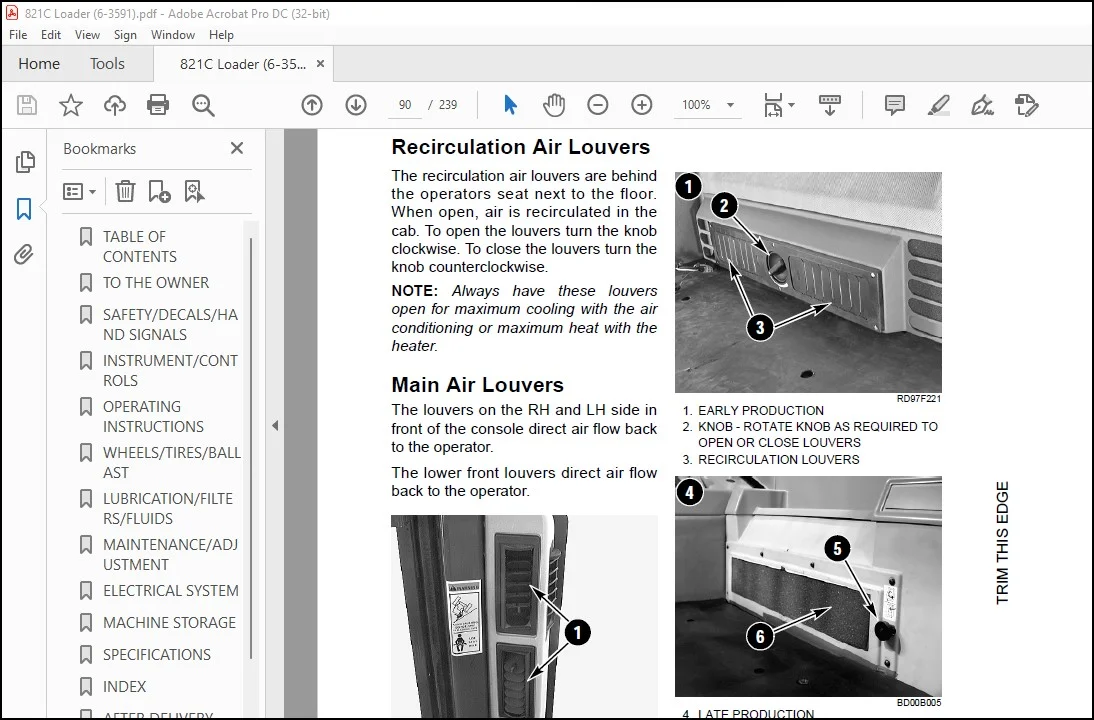

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case 821 C Loader Operators Manual 6-3591EUR – PDF DOWNLOAD

TO THE OWNER :

• Read this manual before you start the engine or operate the machine. If you need
  more information, see your dealer.
• Your dealer can give you help with Case Corporation approved service parts. Your
  dealer has specially trained technicians who know the best methods of repair and
  maintenance for your machine.
• Use this manual as a guide. Your Wheel Loader will remain a reliable working tool
  as long as it is kept in working condition and serviced properly.
• DO NOT operate or permit anyone to operate or service this machine until you or
  the other persons have read and understand the safety, operation and
  maintenance instructions in this manual. Use only trained operators who have
  demonstrated the ability to operate and service this machine correctly and safely.
• This Wheel loader, with standard equipment and attachments, is intended to be
  used for above ground level digging and general earthmoving purpose such as
  land leveling, truck loading, and material rehandling. This machine is not intended
  to be used for lifting other objects or transporting loads at high speeds.
• DO NOT use this machine for any application or purpose other than those
  described in this manual. If the loader is to be used in a application that involves
  special attachments or equipment, such as forestry, etc., consult an authorized
  dealer or the Case Corporation. Consult an authorized dealer or Case
  Corporation on changes, additions or modifications that can be required for this
  machine to comply with various country regulations and safety requirements.
• Unauthorized modifications will cause serious injury or death. Anyone making
  such unauthorized modifications is responsible for the consequences.
• This Operators Manual is to be stored in the manual compartment equipped on
  this machine. Make sure this manual is complete and in good condition. Contact
  you dealer to obtain additional manuals. Contact your dealer for any further
  information or assistance about your machine. Your dealer has Case Corporation
  approved service parts. Your dealer has technicians with special training that
  know best methods of repair and maintenance for your Wheel Loader.

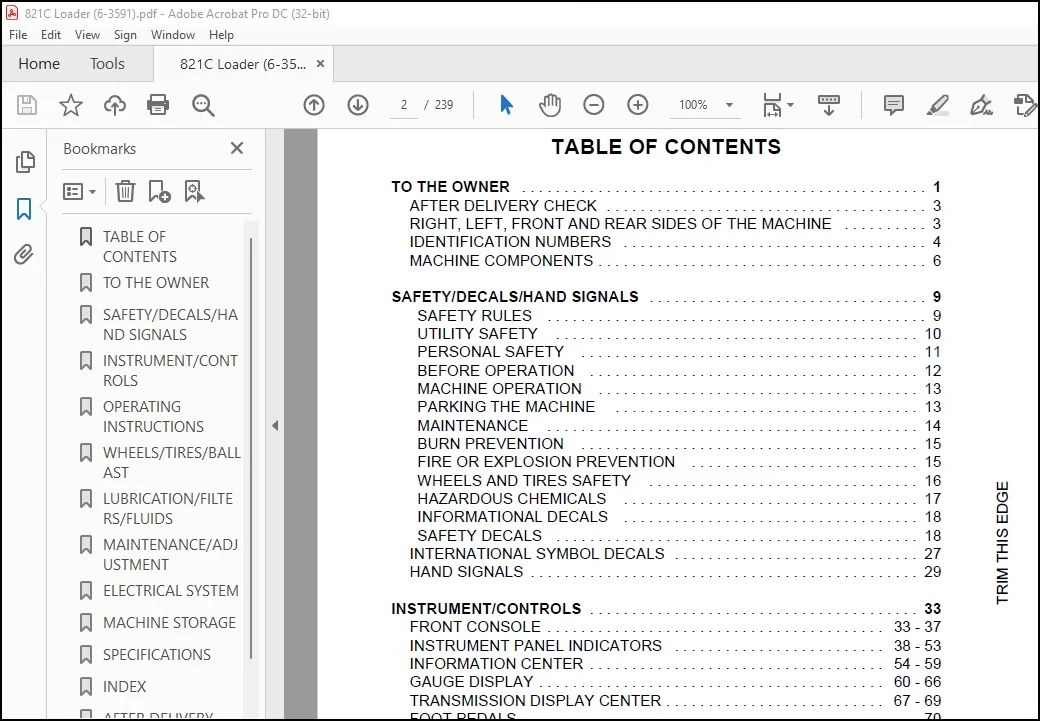

TABLE OF CONTENTS:

Case 821 C Loader Operators Manual 6-3591EUR – PDF DOWNLOAD

TO THE OWNER 1
AFTER DELIVERY CHECK 3
RIGHT, LEFT, FRONT AND REAR SIDES OF THE MACHINE 3
IDENTIFICATION NUMBERS 4
MACHINE COMPONENTS 6
SAFETY/DECALS/HAND SIGNALS 9
SAFETY RULES 9
UTILITY SAFETY 10
PERSONAL SAFETY 11
BEFORE OPERATION 12
MACHINE OPERATION 13
PARKING THE MACHINE 13
MAINTENANCE 14
BURN PREVENTION 15
FIRE OR EXPLOSION PREVENTION 15
WHEELS AND TIRES SAFETY 16
HAZARDOUS CHEMICALS 17
INFORMATIONAL DECALS 18
SAFETY DECALS 18
INTERNATIONAL SYMBOL DECALS 27
HAND SIGNALS 29
INSTRUMENT/CONTROLS 33
FRONT CONSOLE 33 – 37
INSTRUMENT PANEL INDICATORS 38 – 53
INFORMATION CENTER 54 – 59
GAUGE DISPLAY 60 – 66
TRANSMISSION DISPLAY CENTER 67 – 69
FOOT PEDALS 70
LOADER CONTROL LEVERS 71
SIDECONSOLE 76 – 83
MASTER DISCONNECT SWITCH 84
OPERATORS SEAT 88
SEAT BELT 91
OPERATING INSTRUCTIONS 93
BEFORE STARTING THE ENGINE 93
RUN – IN PROCEDURE 93
SEAT BELT 94
STARTING THE ENGINE 95
STOPPING THE ENGINE AND PARKING THE MACHINE 97
MACHINE OPERATION 100
LOADER CONTROL LEVERS 104
LOADER FUNCTION SWITCHES 110
BRAKE ACCUMULATORS 113
CLUTCH CUTOUT 113
BUCKET LEVEL INDICATOR 114
AUXILIARY HYDRAULIC CONNECTION (IF EQUIPPED) 114
ROTATING BEACON (IF EQUIPPED) 115
RIDE CONTROL 115
COUPLER PIN ENGAGEMENT (IF EQUIPPED) 116
LOADER OPERATING TIPS 117
TOWING THE MACHINE 119
TRANSPORTING THE MACHINE 120
OPERATING IN COLD WEATHER 122
OPERATING IN HOT WEATHER 124
WHEELS/TIRES/BALLAST 125
BALLAST 125
WHEELS AND TIRES 125
LUBRICATION/FILTERS/FLUIDS 129
GENERAL SAFETY BEFORE YOU SERVICE 129
SYSTEMGARD LUBRICATION ANALYSIS PROGRAM 130
PLASTIC AND RESIN PARTS 130
ENVIRONMENT 131
TRANSPORT/SERVICE LINK 131
ENGINE HOURMETER 132
FLUIDS AND LUBRICANTS 133
LUBRICATION/MAINTENANCE CHART 134 – 136
ACCESS DOORS 137
GREASE FITTINGS – 50 HOURS 138
GREASE FITTINGS – 100 HOURS 139
GREASE FITTINGS – 1000 HOURS 139
FLUID LEVELS 140
ENGINE LUBRICATION 143
AIR FILTER SYSTEM 148
ENGINE COOLING SYSTEM 152
DIESEL FUEL SYSTEM 155
HYDRAULIC/BRAKE SYSTEM 158
TRANSMISSION 165
AXLES – EARLY PRODUCTION 168
AXLES – LATE PRODUCTION 171
CAB AIR FILTER 174
182MAINTENANCE/ADJUSTMENT 179
CAB SERVICE 179
TRANSMISSION CLUTCH CALIBRATION 182
CLUTCH CUTOUT ADJUSTMENT 183
SECONDARY STEERING CHECK 185
PARKING BRAKE CHECK 186
LOADER ADJUSTMENTS 188
ROLL-OVER PROTECTIVE STRUCTURE 196
TORQUE SPECIFICATIONS FOR SEAT AND SEAT BELTS 198
FAN BELT, ALTERNATOR BELT AND AIR CONDITIONING
COMPRESSOR BELT 199
FIRE EXTINGUISHER MOUNTING (IF EQUIPPED) 200
SPARK ARRESTING MUFFLER (IF EQUIPPED) 201
ELECTRICAL SYSTEM 203
BATTERY SERVICE 203
FUSES 205
SERVICE ELECTRICAL CONNECTOR (IF EQUIPPED) 205
AUXILIARY POWER OUTLET (IF EQUIPPED) 206
AUXILIARY POWER EQUIPMENT MOUNTING BRACKET
LOCATION 206
REPLACEMENT BULBS 207
MACHINE STORAGE 209
SPECIFICATIONS 211
ENGINE DATA 211
OPERATING DATA AND DIMENSIONS 821C 213
OPERATING DATA AND DIMENSIONS 821C XR 216
OPERATING WEIGHT ADJUSTMENTS 219
SPECIAL BOLT TORQUES 220
INDEX 221
AFTER DELIVERY CHECK 231, 233
