Case 821F 921F Tier 4 Wheel Loader Service Repair Manual (84488414) Case 821F 921F

Description

Case 821F 921F Tier 4 Wheel Loader Service Repair Manual (84488414) Case 821F 921F

File Details:

• Case 821F 921F Tier 4 Wheel Loader Service Repair Manual (84488414) Case 821F 921F
• Size : 110 MB
• Format : PDF
• Language : English
• Brand: Case
• Type of machine: Case Wheel Loader
• Type of document: Service Manual
• Model: Case Wheel Loader 821F 921F Tier 4
• Part No:84488414

CASE 821F 921F TIER 4 WHEEL LOADER SERVICE REPAIR MANUAL (84488414) CASE 821F 921F:

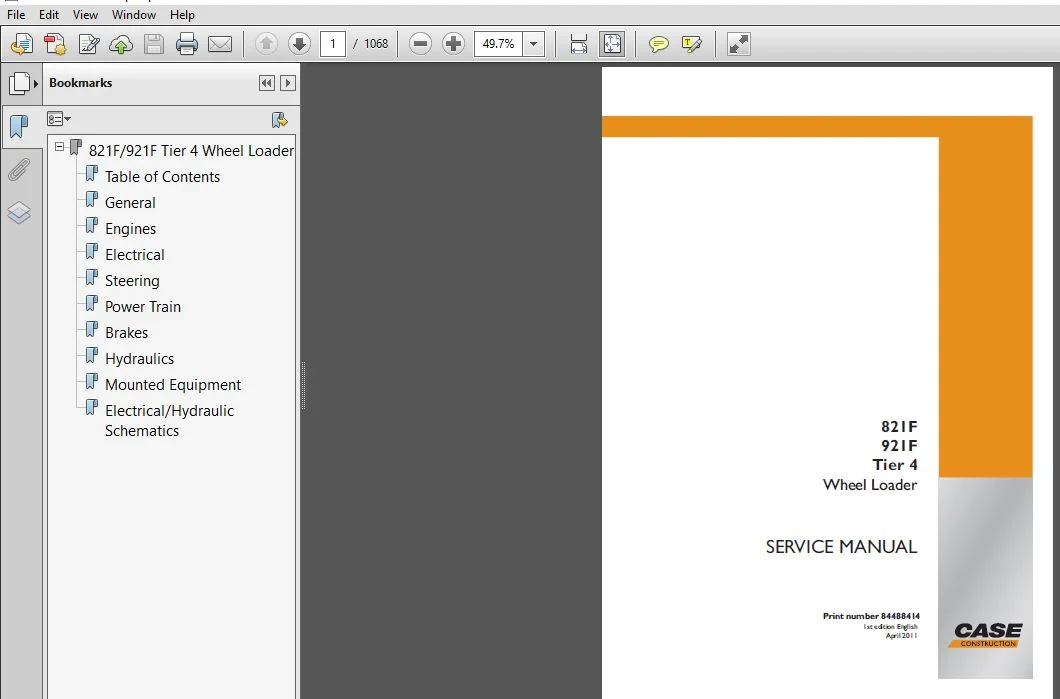

Image Preview:

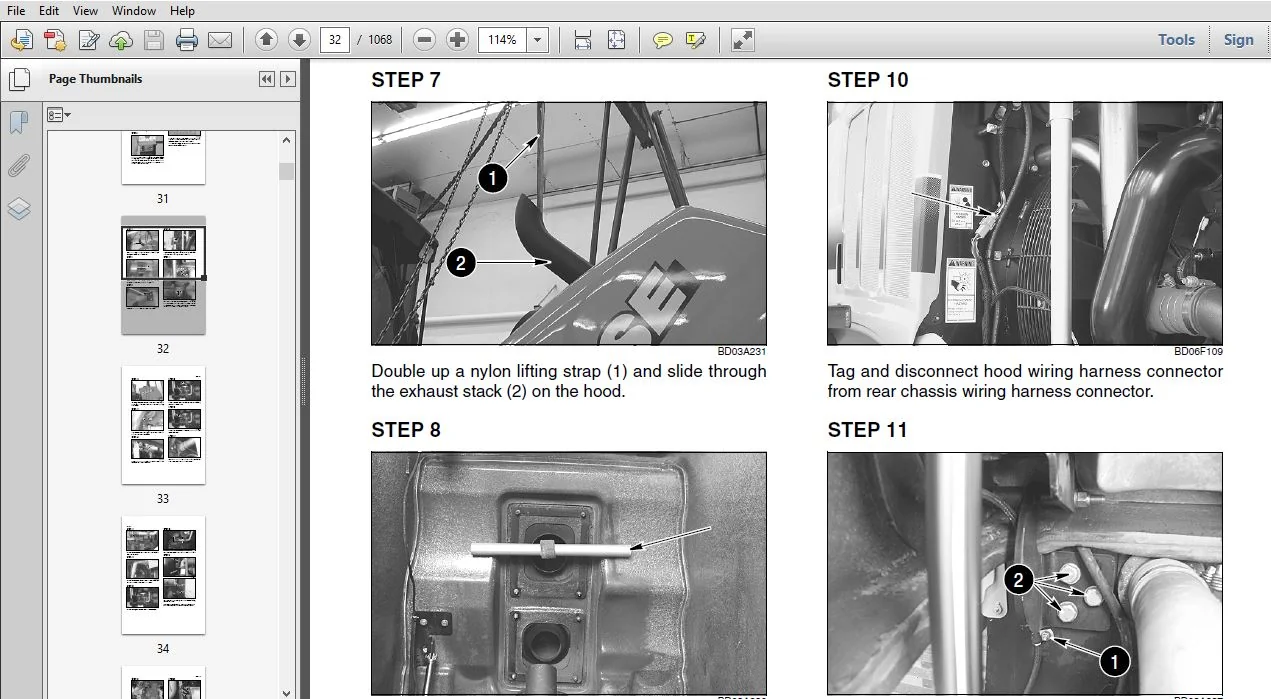

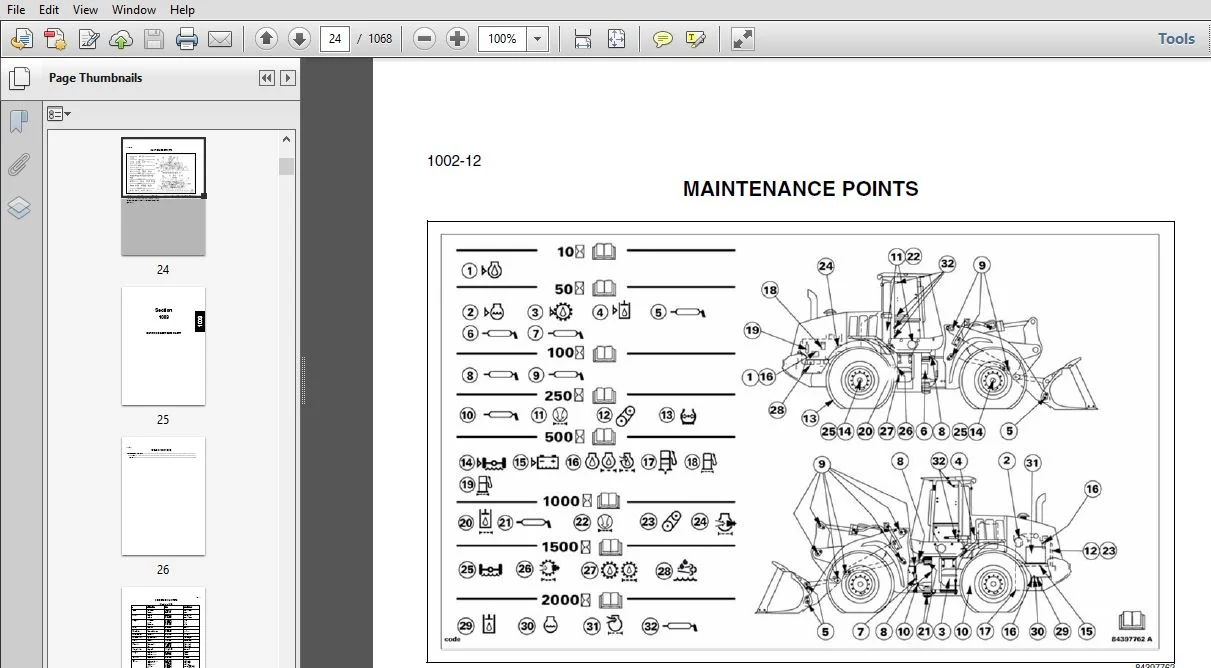

Sample Page From The  Manual:

• For machines sold in California CNH must warrant the diesel emission control system in the application for which it is sold or leased to be free from defects in design, materials, workmanship, or operation of the diesel emission control system which cause the diesel emission control system to fail to conform to the emission control performance level it was verified to, or to the requirements in the California Code of Regulations, Title 13, Sections 2700 to 2706, and 2710, for the periods of time listed below, provided there has been no abuse, neglect, or improper maintenance of your diesel emission control system, vehicle or equipment, as specified in the owner’s manuals.
• Where a warrantable condition exists, this warranty also covers the engine from damage caused by the diesel emission control system, subject to the same exclusions for abuse, neglect or improper maintenance of your vehicle or equipment. Please review your owner’s manual for other warranty information.
• The diesel emission control system may include a core part (e.g., particulate filter, diesel oxidation catalyst, selective catalytic reduction converter) as well as hoses, connectors, and other emission-related assemblies.

Table of Contents:

General
General Torque Specifications 1001
Fluids and Lubricants 1002
Metric Conversion Chart 1003
Engines
Engine and Radiator Removal and Installation 2000
Stall Tests 2002
After Cooler 2003
Engine Intake Air Filtration 2010
SCR System Sensors 2020
SCR Catalyst 2030
Engine Intake Temperature/Humidity Sensor 2040
DEF/ADBLUE Heater Control Valve 2050
DEF/ADBLUE DNOx Supply Module 2060
DEF/ADBLUE Dosing Injector 2070
DEF/ADBLUE Supply Tank 2080
DEF/ADBLUE Supply Tank Level and Temperature Sensor/Pick-up and Heater 2090
DEF/ADBLUE Supply Filters 2100
For Engine Repair, See the Engine Service Manual (sold separately) 84392428
Fuel System
For Fuel System Repair, See the Engine Service Manual (sold separately) 84392428
Electrical
Removal and Installation of Starter and Alternator 4001
Electrical Specifications and Troubleshooting 4002
Batteries 4003
Jump Post Option 4003a
Instrument Cluster 4005
Steering
Removal and Installation of Steering Components 5001
Steering Specifications, Pressure Checks, and Troubleshooting 5002
Steering Cylinders 5005
Center Pivot 5006
Auxiliary Steering Motor and Pump 5008
Joystick Steering System (JSS) 5009
Power Train
Removal and Installation of Power Train Components 6001
Transmission Specifications, Pressure Checks, and Troubleshooting 6002
4 & 5 Speed Transmission 6003
Multitrac MT-L 3085 II / 3095 II Axles 6004
Multitrac MT-L 3105 II
Drive Shafts, Center Bearing, and Universal Joints 6005
Wheels and Tires 6006
Brakes
Removal and Installation of Brake Components 7001
Hydraulic Brake Troubleshooting 7002
Brake Pump 7003
Brake Accumulators 7004
Parking Brake 7008
Hydraulics
Removal and Installation of Hydraulic Components 8001
Hydraulic Specifications, Troubleshooting, and Pressure Checks 8002
Cleaning the Hydraulic System 8003
Hydraulic Pump 8004
Hydraulics (continued)
Loader Control Valve 8005
Cylinders 8006
Coupler Solenoid Locking Valve 8007
Ride Control Accumulator 8013
Ride Control Valve 8014
Mounted Equipment
Air Conditioning Troubleshooting and System Checks For Systems with HFC-134a
Refrigerant 9002
Air Conditioner System Service 9003
Removal And Installation Of Air Conditioning And Heater Components 9004
Loader 9006
Roll Over Protective Structure (ROPS), Cab Structural Frame (CSF) 9007
Cab Glass Installation 9010
Rear View Camera Installation and Removal 9020
Electrical Schematic Foldouts and Hydraulic Schematic Foldout In Rear Pocket
