Case 821F 921F Tier 4 Wheel Loader Service Repair Manual – PDF Download

Description

Case 821F 921F Tier 4 Wheel Loader Service Repair Manual

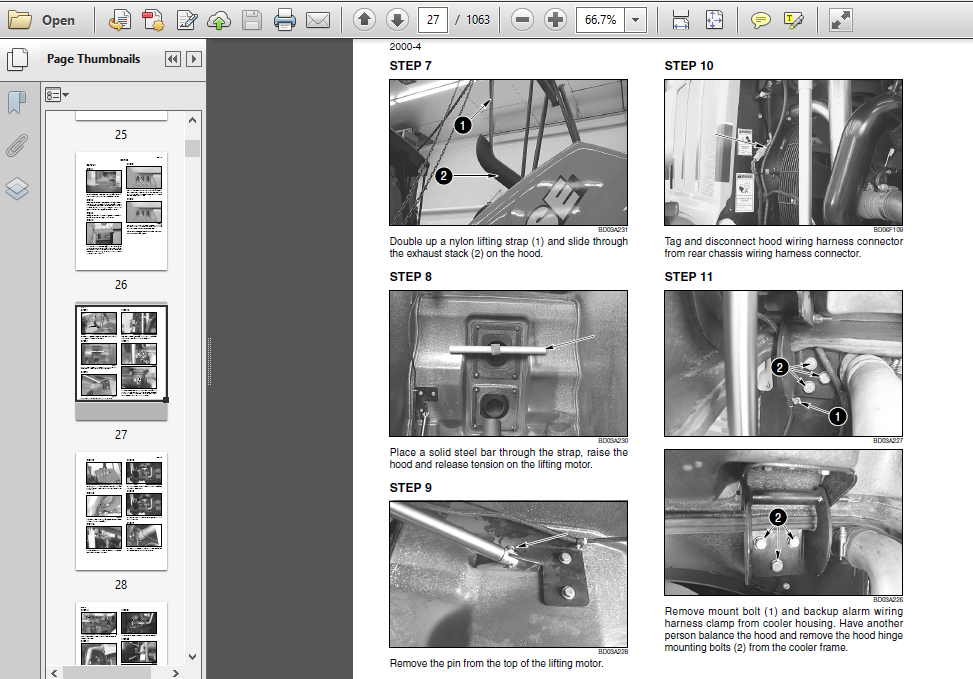

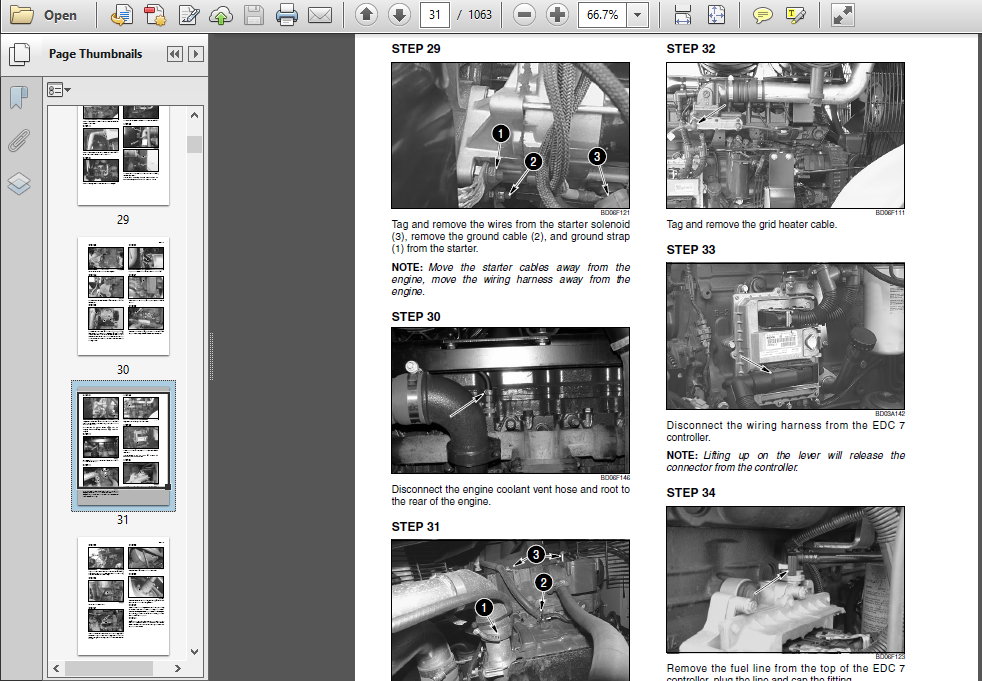

SCREENSHOT OF THE MANUAL:

TABLE OF CONTENTS:

• Case 821F 921F Tier 4 Wheel Loader Service Repair Manual

General Information
Engine
Electrical System
Undercarriage
Drive Train
Undercarriage Hydraulics
Upperstructure Hydraulics
Upperstructure
Electrical Schematic
Hydraulic Schematic 821F
Hydraulic Schematic 921F

Sample Page From The Manual:

1. Remove all of the damaged glass section and the silicone sealant from the window frame
2. Remove all the adhesive from the window frame.
3. The window frame recesses must be free of oil and dust. Clean the frame with rubbing alcohol with a clean rag. Do not reuse the rag.
4. Apply a 25 mm (1 inch) wide band of metal primer (349-108) to the window recesses.
5. Clean the new glass section. Apply a 25 mm (1 inch) wide band of glass primer (349-110) to the black ceramic painted edges of the window.
6. When replacing a front window section, a silicone forming tool is needed, refer to Figure 2. Use the template and instructions provided to make the tool.

CASE 821F 921F TIER 4 WHEEL LOADER SERVICE REPAIR MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

⦁ This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
⦁ The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
⦁ Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer.
