Case 845B 845B DHP 865B 865B VHP 865B AWD 885B 885B DHP 885B AWD Grader (Brakes,Hydraulics,Mounted Equipment) Service Manual

FILE DETAILS:

Case 845B 845B DHP 865B 865B VHP 865B AWD 885B 885B DHP 885B AWD Grader (Brakes,Hydraulics,Mounted Equipment) Service Manual

Size : 8 MB
Format : PDF
Language : English
Number of Pages : 199 pages
Brand: Case
Type of machine: Motor Grader
Type of document: Service Manual
Model: Case 845B 845B DHP 865B 865B VHP 865B AWD 885B 885B DHP 885B AWD Grader
Part No: 84559576

CASE 845B 845B DHP 865B 865B VHP 865B AWD 885B 885B DHP 885B AWD GRADER (BRAKES,HYDRAULICS,MOUNTED EQUIPMENT) SERVICE MANUAL – PDF DOWNLOAD:

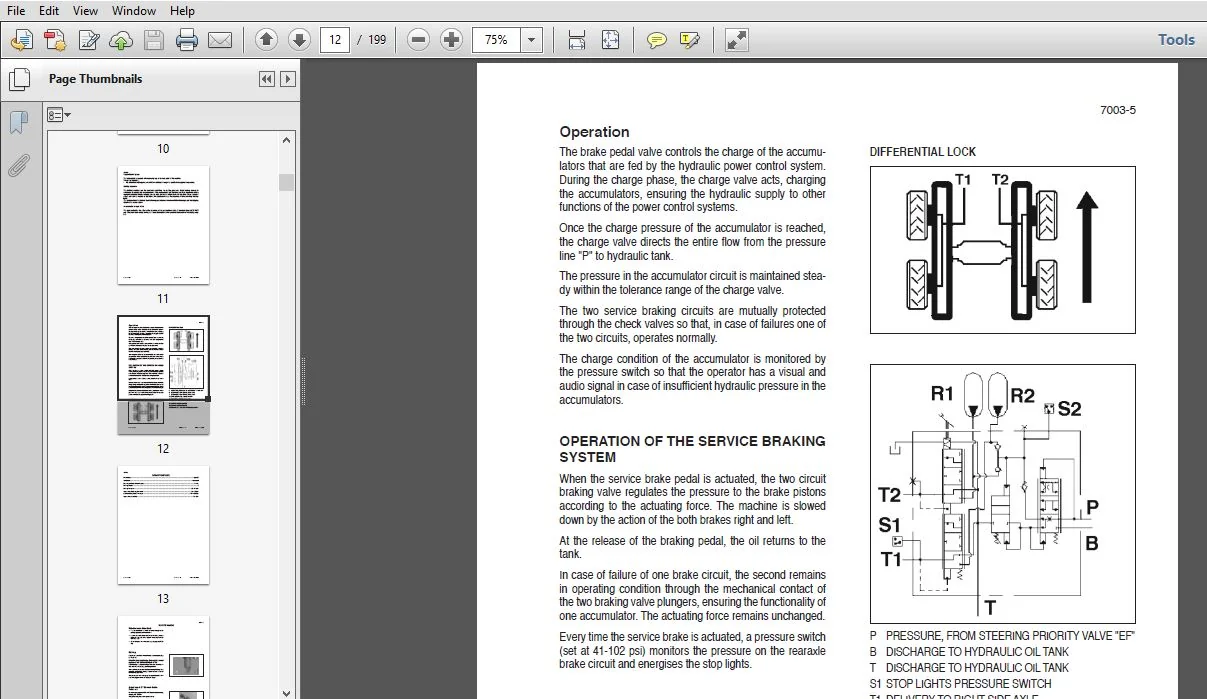

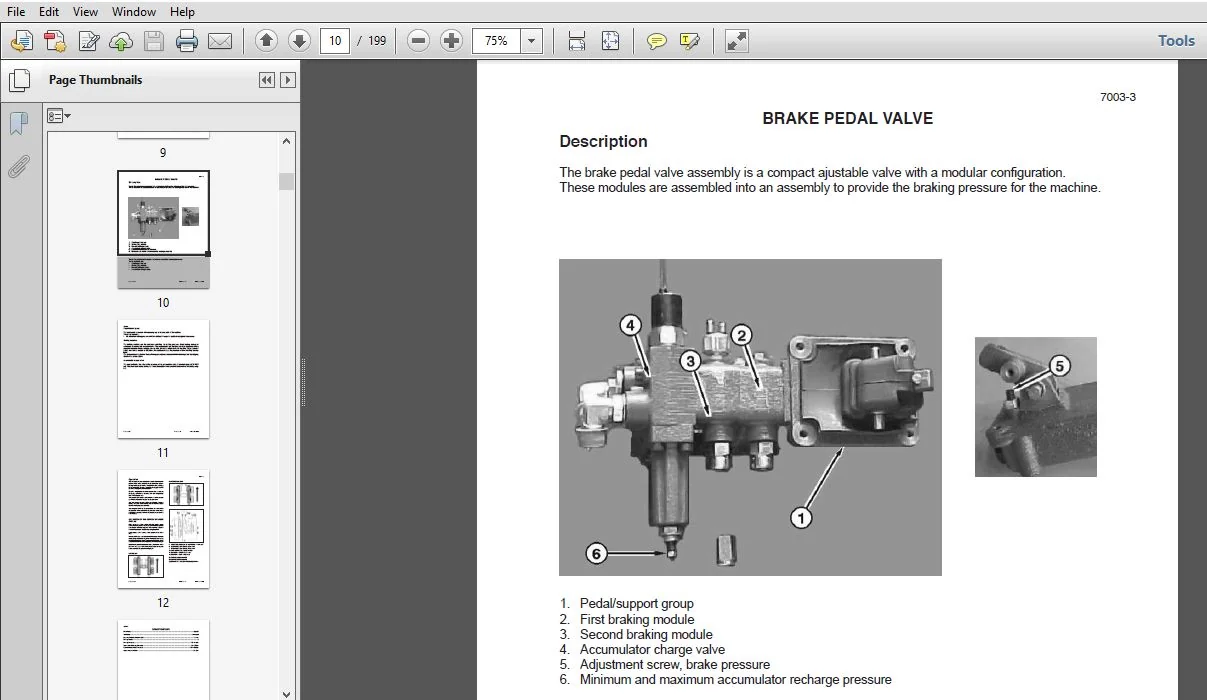

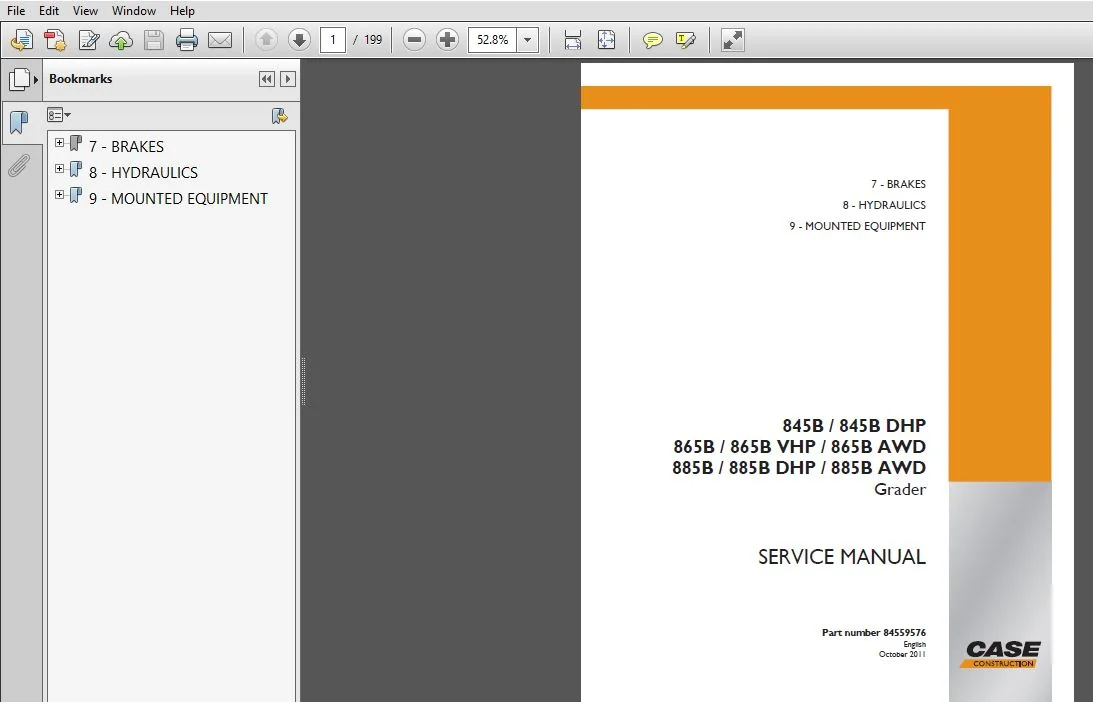

IMAGE PREVIEW:

SAMPLE PAGE FROM THE MANUAL:

Case 845B 845B DHP 865B 865B VHP 865B AWD 885B 885B DHP 885B AWD Grader (Brakes,Hydraulics,Mounted Equipment) Service Manual

• The surface area in the load sense of the spool on the unloading spool is greater than the area a the pump discharge port. This area difference maintains the unloading spool seated against the pump housing when there is load sense signal present. The laod sense signal comes from the maximum pressure required to actuate any of the graders funstions.
• When the system is operating in the flow control mode, the flow control spool rises, alowing excess pump outlet flow to by- pass to the tank port based upon the pump flow required at the Grader valve. The flow control spool will maintain an approximately 300 psi pressure difference between the pump outlet pressure and the load sense signal returned from the grader control valve. This 300 psi pressure difference will assure that any flow required at the grader valve will be available.
• When the piston gets to the end of its stroke or finds a high resistance to flow through the grader valve., the result is an increase the load sense pressure. The maximum load sense pressure is limited by the load sense relief valve in the outlet section of the grader valve. The maximum load sense pressure specification is 2600 psi. which will result in the pump outlet pressure being 2900 psi, due to the 300 psi differential across the flow control spool.

TABLE OF CONTENTS:

Case 845B 845B DHP 865B 865B VHP 865B AWD 885B 885B DHP 885B AWD Grader (Brakes,Hydraulics,Mounted Equipment) Service Manual

Brakes
Hydraulic Brake Troubleshooting 7002
Brake Pedal Valve and System 7003
Hydraulics
Removal and Installation of Hydraulic Components 8001
Front Wheel Drive Hydraulic Pump and Motor – 865B AWD / 885B AWD Models 8003
Hydraulic Schematics – 865B AWD / 885B AWD Models 8004
Mounted Equipment
Air Conditioning Troubleshooting and System Checks for Systems With HFC-134A Refrigerant 9002
Removal and Installation of Air Conditioning Components for Systems With HFC-134A Refrigerant 9004
Rear Ripper 9007
Frame, Articulation Joint Circle and Scarifier 9008
Front Blade and Counterweight 9009

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
