GENERAL INFORMATION
Indexes
Section 1 of this catalog contains a SN and PI N. location guide, alphabetical index, pictorial index of the sections included, and pictorial index(es) for quick location of hases and tubes (and other system components in some catalogs) An alphabetical index siso appears at the beginning of each section Section 1 O is the Numerical lndex which lists ali part numbers in alpha/numeric arder with their page location and reference number.
lllustration and Text

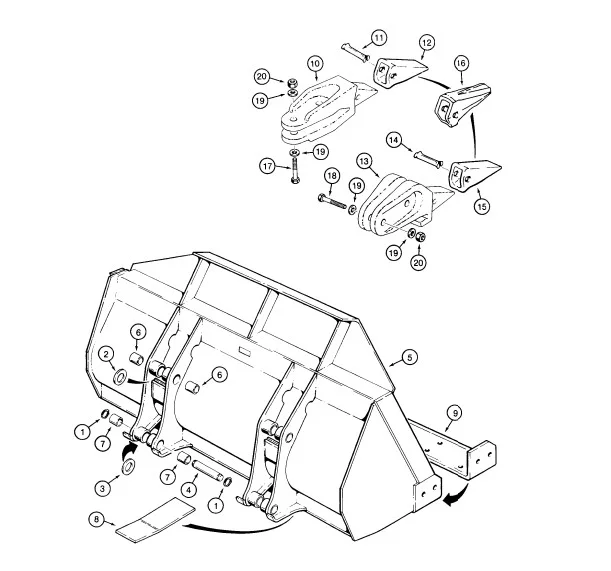

The arrangement of this parts catalog is for easy identification of parts Ali parts are iliustrated in “exploded views” in proper relation to each other. Reference numbers used in the iliustrations reter to those on the text pages. The text pages list reference number, part number, part description ahd the quantity required.

TABLE OF CONTENTS:

Case 850E & 855E Crawler Parts Catalog Manual 8-7521 – PDF DOWNLOAD

A
Air Cleaner 2-51, 2-53
Air Conditioning 9-91, 9-101
Air Restriction Indicator 2-53
Alarm – backup 4-23
Alternator
Assembly 4-5
Mounting 4-15
Pulley 4-5
Armrests 9-51, 9-53
B
Backhoe – See Model 35C Backhoe
Parts Catalog 8-2063
Backup Alarm 4-23
Battery – mounting and cables 4-13
Belts
Air Conditioning Compressor 9-99
Alternator 2-43
Fan 2-43
Seat 9-51 , 9-53
Blade – dozer 9-15
Block – engine cylinder 2-23, 2-29
Block Heater 2-25, 2-29
Blower – air conditioning condensor 9-93
Blower – cab, inside roof 9-87
Brakes
Hydraulic Lines 7-5
Pedals and Linkage 7-3
Transmission 7-7
Valve 7-9
Breather – transmission 6-7
Brush Guard – ROPS 9-63
Brush Screens – ROPS canopy 9-61, 9-63
Bucket – loader 9-7, 9-9
Bucket Teeth – loader 9-7
C
Cab- ROPS
Air Conditioning System
Compressor Assembly 9-101
Compressor Mounting 9-99
Condenser Blower –
above cab roof 9-93
Covers and Mounting –
above cab roof 9-91
Evaporator Core, Connections
and Mounting 9-95, 9-97
Air Filter and Flow Control 9-83, 9-85
Blower and Housing – inside
cab roof 9-87
Control Panel and Wiring 9-79
Doors and Latches 9-67, 9-69
C
Cab – ROPS – cont
Floormat 9-65
Glass -window 9-73, 9-75
Headliners 9-81
Heating System 9-89
Mounting and Closure Panels 9-65
Screen – rear 9-71
Window – side 9-71
Wipers – windshield 9-77
Camshaft – engine 2-21
Canopy – ROPS 9-61
Carrier Roller 5-7
C-Frame – dozer 9-13
Chain – track 5-11
Clutches – transmission 6-13, 6-15
Cold Start System 4-27
Compressor – air conditioning 9-101
Connecting Rods – engine 2-35, 2-37
Controls
Brake 7-3
Cab Accessories 9-79
Engine Shut-Off 4-11
Engine Throttle 3-3
Equipment – one lever 8-63, 8-75
Equipment – two lever 8–65, 8-67, 8-77
Equipment – Three lever 8-69, 8-71
Forward, Reverse and Steering 6-35, 6-37
Control Valve – equipment 8-79 – 8-87
Control Valve Mounting 8-61, 8-73
Coolant Bottle 2-45
Cooling System – transmission 6-31
Counterweights 9-21
Couplings – hydraulic, quick disconnect 8-45
Cover – rear access 9-35, 9-37
Cover – timing gear 2-5
Crankshaft – engine 2-31
Cushions – seat 9-55, 9-57
Cylinder Block – engine 2-23, 2-29
Cylinder – hydraulic
Dozer Angle 8-57
Dozer Lift 8-53
Dozer Tilt 8-55
Loader Bucket – tilt 8-49
Loader Bucket – clam 8-51
Loader Lift 8-4 7
Ripper 8-59
Cylinder Sleeves – engine 2-35, 2-37
D
Decals 9-103, 9-105
Defroster – cab 9-93
1-5
Bur 8-7521 Issued December, 1995 Printed in USA
1-6 850E and 855E Crawler

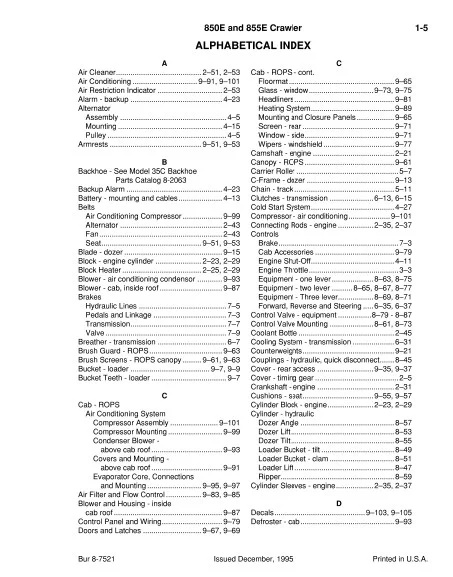

ALPHABETICAL INDEX
D
Dipsticks
Engine Oil 2-43
Transmission Oil 6-7
Dome Lamp – cab 9-83
Door – cab 9-67
Door – rear access 9-35, 9-37
Dozer – mechanical parts 9-13, 9-15
Drawbar 9-19
Drive – final 6-17, 6-19
Drive Shaft 6-3
E
Electrical System
Alternator Assembly 4-5
Cab 4-7, 4-11, 4-19, 9-79
Instrument Panel – cab 9-79
Instrument Panel – tractor 4-7, 4-11
Starter and Solenoid 4-3
Tractor 4-13, 4-27
Engine Frame and Mounting 9-23, 9-25
Engine Components
Camshaft 2-21
Connecting Rods 2-35, 2-37
Crankshaft 2-31
Cylinder Block 2-23, 2-29
Cylinder Head and Cover 2-17, 2-19
Flywheel 2-33
Front Gear Cover 2-5
Fuel Filter 3-13
Fuel Injection Pump and Drive 3-15, 3-17
Fuel Injection System 3-9, 3-11
Fuel Injection Nozzle 3-19
Gasket Kits 2-39
Manifolds 2-7
Oil Filter and Cooler 2-13
Oil Pump and Pan 2-15
Pistons and Connecting Rods 2-35, 2-37
Thermostat – Water 2-5
Timing Gear Cover 2-5
Turbocharger System 2-9, 2-11
Valve Mechanism 2-19
Water Pump 2-3
Engine Mounting 2-41
Exhaust – stack and muffler 2-55
F
Fan – cab blowers 9-87, 9-93
Fan – radiator 2-43
Fill Tube – engine 2-43
Filters
Air – cab 9-83
Air Cleaner 2-53
F
Filters – cont
Fuel 3-13
Oil – engine 2-13
Oil – equipment 8-3
Oil – transmission 6-33
Final Drive – transmission 6-17, 6-19
Floor Plates 9-49
Floormat – cab 9-65
Flywheel – engine 2-33
Frames
C-frame – dozer 9-13
Loader Lift 9-3, 9-5
Main – chassis 9-23, 9-25
Rear – seat and tank 9-27
Track 5-3
Fuel Injection System 3-9, 3-11
Fuel Lines 3-7
Fuel Tank 3-5
G
Gaskets – engine (service kits) 2-39
Gauges – instruments 4-7, 4-9
Glass – cab 9-73, 9-75
Grille – radiator 9-39
Guards
Brush Screens – radiator 9-41
Brush Screens – ROPS canopy 9-61, 9-63
Canopy Extension – ROPS 9-63
Instruments Panel – lockup 9-45
Hydraulic Lines and Cylinders 8-17, 8-33
Roll Over Protective Structure 9-61, 9-63
Side Shields – engine 9-47
Track Guards 5-3, 5-9
Transmission – rear 9-31
Undercarriage 9-29
H
Head – engine cylinder 2-19
Head Lamps 4-21
Headliner – cab 9-81, 9-83
Heaters
Cab 9-89
Engine Block 2-25, 2-29
Engine Oil Pan 2-15
Hood 9-43
Hook – pull 9-23, 9-25
Horn 4-25
Hourmeter 4-7
Hydraulic Circuits
Backhoe 8-39, 8-43
Dozer Angle 8-27, 8-29, 8-33
Dozer Lift 8-23, 8-25
Bur 8-7521 Issued December, 1995 Printed in USA
850E and 855E Crawler
ALPHABETICAL INDEX
H
Hydraulic Circuits – cont
Dozer Tilt 8-27, 8-31
Equipment Pump to Reservoir and
Control Valve 8-7, 8-11
Loader Bucket (Tilt) 8-17
Loader Clam Bucket 8-19, 8-21
Loader Lift 8-15
Ripper 8-35, 8-37
Torque Converter to Transmission 6-27
Transmission Control Valve 6-23
Transmission Cooling 6-31
Transmission Suction Line 6-29
Hydraulic reservoir and Covers 8-3, 8-5
Idler – track 5-5
Index – numerical 10-1 – 10-26
Index – pictorial 1-3
Instrument Panel
Cab 9-79
Tractor 4-7
L
Lamps 4-19, 4-21
Levers – see Controls
Loader
Buckets 9-7, 9-9
Lift Frame 9-3, 9-5
Return-To-Dig 9-11
M
Main Frame 9-23, 9-25
Manifold – engine 2-7
Mat – floor 9-65
Modulator Valve – Transmission 6-25
Muffler – exhaust 2-55
N
Nozzle – fuel injection 3-19
Numerical Index 10-1 – 10-26
0
Oil Cooler – engine 2-13
Oil Filter 2-13
Oil Pan – engine 2-15
Oil Pump- engine 2-15
Operators Manual Box 8-5
p
Pads – cab roof 9-81, 9-83
Pedal – brake 7-3
Pedal – throttle control 3-3
p
Pictorial Index 1-3
Pistons – engine 2-35, 2-37
Plate – seat mounting 9-33
Plates – floor 9-49
Plates – track shoes 5-13
Product Identification Number Location 1-2
Pull Hook 9-23, 9-25
Pulley
Alternator 4-5
Compressor – air conditioning 9-99, 9-101
Crankshaft 2-31
Fan 2-3
Pump – water 2-3
Pulley Tensioner – fan belt 2-3
Pumps
Fuel lnjection 3-15, 3-17
Fuel Lift 3-13
Oil – engine 2-15
Oil – equipment 8-13
Water – engine 2-3
R
Radiator 2-43 – 2-49
Recoil System – track 5-5
Recovery Bottle – radiator coolant 2-45
Regulator – voltage 4-5
Reservoir – Hydraulic 8-3
Restriction Indicator – air 2-53
Return-To-Dig – loader 9-11
Ripper – mechanical parts 9-17
Rock Guards – track 5-9
Rocker Arms – engine 2-19
Rods – connecting, engine 2-35, 2-37
Rods – push, engine 2-19
Roll Over Protective Structure
Cab 9-65
Canopy 9-61
Rollers – track 5-7
s
Screens
Brush – radiator 9-41
Cab – rear 9-71
Canopy 9-61, 9-63
Seat Assemblies 9-55, 9-59
Seat Belts 9-51, 9-53
Seat Mounting 9-51, 9-53
Seat Mounting Plate 9-33
Serial Number Locations 1-2
Shoes – track 5-13
Side Shield – engine 9-4 7
Sleeves – piston 2-35, 2-37
1-7
Bur 8-7521 Issued December, 1995 Printed in USA
1-8 850E and 855E Crawler
ALPHABETICAL INDEX
s
Sprocket – track drive 5-3
Standard Seat Assembly 9-55
Starter – engine
Assembly 4-3
Mounting 4-13
Strut – support, loader lift frame 9-3
Suspension Seat Assembly 9-57, 9-59
T
Tank
Fuel 3-5
Hydraulic Oil – equipment 8-3
Teeth – bucket 9-7
Thermostat – water temperature 2-17
Throttle Controls 3-3
Timing Gear Cover – engine 2-5
Torque Converter and Housing 6-3, 6-5
Track
Adjuster – yoke 5-5
Carrier Roller 5-7
Chain 5-11
Frames 5-3
Guards 5-3, 5-9
Idler 5-5
Recoil System 5-5
Rollers 5-7
Shoes 5-13
Sprocket 5-3
Transmission Components
Bevel Pinion Shaft and Gear 6-9
Brakes 7-7
Breather 6-7
Clutches and Clutch Shafts 6-13, 6-15
Control Valve Assembly 6-23
Control Valve Hydraulic Lines 6-21
Dipstick and Fill Tube 6-7
Final Drive 6-17, 6-19
Housing 6-9
Main Shaft 6-13
Modulator Valve Assembly 6-25
Range Shift 6-11
Turbocharger System 2-9, 2-11
u
Undercarriage Guards 9-29
V
Valve
Anticavitation and Circuit Relief 8-101, 8-115
Brake 7-9
Equipment Control 8-79, 8-87
V
Valve – cont
Equipment Control Valve
Mounting 8-61, 8-73
Levers –
equipment valve 8–63, 8-71, 8-75, 8-77
Modulator – transmission 6-25
Sections 8-89, 8-99, 8-109, 8-111
Transmission Control 6-23
Valve Mechanism – engine 2-19
Voltage Regulator – alternator 4-5
w
Winch – Gearmatic Model 9 and 19 Winch
see parts catalog D1126
Windshield Wipers – cab 9-77
Wiring
Cab 4-7, 4-11, 4-19, 9-77, 9-79
Instrument Panel 4-11
Tractor 4-13, 4-27

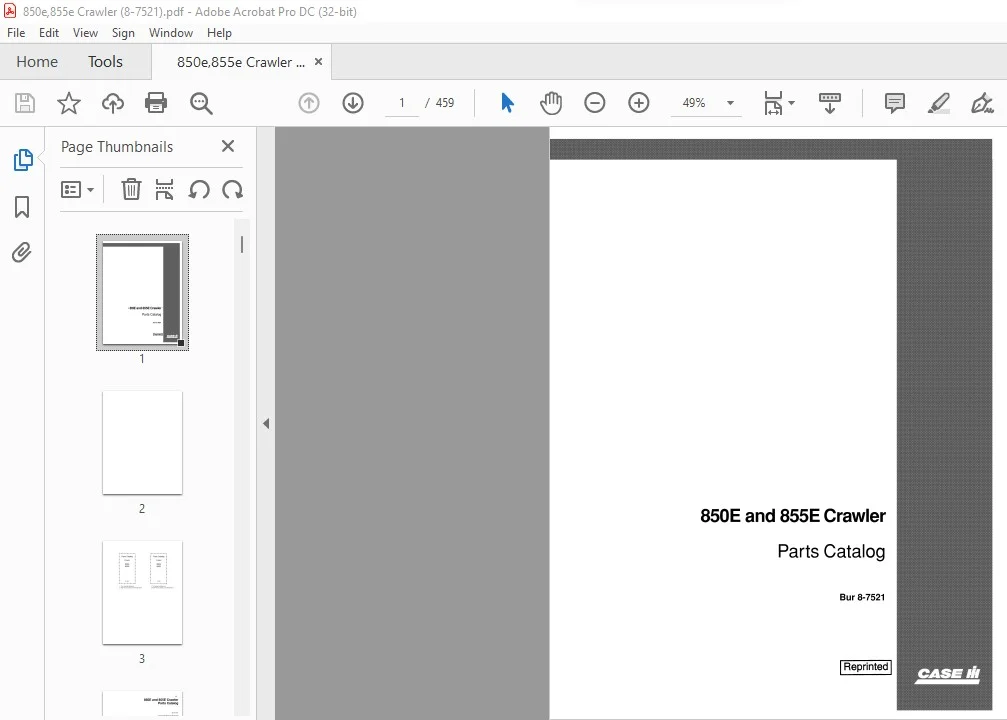

IMAGES PREVIEW OF THE MANUAL:
