Case 88 Range Front And Rear Working Lights Parts Catalogue Manual 7-3480 EN_FR_DE_ES – PDF DOWNLOAD

Description

Case 88 Range Front And Rear Working Lights Parts Catalogue Manual 7-3480 EN_FR_DE_ES – PDF DOWNLOAD

DESCRIPTION:

Case 88 Range Front And Rear Working Lights Parts Catalogue Manual 7-3480 EN_FR_DE_ES – PDF DOWNLOAD

HOW TO USE YOUR PARTS CATALOGUE
1- Machine type
2- Page number
Gives section number and page number within section
3- Illustration description
4- Machine type and serial number
-CGG012300 : All machines up to and including indicated number
CGG012301-CGG012345 : All machines between and including indicated numbers
CGG012346- : Machine number indicated and after
5- Reference number
Hydraulic connections and plugs are sold equipped with gaskets The gasket part number, with no reference number,
follows the connection or plug part number
6- Part number
REF : The part designated is identified on another page
NSS : The part is not sold separately, order the assembly or sub-assembly
7- Description
Nouns in various languages
8- Dimension
Indicates size of part or other qualifying information See page entitled “Explanation of Dimension Abbreviations”
9- Quantity
Indicates number of parts per individual part, assembly, or sub-assembly
NOTE : “X” in quantity column indicates “use as required”
10- CARES code
CARES code corresponding to the part reference number
***** : Use the CARES code for the function concerned
11- Assembly or sub-assembly
Shown with brackets or a dotted box
Within brackets : The sign ò indicates from reference number 2 up to reference
number 9
12- Dot
Part not serviced separately
13- Additional information
See page 7-3 : The part illustrated is identified on another page
See N I T 3066 : Consult Technical Information Note number 3066
Replaces K2242371 : The part number was previously K2242371
Order K2242371 : The part number has been replaced Order K2242371
Order length 1250 mm : Part sold by the metre, order quantity 1 25
Left, Right, Front and Rear : “Right”, everything to the right of the operator when the seat is in
backhoe attachment or loader attachment position
Kit containing X : Kit containing X identical parts
Version XXXXX : Special version or specific supplier
Consists of ref numbers 1-5, 9, 13 : The assembly consists of parts reference numbers 1 to 5, 9 and 13
Consists of pages 2-3, 2-7 – 2-11 : The assembly consists of parts pages 2-3 and 2-7 to 2-11
14- Catalogue reference number
15- Date of issue
16- Illustration reference
17- Replaced by
The arrow indicates the new part(s)
The new part(s) is (are) fully interchangeable with the old part(s)
18- Interchangeable
The parts or parts assemblies are fully interchangeable

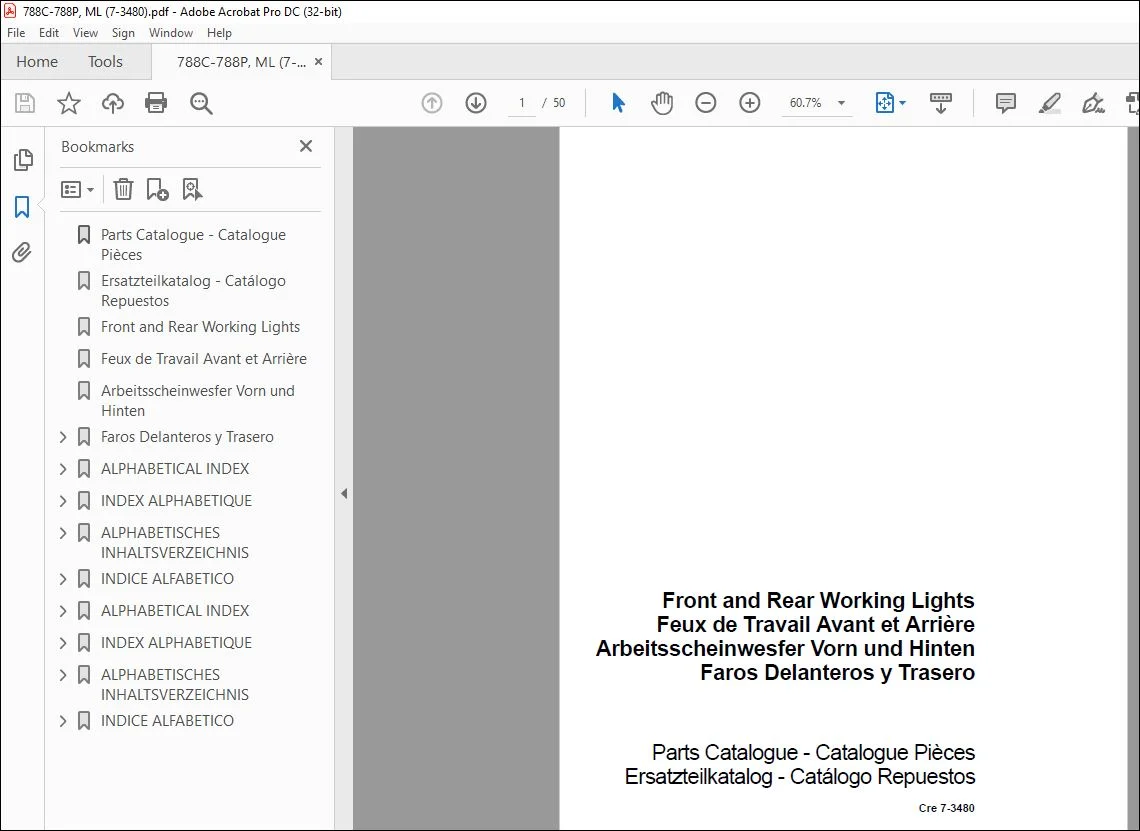

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case 88 Range Front And Rear Working Lights Parts Catalogue Manual 7-3480 EN_FR_DE_ES – PDF DOWNLOAD

Parts Catalogue – Catalogue Pièces……………………………………………………………….. 1
Ersatzteilkatalog – Catálogo Repuestos……………………………………………………………. 1
Front and Rear Working Lights……………………………………………………………………. 1
Feux de Travail Avant et Arrière…………………………………………………………………. 1
Arbeitsscheinwesfer Vorn und Hinten………………………………………………………………. 1
Faros Delanteros y Trasero………………………………………………………………………. 1
Front and Rear Working Lights………………………………………………………………… 3
Feux de Travail Avant et Arrière……………………………………………………………… 3
Arbeitsscheinwesfer Vorn und Hinten…………………………………………………………… 3
Faros Delanteros y Trasero…………………………………………………………………… 3
instructions for ordering…………………………………………………………………….24
instructions pour les commandes……………………………………………………………….24
anweisungen für die bestellung………………………………………………………………..24
instrucciones para los pedidos………………………………………………………………..24
ABREVIATIONS UTILISEES DANS LA COLONNE DIMENSIONS……………………………………………….14
EXPLANATION OF DIMENSION ABBREVIATIONS…………………………………………………………10
ERLÄUTERUNG DER BEI ABMESSUNGEN VERWENDETEN ABKÜRZUNGEN………………………………………….18
EXPLICACION DE LAS ABREVIATURAS DE DIMENSIONES………………………………………………….22
ALPHABETICAL INDEX………………………………………………………………………………25
C………………………………………………………………………………………….25
E………………………………………………………………………………………….25
O………………………………………………………………………………………….25
INDEX ALPHABETIQUE………………………………………………………………………………26
C………………………………………………………………………………………….26
P………………………………………………………………………………………….26
ALPHABETISCHES INHALTSVERZEICHNIS…………………………………………………………………27
E………………………………………………………………………………………….27
F………………………………………………………………………………………….27
S………………………………………………………………………………………….27
INDICE ALFABETICO……………………………………………………………………………….28
C………………………………………………………………………………………….28
F………………………………………………………………………………………….28
P………………………………………………………………………………………….28
ALPHABETICAL INDEX………………………………………………………………………………29
Supplement………………………………………………………………………………….29
DESCRIPTION…………………………………………………………………………………29
PAGE……………………………………………………………………………………….29
INDEX ALPHABETIQUE………………………………………………………………………………30
Supplement………………………………………………………………………………….30
DESIGNATION…………………………………………………………………………………30
PAGE……………………………………………………………………………………….30
ALPHABETISCHES INHALTSVERZEICHNIS…………………………………………………………………31
Zusatz……………………………………………………………………………………..31
BEZEICHNUNG…………………………………………………………………………………31
SEITE………………………………………………………………………………………31
INDICE ALFABETICO……………………………………………………………………………….32
Suplemento………………………………………………………………………………….32
DESIGNACION…………………………………………………………………………………32
PAGINA……………………………………………………………………………………..32
ELECTRICAL CIRCUIT – OPERATORS COMPARTMENT CIRCUIT ELECTRIQUE – POSTE DE CONDUITE ELEKTROKREIS – …….35
QTY…………………………………………………………………………………….35
ELECTRICAL CIRCUIT – OPERATORS COMPARTMENT CIRCUIT ELECTRIQUE – POSTE DE CONDUITE ELEKTROKREIS – …….37
QTY…………………………………………………………………………………….37
ELECTRICAL CIRCUIT – OPERATORS COMPARTMENT CIRCUIT ELECTRIQUE – POSTE DE CONDUITE ELEKTROKREIS – …….39
QTY…………………………………………………………………………………….39
OPERATORS COMPARTMENT ELECTRIC CIRCUIT – OPTIONAL CIRCUIT ELECTRIQUE POSTE DE CONDUITE – OPTION E…….41
QTY…………………………………………………………………………………….41
ELECTRIC CIRCUIT, ATTACHMENT CIRCUIT ELECTRIQUE, EQUIPEMENT ELEKTROKREIS, AUSRÜSTUNG CIRCUITO ELE…….43
QTY…………………………………………………………………………………….43
CAB LIGHTS PHARES CABINE SCHEINWERFER DER KABINE FAROS DE CABINA………………………………….45
QTY…………………………………………………………………………………….45
ELECTRICAL CIRCUIT – OPTIONAL CIRCUIT ELECTRIQUE – OPTION ELEKTROKREIS – ZUSATZAUSFÜHRUNG CIRCUIT…….47
QTY…………………………………………………………………………………….47
