Case 9007B Crawler Excavator Parts Catalogue Manual 7-5360 – PDF DOWNLOAD

Description

Case 9007B Crawler Excavator Parts Catalogue Manual 7-5360 – PDF DOWNLOAD

DESCRIPTION:

Case 9007B Crawler Excavator Parts Catalogue Manual 7-5360 – PDF DOWNLOAD

HOW TO USE YOUR PARTS CATALOGUE
1- Machine type
2- Page number
Gives section number and page number within section.
3- lllustration description
4- Machine type and serial number
-DAC0070300 ……………………………………….. : AII machines up to and including indicated number.
DAC0070301-DAC0070345 ……………………. : AII machines between, and including, indicated numbers.
DAC0070346- ……………………………………….. : Machine number indicated and after.
5- Reference number
1-3
Hydraulic connections and plugs are sold equipped with gaskets. The gasket part number, with no reference number,
follows the connection or plug part number.
6- Part number
REF …………………………………………………….. : The part designated is identified on another page.
NSS …………………………………………………….. : The part is not sold separately, arder the assembly or sub-assembly.
7- Description
Noun in various languages.
8- Dimension
lndicates size of part or other qualifying information. See page entitled “Explanation of Dimension Abbreviations”.
9- Quantity
lndicates number of parts per individual part, assembly, or sub-assembly.
NOTE : “X” in quantity column indicates “use as required”.
10- CARES code
CARES code corresponding to the part reference number.
***** ……………………………………………………… : Use the CARES code for the function concerned.
11- Assembly or sub-assembly
Shown with brackets or a dotted box.
Within brackets ……………………………………… : The sign J indicates from reference number 2 up to reference
number 9.
12- Dot
Part not serviced separately.
13- Additional information
See page 7-3 ………………………………………… : The part illustrated is identified on another page.
See N.I.T. 3066 ……………………………………… : Consult Technical lnformation Note number 3066.
Replaces 1<2242371 ……………………………… : The part number was previously K2242371.
Order K2242371 …………………………………… : The part number has been replaced. Order K2242371.
Order length 1250 mm ………………………….. : Part sold by the metre, arder quantity 1.25.
Left, Right, Front and Rear …………………… : Right-hand means everything which is on the operator’s right when
he is seated at the contrais.
Kit containing X …………………………………… : Kit containing X identical parts.
Version XXXXX ……………………………………… : Special version or specific supplier.
Consists of ref. numbers 1-5, 9, 13 ……….. : The assembly consists of parts reference numbers 1 to 5, 9 and 13.
Consists of pages 2-3, 2-7 – 2-11 …………… : The assembly consists of parts pages 2-3 and 2-7 to 2-11.
14- Catalogue reference number
15- Date of issue
16- lllustration reference
17- Repaced by
The arrow indicates the new part(s).
The new part(s) is (are) fully interchangeable with the old part(s).
18- lnterchangeable
The parts or parts assemblies are fully interchangeable.

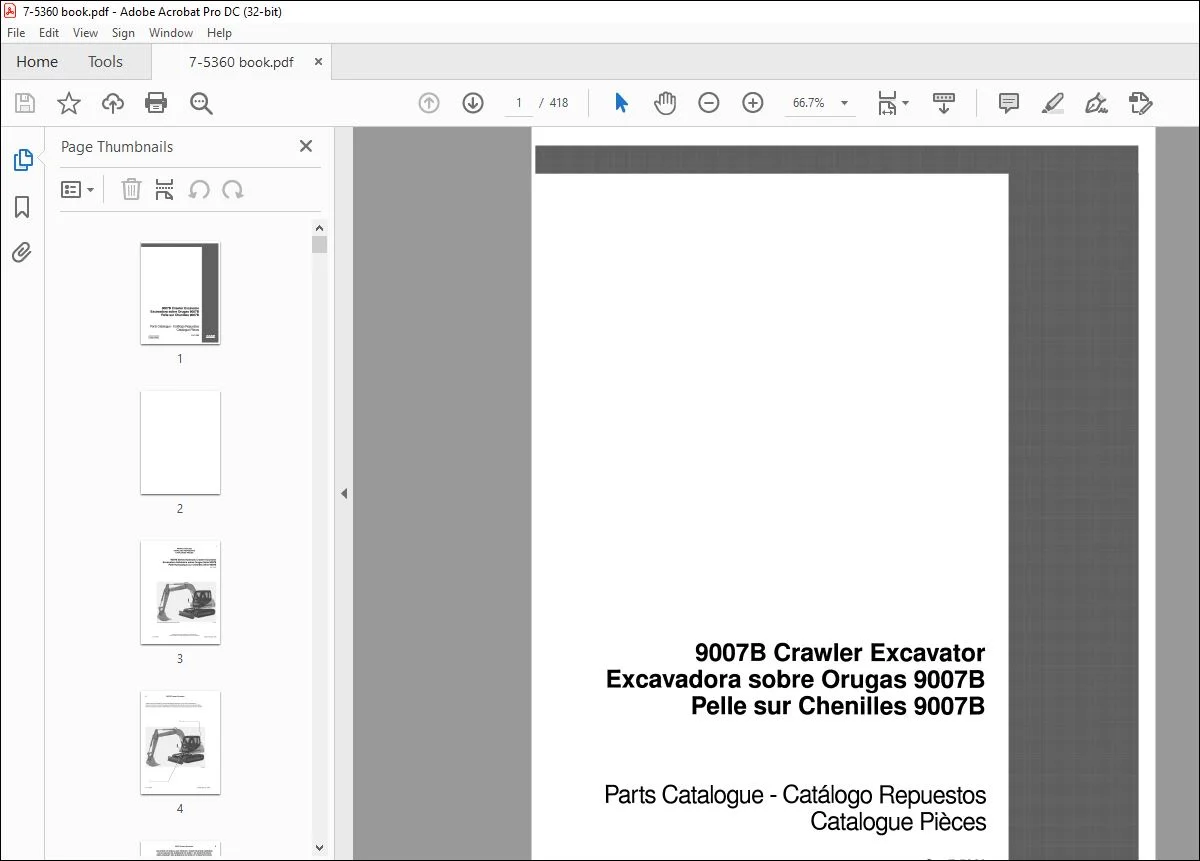

IMAGES PREVIEW OF THE MANUAL:
