Case 9010B Excavator Service Manual 7-63942 – PDF DOWNLOAD
Original price was: $86.95.$28.95Current price is: $28.95.
Case 9010B Excavator Service Manual 7-63942 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Case 9010B Excavator Service Manual 7-63942 – PDF DOWNLOAD
DESCRIPTION:
Case 9010B Excavator Service Manual 7-63942 – PDF DOWNLOAD
Cleaning :
Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings.
Inspection:
Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures.
Bearings :
Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR.
Needle :
Bearings Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings.
Gears :
Check all gears for wear and damage. Replace gears that have wear or damage.
Oil Seals, O-Rings and Gaskets :
Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings.
Shafts :
Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
Service Parts :
Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty.
Lubrication:
Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.

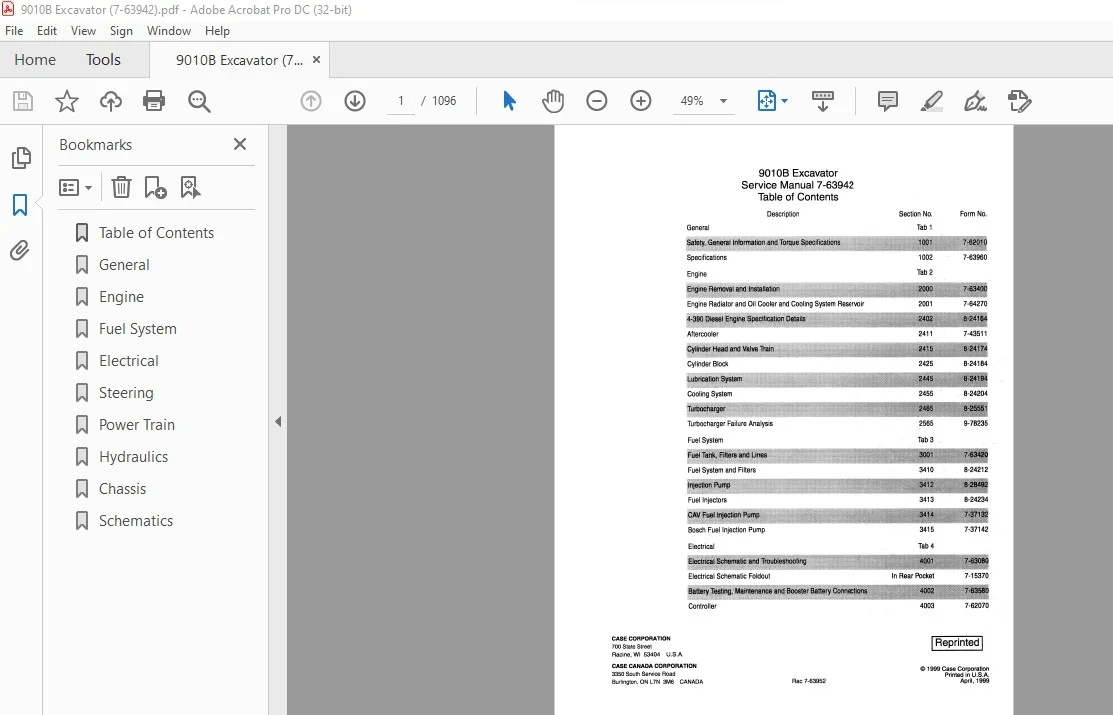

TABLE OF CONTENTS:
Case 9010B Excavator Service Manual 7-63942 – PDF DOWNLOAD
Table of Contents …. 1
General ………….. 3
Engine …………… 39
Fuel System ………. 285
Electrical ……….. 379
Steering …………. 455
Power Train ………. 513
Hydraulics ……….. 597
Chassis ………….. 935
Schematics ………..1095

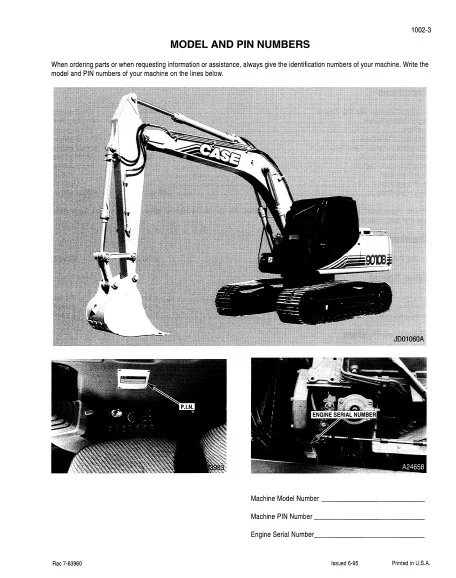

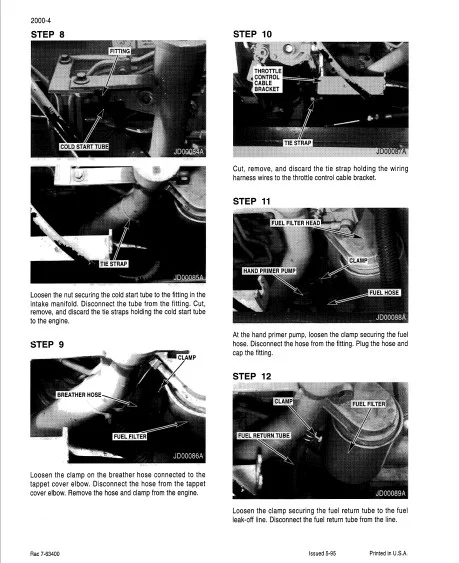

IMAGES PREVIEW OF THE MANUAL:
CASE 9010B EXCAVATOR SERVICE MANUAL 7-63942 – PDF DOWNLOAD:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
