Case 9020B Excavator Service Manual 7-63062 – PDF DOWNLOAD

Description

Case 9020B Excavator Service Manual 7-63062 – PDF DOWNLOAD

DESCRIPTION:

Case 9020B Excavator Service Manual 7-63062 – PDF DOWNLOAD

GENERAL INFORMATION
GEARS
Clean all metal parts except bearings, in a suitable cleaning
solvent or by steam cleaning. Do not use caustic soda for
steam cleaning. After cleaning, dry and put oil on all parts.
Clean oil passages with compressed air. Clean bearings in a
suitable cleaning solvent, dry the bearings completely and
put oil on the bearings.
INSPECTION
Check all parts when the parts are disassembled. Replace all
parts that have wear or damage. Small scoring or grooves
can be removed with a hone or crocus cloth. Complete a
visual inspection for indications of wear, pitting and the
replacement of parts necessary to prevent early failures.
BEARINGS
Check bearings for easy action. If bearings have a loose fit or
rough action replace the bearing. Wash bearings with a
suitable cleaning solvent and permit to air dry. DO NOT DRY
BEARINGS WITH COMPRESSED AIR.
NEEDLE BEARINGS
Before you press needle bearings in a bore always remove
any metal protrusions in the bore or edge of the bore. Before
you press bearings into position put petroleum jelly on the
inside and outside diameter of the bearings.
Rae 7-62010
Check all gears for wear and damage. Replace gears that
have wear or damage.
OIL SEALS, O-RINGS AND GASKETS
Always install new oil seals, O-rings and gaskets. Put
petroleum jelly on seals and O-rings.

TABLE OF CONTENTS:

Case 9020B Excavator Service Manual 7-63062 – PDF DOWNLOAD

Table of Contents ……………… 1
General ………………………. 3
Engine ……………………….. 39
Fuel System …………………… 285
Electrical …………………… 379
Steering ……………………… 455
Power Train …………………… 511
Hydraulics ……………………. 599
Mounted Equipment ……………… 927
Hydraulic/Electrical Schematics ….1091

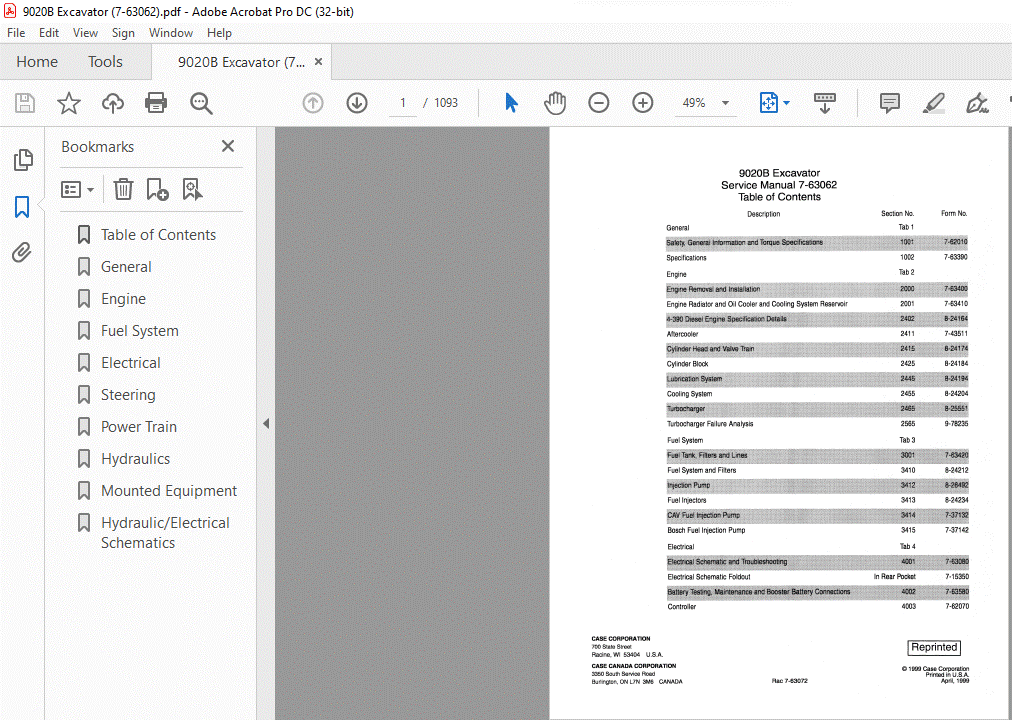

IMAGES PREVIEW OF THE MANUAL:
