Case 9040 Excavator Service Repair Manual (7-46360) Case 9040

CASE 9040 EXCAVATOR SERVICE REPAIR MANUAL (7-46360) CASE 9040 – PDF DOWNLOAD:

IMAGE PREVIEW:

DESCRIPTION:

Case 9040 Excavator Service Repair Manual (7-46360) Case 9040

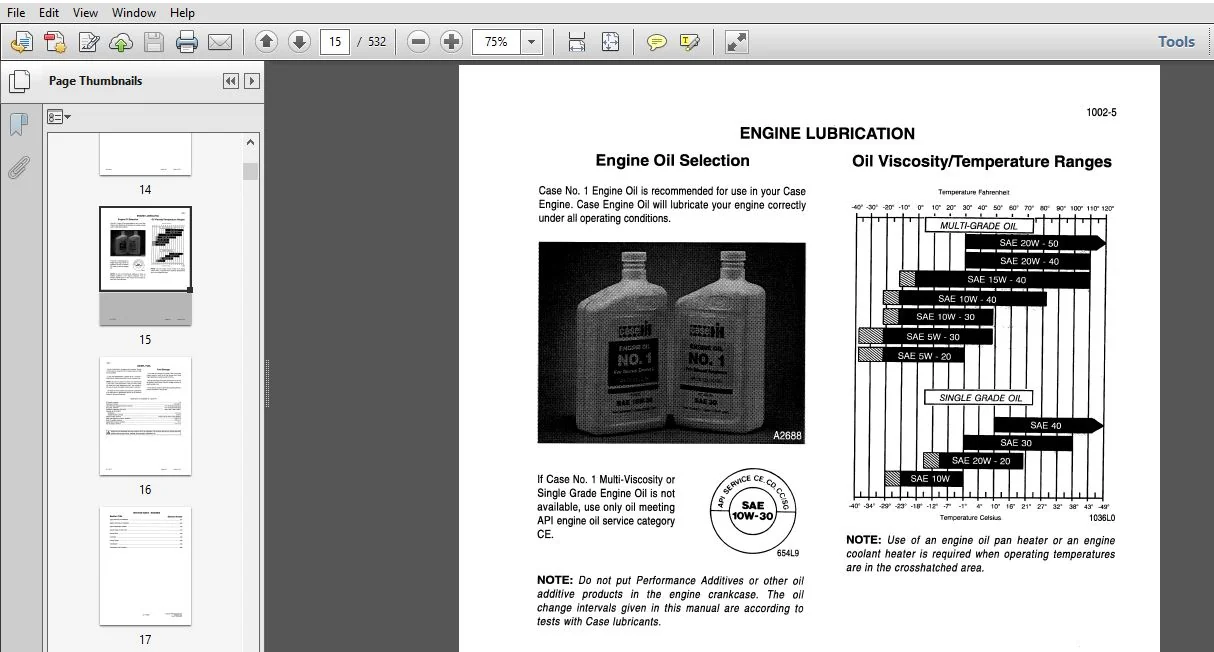

Engine Lubrication
Fill the 6-830 engine crankcase with CCJSF. CDISF. CEJSF or CF-A service classification oil. Use the correct viscosity rating for the ambient air temperature. Install new oil filters after the engine is rebuilt.
Fill the GT 830 and the 6TA830 engine crankcase with CEISF or CF-4 service classification oil. Use the correct viscosity rating for the ambient air temperature. install new oil filters alter the engine is rebuilt.
Run-In Procedure for Rebuilt Engine
Step 1 Disconnect the wire to the electric shut—off on the injection pump- so the engine will not start. Crank the engine for 30 seconds until there is oil pressure. then connect the wire.
Step 2 Make sure the coolant level is correct.
Step 3 Run the engine at 1000 RPM minimum load for 5 minutes and check to: oil ieaks.
Step 4 Continue to check the oil pressure. coolant level. and coolant temperature during run-in.
Run-In Procedure for Rebuilt Engine (with A Dynamometer)
Use the following procedure to Run-In the engine using a PTO dynamometer. The cynamcrneter will control the engine load at each speed and remove stress on new parts during Run-In.
Continue to check the oil pressure. coolant level and coolant temperature during Run~ln.
STEP                 TIME                  ENGINE  SPEED       OYNAMOMET ER SCALE LOAD
1                       5 Minutes                   1000 RPM                              50
2                      5 Minutes                    1100 RPM                               1/2
3                      5 Minutes                    2200 RPM                            Full
Run-In Procedure (Agriculture Equipment)
Use one gear lower than normal for the first 8 h0urs of field operation. 00 NOT lug the engine for the next 12 hours. Move the toner to a lower gear to prevent lugging the engine. Do not leg the engine below the rated engine RPM during early hours of life.
Run-In Procedure (Construction Equipment)
Operate the engine at iutt throttle with a normal load for the Inst 8 hours. Do not stall the converter or the hydraulics. Do not lug the engine below the Rated Engine RPM (Do not stall the engine more than 10 seconds].

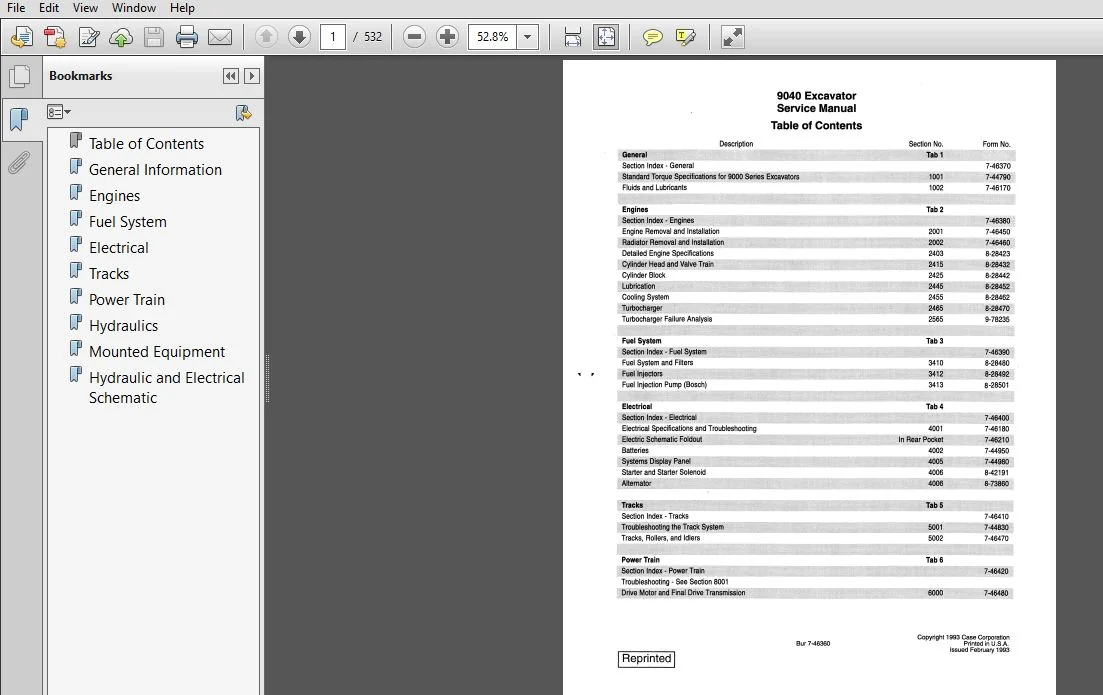

TABLE OF CONTENTS:

Case 9040 Excavator Service Repair Manual (7-46360) Case 9040

Table of Contents
......................  2
General
................................  4
Engines
................................ 32
Fuel System
............................ 70
Electrical
............................. 82
Tracks
.................................160
Power Train
............................220
Hydraulic System
.......................276
Mounted Equipment
......................620
Hydraulic and Electrical Schematic
 ....784
