Case 9040 Excavator Service Repair Manual Case 9040

CASE 9040 EXCAVATOR SERVICE REPAIR MANUAL CASE 9040 – PDF DOWNLOAD:

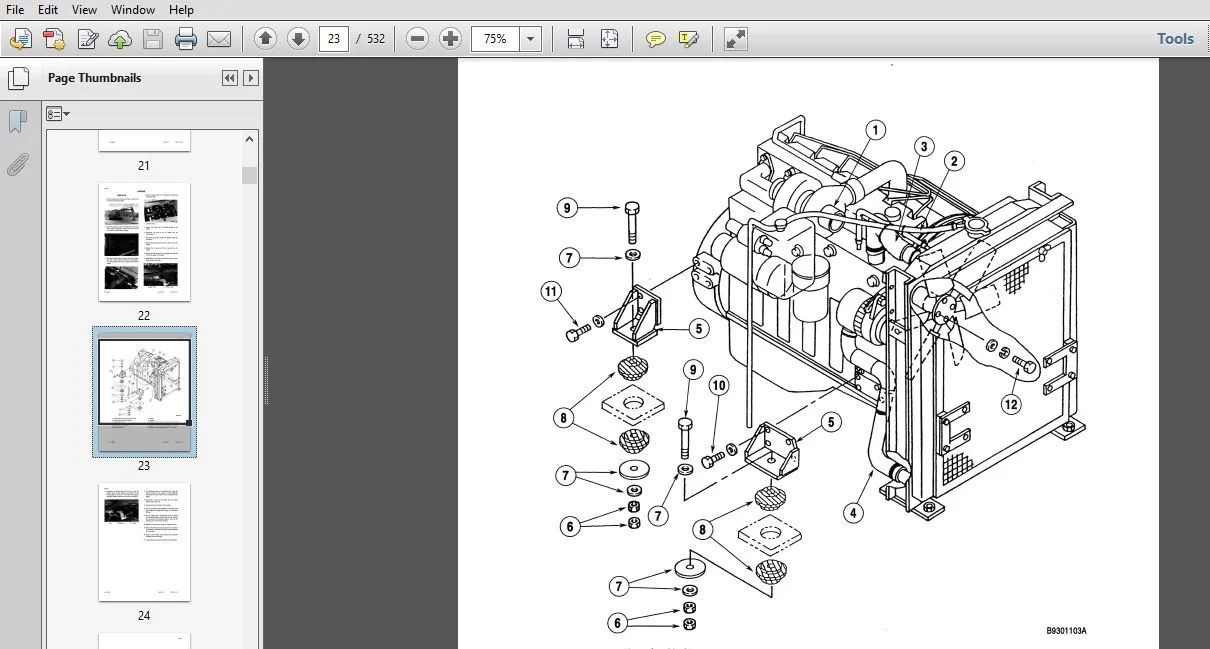

IMAGE PREVIEW:

DESCRIPTION:

Case 9040 Excavator Service Repair Manual Case 9040

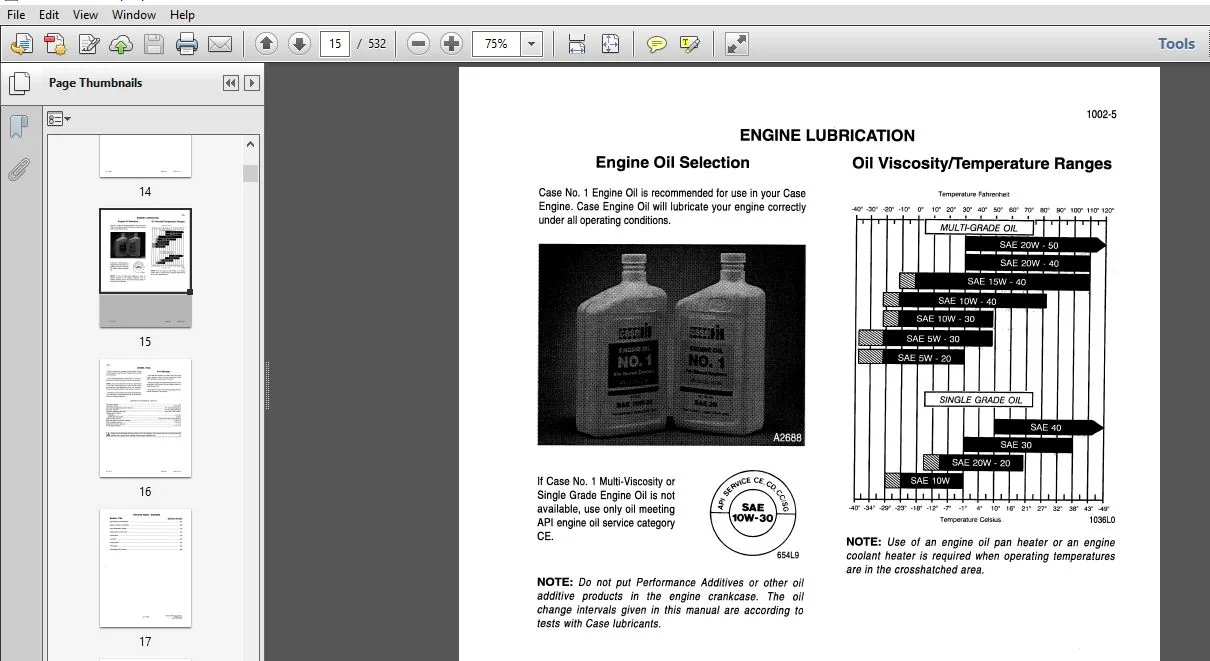

• Engine Lubrication
  Fill the 6-830 engine crankcase with CC/SF. CD/SF. CEfSF or CF-4 service classification oil. Use the correct viscosity rating for the ambient air temperature. Install new oil filters after the engine is rebuilt.
  Fill the ST 830 and the STA 830 engine crankcase with CEISF or CF-4 service classification oil. Use the correct viscosity rating for the ambient air temperature. Install new oil filters after the engine is rebuilt.
• Run-In Procedure for Rebuilt Engine
  Step 1 Disconnect the wire to the electric shut-off on the injection pump so the engine will not start. Crank the engine for 30 seconds until there is oil pressure. then connect the wire.
  Step 2 Make sure the coolant level is correct.
  Step 3 Run the engine at 1000 RPM minimum load for 5 minutes and check for oil leaks.
  Step 4 Continue to check the oil pressure. coolant level. and coolant temperature during run-in.
• Run-in Procedure (Agriculture Equipment)
  Use one gear lower than normal for the first 8 hours of field operation. DO NOT lug the engine for the next 12 hours. Move the lever to a tower gear to prevent lugging the engine. Do not lug the engine below the rated engine RPM during early hours of life.
• Run-In Procedure (Construction Equipment)
  Operate the engine at full throttle with a normal load for the first 8 hours. Do not stall the converter or the hydraulics. Do no: lug the engine below the Rated Engine RPM [Do not stall the engine more than 10 seconds}.

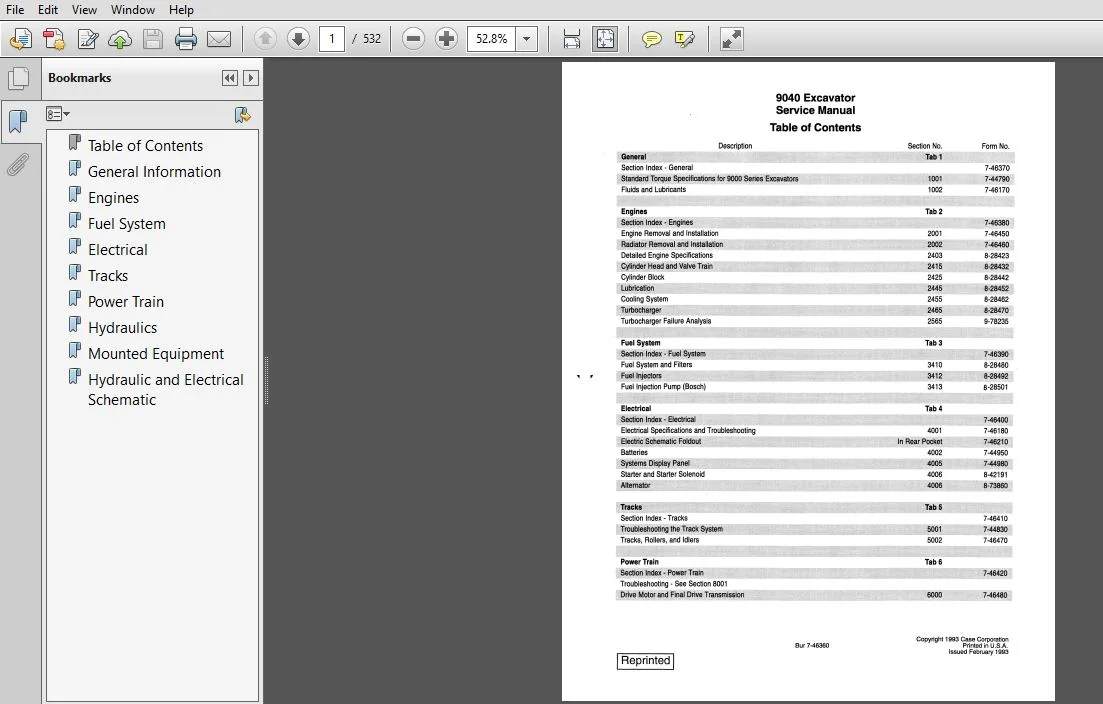

TABLE OF CONTENTS:

Case 9040 Excavator Service Repair Manual Case 9040

Table of Contents
......................  1
General Information
....................  3
Engines
................................ 17
Fuel System
............................219
Electrical
.............................271
Tracks
.................................357
Power Train
............................387
Hydraulics
.............................395
Mounted Equipment
......................507
Hydraulic and Electrical Schematic
....531

PLEASE NOTE:

⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
