Case 9045B Excavator Service Repair Manual (7-11401) Case 9045B – PDF Download

Description

Case 9045B Excavator Service Repair Manual (7-11401) Case 9045B

CASE 9045B EXCAVATOR SERVICE REPAIR MANUAL (7-11401) CASE 9045B – PDF DOWNLOAD:

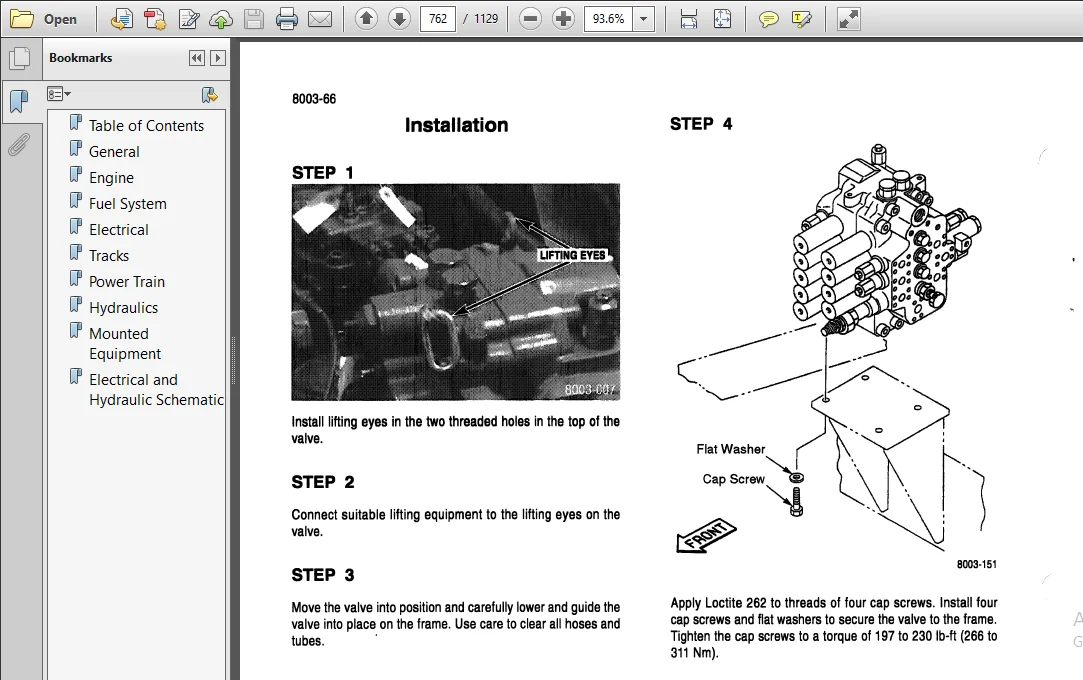

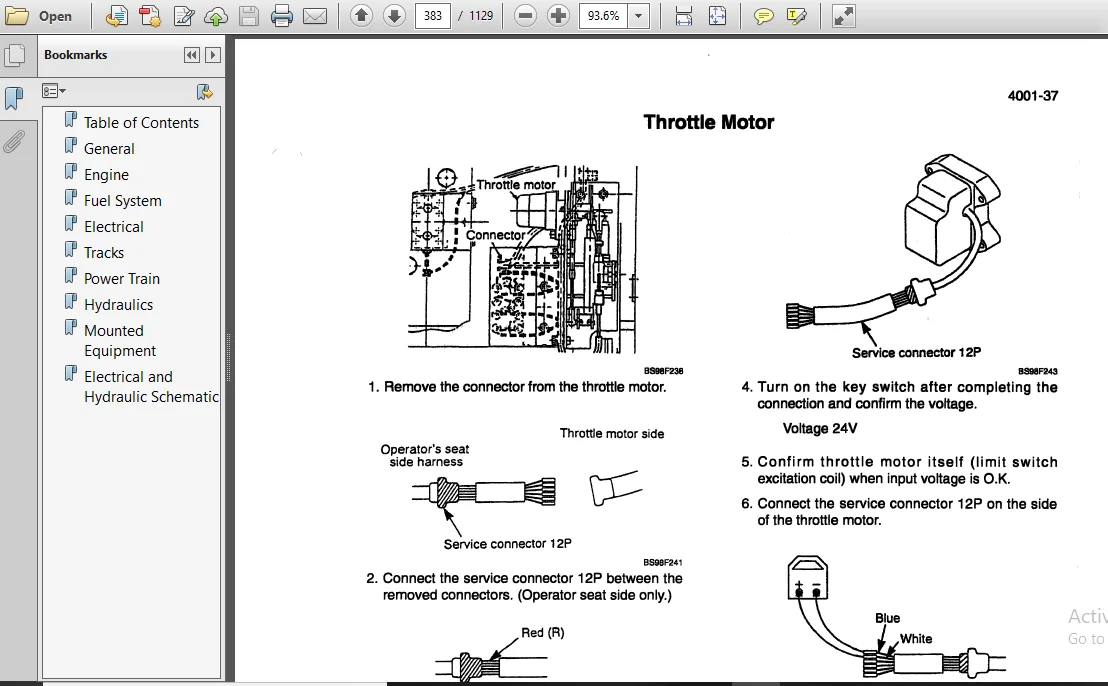

IMAGE PREVIEW:

GENERAL INFORMATION:

Case 9045B Excavator Service Repair Manual (7-11401) Case 9045B

• CLEANING
  Clean all metal parts except hearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put all on all parts. Clean oil passages with compressed air. Clean hearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings.
• INSPECTION
  Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures.
• BEARINGS
  Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR.
• NEEDLE BEARINGS
  Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings.
• GEARS
  Check all gears for wear and damage. Replace gears that have wear or damage.
• OIL SEALS, O-RINGS AND GASKETS
  Always install new oil seals. O-rings and gaskets. Put petroleum jelly on seals and O-rings.
• SHAFTS
  Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
• SERVICE PARTS
  Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty.
• LUBRICATION
  Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.

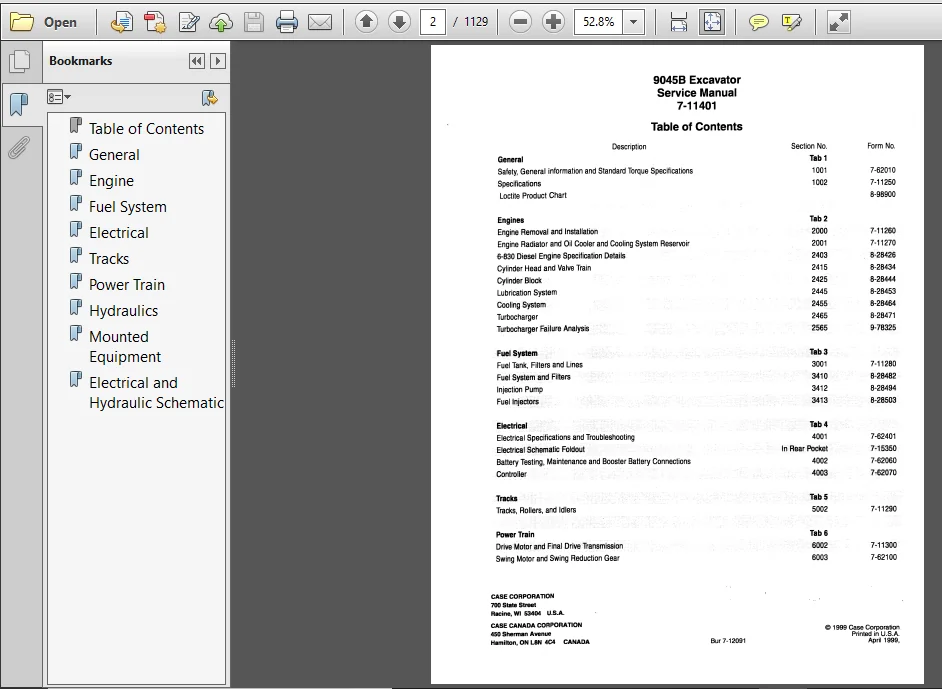

TABLE OF CONTENTS:

Case 9045B Excavator Service Repair Manual (7-11401) Case 9045B

General
Safety, General information and Standard Torque Specifications
Specifications
Loctite Product Chart
Engines
Engine Removal and Installation
Engine Radiator and Oil Cooler and Cooling System Reservoir
6-830 Diesel Engine SpecificationDetails
Cylinder Head and Valve Train
Cylinder Block
Lubrication System
Coating System
Turbocharger
Turbocharger’iFailure Analysis
Fuel Tank, Filters and Lines
Fuel System-fandgFilters
Injection Pump
Fuel lnjectors
Electrical
Electrical Specifications and Troubleshooting
Electrical-Schematic Foldout
Battery Testing, Maintenance and Booster Battery Connections
Controller
Tracks
Tracks, Rollers, and Idlers
PowerTrain
Drive Motorfand Final Drive Transmission
Swing Motor and Swing Reduction Gear
Hydraulics
Cleaning the Hydraulic System
Hydraulic Specifications, Troubleshooting and Pressure Checks
Hydraulic Schematic Foldout (In Process)
Main Hydraulic Pump
Main Hydraulic Control Valve
Cylinders
Hand Control Valves, Foot Lelt and Right Travel Control Valves, Foot Straight Travel
Control Valve. Shultle Valve, Travel Block. and Accumulator
Eight Sgool Solenoid Valve. Swing Lock and Swing Brake Solenoid Valve, Free Swmg olenold Valve, and Quick Change Splendid Valve
Cushion Control Valve
Auxiliary Hydraulics
Hydraulic Pilot Filter. Hydraulic lnline Filter, and Bypass Oil Filter
Hydraulic Swivel
Mounted Equipment
Upper Structure and Counterweight
Boom, Arm, and Bucket
Operator’s Seat. Operator’s Seat Bracket, and Seat Belts
Cab and Cab Equipment
Air Conditioner Troubleshooting and System Checks
Air Conditioner Removal and Installation
Air Conditioner Components

PLEASE NOTE:

⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
